1280007600 Volvo TD60B Starter Motor Wholesale 24V

1280007600 Wholesale Starter Motor for Volvo TD60B-powered F6 and F7 vehicles

For Volvo classic-truck distributors supplying TD60B-powered F6 and F7 vehicles, the decisive 1280007600 check is the 1280007600 eleven-tooth configuration shown for this product. The same headline reference also appears with a nine-tooth drive, making tooth count essential to the order.

Send F6 or F7 chassis, TD60B engine information, old-unit numbers, counted pinion photograph and mounting-face view, quantity by destination and required arrival date. Elecdura can compare the 1280007600 11T request with the specified drive end before preparing pricing, packing, lead-time and freight terms.

1280007600 Starter Motor Dimensions for Volvo TD60B Fleet Buyers

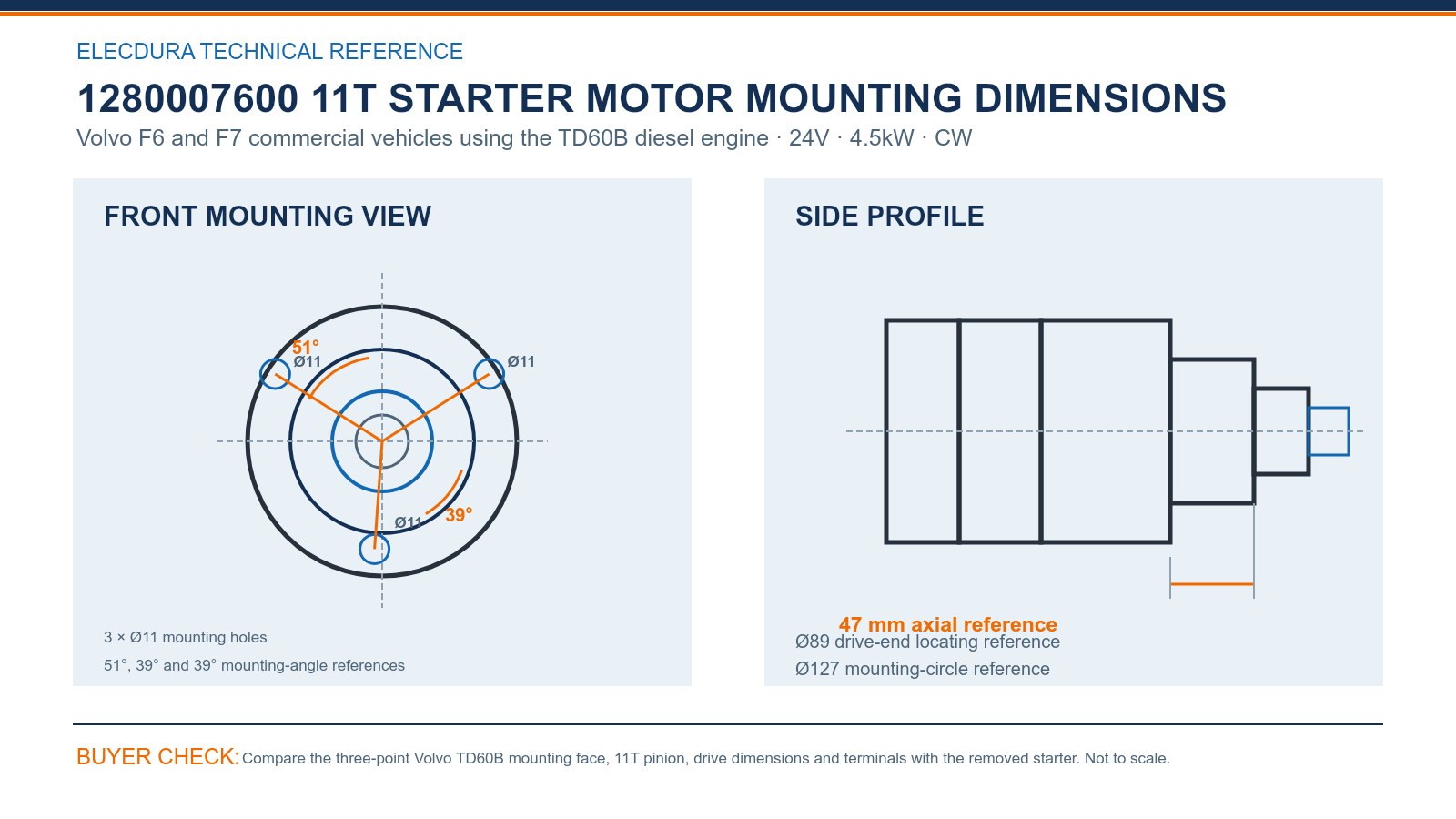

1280007600 Volvo TD60B 24V 4.5kW 11T starter mounting dimensions.

The 1280007600 11T drawing highlights 3 × Ø11 mounting holes together with Ø127 mounting-circle reference. Those fixed points are more useful than overall motor shape when checking Volvo TD60B-powered F6 and F7 vehicles.

Count the 11T pinion and verify CW rotation before checking the cable side for Volvo TD60B-powered F6 and F7 vehicles. For 1280007600 11T, sample the eleven-tooth pinion, three Ø11 holes, Ø89 pilot, 47 mm drive position and terminals; resolve any disagreement before stock release.

1280007600 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with 1280007600 11T and record every complete number on the removed unit. Related references help locate 1280007600 11T, but buyers must still confirm the 1280007600 eleven-tooth configuration shown for this product.

2. Physical confirmation: Cross-references narrow the 1280007600 11T search; they do not replace the 11T pinion, mounting face and terminal check. Record those physical points on the purchase order.

1280007600 Starter Motor MOQ, Lead Time and Export Supply

B2B supply for 1280007600 11T starts at 20 pieces, with normal lead time of 7–15 days and an 18-month agreed-term warranty. For stock planning, create separate 11T and 9T bins, quotations and carton descriptions even when both enquiries use 1280007600.

1280007600 11T receiving should include a physical sample check: sample the eleven-tooth pinion, three Ø11 holes, Ø89 pilot, 47 mm drive position and terminals. Retain the lot number and comparison photographs for Volvo TD60B-powered F6 and F7 vehicles, branch transfers and later repeat orders.

The following video introduces Elecdura manufacturing and electrical test capability. For 1280007600 11T, product selection still follows the complete reference, physical checks, quantity and delivery requirement.

1280007600 Starter Motor FAQs for Volvo Parts Buyers

How can buyers distinguish 1280007600 11T from a similar starter?

The same headline reference also appears with a nine-tooth drive, making tooth count essential to the order. Confirm 1280007600 11T by comparing the 1280007600 eleven-tooth configuration shown for this product against the old unit's label, pinion and terminals. Keep Volvo TD60B-powered F6 and F7 vehicles on the enquiry; a matching rating or housing is not enough.

Which details are needed for a 1280007600 11T wholesale quotation?

Send F6 or F7 chassis, TD60B engine information, old-unit numbers, counted pinion photograph and mounting-face view, quantity, destination and target date for 1280007600 11T. For Volvo TD60B-powered F6 and F7 vehicles, list immediate service quantity separately from routine stock and state allocation needs. Elecdura can then price 24V, 4.5kW, 11T, module 3, CW with MOQ, timing, warranty and freight options for 1280007600.

What drive-end dimensions should be compared for 1280007600 11T?

For 1280007600 11T, compare 3 × Ø11 mounting holes, Ø89 drive-end locating reference and 47 mm axial reference. Relate those dimensions to Ø127 mounting-circle reference and the 11T pinion for Volvo TD60B-powered F6 and F7 vehicles. Work from a front-facing drive-end photograph, since perspective can hide hole position, pilot diameter or pinion depth for Volvo TD60B-powered F6 and F7 vehicles.

How should distributors plan stock for 1280007600 11T?

Create separate 11T and 9T bins, quotations and carton descriptions even when both enquiries use 1280007600. Set the 1280007600 11T reserve from supported machines, recent withdrawals and transfer time. Keeping the Volvo TD60B-powered F6 and F7 vehicles and drive description on the bin helps branches avoid issuing another Volvo starter during an urgent repair.

Which electrical checks should precede starter replacement on Volvo TD60B-powered F6 and F7 vehicles?

Test batteries and cable voltage drop before removing the starter from an older Volvo electrical system. After removing the old starter from Volvo TD60B-powered F6 and F7 vehicles, check the flange, drive teeth and ring gear for unusual marks. Those readings on Volvo TD60B-powered F6 and F7 vehicles distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Volvo starter?

Sample the eleven-tooth pinion, three Ø11 holes, Ø89 pilot, 47 mm drive position and terminals. Match the 1280007600 11T label and 24V, 4.5kW, 11T, module 3, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Volvo TD60B-powered F6 and F7 vehicles.

What should remain on a repeat order for Volvo TD60B-powered F6 and F7 vehicles?

Keep 1280007600 11T, Volvo TD60B-powered F6 and F7 vehicles, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps allow Volvo parts counters to quote the correct TD60B drive without ambiguity from the shared reference.

Which records support an after-sales review for Volvo buyers?

Provide vehicle chassis, mileage, shipment batch, installation date, measured circuit values and old-versus-returned drive images for a 1280007600 11T review. For Volvo TD60B-powered F6 and F7 vehicles, include operating conditions and electrical readings taken before removal, then photograph the old and returned units from matching angles. This helps Volvo buyers separate product condition from installation, electrical-system, transport or application causes for Volvo TD60B-powered F6 and F7 vehicles.

Request 1280007600 Starter Motor Wholesale Pricing

Email F6 or F7 chassis, TD60B engine information, old-unit numbers, counted pinion photograph and mounting-face view, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote 1280007600 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 11T, module 3, CW unit.
