143-0541 Caterpillar 3056E Hydrema Starter Motor Wholesale

143-0541 Starter Motor Wholesale Supply for Caterpillar Hydrema

Caterpillar and Hydrema distributors can search the same OE group, but each enquiry should retain its machine and engine identity. This keeps service stock useful across two construction-equipment channels.

The reference family overlaps another Caterpillar starter application. Stating 3056E or Hydrema 1104D-44TA and comparing the drive-end orientation prevents a broad OE match from hiding an application difference.

143-0541 Starter Motor Dimensions for Construction Parts Buyers

The product is defined as 24V, 4.5kW, 10T, module 3.175 and clockwise rotation. Those values remain the same in the table, drawing discussion, FAQ and quotation data.

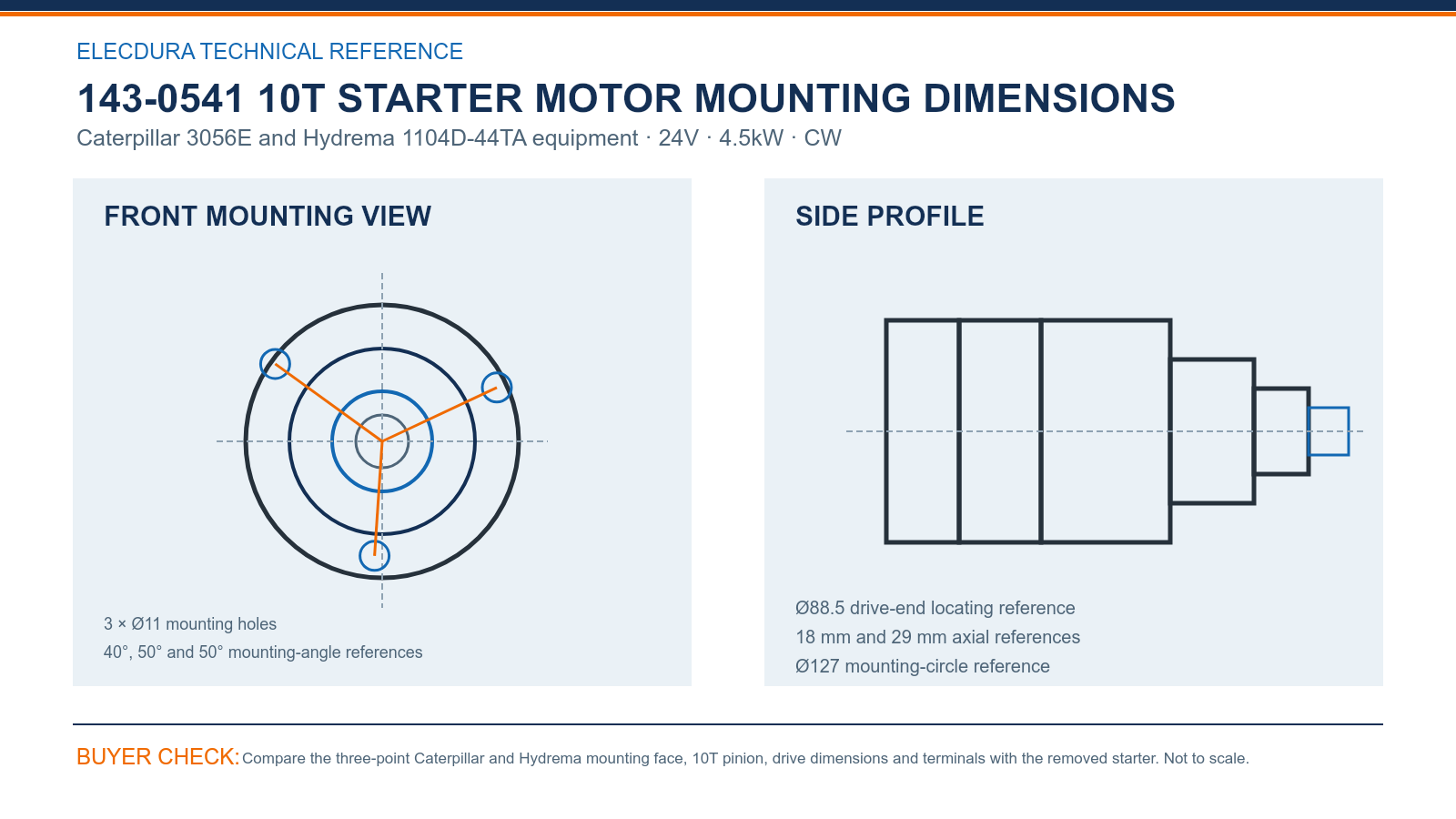

143-0541 Starter Motor Dimensions for Caterpillar Hydrema Buyers — compare the drawing with the removed starter before placing a volume order.

Check three Ø11 holes, the Ø127 mounting circle, Ø88.5 locating reference, 18 mm and 29 mm axial positions and the 40°, 50° and 50° orientation.

143-0541 Starter Motor Application Matching for 3056E and 1104D

143-0541, 0R-4321, 1006929 and 228000-1830 through 228000-1832 support product search. The Caterpillar or Hydrema application must stay attached when each wholesale order and branch transfer is prepared.

Stock can be allocated by the supported Caterpillar and Hydrema population, site distance and replenishment lead time. One physical product should not erase the two different customer-use descriptions.

143-0541 Starter Motor Jobsite Supply and Production Video

Before a unit travels to a jobsite, compare the reference, ten-tooth drive, mounting face, terminals and engine information. This short comparison reduces avoidable freight and installation delay.

The Elecdura video below introduces starter-motor assembly and electrical testing for B2B supply. Construction-equipment buyers can review production capability while preserving application-specific fitment and delivery planning.

143-0541 Starter Motor FAQs for B2B Buyers

Why must a 143-0541 enquiry state 3056E or Hydrema 1104D-44TA?

The reference group alone does not show where the starter will be installed. State whether the order supports a Caterpillar 3056E or Hydrema 1104D-44TA application, then compare the mounting face and terminals. This keeps the quotation specific even when the same Denso numbers appear in another Caterpillar enquiry.

What identifies a Hydrema 1104D-44TA starter request?

State Hydrema machine model, Perkins 1104D-44TA engine identity, serial and removed unit on the enquiry before discussing quantity. Link that information to 143-0541 and photographs showing the 3056E or 1104D-44TA application, 10T drive and 127 mm face. This links the product to the Hydrema engine installation rather than the Caterpillar brand alone. Use the confirmed 143-0541 combination on the purchase order and receiving sheet.

Which Caterpillar evidence should accompany a 3056E enquiry?

The buyer should provide machine model, arrangement or serial, 3056E engine details and complete starter reference. For 143-0541, those details must agree with the 3056E or 1104D-44TA application, 10T drive and 127 mm face rather than a broad brand description. This supports a product-specific match across varied Caterpillar equipment. Preserve the Caterpillar 3056E and Hydrema 1104D-44TA equipment fitment and mounting comparison in the customer's reorder notes.

How does the 143-0541 drawing guide the physical comparison?

Measure 3 × Ø11 holes, Ø127 circle, Ø88.5 location, 18 mm and 29 mm axial references, 40°/50°/50° angles on the removed starter or a trusted sample. For 143-0541, keep square front and side photographs showing the 3056E or 1104D-44TA application, 10T drive and 127 mm face. This distinguishes the exact drive-end orientation within an overlapping OE family. Carry the agreed 143-0541 identity through packing and branch-transfer documents.

What is the practical relationship among 143-0541, 0R-4321 and 228000-1830?

Cross-reference review should begin with 143-0541, 0R-4321, 1006929 and Denso 228000-1830, 228000-1831 and 228000-1832. Keep the numbers attached to Caterpillar 3056E and Hydrema 1104D-44TA equipment and verify the 3056E or 1104D-44TA application, 10T drive and 127 mm face before purchasing. This helps procurement search multiple number systems while retaining application clarity. Retain the 143-0541 comparison photographs with the delivery lot for after-sales review.

How should a distributor allocate stock between Caterpillar and Hydrema customers?

Plan and label 143-0541 stock from supported machine population, engine application, site distance and replenishment lead time. Keep the 3056E or 1104D-44TA application, 10T drive and 127 mm face visible on cartons, bin cards and branch transfers so urgent demand does not create a wrong substitution. This prevents application information from being lost when one physical product serves two channels.

What must agree before a 143-0541 unit is dispatched to a jobsite?

Receiving staff should record reference, 10T module-3.175 drive, mounting face, terminals and machine or engine identity against the 143-0541 shipment lot. The check should show the 3056E or 1104D-44TA application, 10T drive and 127 mm face clearly enough for repeat deliveries and after-sales comparison. This provides a final field-supply check for remote construction equipment. Retain Caterpillar and Hydrema quantities as separate application lines on repeat orders.

Which project details help Elecdura quote this Caterpillar Hydrema starter?

Send machine and engine data, unit quantity, breakdown or stock purpose, packing, destination and schedule in one enquiry. Elecdura can then check the 3056E or 1104D-44TA application, 10T drive and 127 mm face and quote quantity, packing and lead time against the actual destination. This connects the technical match with a realistic supply proposal. Attach the confirmed 143-0541 comparison to the quotation so receiving can check the same product.

Request 143-0541 Starter Motor B2B Pricing from Elecdura

Email the Caterpillar or Hydrema machine model, engine and serial details, complete old-unit number, mounting and terminal photographs, quantity, jobsite or stock purpose, packing and destination to info@elecdurauto.com. Elecdura will review 143-0541 and prepare B2B pricing.
