15481-63010 Kubota M-Series Starter Motor Wholesale

15481-63010 Kubota M-Series Starter Motor Supply for Tractor Dealers

Kubota utility-tractor workshops may service M6950, M7950 and M8950 machines through the same parts counter. To keep this starter distinct, put 15481-63010, the exact tractor model, the 9T pinion and the compact flange in the first line of the enquiry.

Add the old label, a front-facing flange photograph, a pinion close-up and a terminal-side image. Elecdura can compare the Ø73 mounting-circle reference, Ø89 locating reference and 27 mm axial position before returning product and commercial details for dealer stock.

15481-63010 Starter Motor Dimensions for Kubota Workshop Matching

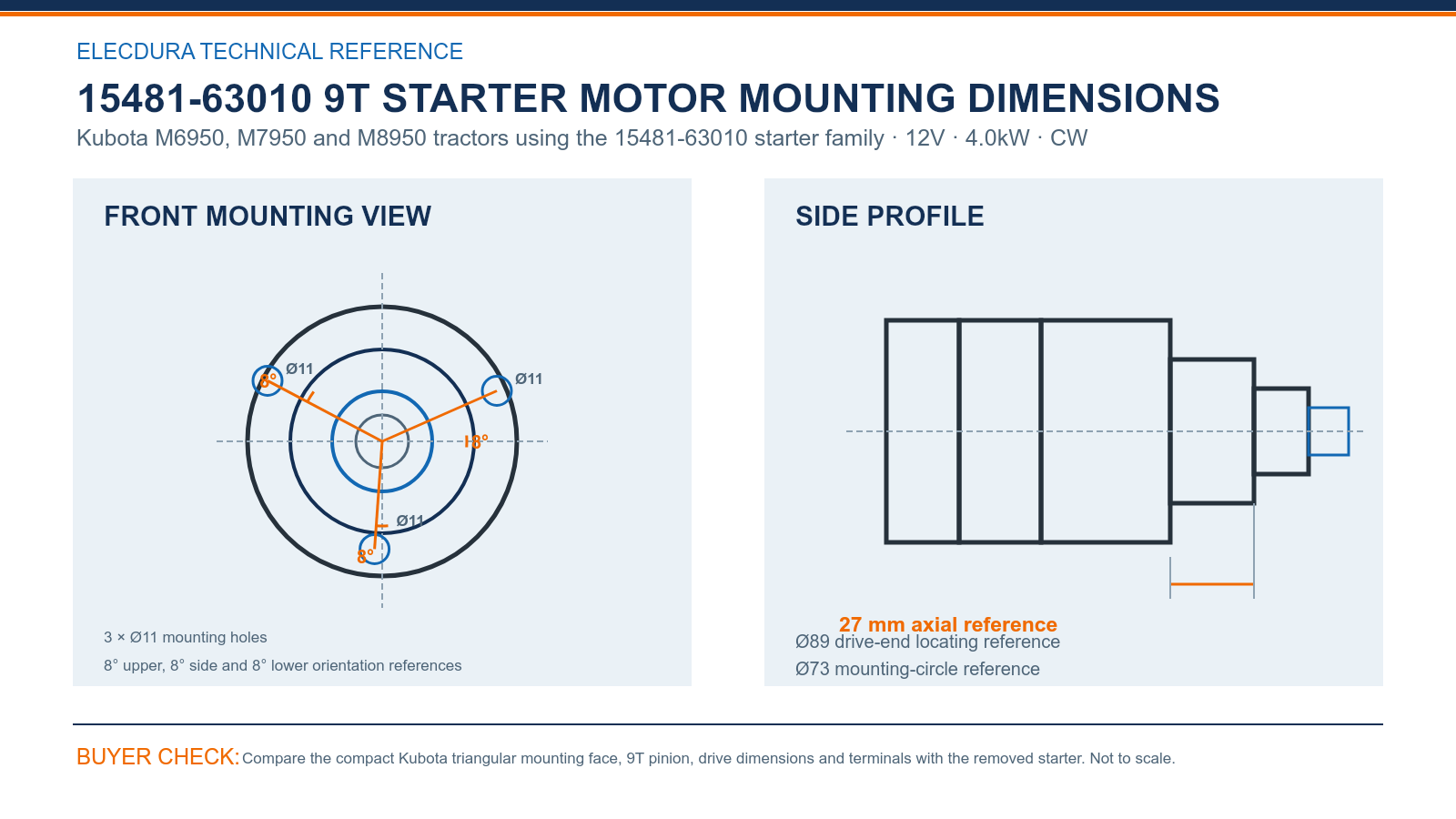

15481-63010 Kubota 12V 4.0kW 9T starter mounting dimensions for buyer-side comparison.

Three Ø11 mounting holes are arranged with 8° upper, 8° side and 8° lower orientation references. The compact Ø73 mounting-circle reference sits with an Ø89 drive-end locating reference and a 27 mm axial reference, giving the workshop several small but decisive fitment points.

The specified drive is 9T, module 3 and CW at 12V, 4.0kW. Compare the pinion and flange together; using only an M-series model name can hide a different starter fitted during an earlier repair.

15481-63010 Starter Motor OE Group and 9T Version Identification

Recognized enquiry numbers are 15481-63010 / 15481-63011 / 15481-63012 / 15481-63013 / 028000-7730 / 028000-7731 / 028000-7732 / 028000-7733. Keep the complete suffix visible and pair it with the tractor model.

Electrical and drive version

Use 4.0kW and 9T together.

Compact face

Compare the Ø73 circle and three Ø11 holes.

Previous repairs

Use old-unit photographs to reveal any different unit already fitted.

15481-63010 Starter Motor Replenishment for Seasonal Farm Service

Farm-service demand rises around planting and harvesting, but the mix differs by dealer territory. A buyer can present forecast stock separately from units already assigned to workshop jobs. Elecdura can quote MOQ, normal production timing, packing and delivery against that more useful demand picture.

When cartons arrive, examine the 9T drive, compact flange, three mounting holes and terminal caps. Store the full Kubota number on the shelf label rather than shortening every item to an M-series starter; that preserves the information needed when the next core comes in from a different tractor model.

The embedded video shows Elecdura starter-motor production and electrical testing. For 15481-63010, supplier capability is considered alongside the actual Kubota model, 9T configuration, compact mounting geometry and dealer delivery requirements.

15481-63010 Starter Motor Questions from B2B Buyers

Why can a general Kubota M-series description be insufficient for 15481-63010?

M6950, M7950 and M8950 tractors sit close together in many service programmes, and previous repairs may introduce a different number or housing. The full 15481-63010 family, 9T pinion and compact Ø73 mounting-circle reference create a clearer item identity than the model family alone, especially for counter sales.

What should a dealer measure on a removed 15481-63010 starter?

Compare the Ø89 drive-end locating reference and 27 mm axial position, then check the compact Ø73 mounting-circle reference and three Ø11 holes. A straight flange photograph with a ruler makes those values easier to review. Count all nine pinion teeth and keep the terminal side visible in a separate image.

How should the 15481-63011 to 15481-63013 suffixes be handled?

Treat each complete number as valuable enquiry information and send every marking found on the old unit. The suffixes belong to the recognized reference family, but they do not remove the need to verify the M-series application, 12V 4.0kW rating, 9T drive and compact face before stock is combined.

Which checks help prevent repeat cranking problems after installation?

Test the battery under load, inspect both cable paths for voltage drop and clean the starter mounting surface. Check ring-gear condition before fitting the replacement. Once installed, verify cable clearance and pinion release. These steps help the workshop avoid attributing a wiring, battery or ring-gear issue to the new 15481-63010 unit.

How can a tractor dealer plan 15481-63010 stock across the service season?

Separate units committed to booked repairs from general counter inventory, then review the number of active M6950, M7950 and M8950 tractors in the territory. Share the required arrival date and branch split with Elecdura. The quotation can then address a practical opening quantity and replenishment timing rather than a broad annual estimate.

What carton information helps a Kubota parts counter issue the correct unit?

Show the complete 15481-63010 reference, the M-series application and the 9T configuration on the external label. If customer labels are requested, keep those identifiers readable rather than replacing them with a short internal code. A flange photograph in the product record gives counter staff another check when several starter cartons look alike.

What receiving inspection is appropriate for the compact Kubota flange?

Sample more than one carton, confirm the three Ø11 holes and inspect the Ø73 mounting-circle area for casting or transit damage. Count the 9T drive and check the terminal caps. Retain the shipment lot with one accepted-unit photograph before releasing the remaining cartons to workshop and dealer inventory.

What should accompany a 15481-63010 price request?

Provide the exact Kubota tractor model, every old-unit number, label and face photographs, a pinion close-up, quantity and destination. Include target delivery timing plus neutral-carton or customer-label requirements. Elecdura can then return the 12V 4.0kW 9T configuration together with MOQ, lead time, warranty and shipping terms.

Request 15481-63010 Kubota Starter Motor Wholesale Pricing

Send 15481-63010, the Kubota M6950, M7950 or M8950 model, old starter references, compact-flange and 9T pinion photographs, quantity, destination and required date. Elecdura will quote the specified 12V, 4.0kW, 9T CW starter motor for B2B supply.

Separate booked workshop demand from dealer stock if useful, and state packing or label needs so the response can cover both fitment and replenishment planning.
