15527-63011 Kubota D1402 Starter Motor Wholesale

15527-63011 Starter Motor Buying for Kubota D1402 B2B Channels

Kubota D1402 engines appear in tractors, industrial machines and specialist equipment, so the host machine name may vary widely. The reliable purchasing identity combines 15527-63011 or its unformatted version with the 12V 2.5kW 11T specification and the two-hole face.

Ask for the engine plate, host equipment, complete old label and straight photographs of the mounting ears and terminals. Elecdura can then quote the exact D1402 configuration while keeping other Kubota engine starters out of the same parts bin.

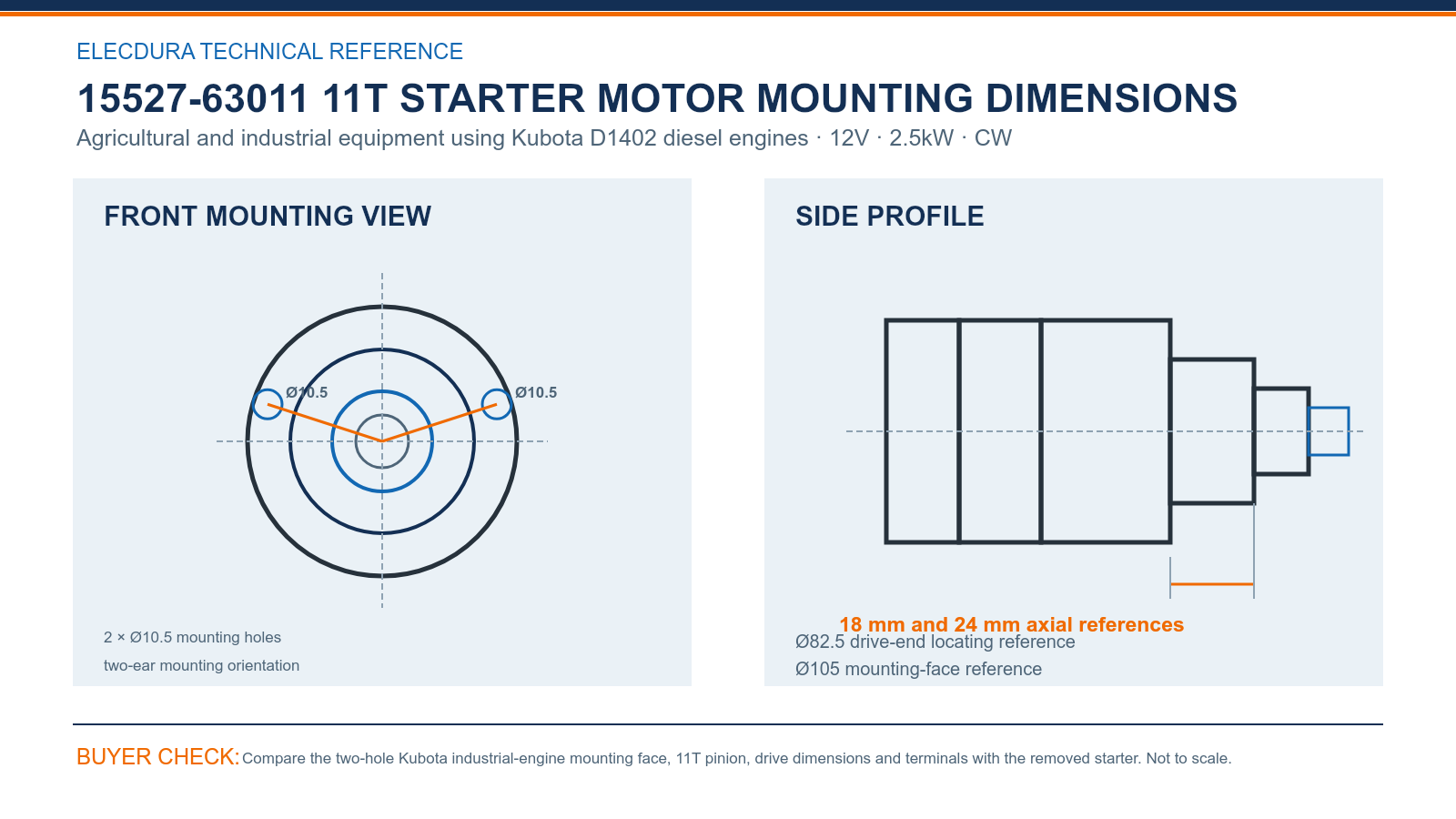

15527-63011 Starter Motor Drawing for Kubota Engine Distributors

15527-63011 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 15527-63011 drive end uses two Ø10.5 mounting holes on an Ø105 face, with an Ø82.5 locator and 18 mm and 24 mm axial references. These compact two-ear dimensions help a Kubota engine distributor distinguish the D1402 unit from other 11-tooth starters used across agricultural machinery.

Use the drawing with the engine plate and complete 15527 or 028000 number. Photograph the pinion and terminals on the same removed unit so mixed-equipment fleets can create one dependable warehouse reference for the confirmed D1402 installation.

15527-63011 Starter Motor Reference Mapping for Kubota Wholesalers

Kubota references 15527-63011, -63012 and -63013 also appear as 1552763011, -12 and -13. Denso numbers run from 028000-7800 through -7803, and Cargo 114711 is another useful trade reference.

1. Retain the exact formatted or unformatted number.

2. Confirm the D1402 engine and 11T clockwise drive.

3. Measure the two Ø10.5 holes and axial points.

This lets an engine-parts buyer compare multiple systems without mistaking number formatting for a different product.

15527-63011 Starter Motor Wholesale Supply for Mixed Machinery Fleets

Dealers supporting several D1402-powered machines can confirm the starter on one identified engine and then retain the host model, engine serial and installation photographs with the warehouse item. Elecdura can review neutral cartons, customer branding and barcode formats for repeat programs.

• Use the Kubota OE and D1402 on carton labels.

• Protect the two mounting ears and terminals in transit.

• Inspect units from several cartons before issuing them to different equipment workshops.

The video shows Elecdura starter-motor production and electrical testing. Send the D1402 engine serial, host equipment, full reference, photographs, quantity and destination for a precise offer.

15527-63011 Starter Motor Wholesale FAQ

Are 15527-63011 and 1552763011 the same reference format?

They are formatted and unformatted presentations used for the same Kubota OE in parts systems. Preserve whichever version appears on the old unit, and include the alternate format in the inquiry. Then confirm D1402, 12V, 2.5kW, 11 teeth, clockwise rotation and the two-hole face so number formatting does not replace physical verification.

Why should the host equipment be stated with a D1402 engine?

Kubota D1402 engines can power agricultural, industrial and specialist machines with different surrounding clearances or service histories. The host model and engine serial narrow the installation and help confirm terminal access. Send those details with the old label and photographs instead of assuming every D1402-powered machine uses an identical starter arrangement.

Which dimensions identify the compact Kubota mounting face?

Compare two Ø10.5 holes, the Ø105 face, Ø82.5 locating feature and the 18 mm and 24 mm axial references. Measure the removed starter directly and photograph both ears straight on. These points define how the nose seats and help separate another Kubota 11T starter that may share a similar motor and solenoid body.

What D1402 engine information should buyers provide?

Send a clear engine-plate photograph, engine serial, host equipment model and every number on the old starter. Add pinion, mounting and terminal views. The engine serial and host machine identify the real service application, while the photographs confirm that the offered 15527-63011 two-hole configuration matches the unit being replaced.

How should dealers manage agricultural and industrial demand together?

Keep one technical item only where the complete OE, engine, 11T drive, mounting dimensions and terminals agree. Use host-machine notes on sales orders rather than creating an unchecked universal D1402 description. If one machine shows a different old number or cable side, separate its quantity until the physical configuration is compared independently.

What bench checks are useful before installing the Kubota starter?

Inspect the pinion, shaft movement, mounting surfaces and terminals, then use suitable test equipment to confirm operation and rotation. Bench results do not prove machine fitment, so still compare the two-hole nose and axial points. On the engine, check battery condition, cable voltage drop, seating, engagement and release before accepting the first unit.

How should the mounting ears be protected during shipment?

Use internal support that prevents the starter moving inside the carton and keeps impact away from both ears, pinion and terminals. On receipt, inspect cartons from several positions for cracks, bent studs or damaged caps. A correct 15527-63011 unit can still fail installation if a compact mounting ear is distorted during freight.

What information enables a 15527-63011 wholesale quotation?

Send the exact Kubota, Denso or Cargo number, D1402 engine serial, host equipment, old-unit label and photographs, quantity, destination, required date and packaging preference. Elecdura can then state the specified 12V 2.5kW 11T CW product, MOQ, normal lead time, warranty and labeling options for the machinery channel.

Request a 15527-63011 Starter Motor Wholesale Quote

Send 15527-63011 or the complete Kubota, Denso or Cargo number, D1402 engine serial, host machine details, old-unit photographs, quantity, destination and packing request. Elecdura will quote the 12V 2.5kW 11T starter with fitment and delivery terms.

If one distributor supports several D1402-powered machines, list the host models and quantities so the first fitment result can be applied carefully across the program.
