17292 Hino FA14/FA15 11T Starter Motor Wholesale

17292 Hino FA14/FA15 Starter Motor Wholesale Support

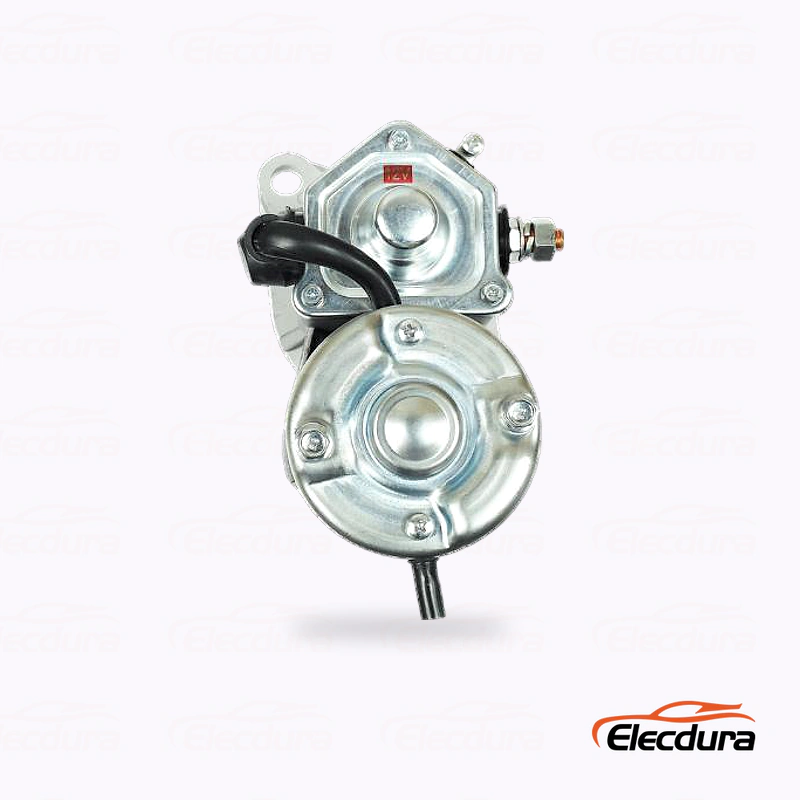

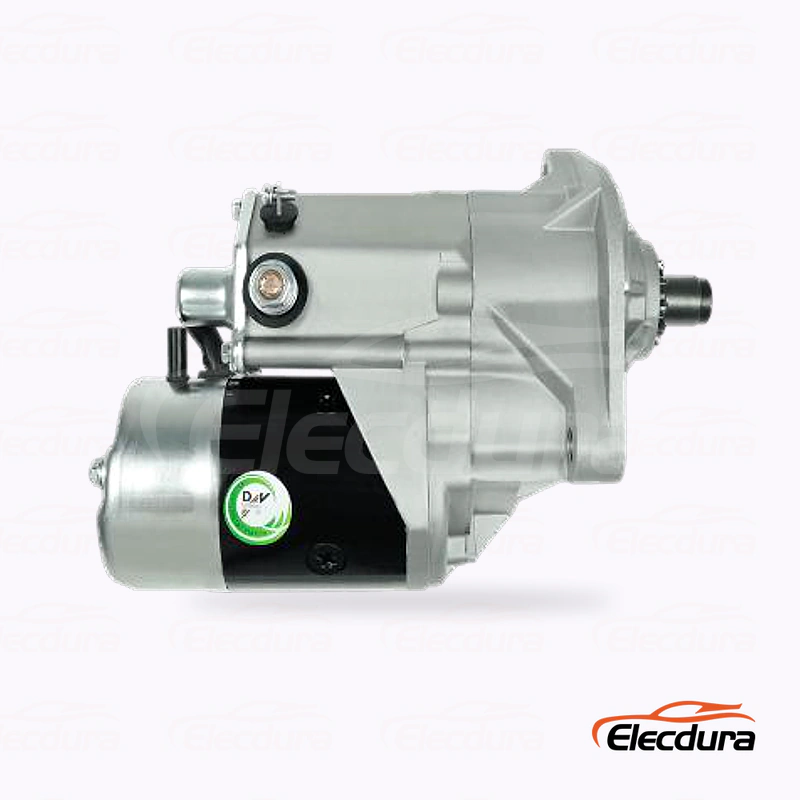

Hino truck-parts distributors and commercial-vehicle importers often receive this starter request under different Hino, Denso, Lester or WAI numbers. The 17292 product offered here is the 12V, 2.5kW, 11-tooth, CW version for Hino FA14 and FA15 3.8L truck applications.

For a quotation, send the full OE or cross-reference, Hino model and engine details, plus clear views of the drive end, mounting face and terminals. Elecdura will compare the number group, pinion, three-hole face, locating diameter and connection layout so the buyer can reduce wrong-version returns and avoid unnecessary truck downtime.

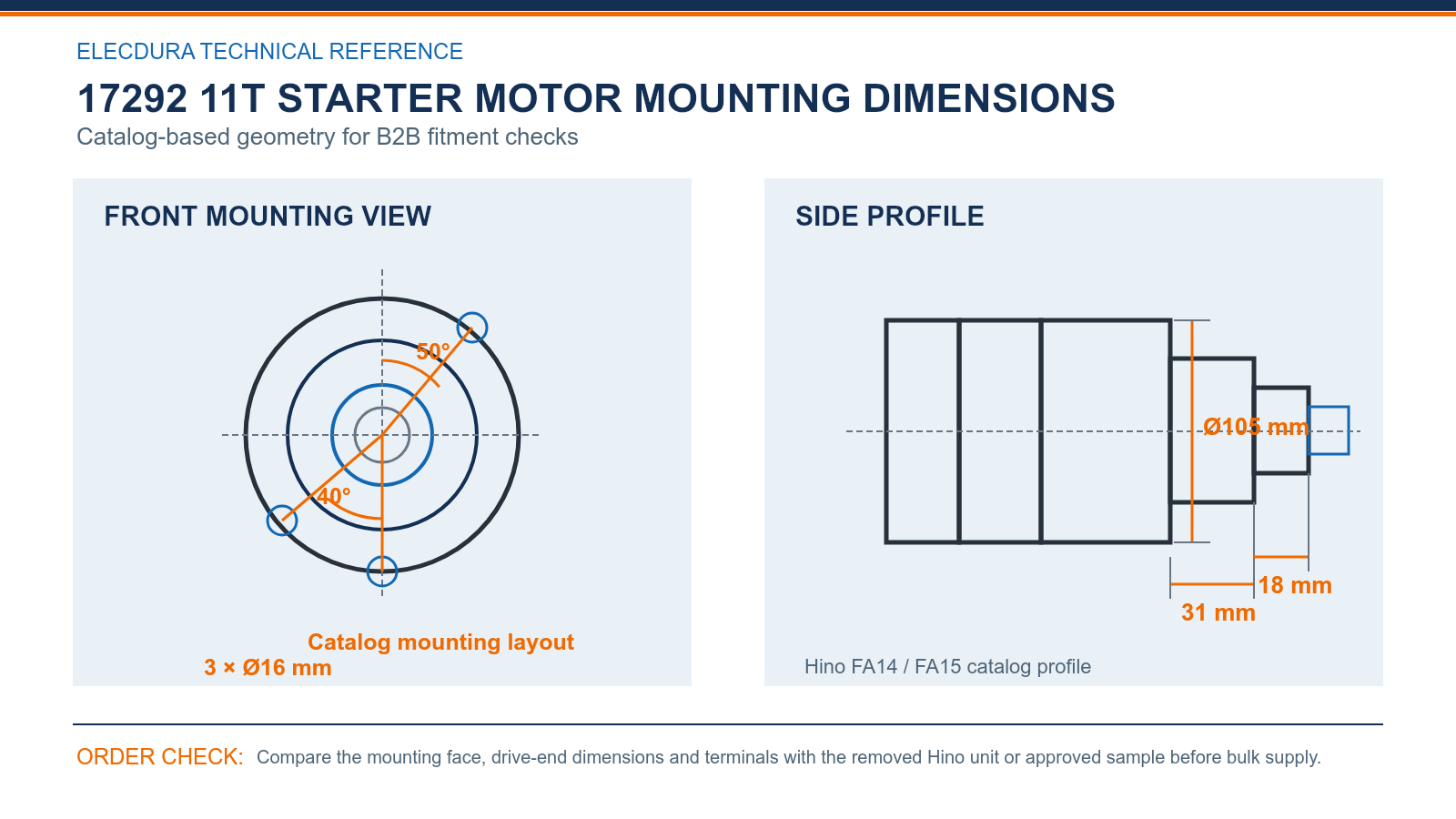

17292 12V 2.5kW Starter Motor Specifications and Drawing

Use this drawing to compare the Hino three-hole mounting face, locating diameter and drive-end depth before ordering a sample or production quantity.

The dimension image records the catalog geometry of this 17292 configuration. The old starter, a confirmed sample or measured customer data should decide the order whenever the mounting face, drive depth or terminal location cannot be confirmed from the OE number alone.

17292 Hino Starter Motor Cross-Reference Guide for Distributors

Demand for this unit may arrive under 17292N, 2-2709-ND-2, Denso references including 028000-9770 and 128000-5090, or Hino numbers such as 28100-1561A and 28100-1960A. These references help locate the product family, but the wholesale quotation must still retain the Hino FA14/FA15 application and the 11T physical configuration.

• For Hino purchasing records: keep the complete 28100-series number and the FA14 or FA15 model information.

• For Denso-based requests: provide the full 028000 or 128000 number, not a shortened fragment.

• For aftermarket references: pair 17292, 17292N or 2-2709-ND-2 with drive-end and terminal photos when the original vehicle record is unavailable.

This information lets a distributor use several familiar reference formats without combining a different voltage, power, pinion or mounting version into the same purchasing line.

17292 Hino Starter Motor Bulk Supply, Packaging and Video

Elecdura supplies the 17292 Hino starter to distributors and wholesalers with a standard MOQ of 20 pieces. Normal lead time is 7–15 days after specification and order details are confirmed. Neutral packing is available, while private-label cartons, labels and barcodes can be reviewed for qualified programs.

For an initial order, a sample check should record the 11T drive, three-hole face, Ø105 locating diameter, drive-end depths and terminal arrangement. Retaining those photos and measurements gives purchasing and receiving teams a usable benchmark for later replenishment orders.

The video below introduces Elecdura starter-motor production and electrical-testing capability. Product selection for this inquiry remains based on the 17292 reference group, Hino FA14/FA15 application, listed electrical specification and physical mounting checks.

17292 Hino FA14/FA15 Starter Motor Wholesale FAQ

Is 17292 the right starter motor for Hino FA14 and FA15 3.8L trucks?

The 17292 reference supports Hino FA14 and FA15 3.8L truck applications when the requested unit matches the 12V, 2.5kW, 11-tooth and CW configuration shown here. Vehicle model alone is not enough for a bulk order. Send the complete number and clear drive-end, mounting-face and terminal photos so Elecdura can compare the physical version before quotation.

Which OE and cross-reference numbers can a buyer use for a 17292 quotation?

A quotation can begin with 17292, 17292N, 2-2709-ND-2, 028000-9770, 028000-9771, 128000-5090, 128000-5300 or the Hino references 28100-1561A, 28100-1562A, 28100-1930A and 28100-1960A. Include the number exactly as it appears on the old starter or purchasing record. Elecdura will connect it to the stated 11T Hino configuration rather than treating every related number as automatically interchangeable.

Why must the 11-tooth pinion be confirmed on this Hino starter?

The 11-tooth pinion is one of the fastest ways to separate this 17292 version from a starter that may share a similar housing or partial reference. A different tooth count can change engagement with the flywheel ring gear and create an immediate fitment problem. Count the pinion teeth on the removed unit and include a close drive-end image with the inquiry.

What does the three-hole mounting drawing help a distributor compare?

The drawing shows the three-hole face, Ø16 mounting holes, 40° and 50° relationships, Ø105 locating diameter, and the 18 mm and 31 mm drive-end references for this catalog configuration. Use these points to compare a sample or removed starter. Do not scale dimensions from the screen; check the actual part when a measurement affects the order.

How should buyers use the 12V, 2.5kW and CW specification?

These values define the electrical and rotation requirements of the 17292 starter supplied for the stated Hino FA14 and FA15 applications. Confirm that the vehicle electrical system is 12V and that the old starter record supports 2.5kW and clockwise rotation. A matching OE number with a different voltage, power or rotation should be quoted as a separate item.

What photos are most useful when the Hino vehicle record is incomplete?

Provide one clear photo of the complete starter, one straight-on view of the mounting face, one close view of the 11-tooth pinion and one view showing the solenoid and terminal positions. Add every readable number from the label or housing. This set gives Elecdura enough visual control points to compare the Hino request without relying on a single unclear reference.

Can this 17292 starter be supplied for distributor packaging programs?

Yes. The standard commercial starting point is 20 pieces, with neutral packaging available and private-label packaging reviewed for qualified orders. Share the carton style, label content, barcode format, destination and quantity before order confirmation. Elecdura will align packaging details with this exact 17292 line so the supplied unit and the distributor label remain consistent.

What should be checked when the first 17292 sample arrives?

Record the 17292 marking or agreed cross-reference, then confirm 12V, 2.5kW, 11 teeth and CW rotation against the purchase specification. Compare the mounting holes, locating face, drive-end depth, solenoid position and terminals with the approved Hino sample or removed unit. Keeping these checks with receiving photos gives repeat orders a practical reference for later inspections.

What information helps Elecdura quote repeat Hino FA14 and FA15 orders consistently?

Keep the Hino model and 3.8L application, complete OE or cross-reference, 11T confirmation, approved sample photos, required quantity, delivery destination and packaging version in the repeat inquiry. If the customer changes any vehicle, electrical or mounting detail, identify it separately. This lets Elecdura review the change without mixing it into the previously confirmed 17292 requirement.

Request a 17292 Hino FA14/FA15 Starter Motor Quote

Send your complete OE or cross-reference, Hino FA14 or FA15 3.8L application, 11T confirmation, old-unit photos, order quantity, destination and packaging preference. Add measured mounting or drive-end details when the vehicle record is incomplete or the request comes through a local service number.

Elecdura will return a quotation tied to the stated 12V, 2.5kW, 11T and CW configuration, together with the relevant sample and packaging requirements. Contact us to review a first order or a repeat stocking program for this Hino starter.
