17303 Isuzu 4BJ1T 9T Starter Motor Wholesale

17303 Starter Motor Wholesale Fitment for Isuzu 4BJ1T and Opel 4BG2T diesel applications

Start with 17303 and the confirmed engine record, then check the nine-tooth pinion, two mounting holes, nose profile and terminal position against the removed unit.

Isuzu diesel-parts importers need 17303 defined by its 9T configuration for 4BJ1T and Opel 4BG2T demand, not by a short cross-reference alone.

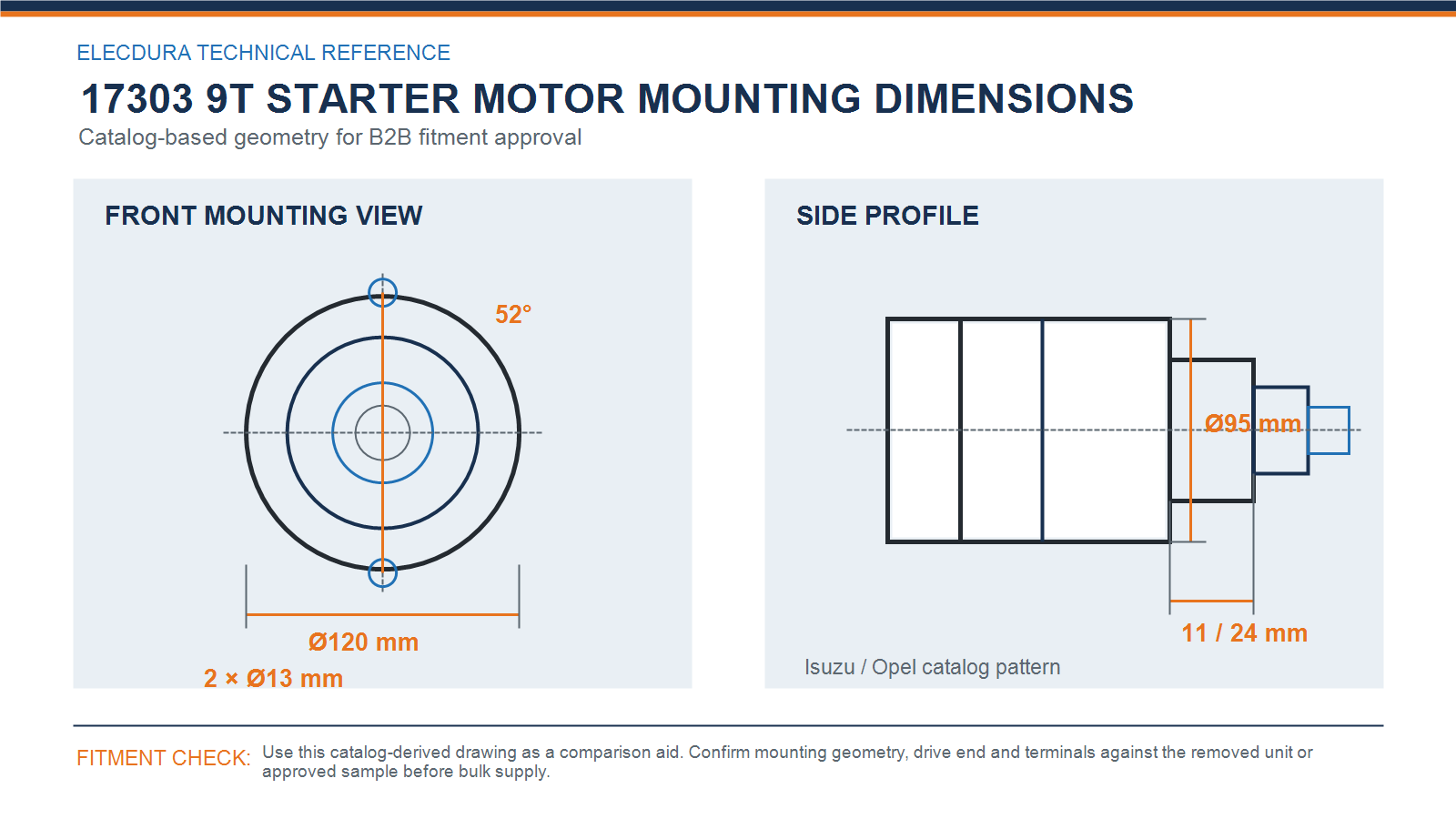

17303 Starter Motor Technical Drawing for Distributor Approval

Technical mounting reference for comparison with the approved unit before sample or volume release.

Use this 17303 image alongside the removed starter record. Sample approval should record 9T/CW, two Ø13 mm holes, 52-degree relationship, Ø120 mm face, Ø95 mm side reference and 11/24 mm axial details shown on the technical drawing. A dimensional visual cannot replace a direct check of the approved unit.

17303 Starter Motor OE Control for B2B Procurement

Start with 17303 and the confirmed engine record, then check the nine-tooth pinion, two mounting holes, nose profile and terminal position against the removed unit.

Long reference lists can mask a different drive or mounting arrangement, especially when an order moves between Isuzu, Opel and material-handling service channels.

Identity

17303 plus the complete Isuzu 4BJ1T and Opel 4BG2T diesel applications record.

Comparison

9T drive, mounting face, nose profile and terminal position.

Release

Separate any variant that changes a physical control.

17303 Starter Motor Bulk Supply, Sampling and Video

For a 17303 quotation, provide the Isuzu or Opel engine designation, full OE or cross-reference, 9T evidence, old-unit photos, volume, destination and packaging requirements.

Standard MOQ begins at 20 pieces. Neutral packing is available, and qualified private-label programs can be reviewed after the approved label, barcode, carton strength and protective inserts are confirmed for this exact item.

The video below introduces Elecdura starter-motor production and electrical-testing capability. The unit supplied under this page remains the 17303 configuration identified by the listed application, 9T drive and physical checks.

17303 Starter Motor Buyer FAQ for Wholesale Orders

What is the safest starting record for a 17303 enquiry covering Isuzu 4BJ1T and Opel 4BG2T diesel applications?

For a specialist aftermarket supply decision, begin the 17303 inquiry with the complete reference and the stated Isuzu 4BJ1T and Opel 4BG2T diesel applications scope. Start with 17303 and the confirmed engine record, then check the nine-tooth pinion, two mounting holes, nose profile and terminal position against the removed unit. Keep the machine or engine record beside the 17303 request because a shortened number or a housing photo does not define a reliable bulk-order configuration.

How should the 9T version of 17303 be checked before an alternative is accepted?

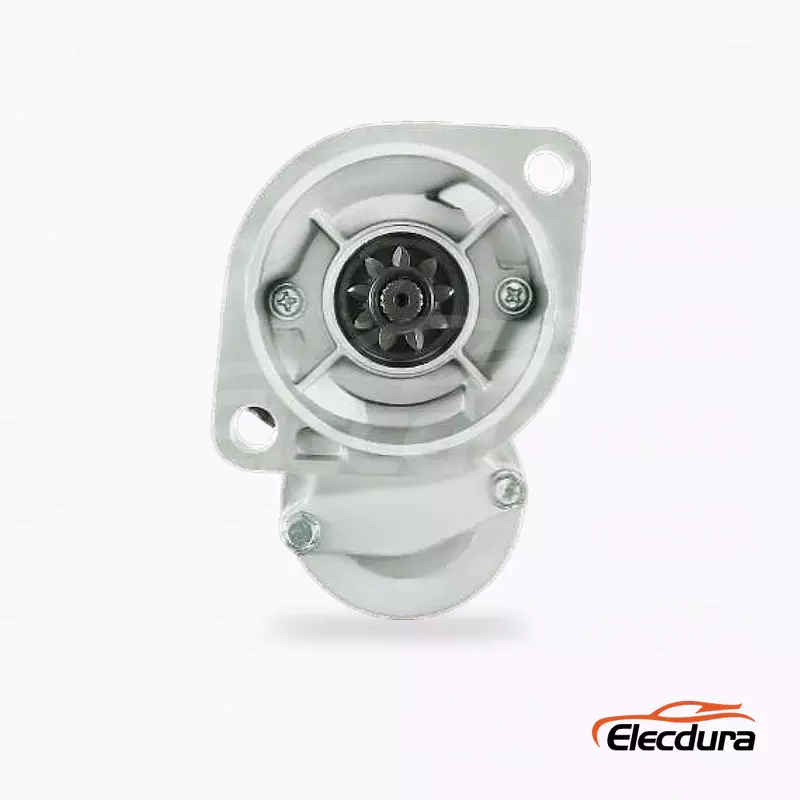

The key separator for this 17303 configuration is the 9T pinion with 12V, 2.2kW and CW rotation. Long reference lists can mask a different drive or mounting arrangement, especially when an order moves between Isuzu, Opel and material-handling service channels. Count the 17303 teeth on the removed unit and include a drive-end photo before approving a replacement or combining adjacent references in one stock code.

How does the 17303 technical drawing support sample approval for Isuzu 4BJ1T and Opel 4BG2T diesel applications?

Use the 17303 technical image as a comparison aid, not as a scaled installation drawing for Isuzu 4BJ1T and Opel 4BG2T diesel applications. Sample approval should record 9T/CW, two Ø13 mm holes, 52-degree relationship, Ø120 mm face, Ø95 mm side reference and 11/24 mm axial details shown on the technical drawing. The removed starter or approved 17303 master sample remains the final reference for mounting face, nose profile, connection position and drive engagement.

Why should 17303 cross-references remain linked to their specific engine or machine record?

The references 17303, 18449, 128000-0830 can locate demand for 17303, but they must remain tied to the defined Isuzu 4BJ1T and Opel 4BG2T diesel applications record. Start with 17303 and the confirmed engine record, then check the nine-tooth pinion, two mounting holes, nose profile and terminal position against the removed unit. If a 17303 physical control differs, quote it on a separate line rather than turning it into a universal interchange claim.

What receiving controls are practical for a first 17303 wholesale delivery?

For initial 17303 acceptance, document the 9T drive, mounting arrangement, terminal orientation, labels and carton protection on a sample. Sample approval should record 9T/CW, two Ø13 mm holes, 52-degree relationship, Ø120 mm face, Ø95 mm side reference and 11/24 mm axial details shown on the technical drawing. The approved 17303 sample gives procurement and warehouse teams one consistent release definition.

Which facts let a supplier respond accurately to a 17303 B2B request?

A useful 17303 enquiry needs more than a vehicle or machine name. For a 17303 quotation, provide the Isuzu or Opel engine designation, full OE or cross-reference, 9T evidence, old-unit photos, volume, destination and packaging requirements. Those Isuzu 4BJ1T and Opel 4BG2T diesel applications details allow the supplier to review the exact 17303 configuration without assumptions from a broad application family.

How should Isuzu diesel-engine distributors and commercial-parts importers plan packaging and labeling for 17303?

Neutral cartons can support standard 17303 wholesale orders, while private-label work starts after label, barcode, carton strength and protective inserts are agreed for this configuration. Isuzu diesel-engine distributors and commercial-parts importers should retain the 17303 version-specific references on purchase orders and warehouse labels.

Which product-identification checks remain necessary after watching the 17303 video?

The product video introduces Elecdura starter-motor production and testing capability; it does not establish 17303 fitment. For Isuzu 4BJ1T and Opel 4BG2T diesel applications, the 17303 release decision remains tied to the full OE reference, 9T drive and the physical comparison saved for the order.

What should be archived with an approved 17303 repeat-order file?

For a repeat 17303 purchase, archive approved sample photos, reference list and inspection result with the item master. Long reference lists can mask a different drive or mounting arrangement, especially when an order moves between Isuzu, Opel and material-handling service channels. That Isuzu 4BJ1T and Opel 4BG2T diesel applications record prevents the same fitment question being reopened when a customer supplies an abbreviated number or a different description.

Request 17303 Starter Motor Wholesale Pricing

For a 17303 quotation, provide the Isuzu or Opel engine designation, full OE or cross-reference, 9T evidence, old-unit photos, volume, destination and packaging requirements. Elecdura will review the 12V, 2.2kW, 9T and CW configuration with the supplied application information before confirming sample, lead-time and wholesale-supply details.
