1811002141 Isuzu 6SD1 6SA1 Starter Motor Wholesale

1811002141 Isuzu Starter Motor Wholesale Supply for 6SD1 Fleets

6SD1-powered equipment is often supported across remote jobsites where returning a wrong heavy starter costs more than the part itself. A useful 1811002141 quotation therefore starts with the engine plate, full reference and straight views of the removed unit.

The 1811002xxx and Nikko 0230006xxx/729x numbers cover a broad heavy-duty family. Keep the 105/54 mm drive end, Ø15 hole specification and terminal cover visible so a nearby 6SA1 or 6SD1 listing is not treated as automatically interchangeable.

1811002141 Starter Motor Specifications for Importer Matching

This supplier-defined product combines 24V, 7.5kW, 11T, module 3 and CW rotation. The electrical rating describes cranking capacity, while tooth count and module define the ring-gear interface that purchasing and receiving must preserve together.

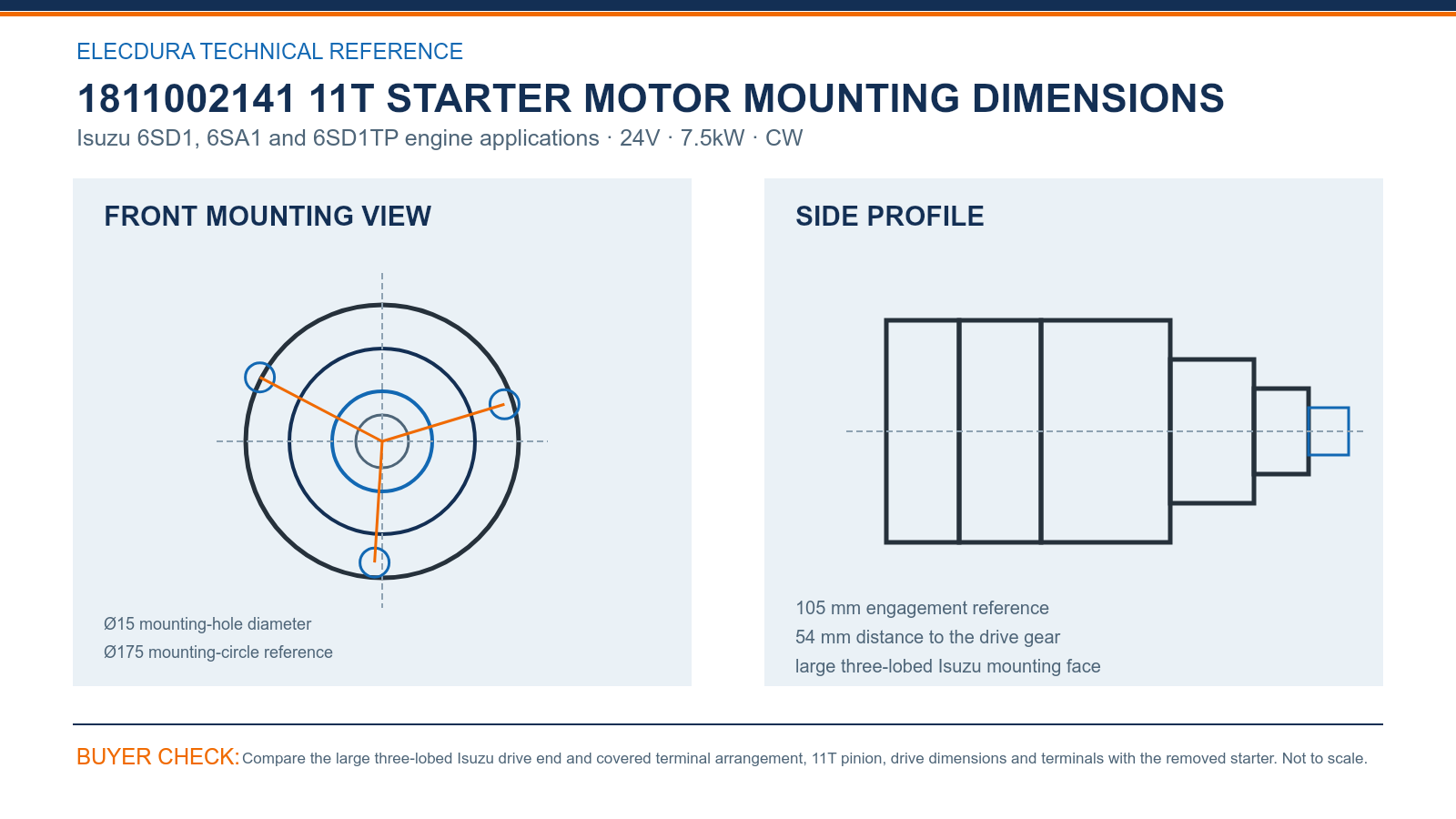

1811002141 Isuzu 6SD1 6SA1 Starter Dimensions for Fleet Buyers — compare the drawing with the removed starter before placing a volume order.

Compare the 105 mm engagement reference, 54 mm distance to the drive gear, Ø15 mounting-hole diameter and Ø175 circle. The large three-lobed casting and covered terminal area should also agree with the removed Isuzu starter.

1811002141 Starter Motor References for Isuzu Parts Distributors

1811002141/2460/2550/272x/2880/294x, JCB 332K4865 and Nikko 023000622x/729x provide useful search paths. Retain the Isuzu engine family and accepted drive-end images beside those numbers on every order.

Distributors serving 6SD1, 6SA1 and turbocharged 6SD1TP fleets can use one stock definition only for machines already matched to this physical version. New equipment families should be measured before the same item is added to branch inventory.

1811002141 Heavy Starter Motor Packing for Fleet Spare Programs

A 7.5kW starter needs body support on several carton points, guards around the pinion and capped terminals. First-lot sampling should include the label, mounting face, cable cover and electrical-test result before units move to mine, quarry or fleet reserve.

The manufacturing clip gives Isuzu fleet buyers a view of starter assembly stations and end-of-line electrical checks. It also supports discussions about first-lot sampling, heavy-unit packaging, shipment labels and replenishment timing for 1811002141.

1811002141 Starter Motor FAQs for Isuzu Fleet and Import Buyers

What should accompany an 1811002141 Isuzu enquiry?

Send the 6SD1, 6SA1 or 6SD1TP engine plate, host machine, complete old-starter markings and square views of the pinion, mounting face and terminals. State battery voltage, quantity and destination. This gives the supplier enough information to compare the 1811002141 product without turning a broad engine-family name into a universal fitment claim.

Can 6SD1 and 6SA1 fleets share 1811002141 stock?

They can share stock only after each supported machine group matches the same 24V 7.5kW 11T configuration, 105/54 mm drive end, Ø175 face and terminal cover. Keep the accepted engine plate and photographs by fleet. A different nose, mounting position or cable arrangement needs its own product comparison.

Why do 11T and module 3 matter on this heavy starter?

Eleven teeth identifies the pinion count, while module 3 describes tooth size and form. Both must suit the ring gear. Recording only 7.5kW or only 11T can admit another heavy Isuzu starter with a different drive, even when its motor body and terminal cover look similar in a listing.

Which 1811002141 dimensions should receiving measure?

Measure the 105 mm engagement reference, 54 mm distance to the drive gear, Ø15 mounting-hole diameter and Ø175 mounting-circle reference. Photograph the flange square-on and add a side view of the large nose. These checks give receiving staff repeatable physical evidence beyond the carton label.

How should JCB and Nikko numbers support 1811002141 sourcing?

Use 332K4865, 71455391 and the Nikko 023000622x/729x numbers to locate the wider family, then return to the Isuzu engine and physical specification. Keep 1811002141, 24V 7.5kW, 11T module 3 and the accepted drive-end image together on the quotation and purchase order. Keep the matched engine plate with receiving documents.

What packing is suitable for a 7.5kW Isuzu starter?

Place reinforced supports under the motor body, guard the large drive end and cap exposed terminals. The starter should not rest on the pinion, solenoid or cable cover. Add moisture protection for sea freight or remote storage, and mark the 1811002141 application clearly before cartons are transferred between branches.

What should a workshop test before replacing 1811002141?

Load-test the 24V battery bank, measure voltage drop on the positive and ground paths, verify start-signal voltage and inspect the ring gear for damaged teeth. Check whether the engine turns freely. These steps separate a failed starter from weak batteries, poor cables, grounding loss or mechanical drag before freight is committed.

Which details help Elecdura quote 1811002141 efficiently?

Provide the Isuzu engine and machine identifiers, complete reference group, rating-label, flange and terminal photographs, required quantity, annual forecast, destination, packing request and delivery target. Mention whether units are for urgent repair or planned reserve. Elecdura can then discuss the specified heavy version and a workable wholesale schedule.

Request 1811002141 Isuzu Starter Motor Wholesale Pricing

Email the Isuzu engine model and plate, complete old-starter numbers, square drive-end and terminal photographs, required quantity, forecast, destination and delivery target to info@elecdurauto.com. Elecdura will review the 1811002141 version and return wholesale terms.
