1811002340 Isuzu 4BD1 Starter Motor Wholesale

1811002340 Isuzu 4BD1 Starter Motor Supply for Truck Distributors

The same starter family can reach a counter as an Isuzu engine enquiry or a Chevrolet medium-duty truck request. A useful 1811002340 order therefore identifies the 4BD1 installation and retains every complete OE, instead of allowing the vehicle badge to become the only product description.

Provide the engine or chassis details, old starter label and photographs of the 11T pinion, wide flange and rear terminal side. Elecdura can compare the 18 mm and 41 mm axial references with the Ø139.5 face before quoting mixed-channel quantities.

1811002340 Starter Motor Dimensions for Cross-Brand Fitment Checks

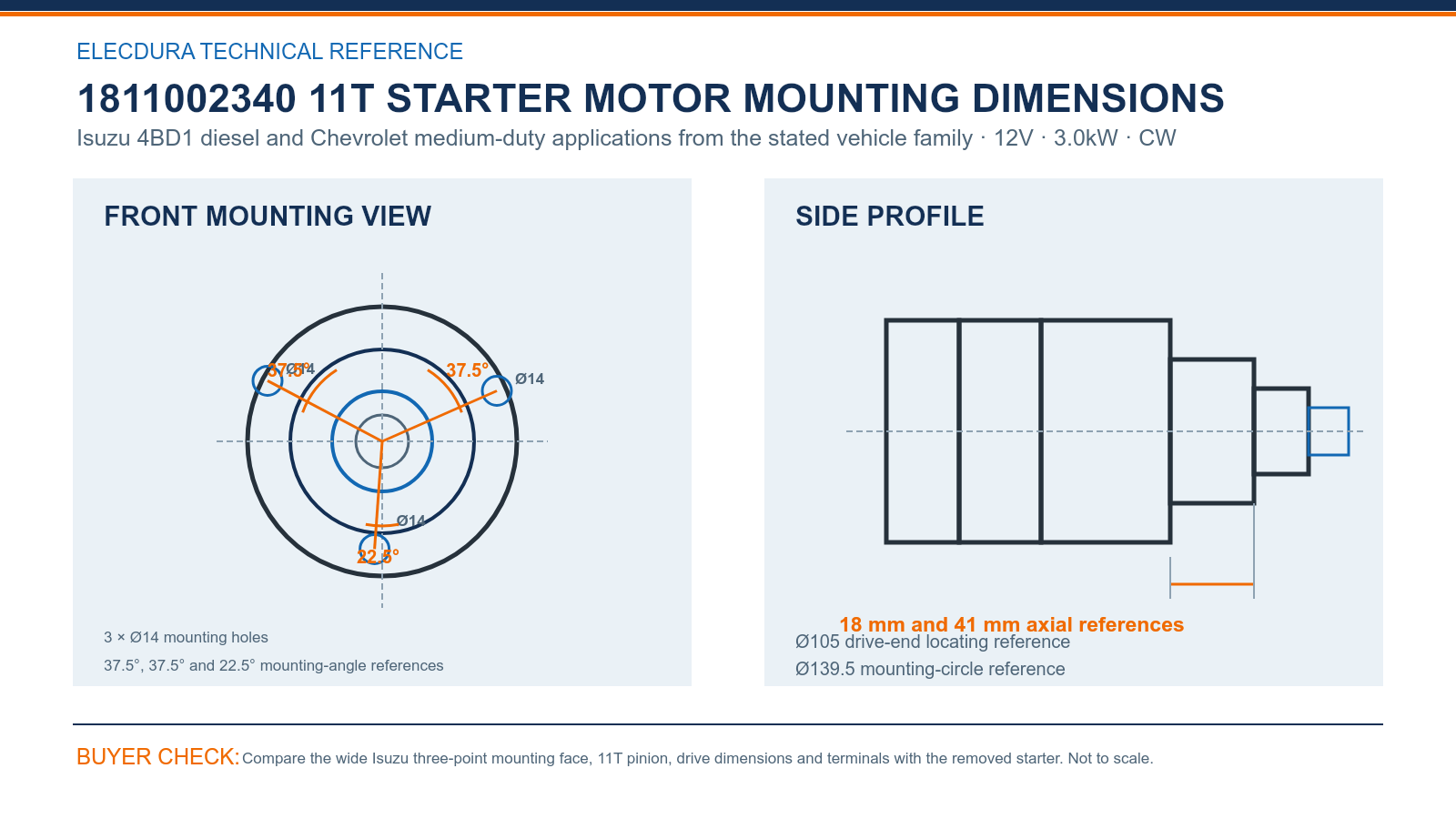

1811002340 Isuzu 12V 3.0kW 11T starter mounting dimensions for buyer-side comparison.

Three Ø14 holes are arranged by 37.5°, 37.5° and 22.5° mounting-angle references around the Ø139.5 mounting-circle reference. The Ø105 locating reference and the two axial references of 18 mm and 41 mm describe the nose position.

This 1811002340 starter uses 12V, 3.0kW, 11T, module 3 and CW. Cross-brand photographs should always show the terminal side because cable arrangement can reveal a mismatch that is not obvious from the front flange.

1811002340 Starter Motor OE Matching for Isuzu and Chevrolet Buyers

Use the full group 1811002340 / 1811002341 / 1811002342 / 2912559020 / 2912559021 / 8971197490 / 128000-0490 / 128000-0491 / 128000-0492 / 128000-0494 / 16881N for searches and quotations.

Cross-brand buying check: keep the 4BD1 engine, 11T drive, Ø139.5 face and rear terminal layout with the complete reference, whether the customer speaks in Isuzu or Chevrolet terms.

1811002340 Starter Motor Distribution for Medium-Duty Fleet Support

A distributor serving both brands can buy one confirmed configuration while keeping sales allocation visible by branch or customer type. Share the Isuzu and Chevrolet quantity split, destination and target dates; Elecdura can address carton labels and shipment planning while retaining the same 1811002340 specification.

Receiving staff should check the 11T pinion, three Ø14 holes, rear terminal side and cross-brand carton information. If a unit differs at the flange or terminals, isolate it before stock is merged. A labelled comparison photograph gives both parts counters the same visual reference.

The video provides a view of Elecdura starter-motor assembly and electrical testing. For 1811002340 pricing, send the 4BD1 or Chevrolet vehicle details, complete cross-references, measured wide face, terminal arrangement and requested distribution plan.

1811002340 Starter Motor Questions from B2B Buyers

Why does 1811002340 appear in both Isuzu and Chevrolet parts enquiries?

The cross-reference family serves Isuzu 4BD1 diesel and Chevrolet medium-duty applications, so different counters may describe the same core requirement by engine or vehicle badge. Keeping the full OE group and hardware details visible lets a distributor search across both channels without assuming that every medium-duty starter is interchangeable.

What details connect an 1811002340 request to the 4BD1 engine?

Send the engine identification, vehicle or chassis details and every number on the removed starter. Add a label photograph plus front, pinion and terminal views. The 12V 3.0kW 11T configuration and wide three-point face then connect the OE trail to a specific installation rather than a general Isuzu description.

Which face measurements are most helpful for cross-brand matching?

Compare the Ø139.5 mounting-circle reference, Ø105 drive-end locating reference and three Ø14 holes. The 37.5°, 37.5° and 22.5° orientation references describe the hole arrangement, while 18 mm and 41 mm axial references locate the drive. Together they give both parts counters the same measurable checkpoints.

Why should the terminal side be included in the enquiry photographs?

Cable reach and connector orientation can differ even when the nose and housing look familiar. A clear rear and side view shows the solenoid, main terminal and surrounding space on the old unit. Elecdura can compare those details before the shipment is allocated between Isuzu and Chevrolet customer orders.

How should a distributor store the long 1811002340 reference family?

Retain complete OE and Denso numbers as searchable aliases, while the physical stock line carries the 4BD1 application, 11T drive and wide-face photograph. This arrangement helps sales staff find the unit from different customer paperwork without losing the fitment information needed to issue the correct carton.

What is a useful receiving routine for a mixed-brand shipment?

Sample cartons assigned to both sales channels and verify that the product configuration is identical: 11T pinion, three Ø14 holes, rear terminal side and complete label. Record the shipment lot and intended branch. Any different hardware should remain separate while its source carton and quantity are established.

What installation information helps with an after-sales review?

Keep the chassis or engine identity, installation date, shipment lot and supplied label. Add battery load and cable voltage-drop readings, cranking symptom and photographs of the mounted terminals. This evidence lets Elecdura examine whether the reported issue relates to fitment, electrical supply, ring-gear condition, handling or the starter itself.

How should quantities be presented for Isuzu and Chevrolet customers?

Break the total into the quantities needed for each brand channel, destination and required date, even when the quoted starter configuration is the same. Include customer-label or neutral-carton needs. Elecdura can then prepare product, MOQ, lead time, warranty and shipping information that supports actual branch distribution.

Request 1811002340 Isuzu Starter Motor Wholesale Terms

Send 1811002340 and all related old-unit numbers, Isuzu 4BD1 or Chevrolet vehicle details, wide-flange, 11T pinion and terminal photographs, quantities by channel, destinations and dates. The reply will identify the 12V, 3.0kW, 11T CW starter configuration together with the applicable wholesale terms.

Add carton-label and shipment-split requirements so the offer can support both technical matching and cross-brand distribution.
