1811003070 Isuzu 6HH1 Hitachi ZX330 Starter Motor Distributor

1811003070 Starter Motor Distributor Supply for Isuzu and ZX330

A regional depot may receive 1811003070 from a commercial-vehicle workshop or a Hitachi excavator customer. Keeping the host equipment on each enquiry lets sales teams share a confirmed product without publishing a vague universal fitment claim.

6HH1, 6HE1 and 6HK1X installations can differ in clearance and cable routing. The wide two-ear face, 44/62 mm outline and lower terminals must match the removed starter before the same stock item is assigned.

1811003070 Starter Motor Dimensions for Service Depot Matching

The specified set is 24V, 4.5kW, 11T, module 3 and CW. It should appear unchanged in truck, engine and excavator quotations so customer-channel differences do not create technical drift.

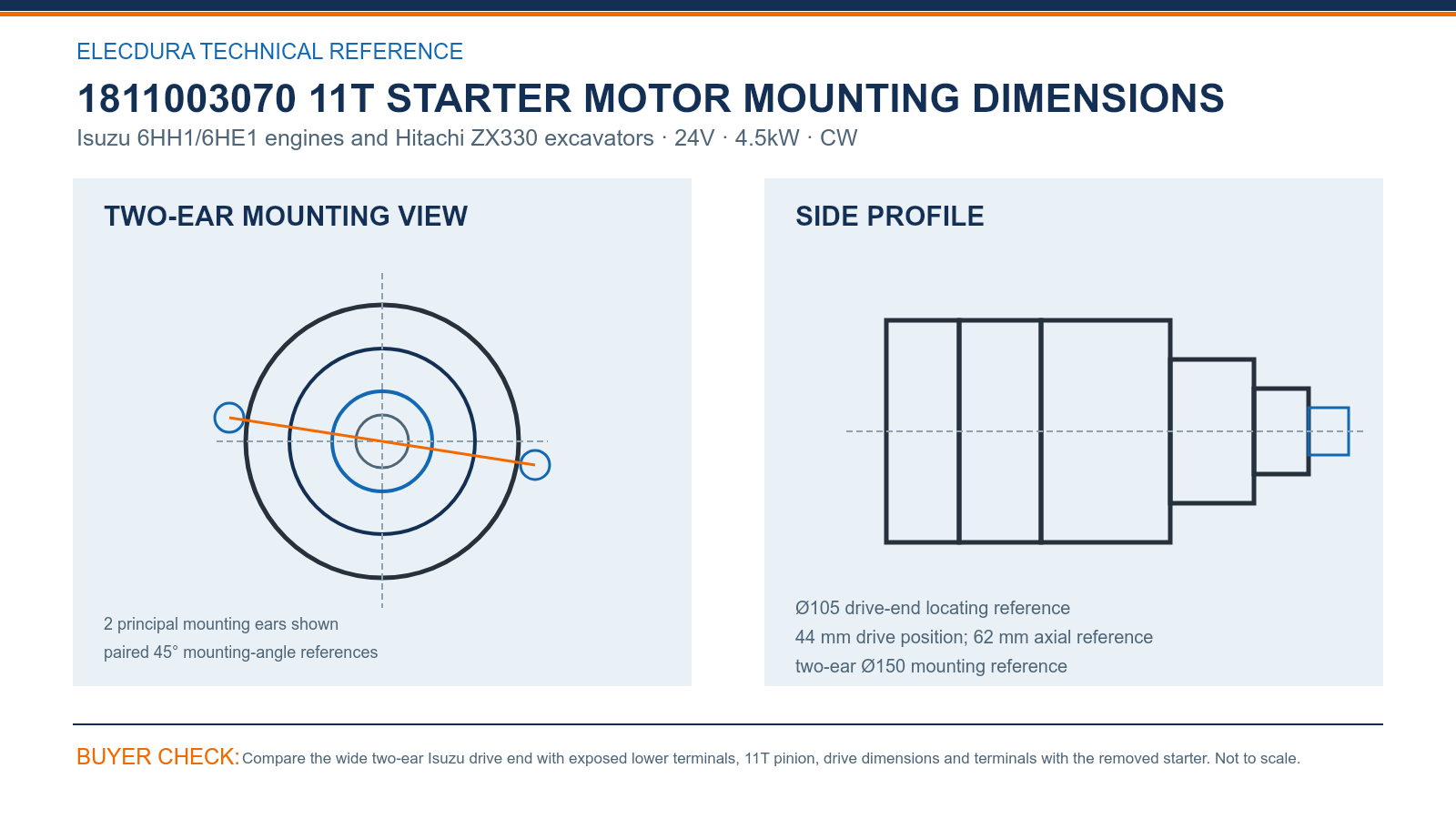

1811003070 Isuzu 6HH1 ZX330 Starter Dimensions for Service Distributors — compare the drawing with the removed starter before placing a volume order.

Compare the Ø105 locating section, 44 mm drive position, 62 mm axial reference, two main ears and Ø150 mounting reference. Straight front and terminal views are especially useful when the machine compartment limits cable clearance.

1811003070 Starter Motor References for Isuzu Parts Wholesalers

1811003070/3230/3231, Nikko 0240003032, WAI 30265 and AS S9309S form a compact search group. Retain the 6HH1/6HE1 or ZX330 identity with the accepted face and terminal photographs.

Depots can forecast truck-engine demand separately from ZX330 field spares while purchasing one matched configuration. That split improves stock planning and makes it easier to trace which application supplied the original comparison.

1811003070 Starter Motor Stock Planning for Regional Distributors

For branch transfers, protect the exposed lower terminals, support the motor body and mark the host application on the carton. Incoming staff should compare the two-ear face and cable position before the unit joins shared stock.

The Elecdura video shows starter production and electrical testing for B2B supply. Regional distributors can use it to discuss mixed-channel labeling, carton protection, sampled inspection and delivery scheduling for 1811003070.

1811003070 Starter Motor FAQs for Isuzu and Hitachi Parts Distributors

How should truck and ZX330 enquiries for 1811003070 differ?

Both should include 1811003070 and the full 24V 4.5kW 11T specification, but the host equipment must be explicit. Truck buyers should send the 6HH1/6HE1 plate and chassis; excavator buyers should send ZX330 details. Each channel also needs matching front and terminal photographs before stock is shared.

Does 6HH1 or 6HE1 prove the complete mounting match?

No. The engine name supports application screening, but the Ø105 locating section, 44/62 mm outline, wide two-ear face and lower terminals still need to match. Different vehicle or machine installations can change clearance and cable routing even when they use the same Isuzu engine family and voltage.

What should support the Hitachi ZX330 application?

Provide the ZX330 machine model and serial, the supplier-listed 7.8/6HK1X information where available, old starter markings and compartment photographs. Compare the two-ear face and terminal clearance with the removed unit. This keeps the excavator statement tied to an actual machine instead of extending it from an Isuzu number alone.

How should the Ø150 mounting reference be used?

Use it with the Ø105 locating section, 44 mm drive position, 62 mm axial reference and paired 45° ear orientation. Take a square front photograph and a side view with a ruler or known scale. The combined dimensions help identify the wide face more reliably than one catalogue image.

Which references are most useful for 1811003070 sourcing?

Start with 1811003070, 1811003230/3231, Nikko 0240003032, WAI 30265 and AS S9309S. Keep the host truck engine or ZX330 machine identity and accepted product photographs beside the numbers. That compact set improves search coverage without encouraging an unsupported universal application. Store the selected host application with each customer reorder.

How should a depot manage shared truck and excavator stock?

Use one confirmed physical item but keep quantities, supported units and issue history by customer channel. Mark cartons with 1811003070 and the destination application. Store the accepted terminal view in the digital record so a truck order and a ZX330 order remain understandable after stock transfers.

What shipping damage should receiving check near the terminals?

Inspect the lower terminal block, studs, cable attachment and nearby casting for bending, impact or insulation damage. Confirm terminal caps remain fitted and no carton support presses on the connection. Add front and terminal photographs to the delivery lot before the starter moves into regional depot inventory.

What commercial details improve an 1811003070 quotation?

Send quantities by truck-engine or ZX330 demand, full machine identifiers, old starter references, mounting and terminal photographs, destination, packing requirements and required delivery. Mention branch splits or site labels. Elecdura can then review one 1811003070 configuration while preparing a supply plan that reflects both customer channels.

Request 1811003070 Isuzu Starter Motor Distributor Pricing

Email the Isuzu engine or Hitachi machine details, complete references, straight face and terminal photos, quantities by customer channel and destination to info@elecdurauto.com. Elecdura will review 1811003070 and prepare distributor pricing.
