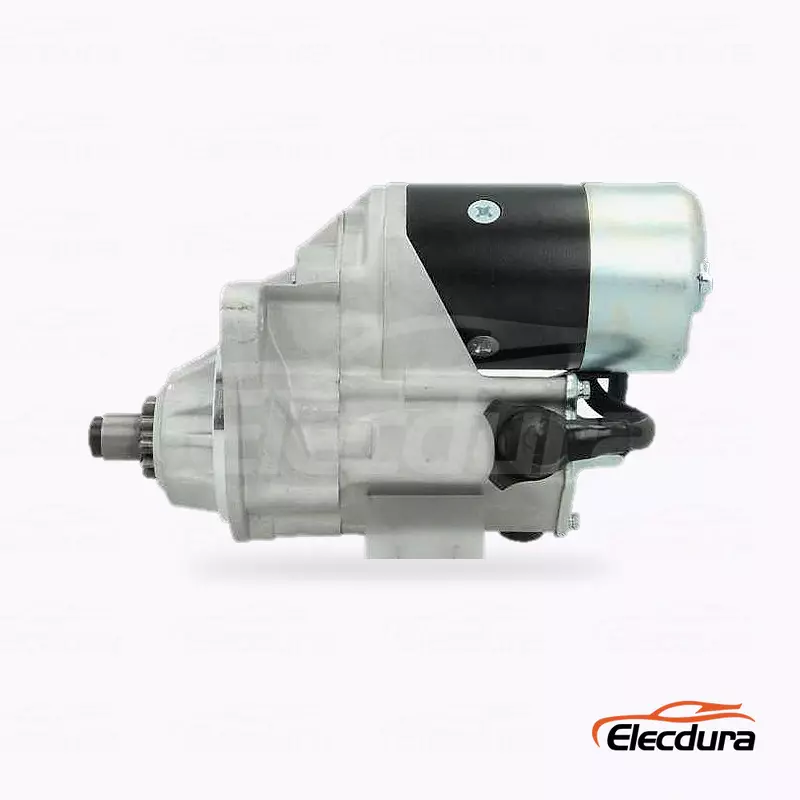

1811003191 Isuzu 6HK1 Starter Motor Wholesale 24V

1811003191 Isuzu 6HK1 Starter Motor Wholesale Value

The Isuzu 6HK1 appears in trucks, excavators and other heavy equipment, so brand and engine alone may not identify the installation. Buyers receive a more useful response when they add the host machine, complete old-unit number and photographs to the 1811003191 enquiry.

Reference listings for the broader 6HK1 family may show different starter constructions. Compare the two Ø16 mounting holes, nose housing, 11T drive and terminal clocking on the actual unit before applying this product to a mixed fleet or equipment order.

1811003191 Isuzu 6HK1 Starter Motor Technical Details

Elecdura uses 24V, 4.5kW, 11T, module 3 and clockwise rotation for this product. One consistent fact set across the table, body and FAQ keeps buyers from receiving contradictory technical information.

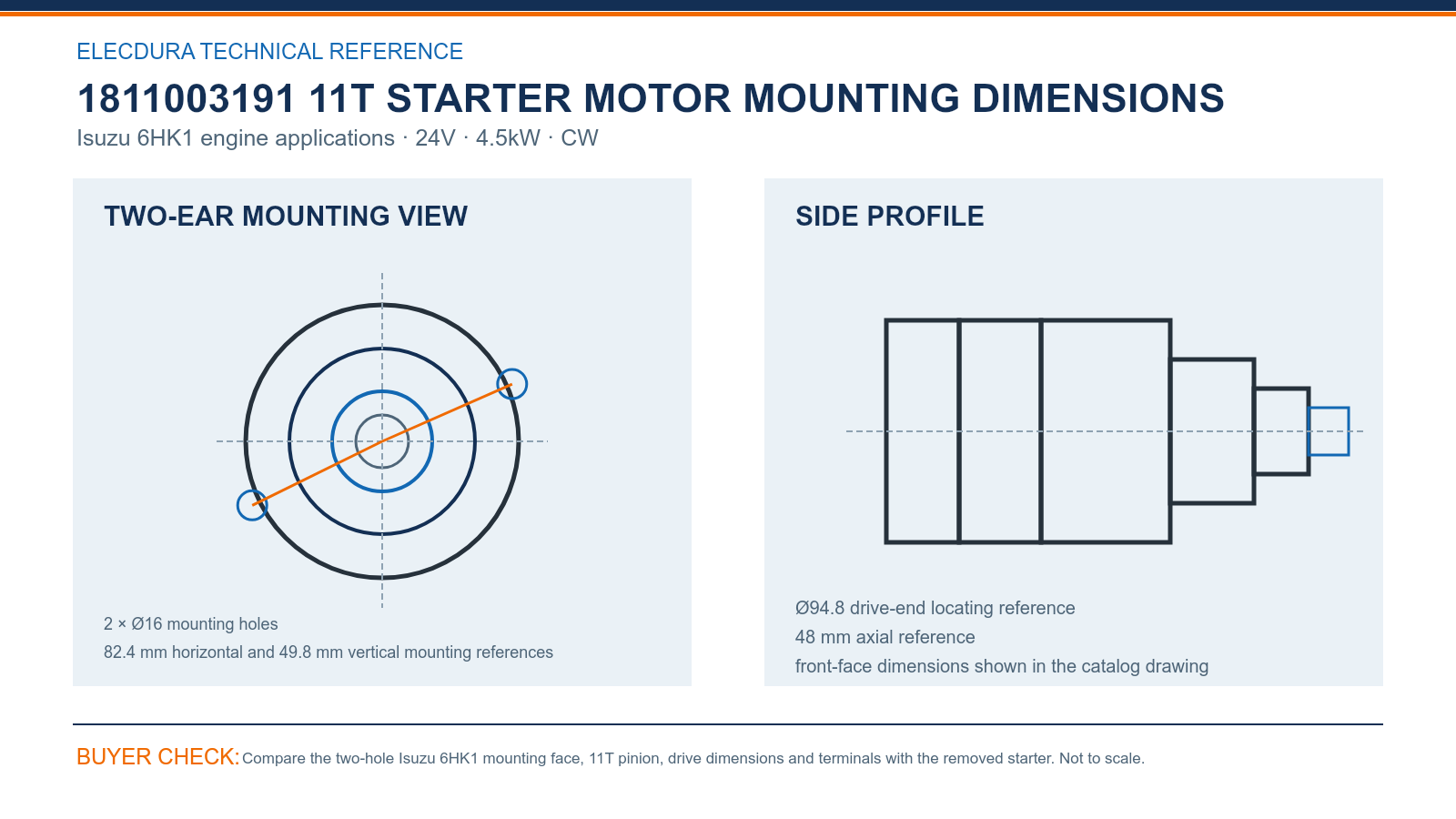

1811003191 Starter Motor Dimensions for Isuzu 6HK1 Wholesale Buyers — compare the drawing with the removed starter before placing a volume order.

Review the two Ø16 holes, Ø94.8 locating reference, 48 mm axial position and the 82.4 mm and 49.8 mm mounting references shown in the drawing. Straight photographs help verify the asymmetric two-ear face and terminal side.

1811003191 Isuzu Starter Motor Reference and Fitment Checks

1811003191 can be searched with 8-98141-206-0, 8-98141-206-1, 8980608540, E02GES096, M008T60973 and 19167. The enquiry should still state 6HK1, the host vehicle or equipment and the measured mounting face.

A distributor supporting several 6HK1 machines should split quantities by application and attach the relevant old-starter views to each line. Units can be consolidated only after the pinion, flange and terminal arrangement agree with the same product definition.

1811003191 Isuzu 6HK1 Starter Motor Supply Support

Receiving teams should inspect the two mounting ears for impact, count the 11T pinion and check terminal tightness before sampled electrical testing. Linking the results to the delivery lot gives after-sales teams useful evidence if a field question later appears.

Elecdura's video presents starter assembly and electrical testing for export orders. Isuzu parts buyers can use it when reviewing production support, while exact 6HK1 application data, first-lot sampling and protective packing remain visible in the supply plan.

1811003191 Starter Motor FAQs for B2B Buyers

Why should a 6HK1 enquiry include the host equipment?

The 6HK1 engine is installed in more than one vehicle and equipment type, and the broader starter family can use different physical constructions. State the host model and serial details with 1811003191, then add mounting and terminal photographs. This helps Elecdura compare the intended installation instead of extending one engine name across every 6HK1 starter.

Which specification will Elecdura use for this 1811003191 product?

Elecdura uses the combination of 24V, 4.5kW, 11T, module 3 and clockwise rotation throughout the product information and quotation. Buyers should keep those five values together. If another source or old unit shows a different output or construction, send the actual photographs and data for a separate comparison rather than mixing specifications.

Can the Mitsubishi and Isuzu numbers support one enquiry?

Include all complete Isuzu, Hitachi or Mitsubishi numbers that appear on the removed starter or buyer's records. Keep them attached to the 6HK1 host equipment and the stated 24V 4.5kW 11T product. Elecdura will use the group for search while checking the real flange and terminal arrangement before confirming supply.

What does the 6HK1 mounting drawing help confirm?

The drawing gives a distinctive two-hole comparison: two Ø16 holes, an Ø94.8 locating reference and a 48 mm axial position, with 82.4 mm and 49.8 mm mounting dimensions. Photograph the old face squarely. These values help distinguish the product from another 6HK1 starter with a different nose housing.

How should a distributor list a mixed 6HK1 order?

Use separate lines for each truck or equipment model and attach the relevant old-unit image set to each quantity. If the 11T drive, two-hole face and terminal side agree, Elecdura can consolidate production and packing. Starting with separated application details prevents one engine name from hiding a physical difference during quotation.

Which electrical data helps a 6HK1 no-crank enquiry?

Record battery voltage and load condition, positive and ground cable drop during cranking, and the start signal at the solenoid. Note any ring-gear or engagement noise. Sharing these readings with the 1811003191 request gives service teams enough context to separate supply-circuit, engagement and starter issues before a replacement is blamed.

What should be inspected when 1811003191 arrives?

Confirm the item label and open the agreed sample quantity, then count the 11T pinion and compare both mounting ears, the locating surface and terminal clocking with the accepted photographs. Check for impact or loose studs before sampled testing. Record the lot and inspected quantity for later delivery and after-sales reference.

What does Elecdura need for a 6HK1 wholesale quotation?

Send the Isuzu 6HK1 engine and host-machine details, all readable references, straight pinion, mounting and terminal photographs, quantity, packing standard, destination and target date. Elecdura will compare the specified product and return matching feedback, pricing, supply timing and delivery terms without introducing conflicting public specifications into the offer.

Request 1811003191 Isuzu 6HK1 Starter Motor Wholesale Terms

Email the 6HK1 engine and host-machine details, every readable starter reference, square mounting and terminal photographs, quantity, annual demand and destination to info@elecdurauto.com. Elecdura will compare the 1811003191 configuration and return matching feedback, pricing and lead time.
