228000-0140 John Deere Yanmar Starter Motor B2B Supplier

228000-0140 John Deere Starter Motor Identification for B2B Distributors

228000-0140 is a 12V, 1.4kW, 15T, CW-rotation starter motor for John Deere 4300 compact tractors and selected Yanmar 3TNE84-powered equipment requiring a 15-tooth drive. The page is structured for professional sourcing, where the target is not only to find a reference but to approve the correct electrical and physical version for repeat supply.

The page is designed for tractor dealers and agricultural-parts wholesalers, where a wrong starter can create workshop delay, return freight and an avoidable customer claim. Count the pinion teeth before quotation, then record the 3TNE84 engine, tractor serial range, drive-end face and terminal clocking with the signed sample. Keep this approval file with the SKU so later quotations do not expand the fitment scope beyond the verified engine or machine record.

228000-0140 Starter Motor Specifications for Distributor Approval

228000-0140 verification reference for tractor dealers and agricultural-parts wholesalers; compare the labeled controls with the removed unit or signed sample before volume supply.

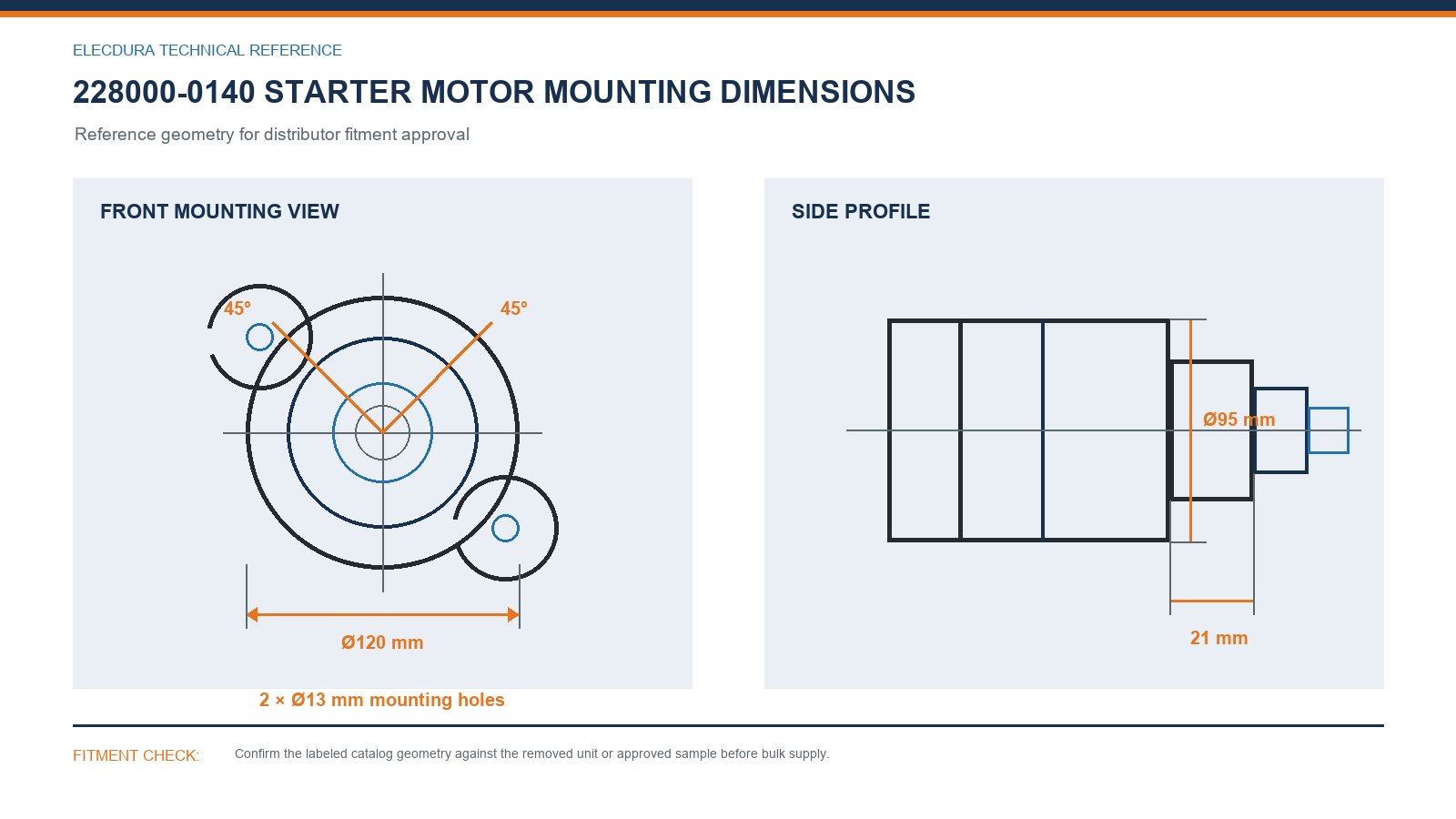

Key drawing references include Two Ø13 mm mounting holes, 45° mounting-hole reference, Ø120 mm mounting reference, Ø95 mm drive-end reference, 21 mm axial offset.

228000-0140 Starter Motor OE and Application Review for Wholesale Stocking

The purchasing group begins with 228000-0140, 228000-0141, 228000-0142, 228000-0250, 228000-0251, 228000-3730, with the full approved group listed in the table below. These numbers connect service records and rebuilt labels, but complete references remain necessary because missing suffixes can identify a different output, pinion or housing.

Several references overlap a broader Denso family, but this page is controlled around the 15-tooth drive and must not be merged into a 13-tooth stock line. The controlled application is John Deere 4300 compact tractors and selected Yanmar 3TNE84-powered equipment requiring a 15-tooth drive. Count the pinion teeth before quotation, then record the 3TNE84 engine, tractor serial range, drive-end face and terminal clocking with the signed sample.

228000-0140 Starter Motor Receiving and Supply Controls for B2B Buyers

At receipt, compare product labels, 12V identification, 15T drive, mounting face, nose and terminals with the approved sample. Inspect shaft protection, terminal covers and carton condition, then document any deviation before stock is allocated to branches. This sequence makes first-lot and repeat-lot decisions traceable.

Wholesale orders are handled from an exact OE and application record rather than a universal brand claim. The usual MOQ is 20 pieces, with neutral packing and private-label review available for qualified programs. Send separate lines for neighboring references so quotation, production label and receiving inspection remain connected to the correct 228000-0140 version.

Watch Elecdura starter-motor assembly and electrical testing below. Approval remains tied to 228000-0140, the John Deere application and this page's physical controls.

▶ Watch the Elecdura starter motor production and testing video

228000-0140 Starter Motor FAQ for B2B Procurement

What should a wholesale buyer verify for 228000-0140?

John Deere 4300 compact tractors and selected Yanmar 3TNE84-powered equipment requiring a 15-tooth drive defines the working application scope for this pinion-led variant separation. Confirm 12V, 1.4kW, 15T and CW rotation, then apply this physical release: Count the pinion teeth before quotation, then record the 3TNE84 engine, tractor serial range, drive-end face and terminal clocking with the signed sample. Keep the final comparison with the customer account so repeat orders follow the same approved starter.

Which applications are controlled on the 228000-0140 page?

228000-0140 is positioned for John Deere 4300 compact tractors and selected Yanmar 3TNE84-powered equipment requiring a 15-tooth drive. The page does not extend that record to every John Deere product. A distributor should connect the Yanmar 3TNE84 engine designation, machine model and available serial information to the full starter number, then retain the result as the fitment boundary for this SKU.

Can cross-references alone release a 228000-0140 bulk order?

228000-0140, 228000-0141, 228000-0142, 228000-0250, 228000-0251, 228000-3730 are the principal identifiers reviewed for this John Deere starter group. They help reconcile service records and rebuilt labels, but they cannot cancel a difference in 1.4kW output, 15T drive, housing or terminals. Consolidate references only after the old unit and approved sample agree.

What electrical details matter for 228000-0140 starter selection?

The cataloged release is 12V, 1.4kW, 15T and CW rotation for Yanmar 3TNE84 applications. Count the pinion and read the voltage or power label before comparing battery and switch terminals. This sequence keeps an electrically similar starter with another drive or connection layout out of the 228000-0140 wholesale line.

How should the 228000-0140 mounting geometry be checked?

Review Two Ø13 mm mounting holes, 45° mounting-hole reference, Ø120 mm mounting reference, Ø95 mm drive-end reference, 21 mm axial offset. The technical graphic is a purchasing reference, not a drawing to scale. Place the removed starter beside the sample, check the mounting face and pinion rest position, and photograph the connection side. These controls give tractor dealers and agricultural-parts wholesalers a practical dimensional record before approving volume supply.

What information should accompany a 228000-0140 RFQ?

For this John Deere inquiry, provide the Yanmar 3TNE84 engine record, complete OE or cross-reference, machine model, serial or PIN where available, drive-end and terminal photographs, required quantity, destination and packaging request. Add mounting or nose measurements when the label is incomplete so the quotation remains tied to a verifiable unit.

How should distributors inspect the first 228000-0140 shipment?

tractor dealers and agricultural-parts wholesalers should sample cartons across the delivery and verify 228000-0140 labels, 15T pinions, mounting castings, solenoid orientation and terminal protection. Compare one unit with the approved John Deere sample, quarantine any mixed reference, and store receiving photographs with the SKU before branches receive saleable inventory.

Is private-label packaging available for 228000-0140?

Private-label presentation can be reviewed for qualified 228000-0140 programs, while neutral cartons support standard wholesale orders. Artwork, barcode, carton strength and pinion protection need approval before production. The product label should state 12V, 1.4kW, 15T and the controlled John Deere reference accurately, without suggesting universal fitment.

Request a 228000-0140 Starter Motor Distributor Supply Quote

Send 228000-0140 or the related OE, John Deere machine and Yanmar 3TNE84 engine details, old-starter photographs, quantity, destination and packaging request. Elecdura will review the 12V, 1.4kW, 15T configuration and sample requirements before quoting.
