228000-0290 Toyota 2KD-FTV Starter Motor Wholesale Supply

228000-0290 Toyota Starter Motor Identification for Wholesale Buyers

228000-0290 is intended for Toyota Hilux, Hiace and related KD-series diesel applications using the confirmed 2KD-FTV or 1KD-FTV starter group. For Toyota diesel-parts importers and pickup or van fleet suppliers, the commercial value is a clearly bounded replacement that can move from inquiry to sample and repeat order without losing the engine, OE or physical version that was originally approved.

KD-series inquiries often arrive with a Hilux or Hiace model name but without the engine suffix, while neighboring 1KD and 2KD starters can share several external cues. Match the complete 28100 or Denso number to the 2KD-FTV or 1KD-FTV engine record, then compare the 10-tooth drive, two-bolt drive-end flange, 129.5 mm reference and solenoid clocking. That record gives purchasing, sales and goods-in teams one traceable definition when the same demand reaches them under different service numbers.

228000-0290 Starter Motor Specifications and Mounting Data for B2B Sourcing

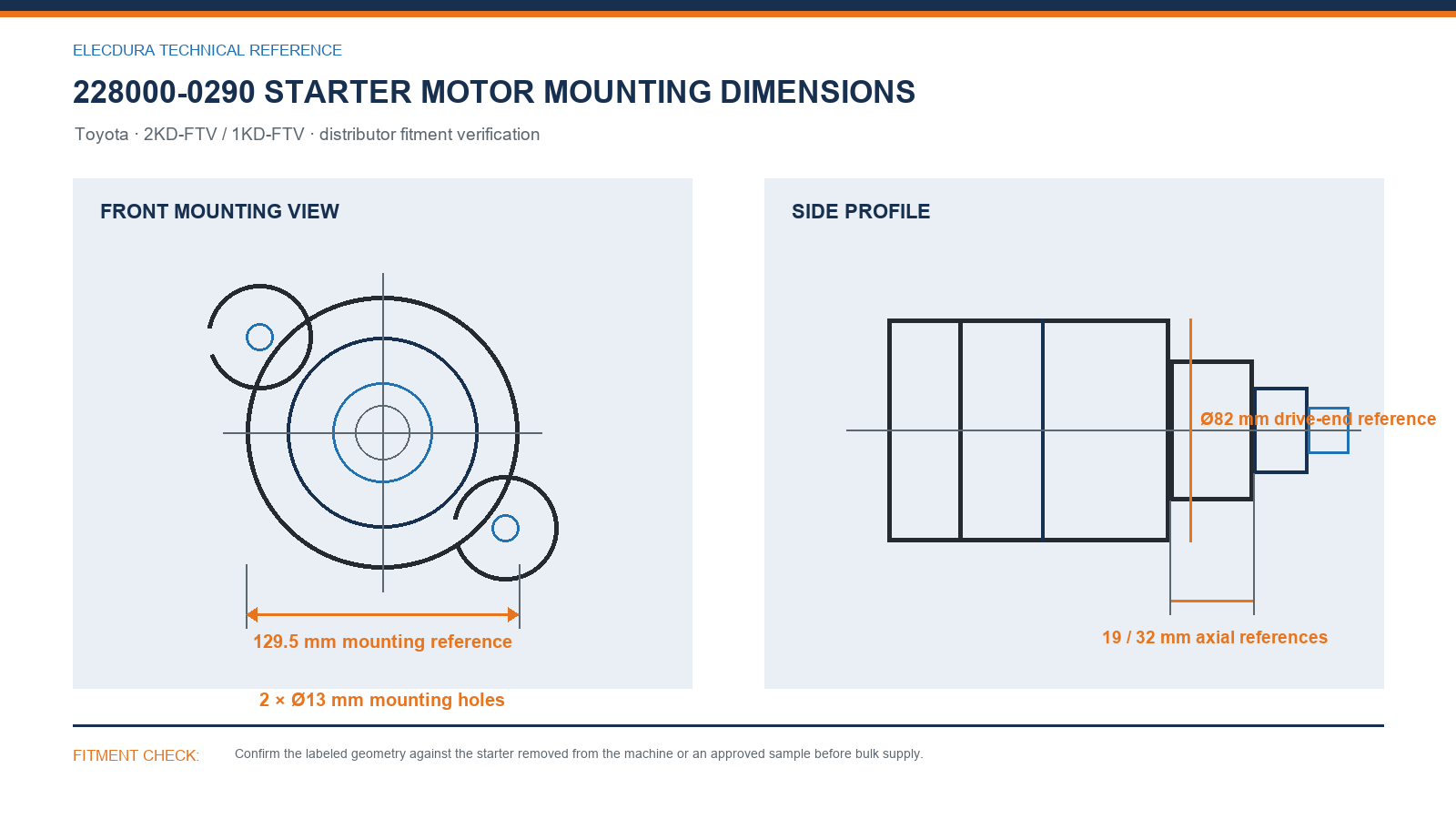

Use the technical image to compare the approved mounting and drive-end controls before a sample or volume order is released.

Match the complete 28100 or Denso number to the 2KD-FTV or 1KD-FTV engine record, then compare the 10-tooth drive, two-bolt drive-end flange, 129.5 mm reference and solenoid clocking. The image is a fitment reference and should be checked against the starter removed from the machine or signed master unit rather than scaled from the screen.

228000-0290 Starter Motor OE Boundaries for Distributor Stock

The usable interchange group starts with 228000-0290, 228000-5020, 228000-5021, 228000-5022, 228000-5023. Those references are valuable for locating stock, but the release remains conditional on the 2KD-FTV / 1KD-FTV or machine record and the physical controls shown above.

KD-series inquiries often arrive with a Hilux or Hiace model name but without the engine suffix, while neighboring 1KD and 2KD starters can share several external cues. Before consolidating customer numbers into one SKU, match the complete 28100 or Denso number to the 2KD-FTV or 1KD-FTV engine record, then compare the 10-tooth drive, two-bolt drive-end flange, 129.5 mm reference and solenoid clocking.

• Fitment boundary: Toyota Hilux, Hiace and related KD-series diesel applications using the confirmed 2KD-FTV or 1KD-FTV starter group.

• Interchange focus: KD-series inquiries often arrive with a Hilux or Hiace model name but without the engine suffix, while neighboring 1KD and 2KD starters can share several external cues. Match the complete 28100 or Denso number to the 2KD-FTV or 1KD-FTV engine record, then compare the 10-tooth drive, two-bolt drive-end flange, 129.5 mm reference and solenoid clocking.

• Buyer record: Toyota diesel-parts importers and pickup or van fleet suppliers should retain 228000-0290, 228000-5020, 228000-5021, 228000-5022, 228000-5023 with the accepted physical comparison and customer requirement.

For Toyota 2KD-FTV / 1KD-FTV sourcing, the retained geometry combines 2 × Ø13 mm mounting holes, 129.5 mm mounting reference, Ø82 mm drive-end reference and 19 / 32 mm axial references. Additional service identifiers include 228000-5024, 428000-0250, 428000-0260, 428000-2311, 28100-0L040, 28100-30040, 28100-30060, 28100-67030. A quotation for this line should arrive with Toyota 28100 number, KD engine suffix, vehicle or equipment model, old-unit drive-end and terminal photographs; that information lets Toyota diesel-parts importers and pickup or van fleet suppliers distinguish this configuration before stock is committed.

Hilux and Hiace requests in this group need the KD engine suffix on the inquiry because 1KD-FTV and 2KD-FTV service records may arrive under different Toyota 28100 numbers despite a familiar compact Denso housing.

228000-0290 Starter Motor Sampling, Packing and Wholesale Supply

Record the KD engine code, count ten pinion teeth and compare the compact drive-end nose before the shipment is released to Hilux or Hiace stock. Record the sample result against the item master and customer account before the lot becomes available to sales.

Standard wholesale MOQ begins at 20 pieces. Neutral packing is available, and qualified private-label programs can be reviewed after the product label, barcode, carton strength and protective inserts have been approved for this exact reference.

The video below shows Elecdura starter-motor production and electrical testing. It demonstrates supply capability; the product purchased under this page remains the 228000-0290 configuration defined by the OE, application and physical checks above.

228000-0290 Starter Motor FAQ for B2B Procurement

For 2KD-FTV / 1KD-FTV, which identifiers should be used to request 228000-0290?

In the 2KD-FTV / 1KD-FTV 228000-0290 identity file, start with the full 228000-0290 or a full matching reference such as 228000-0290, 228000-5020, 228000-5021, 228000-5022, then add the 2KD-FTV / 1KD-FTV or machine record. For this Toyota number set, shortened numbers can point to more than one service version. Within the 228000-0290 sourcing record, a useful inquiry also includes the mounting-face and connection photographs so the vendor can identify the 10T, 12V configuration without relying on the model name alone. For the Toyota 2KD-FTV / 1KD-FTV item, the usable identity chain is 228000-0290, 228000-5020, 228000-5021, 228000-5022.

For 2KD-FTV / 1KD-FTV, what separates this 2KD-FTV / 1KD-FTV starter from a nearby alternative?

For the 2KD-FTV / 1KD-FTV fitment, KD-series inquiries often arrive with a Hilux or Hiace model name but without the engine suffix, while neighboring 1KD and 2KD starters can share several external cues. In this Toyota application, for this reason, the separating controls are 10T, 2.0kW, the mounting geometry and connection position. For the defined 228000-0290 scope, a reseller should place those points on the master unit sheet and item master. For the 2KD-FTV / 1KD-FTV fitment, if a neighboring starter differs at any one of them, it should remain a separate quotation and warehouse line. For 2KD-FTV / 1KD-FTV, the version boundary is 10T, 2.0kW, 129.5 mm mounting reference and the complete OE group.

For 2KD-FTV / 1KD-FTV, how should the 10T pinion be verified?

At the 10T drive check, rotate the pinion enough to count every tooth clearly and take a close photograph before installation. For the 228000-0290 pinion review, compare the count with 10T and inspect the gear outside diameter, rest position and nose clearance against the removed starter. Within the 2KD-FTV / 1KD-FTV drive record, do not infer tooth count from a similar housing or an abbreviated cross-reference, because a one-tooth difference can prevent correct engagement. The Toyota release uses 10T with CW rotation, so both details belong on the sample and carton checks.

For 2KD-FTV / 1KD-FTV, which mounting details matter for 228000-0290?

During mounting review for 228000-0290, match the full 28100 or Denso number to the 2KD-FTV or 1KD-FTV engine record, then compare the 10-tooth drive, two-bolt installation flange, 129.5 mm reference and solenoid clocking. At the 2KD-FTV / 1KD-FTV flange check, the technical graphic is a purchasing reference rather than a drawing to scale, so the starter taken from service or master unit remains the final physical comparator. For the Toyota installation comparison, record the mounting-hole arrangement, locating diameter, nose depth and solenoid clocking together; matching only one dimension is not enough for a volume release. For 2KD-FTV / 1KD-FTV, the drawing controls are 2 × Ø13 mm mounting holes, 129.5 mm mounting reference, Ø82 mm drive-end reference and 19 / 32 mm axial references.

For 2KD-FTV / 1KD-FTV, can 228000-5020 be consolidated into the same stock code?

Within the Toyota interchange group, it can be reviewed within the 228000-0290 reference family, but consolidation should occur only after the 12V, 2.0kW, 10T, rotation, installation flange and connections agree. For the 228000-0290 cross-reference decision, keep suffixes visible during quotation and master unit review. In the 2KD-FTV / 1KD-FTV stocking boundary, once a measured master unit is signed, store the accepted cross-reference list with the SKU so later purchasers use the same boundary. The working scope is Toyota Hilux, Hiace and related KD-series diesel applications using the confirmed 2KD-FTV or 1KD-FTV starter group; it is not a universal statement for every Toyota machine.

For 2KD-FTV / 1KD-FTV, what application information is needed for this Toyota starter?

For this Toyota diesel-parts importers and pickup or van fleet suppliers inquiry, provide the equipment or vehicle model, engine designation 2KD-FTV / 1KD-FTV, production year or serial information where available, and the full old-starter number. When quoting 228000-0290, KD-series inquiries often arrive with a Hilux or Hiace model name but without the engine suffix, while neighboring 1KD and 2KD starters can share several external cues. For the Toyota commercial request, these details let the vendor narrow the application before the physical check and reduce the risk of approving a visually similar unit for a different engine or production change. A practical 2KD-FTV / 1KD-FTV inquiry includes Toyota 28100 number, KD engine suffix, vehicle or equipment model, old-unit drive-end and terminal photographs.

For 2KD-FTV / 1KD-FTV, how should a first 228000-0290 shipment be inspected?

At incoming inspection for 228000-0290, record the KD engine code, count ten pinion teeth and compare the compact drive-end nose before the shipment is released to Hilux or Hiace stock. During the 2KD-FTV / 1KD-FTV lot release, open cartons from more than one pallet position, compare labels and castings, and inspect connection insulation and pinion protection. For Toyota warehouse acceptance, keep photographs of accepted units with the receiving record. At incoming inspection for 228000-0290, if a tooth count, flange, nose or connection differs, quarantine the affected cartons before branch allocation or customer dispatch. The receiving release for this Toyota starter is the combined 10T, 2 × Ø13 mm mounting holes and terminal check.

For 2KD-FTV / 1KD-FTV, what should be included in a wholesale RFQ?

For the 228000-0290 supply program, send Toyota 28100 number, KD engine suffix, vehicle or equipment model, old-unit drive-end and connection photographs, together with the requested quantity, destination, target timing and packaging preference. When preparing the 2KD-FTV / 1KD-FTV order, state whether a master unit is required and identify any mixed references on separate lines. For this Toyota distributor line, this gives Elecdura enough commercial and technical context to cross-check the exact 228000-0290 configuration before price, lead time and private-label details are finalized. The 2KD-FTV / 1KD-FTV commercial request should retain 228000-0290, 12V, 2.0kW, 10T, quantity, destination and packaging preference on one line.

Request a 228000-0290 Starter Motor Wholesale Quote

Send Toyota 28100 number, KD engine suffix, vehicle or equipment model, old-unit drive-end and terminal photographs, required quantity, destination and packaging preference. Elecdura will review the 12V, 2.0kW, 10T 228000-0290 configuration and confirm sample, lead-time and wholesale-supply details before the order is released.
