228000-1130 Isuzu 3LB1 Starter Motor Wholesale Supply

228000-1130 Isuzu 3LB1 3LD1 Starter Motor for Wholesale Programs

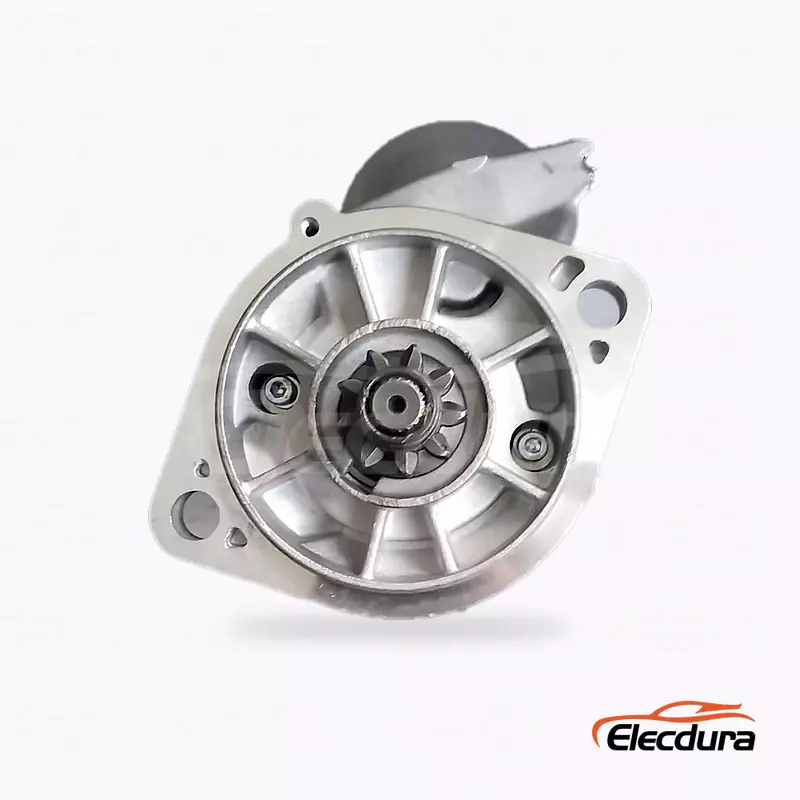

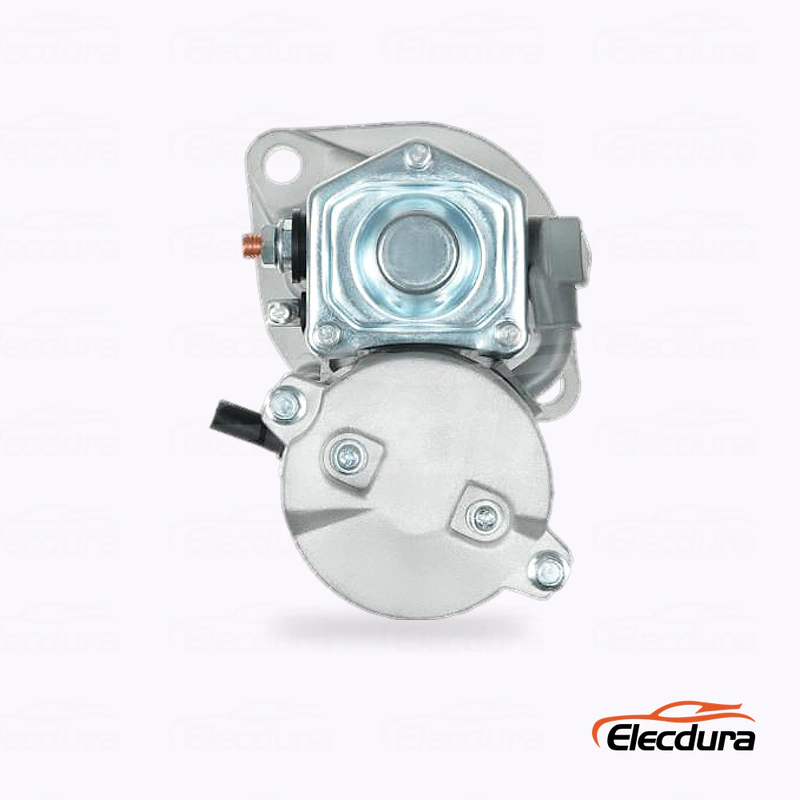

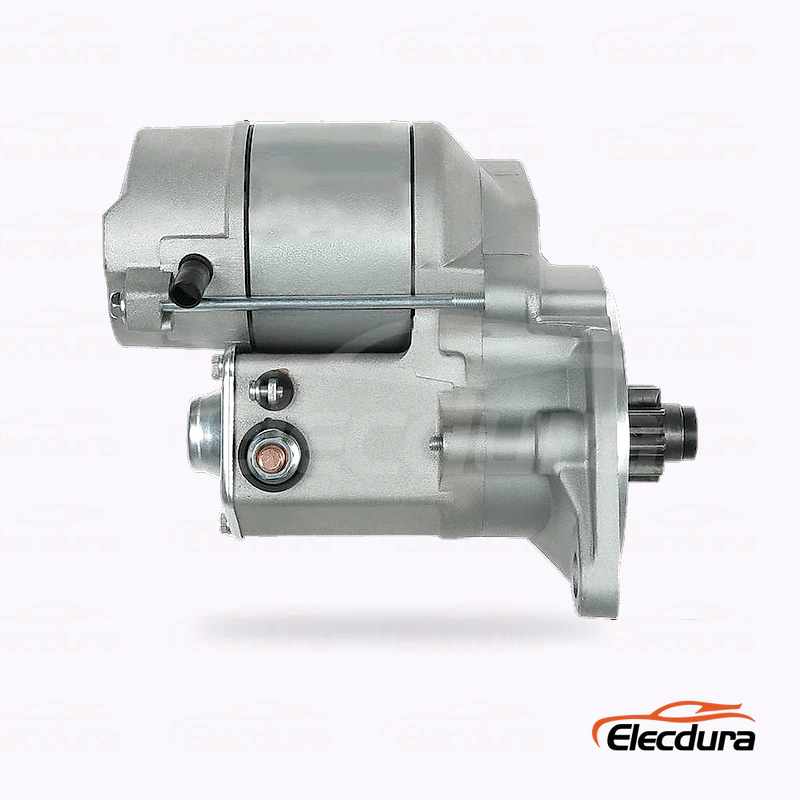

The 228000-1130 is a 12V, 1.4kW, 9-tooth clockwise starter motor for Isuzu 3LB1 and 3LD1 industrial diesel applications. Its reference family is also used across selected Iseki, AGCO, Challenger, Massey Ferguson, John Deere and compact-equipment service programs, giving distributors one clearly identified replacement group for several market-facing part numbers.

This model is most useful to importers and regional distributors that receive inquiries under different Denso, Isuzu or equipment-brand references. Elecdura can quote the product against the complete OE group, provide sample-led matching support and prepare neutral or private-label packing for qualified wholesale programs.

• Catalog configuration: 12V, 1.4kW, 9T, clockwise rotation.

• Core engine coverage: Isuzu 3LB1 and 3LD1 industrial diesel engines.

• Commercial fit: distributor stock, compact-equipment replacement and private-label supply programs.

228000-1130 Starter Motor Specifications and Mounting Data for B2B Buyers

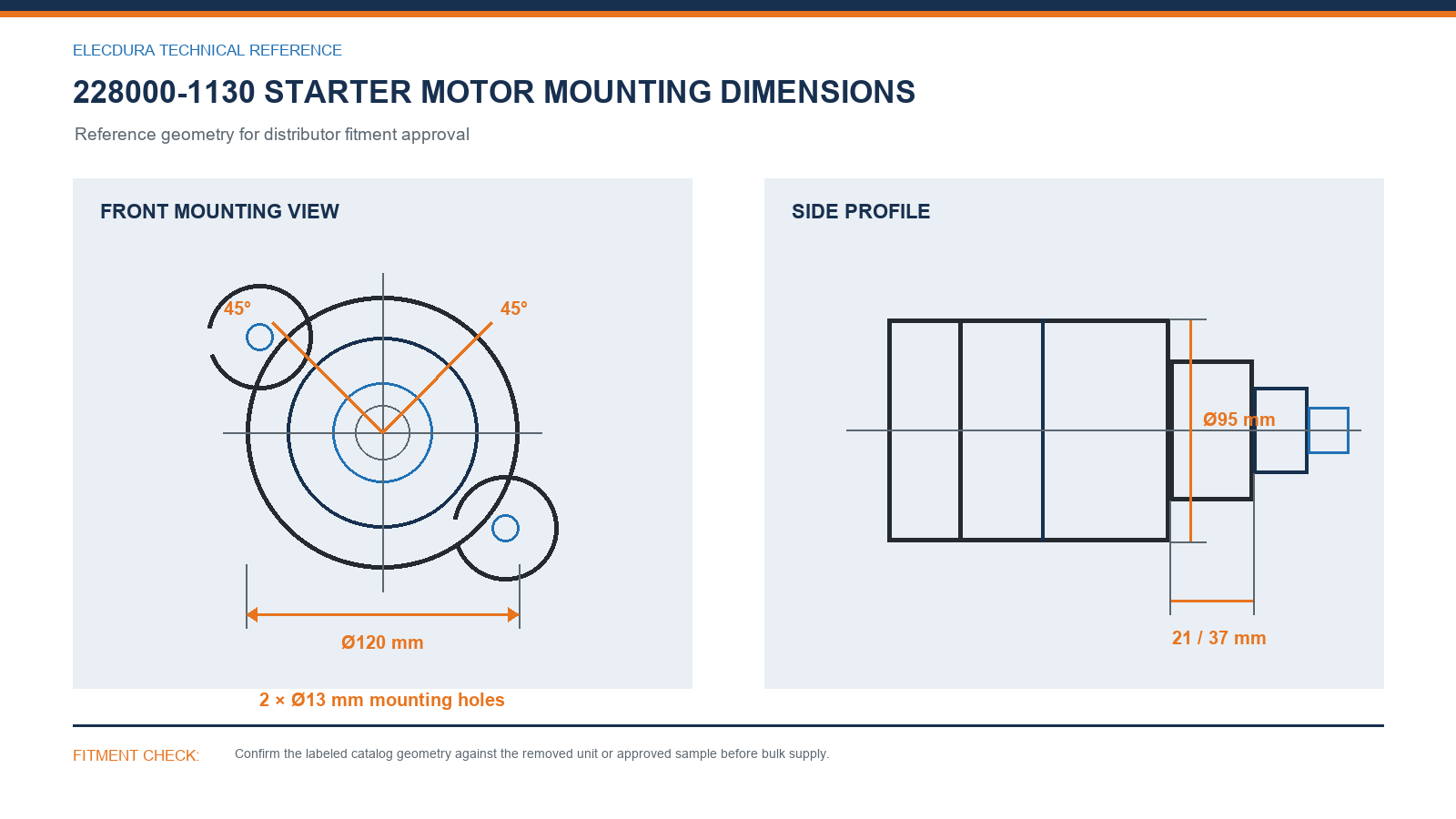

228000-1130 mounting and drive-end reference for Isuzu 3LB1 and 3LD1 starter-motor inquiries.

The technical drawing highlights the two Ø13 mm mounting holes, 45° hole relationship, Ø120 mm mounting reference, Ø95 mm drive-end reference and the cataloged axial dimensions. These measurements help a buyer distinguish this two-ear 9-tooth version from a visually similar unit before ordering a sample or approving distributor stock.

228000-1130 Starter Motor Application and OE Coverage for Distributors

The 228000-1130 reference family appears in more than one equipment channel. Isuzu 3LD1 applications include selected John Deere 27ZTS and 35ZTS excavators, Airman compact excavators and IHI equipment, while related Iseki-engine references appear in AGCO, Challenger and Massey Ferguson compact tractors. This broad service coverage is commercially useful, but the sellable SKU should remain tied to the 12V, 1.4kW, 9T configuration shown here.

For a distributor, the value of this OE group is easier quotation across several service-number systems without turning the product into a universal-fit starter. A complete reference and engine or machine identity allow Elecdura to return a quotation linked to the correct configuration, packaging request and expected order volume.

Wholesale Supply Options for 228000-1130 Isuzu Starter Motors

Elecdura offers the 228000-1130 for aftermarket distributor and wholesaler programs with a normal starting quantity of 20 pieces. Standard orders can use neutral cartons, while qualified private-label projects can include approved artwork, barcode and product-label requirements. Normal lead time is 7–15 days after the specification and commercial terms are confirmed.

For a first order, buyers can submit the complete OE number, application record, required quantity and packing request. If the local market uses several references for the same starter family, send them as a cross-reference list so the quotation and carton label can support the distributor’s own catalog and branch network. Warranty is 18 months under the agreed sales terms.

Watch Elecdura starter-motor production and testing to review the manufacturing and inspection capabilities available for wholesale supply programs.

228000-1130 Isuzu Starter Motor FAQ for Wholesale Buyers

Which engines and equipment commonly use the 228000-1130 starter family?

The reference family is associated with Isuzu 3LB1 and 3LD1 industrial diesel engines and selected compact equipment. Public product records also connect related numbers with John Deere 27ZTS and 35ZTS excavators, Airman and IHI machines, plus AGCO, Challenger and Massey Ferguson compact tractors using suitable Iseki engines. Confirm the exact engine and full starter number before ordering.

Which OE numbers can be included in a 228000-1130 wholesale inquiry?

Common references include 228000-1130, 228000-1131, 228000-1132, 228000-1133, 228000-1981, 228000-1983, 228000-2000, 8970489660, 8970489661, 8970489672, 114260 and LRS1299. A buyer should send the complete number found on the old starter or service record because a shortened number can hide a suffix used to identify another configuration. Include the equipment brand when it is available.

What electrical and drive specification is supplied for 228000-1130?

The supplier catalog specifies a 12V starter with 1.4kW output, a 9-tooth pinion and clockwise rotation. These values are the public specification used for this product. For a replacement program, voltage, power and tooth count should stay together on the quotation and product label so branches do not substitute a neighboring starter that shares only part of the OE group.

How can a buyer use the 228000-1130 technical drawing?

The drawing provides practical comparison points for the two-ear mounting face and drive end. It shows two Ø13 mm mounting holes, a 45° hole relationship, Ø120 mm mounting reference, Ø95 mm drive-end reference, 21 mm axial offset and 37 mm secondary dimension. Buyers can compare these controls with an old unit or approved sample before ordering distributor quantities.

Can 228000-1130 and 8970489660 be quoted as the same replacement group?

They are widely connected within the same aftermarket reference family, together with several 228000-series numbers. That relationship is useful for cataloging and inquiry matching, but the quotation should still identify the required 12V, 1.4kW, 9T clockwise configuration and the matching two-ear housing. Providing the engine or machine model helps keep the cross-reference group commercially accurate.

What should an importer send for a faster 228000-1130 quotation?

Send the complete OE or Denso/Isuzu reference, engine model, machine model and serial or PIN when available. Include photographs of the drive end, mounting face, terminal side and old label, together with the required quantity, destination and packaging request. These details let the sales team return a quotation linked to the right configuration instead of replying with a generic starter-motor offer.

Is private-label packaging available for 228000-1130 starter motors?

Neutral packaging is available for standard wholesale orders, and private-label packing can be reviewed for qualified programs. The buyer should provide artwork, barcode format, carton-marking requirements and any market-specific label content before production. Keeping the OE group, 12V 1.4kW rating and 9-tooth configuration accurate on the label helps distributors manage branches and repeat orders.

What are the normal MOQ, lead time and warranty for 228000-1130?

The normal starting quantity is 20 pieces, subject to final order confirmation. Standard lead time is generally 7–15 days after the specification, packaging and commercial terms are approved. The product carries an 18-month warranty under the agreed sales terms. For scheduled or mixed-reference purchases, buyers should include the forecast and separate quantities for each complete OE group.

Request a 228000-1130 Isuzu Starter Motor Wholesale Quote

Send your 228000-1130 or related OE number, Isuzu 3LB1/3LD1 engine or equipment details, quantity, destination and packaging requirements. Elecdura will review the 12V, 1.4kW, 9T configuration and return the applicable price, lead time, sample arrangement and private-label options for your distribution program.
