228000-1830 Caterpillar 924G Starter Motor Wholesale

228000-1830 Starter Motor Wholesale Supply for Caterpillar 924G

Caterpillar loader-parts suppliers need a product definition that works for counter sales, branch transfers and urgent jobsites. Pairing 228000-1830 with the 924G machine identity gives each order a usable starting point.

The related OE group appears across more than one Caterpillar application. Before dispatch, compare the loader details, ten-tooth drive, three-point mounting face and cable side rather than relying on one number alone.

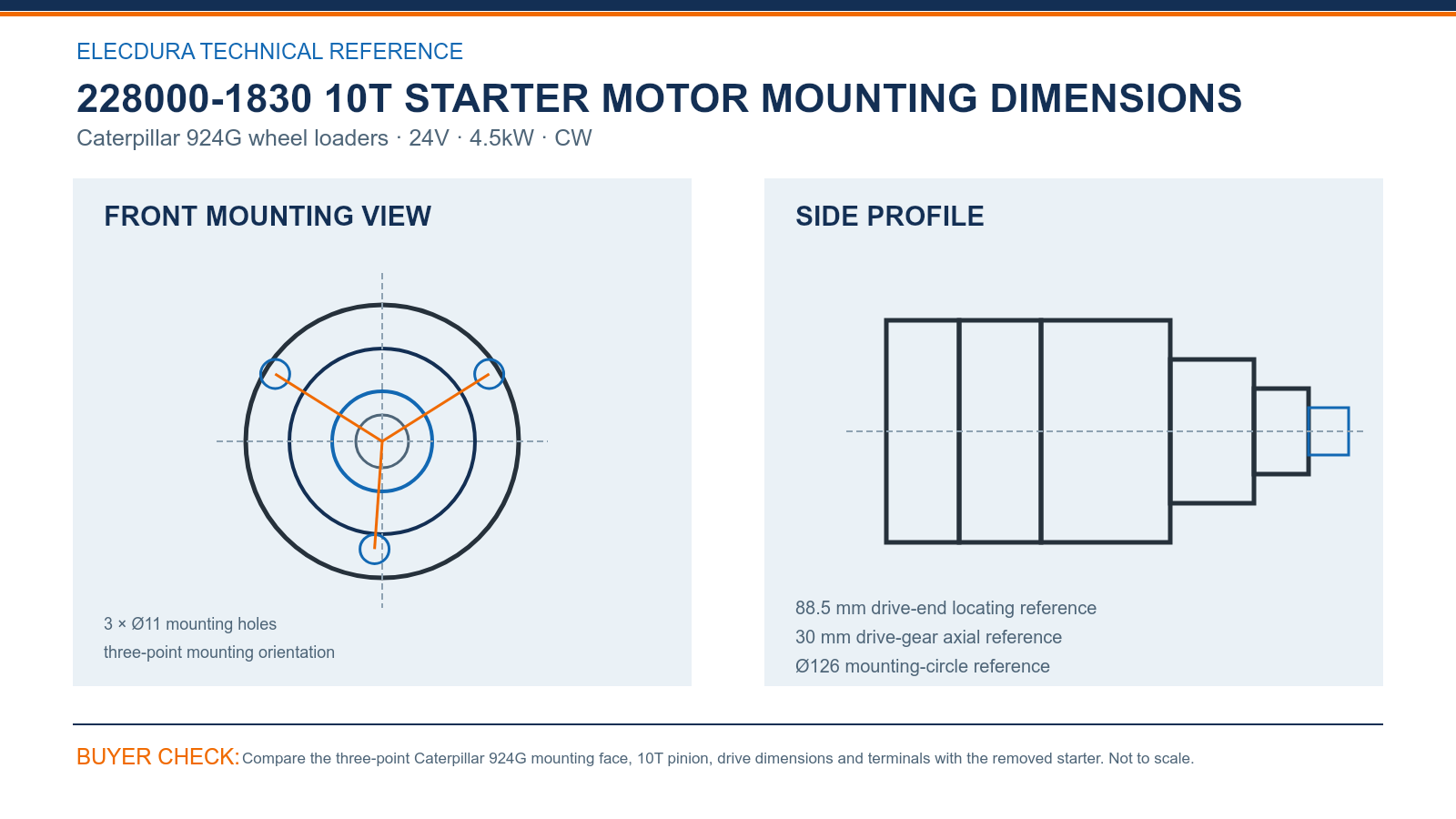

228000-1830 Starter Motor Technical Drawing for Loader Parts Buyers

This unit is specified at 24V, 4.5kW, 10T, module 3.175 and clockwise rotation. Those values describe both cranking output and the gear interface needed by the supported loader installation.

228000-1830 Starter Motor Dimensions for Caterpillar 924G Supply — compare the drawing with the removed starter before placing a volume order.

The drawing highlights three Ø11 mounting holes, an Ø126 circle, 88.5 mm locating reference and 30 mm drive position. These checks are especially useful when the replacement travels directly to a remote machine.

228000-1830 Starter Motor OE Matching for Caterpillar Distributors

228000-1830, 228000-1831, 228000-1832, 0R-4321 and 1006929 form the main search group. Buyers should still retain the 924G model and removed-starter images on the enquiry documents.

For fleets with several Caterpillar models, list quantities by machine rather than combining them under a general loader description. That keeps the 924G allocation visible from quotation through warehouse issue.

228000-1830 Starter Motor Supply Planning and Factory Video

Construction-equipment stock can be split between breakdown response and normal replenishment. Sample the first incoming lot for pinion count, drive-end geometry, protected terminals and electrical-test documentation before sending units to branches.

Elecdura's production video introduces starter assembly, component handling and electrical testing. Caterpillar distributors can use it to assess supply capability alongside their own requirements for lot traceability, packaging and delivery timing.

228000-1830 Starter Motor FAQs for B2B Buyers

What Caterpillar information should identify a 924G enquiry?

The buyer should provide Caterpillar 924G machine model, serial or arrangement information and removed-starter label. For 228000-1830, those details must agree with the 10T drive, three-hole face, loader identity and terminal side rather than a broad brand description. This links the reference group to the actual loader used by the customer. Keep the matched 228000-1830 images with branch stock details for future replenishment.

How are 228000-1830, 0R-4321 and 1006929 used in the same order review?

Use cross-reference group 228000-1830/31/32, 0R-4321 and 1006929 as a search set, then keep Caterpillar 924G wheel loaders on the same enquiry. Confirm the 10T drive, three-hole face, loader identity and terminal side on the removed unit before treating the numbers as one 228000-1830 product. This allows number matching without assuming that every related listing has identical physical construction. Use the confirmed 228000-1830 combination on the purchase order and receiving sheet.

What stock approach suits 924G loaders working away from the main warehouse?

Use 924G application, construction-equipment downtime and transport lead time when deciding 228000-1830 reserve quantities and warehouse labels. A description that includes the 10T drive, three-hole face, loader identity and terminal side makes repeat picking faster and clearer. This helps distributors balance emergency stock against routine replenishment. Preserve the Caterpillar 924G wheel loaders fitment and mounting comparison in the customer's reorder notes.

Which pinion details distinguish this Caterpillar starter family?

Verify 10T, module 3.175 and CW on the removed unit. For 228000-1830, pair the drive data with the 24V system and measured mounting face so a same-output starter is not assumed suitable. This prevents a same-output starter with another gear form from entering the order. Carry the agreed 228000-1830 identity through packing and branch-transfer documents.

What does the 924G mounting drawing require the buyer to compare?

The 228000-1830 physical comparison should cover 3 × Ø11 holes, Ø126 mounting circle, 88.5 mm locating and 30 mm axial reference. Relate those dimensions to the 10T drive, three-hole face, loader identity and terminal side before accepting a similar-looking housing. This confirms drive-end compatibility before remote installation. Retain the 228000-1830 comparison photographs with the delivery lot for after-sales review.

Which loader-side electrical checks belong in a no-crank diagnosis?

Before replacing the starter, check 24V battery bank, positive and ground voltage drop, start-command voltage and ring-gear condition. Keep the readings with the 228000-1830 request for Caterpillar 924G wheel loaders so the circuit, ring gear and starter can be considered separately. This separates a machine circuit fault from a starter replacement issue. Include the confirmed 228000-1830 configuration in later forecasts and repeat purchases.

How should a distributor inspect an incoming 228000-1830 lot?

Receiving staff should record label, 10T drive, three-hole face, terminal protection and sampled electrical test against the 228000-1830 shipment lot. The check should show the 10T drive, three-hole face, loader identity and terminal side clearly enough for repeat deliveries and after-sales comparison. This provides a lot-level record before units are sent to branches or jobsites. Retain the confirmed 924G details with the branch stock line for repeat dispatches.

What order information affects pricing and delivery for 924G starter supply?

Send quantity, required date, packaging, destination and whether stock is for breakdown response or replenishment in one enquiry. Elecdura can then check the 10T drive, three-hole face, loader identity and terminal side and quote quantity, packing and lead time against the actual destination. This turns a fitment request into a workable B2B supply plan. Attach the confirmed 228000-1830 comparison to the quotation so receiving can check the same product.

Request 228000-1830 Starter Motor B2B Pricing for 924G Loaders

Email the Caterpillar 924G model and serial details, complete old-unit reference, front and terminal-side photographs, quantity, required date, packing preference and destination to info@elecdurauto.com. Elecdura will review the 228000-1830 configuration and prepare a B2B supply proposal.
