228000-2800 Isuzu 6HK1 Starter Motor Distributor Supply

228000-2800 Starter Mounting and Terminal B2B Approval

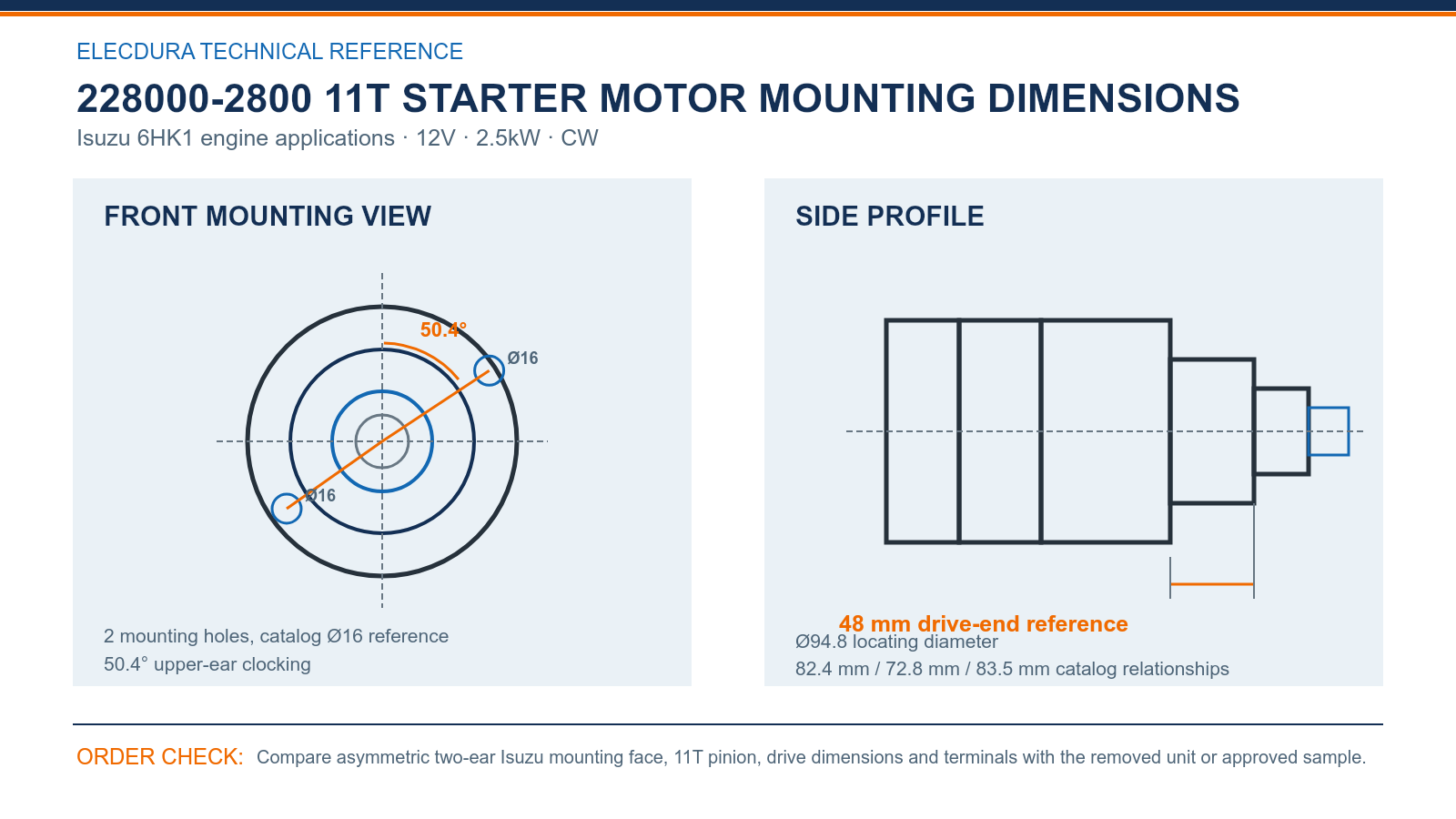

The drawing provides an asymmetric two-ear face with two Ø16 mounting references, 50.4° upper-ear clocking, Ø94.8 locating diameter and a 48 mm drive-end reference. The 82.4 mm, 72.8 mm and 83.5 mm relationships offer additional checks around the face.

• Compare the old unit from the drive end.

• Count eleven pinion teeth.

• Check both mounting holes and locating diameter.

• Record solenoid and terminal orientation before sample approval.

228000-2800 Isuzu 6HK1 Starter as a Controlled Catalog Line

The 228000-2800 number appears in more than one aftermarket specification set. The version offered here is 12V, 2.5kW, 11T, module 3 and CW for Isuzu 6HK1 applications. A buyer should quote this complete configuration rather than assume that the OE number alone defines the power and housing.

When a distributor already carries another 228000-2800 line, keep the two records separate by application, rated power and approved sample. That prevents warehouse staff from merging physically different purchasing requirements under one familiar number.

228000-2800 12V 2.5kW Starter Motor Specifications and B2B Fitment Drawing

228000-2800 11T starter mounting and drive-end reference for B2B sample review.

A complete 228000-2800 approval includes the face and drive-end details shown below, not only the printed reference. Compare 2 mounting holes, catalog Ø16 reference, 50.4° upper-ear clocking, Ø94.8 locating diameter and 48 mm drive-end reference.

When an OE label and the measured face disagree, separate the inquiry and request a fresh fitment review.

228000-2800 Starter Distributor Supply for 6HK1 Demand

Elecdura supports importers and truck-parts distributors that need a clearly controlled 6HK1 starter line for replenishment. The quotation can cover sample quantity, normal wholesale supply, neutral packing and qualified private-label programs.

For repeat orders, send the approved reference record or prior invoice together with any change in vehicle application, quantity or packaging. If a customer presents a different power rating under the same OE number, request a new comparison instead of adding it to this 12V 2.5kW line.

The video provides an overview of Elecdura starter production and electrical testing. The ordered 6HK1 unit is identified through the stated 12V 2.5kW specification, 11T drive, complete reference group and approved mounting/terminal geometry.

228000-2800 Isuzu 6HK1 engine Starter Motor Wholesale FAQ

Why does this 228000-2800 page specify 12V and 2.5kW?

Those values define the Isuzu 6HK1 product represented on this page. Because the same reference can appear in other market listings with different ratings, buyers should quote the complete 12V, 2.5kW, 11T configuration and approve a sample rather than ordering from the number alone for warehouse stock.

How should a distributor keep two 228000-2800 products separate?

Use distinct records for application, voltage, power, tooth count, mounting photos and approved sample. Do not merge the pages only because the main OE number matches. Warehouse labels and purchase orders should include the Isuzu 6HK1 application and 12V 2.5kW specification so staff can select the intended catalog version.

Which Isuzu references support this starter inquiry?

The catalog lists 1811002990, 8975002310 and 8975003580 along with Denso 228000-2800, 228000-2804, 228000-2805 and 228000-2807. Submit the complete reference and 6HK1 application. Elecdura will compare it with the stated 11T configuration, the buyer’s mounting evidence and the terminal layout before final regional wholesale supply confirmation.

What is distinctive about the mounting face on this 6HK1 starter?

It uses an asymmetric two-ear layout with two catalog Ø16 hole references and a 50.4° upper-ear position. The drawing also identifies an Ø94.8 locating diameter and a 48 mm side reference. These details help separate the unit from another Isuzu starter that has a similar motor body.

What must be shown in sample photographs?

Provide a full side view, a centered drive-end view, an 11T pinion close-up and a terminal-side image. If possible, place a measuring tool at the locating diameter and drive projection. The goal is to preserve the features that distinguish this specific 12V 2.5kW 6HK1 line for production review.

Can an 18136 request be quoted without the old starter?

A preliminary quotation can begin with 18136 and the Isuzu 6HK1 application, but final product approval should use a complete OE record, customer drawing or verified sample photos. If none are available, keep the quotation conditional and avoid promising interchange with every starter sold under the same aftermarket number.

How is this starter checked at receiving?

Inspect the agreed label, 12V and 2.5kW specification, eleven teeth, clockwise rotation, two-ear face, mounting-hole size, locating feature, drive-end reference and terminal direction. Compare these points with the approved 6HK1 sample record. Any different power or geometry should be isolated rather than added to stock.

What details are needed for a private-label 228000-2800 order?

Share the quantity, target market, carton design, label content, barcode format and required inspection documents. Also identify this item as the 12V 2.5kW Isuzu 6HK1 version. That wording keeps packaging approval connected to the correct product when another 228000-2800 specification exists in the buyer’s system.

Request a 228000-2800 Starter Motor Wholesale Quote

Identify the order as the 12V 2.5kW Isuzu 6HK1 version, then send the complete reference, eleven-tooth and mounting evidence, quantity and packaging format. Elecdura will keep this request separate from other 228000-2800 ratings and quote the controlled configuration.

Note any receiving checklist already used for the 6HK1 line and identify changes from earlier purchases. Elecdura will review them before pricing the sample, production quantity and distributor package.
