228000-4830 Ford Ranger Mazda WL Starter Motor B2B Supplier

228000-4830 Starter Motor Fitment Control for B2B Replacement Programs

Commercial-vehicle electrical distributors serving Ford Ranger and Mazda diesel repair channels usually see 228000-4830 after an returned service unit has failed in service and a replacement is needed without creating a second installation problem. The working scope is Ford Ranger and Mazda B-Series or MPV diesel applications using WL-family and related MD25NA starter references, with 12V, 2.0kW, 9T and CW kept together as one sellable configuration.

The same WL service family is sold under Ford and Mazda references, so a quotation based on vehicle badge alone can merge different suffixes or terminal arrangements. The practical release point is therefore simple but strict: Tie the Ford or Mazda number to the WL engine record, confirm the 9-tooth pinion, Ø136 mm mounting reference, three M10 positions and the short 19 mm drive-end offset. Once documented, the same checkpoints can be reused for quotation, sample sign-off and incoming inspection.

228000-4830 9T Starter Motor Technical Review for Distributors

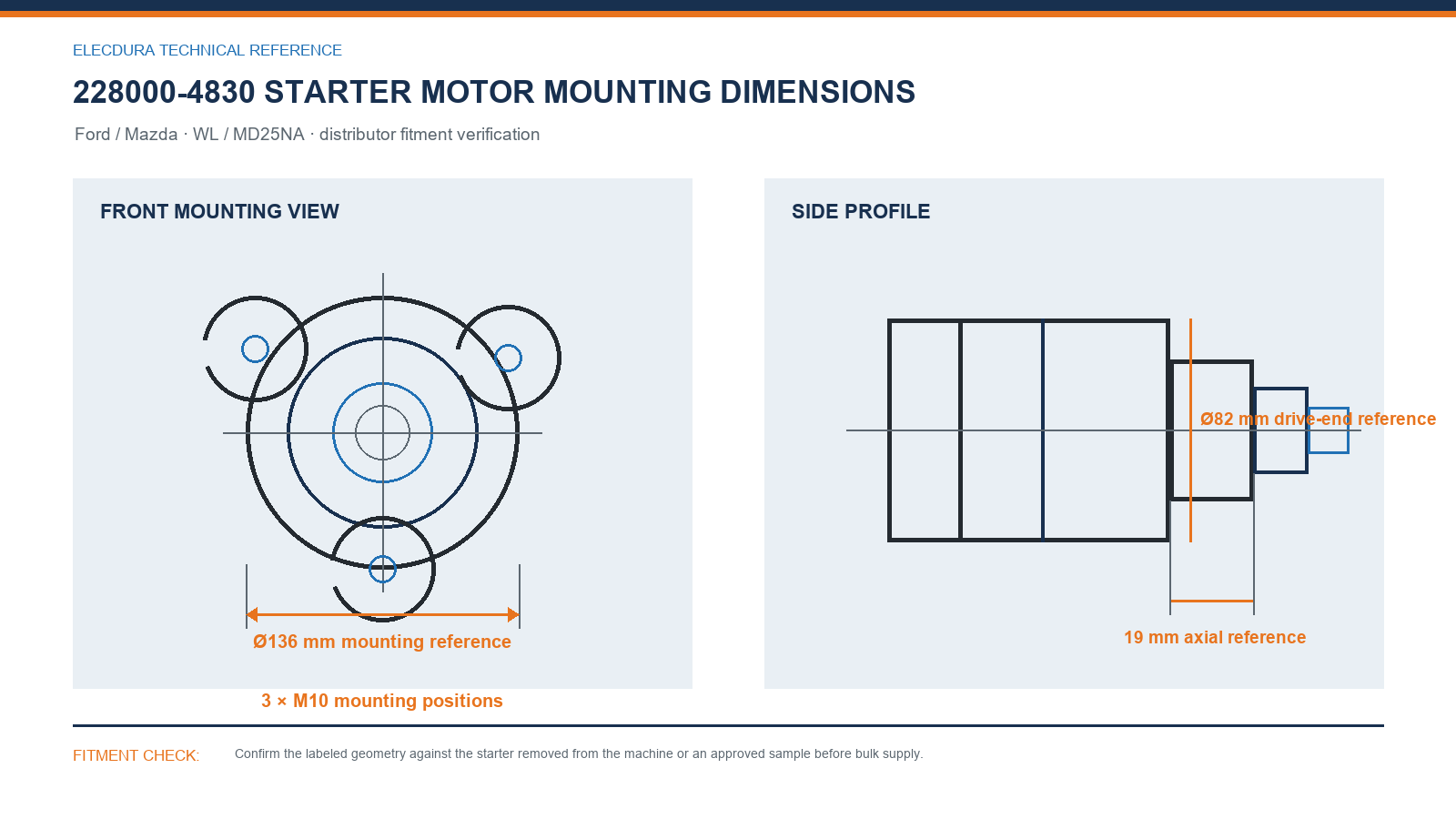

The drawing below converts the catalog geometry into a practical distributor check for the returned service unit and incoming sample.

Tie the Ford or Mazda number to the WL engine record, confirm the 9-tooth pinion, Ø136 mm mounting reference, three M10 positions and the short 19 mm drive-end offset. The image is a fitment reference and should be checked against the returned service unit or retained benchmark starter rather than scaled from the screen.

228000-4830 OE Cross-Reference Control for Wholesale Orders

228000-4830, 228000-4831, 228000-6480, 228000-6481 connect the main service channels for this product. They should stay together only when the 9T drive, 12V system and approved mounting arrangement are present on the sample.

Tie the Ford or Mazda number to the WL engine record, confirm the 9-tooth pinion, Ø136 mm mounting reference, three M10 positions and the short 19 mm drive-end offset. This protects margin by reducing preventable returns and gives the sales team a specific reason to request missing application data.

• Installed scope: Ford Ranger and Mazda B-Series or MPV diesel applications using WL-family and related MD25NA starter references.

• Version separator: The same WL service family is sold under Ford and Mazda references, so a quotation based on vehicle badge alone can merge different suffixes or terminal arrangements. Tie the Ford or Mazda number to the WL engine record, confirm the 9-tooth pinion, Ø136 mm mounting reference, three M10 positions and the short 19 mm drive-end offset.

• Trade handoff: commercial-vehicle electrical distributors serving Ford Ranger and Mazda diesel repair channels should retain 228000-4830, 228000-4831, 228000-6480, 228000-6481, 228000-6482 with the accepted physical comparison and customer requirement.

For Ford / Mazda WL / MD25NA sourcing, the retained geometry combines 3 × M10 mounting positions, Ø136 mm mounting reference, Ø82 mm drive-end reference and 19 mm axial reference. Additional service identifiers include WL01-18-400, WL02-18-400A, WL61-18-400, WL81-18-400, WL91-18-400, 3601369, 4348654, XM34-11002-CA. A quotation for this line should arrive with WL engine designation, Ford or Mazda OE, Ranger/B-Series model, transmission note, and clear photographs of the mounting and terminal sides; that information lets commercial-vehicle electrical distributors serving Ford Ranger and Mazda diesel repair channels distinguish this configuration before stock is committed.

228000-4830 Starter Motor Receiving and Private-Label Supply

Incoming inspection for 228000-4830 should start with the product label and move to the drive end, installation flange and terminals. Separate Ford-numbered and Mazda-numbered cartons until a sampled unit matches the approved 9T face, nose and rear electrical layout.

Elecdura supports sample-led wholesale supply with a usual starting MOQ of 20 pieces and a normal lead time of 7–15 days after confirmation. Private-label requests are handled as controlled programs, with artwork and reference wording approved before production.

View Elecdura assembly and test operations below when evaluating manufacturing support for a distributor program. Product acceptance for 228000-4830 still depends on the application, 9T drive and retained benchmark starter.

228000-4830 Starter Motor FAQ for B2B Procurement

For WL / MD25NA, why is the full 228000-4830 suffix important for buyers?

In the WL / MD25NA 228000-4830 identity file, a entire number preserves the service version that was actually removed from the machine. For this Ford / Mazda number set, the same search family can contain different power, pinion or stud arrangements, and the same WL service family is sold under Ford and Mazda references, so a quotation based on vehicle badge alone can merge different suffixes or stud arrangements. Within the 228000-4830 sourcing record, record 228000-4830, 228000-4831, 228000-6480, 228000-6481 exactly as seen, then use the reference piece to decide which references can share a wholesaler SKU. For the Ford / Mazda WL / MD25NA item, the usable identity chain is 228000-4830, 228000-4831, 228000-6480, 228000-6481.

For WL / MD25NA, does the Ford / Mazda application alone confirm fitment?

For the WL / MD25NA fitment, no. In this Ford / Mazda application, ford Ranger and Mazda B-Series or MPV diesel applications using WL-family and related MD25NA starter references defines the working scope, but the engine or machine record must still agree with 12V, 2.0kW, 9T and CW. For the defined 228000-4830 scope, finish the decision by checking the bolt pattern, nose depth and studs. For the WL / MD25NA fitment, this combination is more reliable than using a brand or model description as a universal interchange claim. For WL / MD25NA, the version boundary is 9T, 2.0kW, Ø136 mm mounting reference and the complete OE group.

For WL / MD25NA, what is the decisive drive-end check for 228000-4830?

At the 9T drive check, count 9 pinion teeth and compare the rest position, gear diameter and nose clearance with the starter taken from service. For the 228000-4830 pinion review, tie the Ford or Mazda number to the WL engine record, validate the 9-tooth pinion, Ø136 mm mounting reference, three M10 positions and the short 19 mm drive-end offset. Within the WL / MD25NA drive record, photograph the drive end square to the bolt pattern so purchasing and the factory can see the relationship clearly and repeat the same check when production reference pieces or later lots arrive. The Ford / Mazda release uses 9T with CW rotation, so both details belong on the sample and carton checks.

For WL / MD25NA, how can a distributor prevent mixed 228000-4830 inventory?

During mounting review for 228000-4830, give this product a stock record that includes the entire OE, 9T drive and application boundary instead of a broad Ford / Mazda label. At the WL / MD25NA flange check, receive different suffixes in separate locations until a reference piece confirms interchange. For the Ford / Mazda installation comparison, separate Ford-numbered and Mazda-numbered cartons until a sampled unit matches the approved 9T face, nose and rear electrical layout. During mounting review for 228000-4830, that discipline prevents a correct-looking neighboring version from being picked for a customer order. For WL / MD25NA, the drawing controls are 3 × M10 mounting positions, Ø136 mm mounting reference, Ø82 mm drive-end reference and 19 mm axial reference.

For WL / MD25NA, which cross-references belong in the quotation?

Within the Ford / Mazda interchange group, list the customer-supplied number first, followed by known references such as 228000-4830, 228000-4831, 228000-6480, 228000-6481. For the 228000-4830 cross-reference decision, do not remove suffixes or combine lines merely because online descriptions appear similar. In the WL / MD25NA stocking boundary, each number should connect to the same WL / MD25NA application, 12V/2.0kW electrical release and approved physical version before it is treated as part of the 228000-4830 group. The working scope is Ford Ranger and Mazda B-Series or MPV diesel applications using WL-family and related MD25NA starter references; it is not a universal statement for every Ford / Mazda machine.

For WL / MD25NA, what should the technical drawing be used for?

For this commercial-vehicle electrical distributors serving Ford Ranger and Mazda diesel repair channels inquiry, use it to organize the physical comparison: mounting-hole layout, locating diameter, drive-end size, offset and stud clocking. When quoting 228000-4830, tie the Ford or Mazda number to the WL engine record, validate the 9-tooth pinion, Ø136 mm mounting reference, three M10 positions and the short 19 mm drive-end offset. For the Ford / Mazda commercial request, it is not a substitute for the original starter and should not be scaled from the screen. For this commercial-vehicle electrical distributors serving Ford Ranger and Mazda diesel repair channels inquiry, record measured values and photographs beside the reference piece approval for future orders. A practical WL / MD25NA inquiry includes WL engine designation, Ford or Mazda OE, Ranger/B-Series model, transmission note, and clear photographs of the mounting and terminal sides.

For WL / MD25NA, what incoming checks protect a commercial-vehicle electrical distributors serving Ford Ranger and Mazda diesel repair channels program?

At incoming inspection for 228000-4830, separate Ford-numbered and Mazda-numbered cartons until a sampled unit matches the approved 9T face, nose and rear electrical layout. During the WL / MD25NA lot release, also inspect the product label, stud caps, pinion protection and carton condition across multiple reference pieces. For Ford / Mazda warehouse acceptance, retain one accepted unit where practical. At incoming inspection for 228000-4830, this gives incoming-quality staff a fast reference and creates a documented basis for separating transit damage, mixed production and a true application mismatch during a customer claim. The receiving release for this Ford / Mazda starter is the combined 9T, 3 × M10 mounting positions and terminal check.

For WL / MD25NA, can Elecdura support neutral and private-label packing?

For the 228000-4830 supply program, neutral packing is available for standard 228000-4830 wholesale supply. When preparing the WL / MD25NA order, private-label artwork can be reviewed for qualified orders after the exact reference wording, 9T configuration, barcode, carton strength and internal protection are approved. For this Ford / Mazda distributor line, provide WL engine designation, Ford or Mazda OE, Ranger/B-Series model, transmission note, and clear photographs of the mounting and stud sides, quantity and destination so commercial terms remain linked to the same technical release. The WL / MD25NA commercial request should retain 228000-4830, 12V, 2.0kW, 9T, quantity, destination and packaging preference on one line.

Send a B2B RFQ for 228000-4830 Starter Motor Supply

Send WL engine designation, Ford or Mazda OE, Ranger/B-Series model, transmission note, and clear photographs of the mounting and terminal sides, required quantity, destination and packaging preference. Elecdura will review the 12V, 2.0kW, 9T 228000-4830 configuration and confirm sample, lead-time and wholesale-supply details before the order is released.
