228000-6320 Kubota D1105 V1505 Starter Motor Wholesale

228000-6320 Kubota Starter Motor Identification for Wholesale Buyers

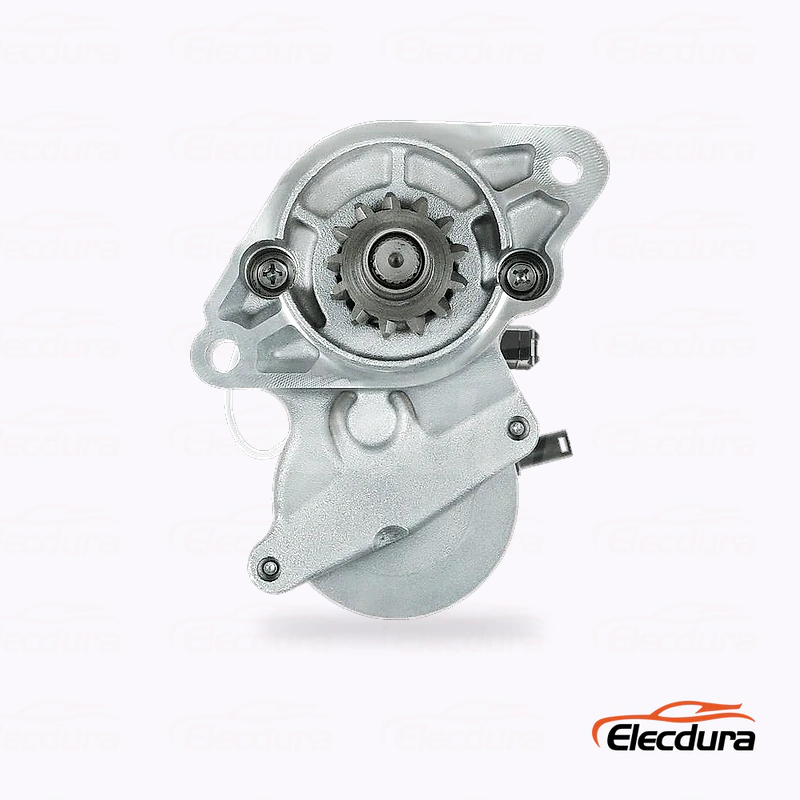

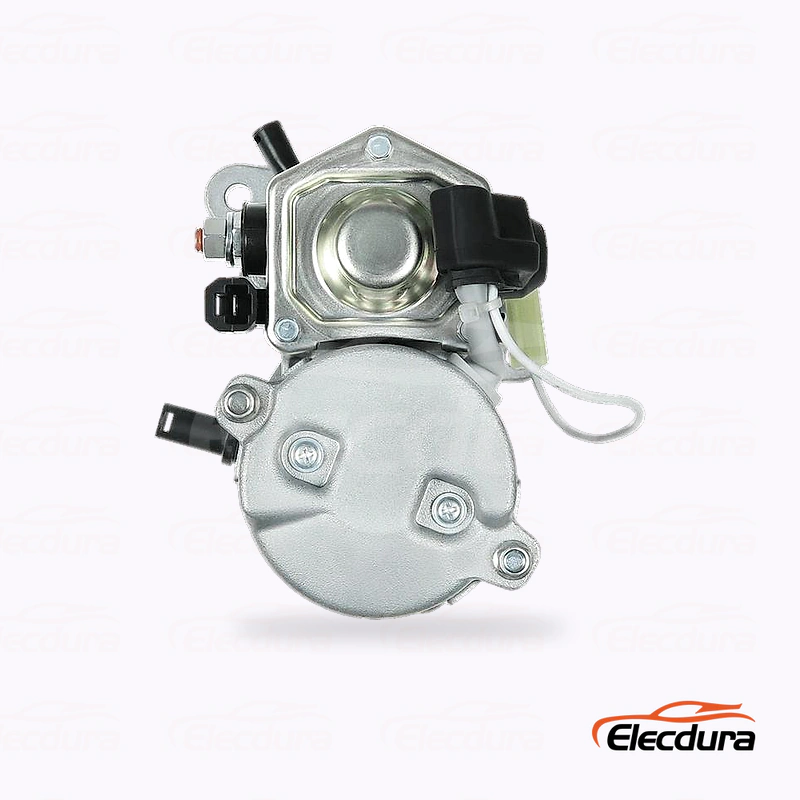

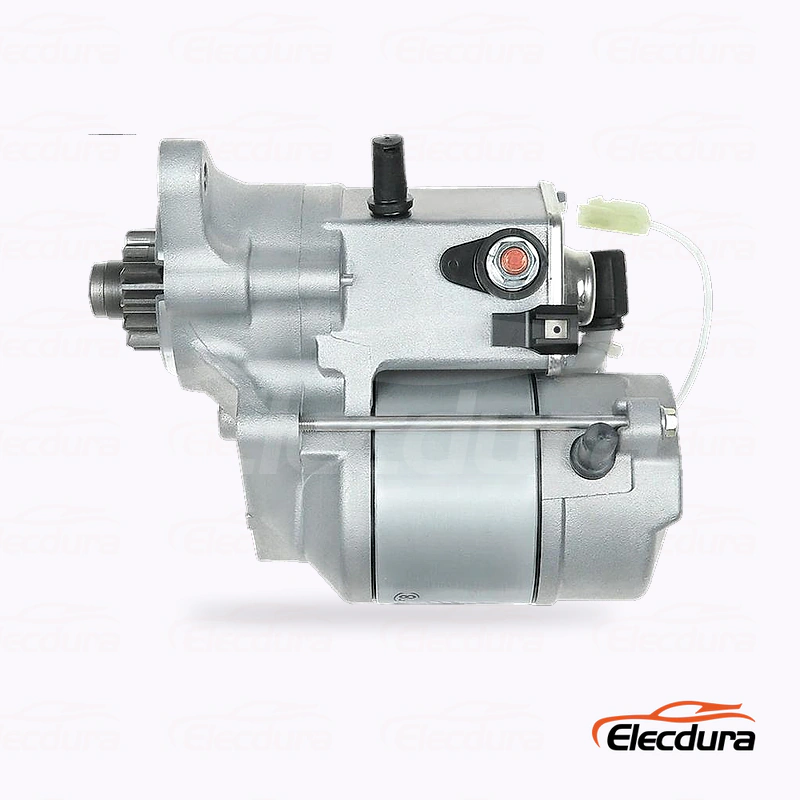

228000-6320 is a 12V, 1.4kW, 13T, CW-rotation starter motor for Kubota D1105 and V1505 engines used in selected Mustang, Avant and compact industrial machines. The page is structured for professional sourcing, where the target is not only to find a reference but to approve the correct electrical and physical version for repeat supply.

Machine makers may publish their own service number while the underlying Kubota engine uses the Denso and Kubota references listed here. Buyers should record the machine model, serial or PIN where available, engine details, full starter number and photographs of both ends. Match the D1105 or V1505 engine suffix, 13-tooth pinion, compact two-hole face, asymmetric hole angles and cable clearance before approving dealer stock. This creates a useful commercial record even when the worn core label is incomplete.

228000-6320 Starter Motor Specifications for Wholesale Sourcing

228000-6320 verification reference for compact-loader and industrial-engine distributors; compare the labeled controls with the removed unit or signed sample before volume supply.

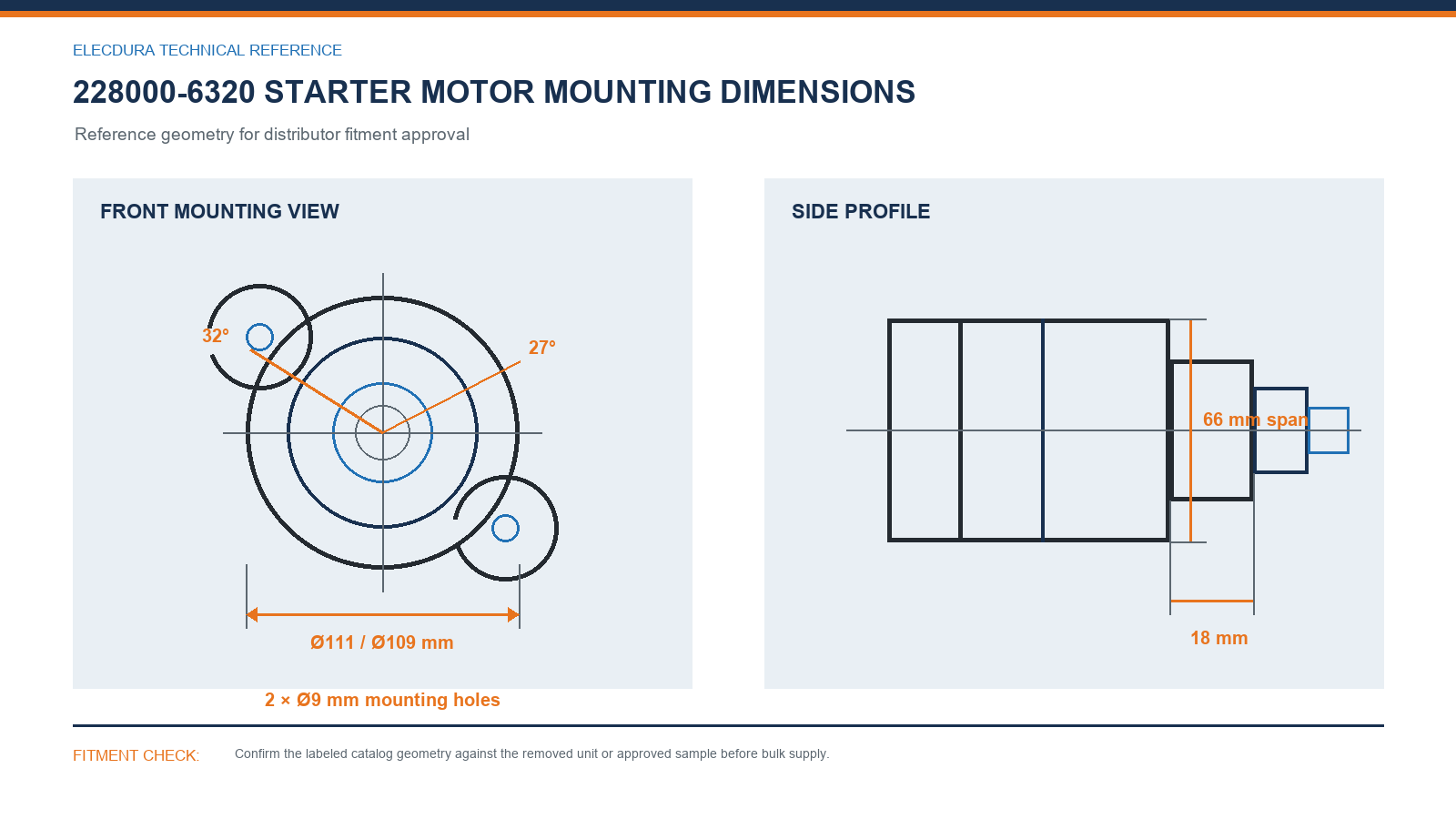

Key drawing references include Two Ø9 mm mounting holes, Approx. 32° and 27° hole references, Ø111 mm mounting reference, Ø109 mm secondary reference, 66 mm drive-end span, 18 mm axial reference.

228000-6320 Starter Motor OE and Application Review for B2B Supply

The purchasing group begins with 228000-6320, 228000-6321, 16235-63010, 16235-63011, 16235-63012, 17423-63012. These numbers connect service records and rebuilt labels, but complete references remain necessary because missing suffixes can identify a different output, pinion or housing.

Machine makers may publish their own service number while the underlying Kubota engine uses the Denso and Kubota references listed here. The controlled application is Kubota D1105 and V1505 engines used in selected Mustang, Avant and compact industrial machines. Match the D1105 or V1505 engine suffix, 13-tooth pinion, compact two-hole face, asymmetric hole angles and cable clearance before approving dealer stock.

228000-6320 Starter Motor Receiving and Supply Controls for Distributors

A distributor receiving plan should check units from several cartons for consistent 228000-6320 labeling, 1.4kW output, 13T pinion and the approved physical arrangement. Verify terminal protection and drive-end cleanliness, compare a sample to the control unit, and quarantine any mixed reference before it reaches saleable stock.

Elecdura supplies this starter to compact-loader and industrial-engine distributors under confirmed aftermarket specifications. Starting MOQ is normally 20 pieces. Neutral cartons support routine distribution, while private-label packaging requires approved artwork and product labeling tied to 228000-6320. Lead time is commonly 7–15 days after final order confirmation.

Watch Elecdura starter-motor assembly and electrical testing below. Approval remains tied to 228000-6320, the Kubota application and this page's physical controls.

▶ Watch the Elecdura starter motor production and testing video

228000-6320 Starter Motor FAQ for B2B Procurement

What should a wholesale buyer verify for 228000-6320?

Kubota D1105 and V1505 engines used in selected Mustang, Avant and compact industrial machines defines the working application scope for this compact-equipment receiving control. Confirm 12V, 1.4kW, 13T and CW rotation, then apply this physical release: Match the D1105 or V1505 engine suffix, 13-tooth pinion, compact two-hole face, asymmetric hole angles and cable clearance before approving dealer stock. Keep the final comparison with the customer account so repeat orders follow the same approved starter.

Which applications are controlled on the 228000-6320 page?

228000-6320 is positioned for Kubota D1105 and V1505 engines used in selected Mustang, Avant and compact industrial machines. The page does not extend that record to every Kubota product. A distributor should connect the D1105 / V1505 engine designation, machine model and available serial information to the full starter number, then retain the result as the fitment boundary for this SKU.

Can cross-references alone release a 228000-6320 bulk order?

228000-6320, 228000-6321, 16235-63010, 16235-63011, 16235-63012, 17423-63012 are the principal identifiers reviewed for this Kubota starter group. They help reconcile service records and rebuilt labels, but they cannot cancel a difference in 1.4kW output, 13T drive, housing or terminals. Consolidate references only after the old unit and approved sample agree.

What electrical details matter for 228000-6320 starter selection?

The cataloged release is 12V, 1.4kW, 13T and CW rotation for D1105 / V1505 applications. Count the pinion and read the voltage or power label before comparing battery and switch terminals. This sequence keeps an electrically similar starter with another drive or connection layout out of the 228000-6320 wholesale line.

How should the 228000-6320 mounting geometry be checked?

Review Two Ø9 mm mounting holes, Approx. 32° and 27° hole references, Ø111 mm mounting reference, Ø109 mm secondary reference, 66 mm drive-end span, 18 mm axial reference. The technical graphic is a purchasing reference, not a drawing to scale. Place the removed starter beside the sample, check the mounting face and pinion rest position, and photograph the connection side. These controls give compact-loader and industrial-engine distributors a practical dimensional record before approving volume supply.

What information should accompany a 228000-6320 RFQ?

For this Kubota inquiry, provide the D1105 / V1505 engine record, complete OE or cross-reference, machine model, serial or PIN where available, drive-end and terminal photographs, required quantity, destination and packaging request. Add mounting or nose measurements when the label is incomplete so the quotation remains tied to a verifiable unit.

How should distributors inspect the first 228000-6320 shipment?

compact-loader and industrial-engine distributors should sample cartons across the delivery and verify 228000-6320 labels, 13T pinions, mounting castings, solenoid orientation and terminal protection. Compare one unit with the approved Kubota sample, quarantine any mixed reference, and store receiving photographs with the SKU before branches receive saleable inventory.

Is private-label packaging available for 228000-6320?

Private-label presentation can be reviewed for qualified 228000-6320 programs, while neutral cartons support standard wholesale orders. Artwork, barcode, carton strength and pinion protection need approval before production. The product label should state 12V, 1.4kW, 13T and the controlled Kubota reference accurately, without suggesting universal fitment.

Request a 228000-6320 Starter Motor Wholesale Quote

Send 228000-6320 or the related OE, Kubota machine and D1105 / V1505 engine details, old-starter photographs, quantity, destination and packaging request. Elecdura will review the 12V, 1.4kW, 13T configuration and sample requirements before quoting.
