228000-6920 Bobcat 325C Kubota V1703 Starter Motor Supplier

228000-6920 Starter Motor Fitment Control for B2B Replacement Programs

Compact-excavator parts wholesalers and Bobcat service networks usually see 228000-6920 after an unit taken from service has failed in service and a replacement is needed without creating a second installation problem. The working scope is Bobcat 325C, 325D, 328C and related compact excavators using compatible Kubota V1703 or V2203 diesel engines, with 12V, 2.0kW, 10T and CW kept together as one sellable configuration.

A Bobcat model can span more than one engine or starter arrangement, so the machine series and Kubota engine plate must be checked together instead of assuming every 325 or 328 uses one unit. Compact-excavator orders also need the solenoid cable version recorded because restricted engine-bay routing can make a correct-looking connection arrangement impractical during field installation. The practical release point is therefore simple but strict: Confirm Bobcat 6670727/6681858 with the V1703 or V2203 record, then check the 10T gear, two Ø13 mm bores, Ø120 mm face, 50° ear relation and Ø95 mm drive end. Once documented, the same checkpoints can be reused for quotation, sample sign-off and incoming inspection.

228000-6920 10T Starter Motor Technical Review for Distributors

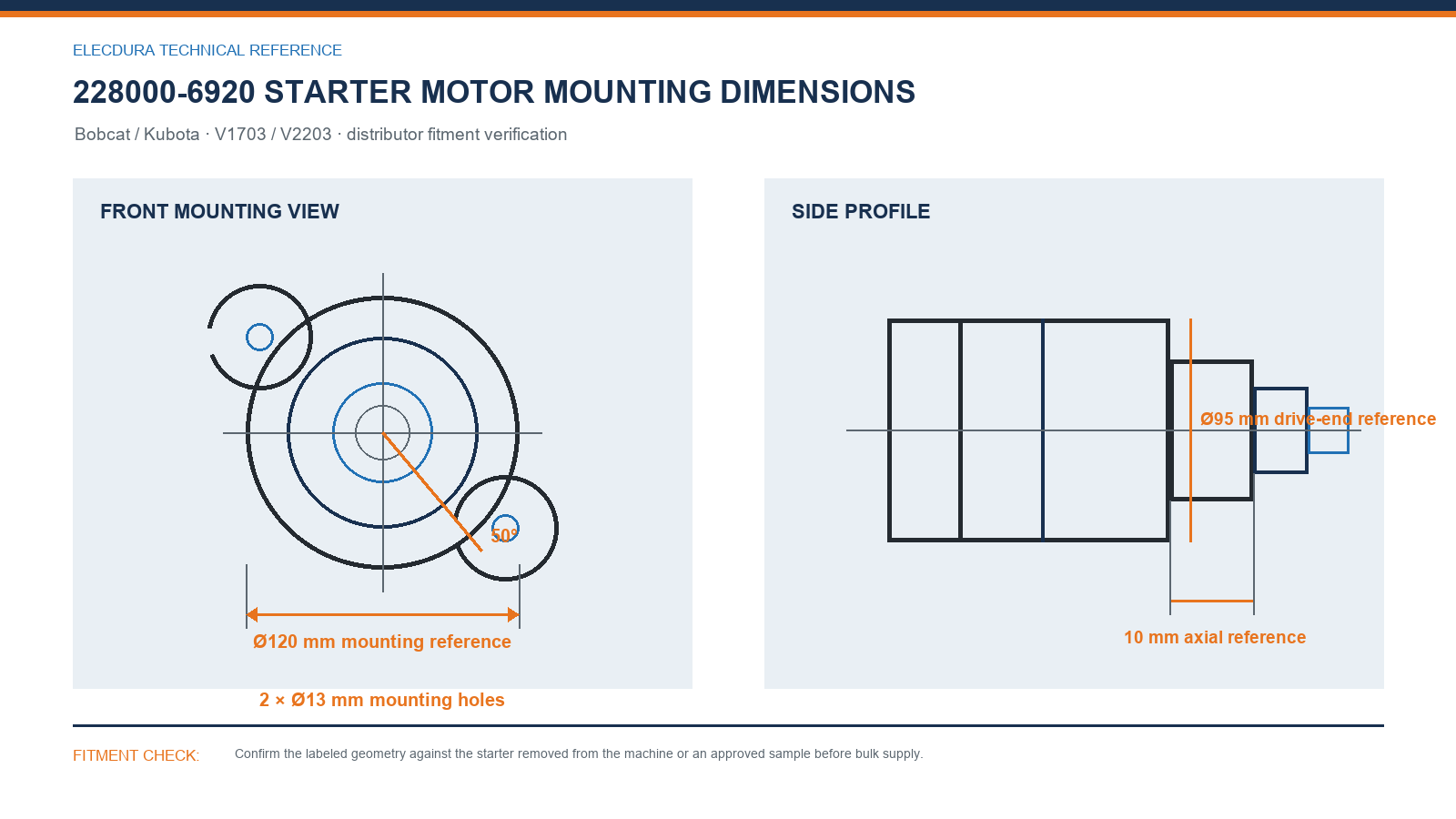

The drawing below converts the catalog geometry into a practical distributor check for the unit taken from service and incoming sample.

Confirm Bobcat 6670727/6681858 with the V1703 or V2203 record, then check the 10T gear, two Ø13 mm bores, Ø120 mm face, 50° ear relation and Ø95 mm drive end. The image is a fitment reference and should be checked against the unit taken from service or validated reference starter rather than scaled from the screen.

228000-6920 OE Cross-Reference Control for Wholesale Orders

228000-6920, 228000-6921, 428000-2070, 6670727 connect the main service channels for this product. They should stay together only when the 10T drive, 12V system and approved mounting arrangement are present on the sample.

Confirm Bobcat 6670727/6681858 with the V1703 or V2203 record, then check the 10T gear, two Ø13 mm bores, Ø120 mm face, 50° ear relation and Ø95 mm drive end. This protects margin by reducing preventable returns and gives the sales team a specific reason to request missing application data.

• Installed scope: Bobcat 325C, 325D, 328C and related compact excavators using compatible Kubota V1703 or V2203 diesel engines.

• Version separator: A Bobcat model can span more than one engine or starter arrangement, so the machine series and Kubota engine plate must be checked together instead of assuming every 325 or 328 uses one unit. Compact-excavator orders also need the solenoid cable version recorded because restricted engine-bay routing can make a correct-looking connection arrangement impractical during field installation. Confirm Bobcat 6670727/6681858 with the V1703 or V2203 record, then check the 10T gear, two Ø13 mm bores, Ø120 mm face, 50° ear relation and Ø95 mm drive end.

• Trade handoff: compact-excavator parts wholesalers and Bobcat service networks should retain 228000-6920, 228000-6921, 428000-2070, 6670727, 6681858 with the accepted physical comparison and customer requirement.

For Bobcat / Kubota V1703 / V2203 sourcing, the retained geometry combines 2 × Ø13 mm mounting holes, Ø120 mm mounting reference, Ø95 mm drive-end reference and 10 mm axial reference. Additional service identifiers include 7253205, 18447, 18447N, S8808. A quotation for this line should arrive with Bobcat model and serial, engine model, 6670727 or 6681858 reference, cable or terminal version, and old-unit photographs; that information lets compact-excavator parts wholesalers and Bobcat service networks distinguish this configuration before stock is committed.

228000-6920 Starter Motor Receiving and Private-Label Supply

Incoming inspection for 228000-6920 should start with the product label and move to the drive end, fixing-ear geometry and terminals. Use the approved excavator sample to verify the 10T drive, upper ear angle, solenoid cable version and protective packing across several cartons.

Elecdura supports sample-led wholesale supply with a usual starting MOQ of 20 pieces and a normal lead time of 7–15 days after confirmation. Private-label requests are handled as controlled programs, with artwork and reference wording approved before production.

View Elecdura assembly and test operations below when evaluating manufacturing support for a distributor program. Product acceptance for 228000-6920 still depends on the application, 10T drive and validated reference starter.

228000-6920 Starter Motor FAQ for B2B Procurement

For V1703 / V2203, how should 228000-6920 be identified when the old label is damaged?

In the V1703 / V2203 228000-6920 identity file, use the V1703 / V2203 engine or machine record, then photograph the drive end, bolt pattern, side profile and studs. For this Bobcat / Kubota number set, count the 10 teeth and measure the locating and axial references shown in the graphic. Within the 228000-6920 sourcing record, compare those details with 228000-6920, 228000-6921, 428000-2070, 6670727. In the V1703 / V2203 228000-6920 identity file, a damaged label increases the importance of the physical record; it does not justify a brand-only match. For the Bobcat / Kubota V1703 / V2203 item, the usable identity chain is 228000-6920, 228000-6921, 428000-2070, 6670727.

For V1703 / V2203, which buying mistake is most likely with this starter?

For the V1703 / V2203 fitment, a Bobcat model can span more than one engine or starter arrangement, so the machine series and Kubota engine plate must be checked together instead of assuming every 325 or 328 uses one unit. In this Bobcat / Kubota application, compact-excavator orders also need the solenoid cable version recorded because restricted engine-bay routing can make a correct-looking connection arrangement impractical during field installation. For the defined 228000-6920 scope, the control is to keep the application, entire OE, 12V, 2.0kW, 10T, mounting geometry and stud layout on the same approval sheet. For the V1703 / V2203 fitment, if one item is unknown, request it before the dealer order rather than assuming the nearest visual match will install correctly. For V1703 / V2203, the version boundary is 10T, 2.0kW, Ø120 mm mounting reference and the complete OE group.

For V1703 / V2203, can the V1703 / V2203 name be used as the only fitment field?

At the 10T drive check, the engine name is valuable, but it may be used in more than one machine or production version. For the 228000-6920 pinion review, combine it with the entire 228000-6920 or related OE, machine serial information and old-unit geometry. Within the V1703 / V2203 drive record, validate Bobcat 6670727/6681858 with the V1703 or V2203 record, then check the 10T gear, two Ø13 mm bores, Ø120 mm face, 50° ear relation and Ø95 mm drive end. At the 10T drive check, that creates a controlled application boundary instead of an overly broad claim for every V1703 / V2203 installation. The Bobcat / Kubota release uses 10T with CW rotation, so both details belong on the sample and carton checks.

For V1703 / V2203, why does 10T need to appear on the carton?

During mounting review for 228000-6920, tooth count is a visible warehouse control that separates this unit from neighboring products before installation. At the V1703 / V2203 flange check, include 10T with 228000-6920 and 12V/2.0kW on internal labels and private-label artwork. For the Bobcat / Kubota installation comparison, warehouse release team should count the pinion on reference pieces and quarantine any carton whose product does not agree with the printed configuration. For V1703 / V2203, the drawing controls are 2 × Ø13 mm mounting holes, Ø120 mm mounting reference, Ø95 mm drive-end reference and 10 mm axial reference.

For V1703 / V2203, how are the mounting and terminal positions approved?

Within the Bobcat / Kubota interchange group, validate Bobcat 6670727/6681858 with the V1703 or V2203 record, then check the 10T gear, two Ø13 mm bores, Ø120 mm face, 50° ear relation and Ø95 mm drive end. For the 228000-6920 cross-reference decision, compare the starter taken from service and reference piece on a flat surface, using the bolt pattern as the reference plane. In the V1703 / V2203 stocking boundary, photograph battery and switch studs from the same angle. Within the Bobcat / Kubota interchange group, keep the resulting images in the wholesaler SKU record so later sourcing teams and warehouse staff can repeat the check without relying on memory. The working scope is Bobcat 325C, 325D, 328C and related compact excavators using compatible Kubota V1703 or V2203 diesel engines; it is not a universal statement for every Bobcat / Kubota machine.

For V1703 / V2203, what cross-reference discipline is recommended?

For this compact-excavator parts wholesalers and Bobcat service networks inquiry, keep 228000-6920, 228000-6921, 428000-2070, 6670727 visible as entire strings throughout inquiry, quotation and reference piece review. When quoting 228000-6920, do not drop prefixes or suffixes to make a larger interchange group. For the Bobcat / Kubota commercial request, a reference joins the 228000-6920 stock line only when the application, 10T drive, electrical rating and mounting/stud arrangement agree with the reference piece. A practical V1703 / V2203 inquiry includes Bobcat model and serial, engine model, 6670727 or 6681858 reference, cable or terminal version, and old-unit photographs.

For V1703 / V2203, how should the lot be checked before customer dispatch?

At incoming inspection for 228000-6920, use the approved excavator reference piece to validate the 10T drive, upper ear angle, solenoid cable version and protective packing across several cartons. During the V1703 / V2203 lot release, inspect units from different cartons and record label accuracy, casting consistency, stud protection and packaging condition. For Bobcat / Kubota warehouse acceptance, if the batch is for several branches, retain one accepted reference piece or a detailed photo set centrally. At incoming inspection for 228000-6920, this reduces disputes when a later return must be compared with the original release. The receiving release for this Bobcat / Kubota starter is the combined 10T, 2 × Ø13 mm mounting holes and terminal check.

For V1703 / V2203, which details should a B2B buyer send for pricing?

For the 228000-6920 supply program, send Bobcat model and serial, engine model, 6670727 or 6681858 reference, cable or stud version, and old-unit photographs, quantity, destination, target delivery date and neutral or private-label preference. When preparing the V1703 / V2203 order, put any alternate OE on a separate line and identify whether a reference piece must be approved. For this Bobcat / Kubota distributor line, this allows the quotation to cover both the commercial requirement and the exact 228000-6920 starter configuration rather than only a generic product name. The V1703 / V2203 commercial request should retain 228000-6920, 12V, 2.0kW, 10T, quantity, destination and packaging preference on one line.

Send a B2B RFQ for 228000-6920 Starter Motor Supply

Send Bobcat model and serial, engine model, 6670727 or 6681858 reference, cable or terminal version, and old-unit photographs, required quantity, destination and packaging preference. Elecdura will review the 12V, 2.0kW, 10T 228000-6920 configuration and confirm sample, lead-time and wholesale-supply details before the order is released.
