228000-7500
228000-7500 / 228080-7500 / DSN2055 / 0R9702 / 18992N
Elecdura
Available for wholesale supply
20 pcs
7 - 15 Days
Neutral packing or customized packing after confirmation
18 Months
228000-7500 / 228080-7500 / DSN2055 / 0R9702 / 18992N
Caterpillar 3034 compact and industrial equipment
Caterpillar 3034 compact and industrial equipment
| Quantity: | |
|---|---|
Compact equipment has limited access around the starter, so a 228000-7500 inquiry should include the machine model and installed cable side, not only the Caterpillar engine family. The 10T drive and three-hole nose provide the common mechanical identity.
Send the machine serial, 3034 engine plate, complete old label and clear photographs before removal. Elecdura can compare the installation and return a defined wholesale option for dealer stock or a machine-down repair.
Primary OE reference | 228000-7500 |
Target application | Caterpillar 3034 compact and industrial equipment |
Voltage and output | 12V / 2.5kW |
Pinion, module and rotation | 10 teeth / module 3.175 / CW |
Mounting-hole reference | 3 × Ø11 mounting holes; 55°, 35° and 35° mounting-angle references |
Drive-end reference | Ø88.8 locating diameter; 29 mm axial reference; Ø126 mounting-face reference |
OE and cross-reference group | 228000-7500 / 228080-7500 / DSN2055 / 0R9702 / 18992N |
Wholesale terms | MOQ 20 pcs / normally 7–15 days after order confirmation |
Warranty | 18 months under agreed sales terms |

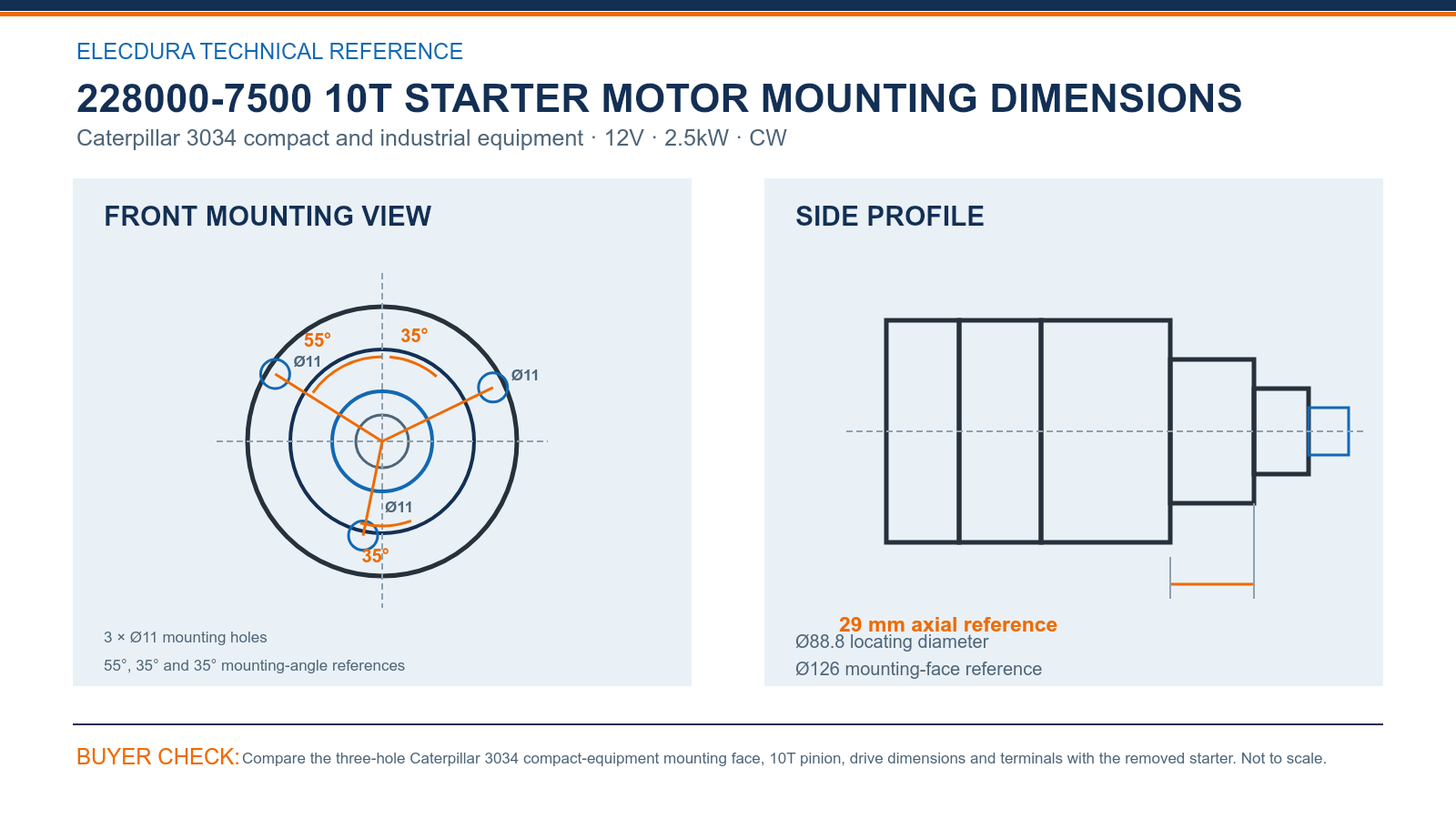

228000-7500 10T starter motor mounting and drive-end dimensions for buyer-side comparison.
The 228000-7500 drive end uses three Ø11 holes at 55°, 35° and 35°, an Ø88.8 locator, Ø126 mounting face and 29 mm axial reference. These points let a Caterpillar 3034 workshop compare the nose even when the motor body or solenoid finish differs from the removed unit.
Photograph the starter while it is still installed so the cable direction and surrounding clearance remain visible. Combine that view with the technical drawing and complete 0R9702 or Denso number for a repeatable dealer receiving check.
228080-7500, DSN2055, 0R9702 and 18992N are useful cross references for this Caterpillar family. Keep the exact number supplied by the service workshop and compare the old starter directly.
Confirm 12V, 2.5kW, 10 teeth, module 3.175 and CW.
Measure three Ø11 holes and the Ø88.8 locator.
Check the Ø126 face, 29 mm axial point and solenoid clearance.
Skid-steer and loader fleets can place 228000-7500 spares where machine utilization and transfer time justify them. A consistent carton label and retained drive-end image help technicians identify the correct unit during an urgent field repair.
Share the fleet count, depot locations, recent failures, emergency quantity and normal reorder plan. The video below shows Elecdura manufacturing and electrical testing for service organizations comparing dependable replenishment partners.
The production video helps compact-equipment buyers review Elecdura factory capability before setting emergency stock and routine 228000-7500 reorder quantities.
Use 0R9702 as a Caterpillar purchasing reference and retain 228000-7500 or the complete number from the removed unit when available. Confirm the 12V, 2.5kW, 10T specification and face dimensions. The reference pair improves traceability, while the machine details and physical comparison determine whether the offered starter suits the installation.
Skid steers and compact loaders can place guards, hoses or frame members close to the solenoid and cable studs. Photograph the starter before removal and show the battery cable and switch lead. These views help Elecdura compare terminal direction and service access in addition to the 3034 engine and three-hole mounting face.
Compare three Ø11 holes, the 55°, 35° and 35° angle references, an Ø88.8 locating diameter, Ø126 mounting face and 29 mm axial point. Measure the removed unit and photograph the face squarely. The full pattern is more reliable than matching only the outer casting or solenoid appearance.
Provide the machine model and serial, the 3034 engine plate, complete old starter number and photographs of the label, pinion, face and terminals. Include the required quantity, depot and delivery deadline. This gives Elecdura enough information to discuss fitment and commercial terms for the actual compact equipment rather than the engine name alone.
Confirm full locator seating, alignment of all three bolts, secure cable routing and clean 10T engagement and release. Note the machine serial and cranking result. If performance remains poor, inspect batteries, grounds, cables and ring gear before treating the replacement starter as the only possible reason for slow cranking.
Identify the machine that is down, its location, the Caterpillar 3034 details and the latest useful delivery date. Keep routine workshop replenishment on a separate quantity line. Once the 10T three-hole configuration is confirmed, Elecdura can compare an urgent shipment with standard consolidated delivery so the buyer sees the cost and timing of both choices clearly.
List the complete 228000-7500, 0R9702 or DSN2055 reference, machine group, quantity and required date on each line. Mark immediate repairs separately from normal stock. Elecdura can return one commercial proposal covering the confirmed 12V 2.5kW 10T CW unit, while showing different freight priorities, packing marks and delivery dates for the two purchasing purposes.
The drive pinion, three mounting ears, solenoid terminals and cable connection area should be protected from impact and moisture. Share carton strength, pallet, barcode and destination-mark requirements before production. For compact-equipment service channels, clear part and lot labels also help depots direct the same confirmed starter to the intended machines without opening every carton.
Send 228000-7500, 228080-7500, DSN2055, 0R9702 or 18992N, the Caterpillar 3034 machine and engine details, installed and removed-unit photographs, quantity by depot and deadline. Elecdura will quote the 12V 2.5kW 10T CW starter with fitment, packing and delivery options.
State whether the order covers an immediate machine-down repair, scheduled workshop stock or both so the commercial response can separate transport priority from normal replenishment.
