231503113 Doosan Crane Starter Motor B2B Supply 24V

231503113 Doosan Crane Starter Motor Value for B2B Parts Supply

Crane service work is sensitive to access, lifting schedules and equipment downtime. A quotation that combines 231503113 with the actual Doosan crane model and removed starter gives the distributor a clearer basis for planned maintenance stock or an urgent repair.

Three-point drive ends can appear alike in small photographs even when the bolt orientation or terminal reach differs. Compare the 11T pinion, Ø105 locating face, Ø140 reference circle, three mounting angles and cable-stud side before arranging delivery to the crane.

231503113 Starter Motor Three-Point Drawing for Wholesale Checks

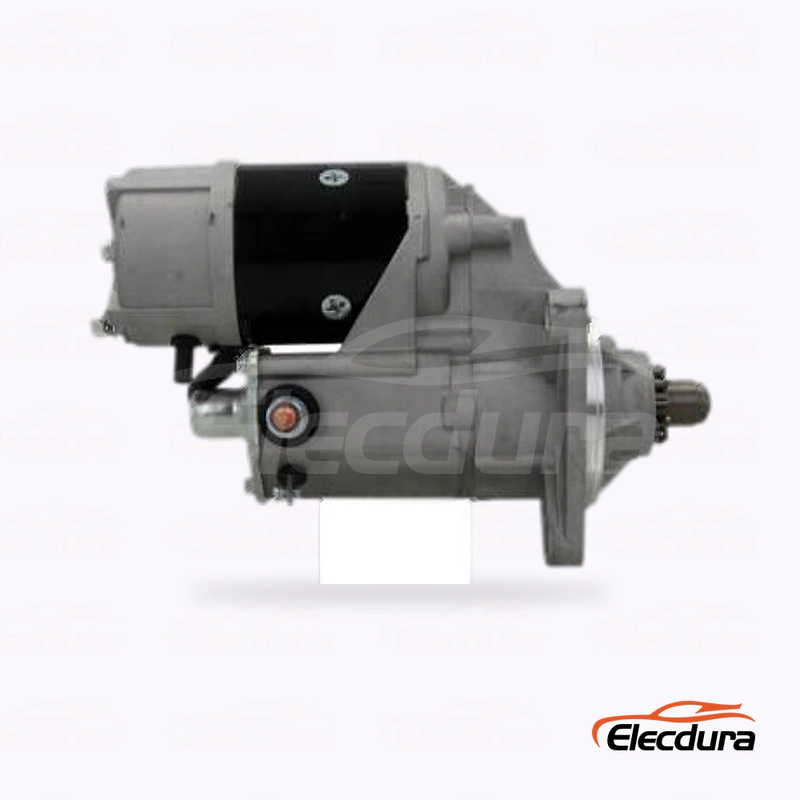

This industrial starter is specified at 24V, 4.5kW, 11T, module 3 and clockwise rotation. The complete set belongs on the order line because voltage and power alone cannot separate another heavy-equipment starter with a different drive end.

231503113 Starter Motor Dimensions for Doosan Crane Supply — compare the drawing with the removed starter before placing a volume order.

The mounting drawing shows three Ø13 holes with 36°, 39° and 21° angle references, plus an Ø105 locating diameter and 38 mm and 18 mm axial positions. A square drive-end photograph is valuable for comparing this asymmetric bolt layout.

231503113 Starter Motor Reference Matching for Crane Distributors

231503113 links with 30051600011, 30051600012, 65262017091 and STR85208 for sourcing. Because those numbers can circulate through several equipment channels, the buyer should also state the crane model and provide the old-unit terminal view.

Crane-parts suppliers can separate workshop reserve from site-specific demand and identify each unit by crane model. That approach supports faster picking while retaining the exact three-point geometry needed for after-hours maintenance or scheduled overhaul work.

231503113 Starter Motor Service Stock and Factory Test Video

For an incoming crane-service lot, examine the pinion, asymmetric flange, locating surface, solenoid studs and shipping protection. Photograph several units before they enter stock so later branch transfers can be compared with the same 231503113 definition.

Elecdura's video presents starter-motor assembly and electrical testing for industrial B2B supply. Doosan crane buyers can use it to discuss production capability together with order scheduling, heavy-duty packing, carton identification and delivery to the required service location.

231503113 Starter Motor FAQs for B2B Buyers

What information defines a Doosan crane enquiry for 231503113?

Send the Doosan crane model, engine information and machine serial details, followed by all numbers and clear photographs from the removed starter. Include a straight view of the three-hole flange and terminal side. Elecdura will use this information to keep the quotation connected to the crane installation instead of treating 231503113 as a universal Doosan starter.

How does the mounting-angle drawing help identify 231503113?

The drawing shows three Ø13 holes on an Ø140 reference circle, arranged with 36°, 39° and 21° angle callouts. Compare the removed flange from the same straight orientation. A starter can have the correct 24V 4.5kW 11T rating and still be unsuitable when one mounting ear or its angle is different.

Can the Doosan and PSH numbers be used together for sourcing?

Yes. List 231503113 beside 30051600011, 30051600012, 65262017091 and STR85208 when those numbers are available. Also state the Doosan crane application and complete specification. Elecdura will compare the cross-reference group with the pinion, three-hole face and terminals so purchasing receives one defined product rather than a list of disconnected numbers.

Why should the terminal side be photographed on the crane starter?

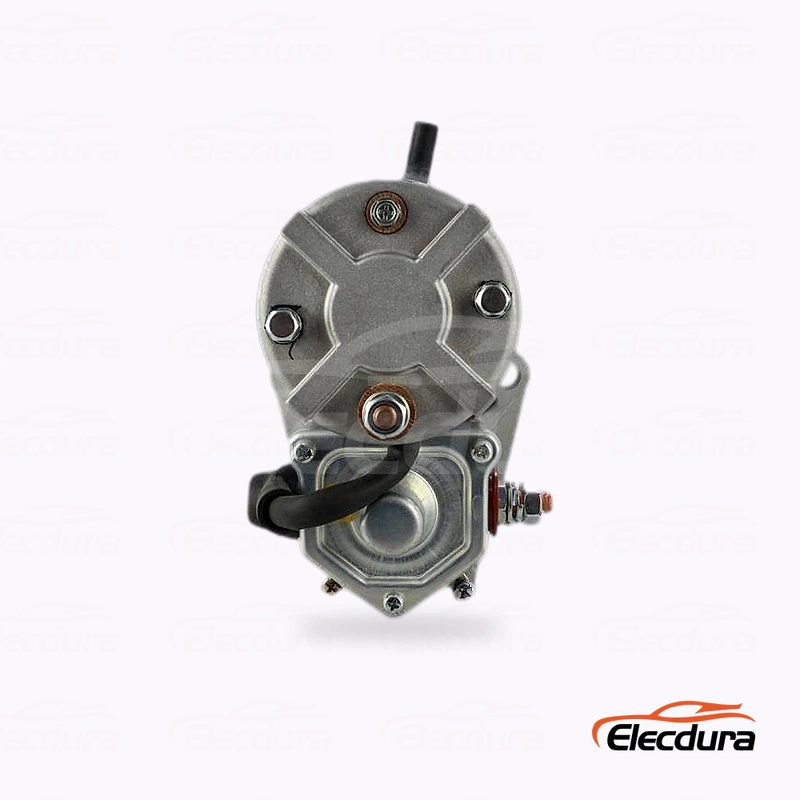

A clear terminal-side photograph shows the main stud, start connection and cable exit relative to the housing. Compare this view with the available space and cable route on the crane. Correct mounting geometry alone does not guarantee easy connection; preserving the same terminal orientation can reduce installation delays and prevent strained high-current cables.

How should a crane service company plan spare 231503113 units?

Start with the number of supported Doosan cranes, recent starter replacements, operating intensity and expected replenishment lead time. Separate emergency reserve from planned maintenance stock. Mark the cartons with the crane application, 11T drive and full primary number, so an urgent issue does not result in a visually similar starter being taken from another equipment line.

What should be sampled on the first 231503113 delivery?

Select units from more than one carton and compare the 11T pinion, three-hole flange, Ø105 locating reference and terminals with the accepted product images. Add a sampled 24V bench test if required by the buyer's incoming plan. Keep the results, carton marks and delivery lot together so later crane-service questions can be traced quickly.

What export packing is suitable for this Doosan crane starter?

Use a strong carton with fitted supports that carry the starter body rather than the pinion or solenoid. Cover the drive end and terminal studs, add moisture protection for long sea routes, and keep the item label readable. Pallet quantities should be secured against movement without placing strap pressure directly on electrical connections.

What will a complete 231503113 RFQ allow Elecdura to quote?

With the Doosan crane details, old-unit images, quantity, annual forecast, packing request and destination, Elecdura can return product-matching feedback, unit pricing, lead time and shipping terms for the stated order. The response can also identify any dimension or terminal view still needed, allowing both technical and purchasing teams to close the enquiry efficiently.

Request 231503113 Doosan Crane Starter Motor B2B Pricing

Send the Doosan crane model, serial details, all old-unit numbers, straight flange and terminal photographs, required quantity, delivery date and destination to info@elecdurauto.com. Elecdura will review 231503113 and provide a focused B2B quotation.
