23300-9500 Nissan NE6 NF6 Starter Motor Wholesale

23300-9500 Starter Motor Wholesale Supply for Nissan Heavy-Vehicle Parts Distributors and Diesel Workshops

The purchasing issue for Nissan heavy-vehicle parts distributors and diesel workshops is not only unit price: NE6 and NF6 fleets often keep older number systems in workshop records, making a complete reference group and geometric receiving check important. A dependable quotation therefore connects 23300-9500 with Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, the catalog electrical rating and the drive-end measurements used by the workshop.

Provide the full 23300-9500 or related OE, Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, machine or vehicle serial details, old-unit label, pinion, mounting-face and terminal photographs, quantity, destination and required date. Elecdura will reconcile the supplied details with the 24V, 4.5kW, 11T CW catalog unit and the illustrated mounting face, then state availability, packing, warranty, lead time and delivery options for Nissan NE6 and NF6 legacy-fleet parts support.

Nissan NE6 and NF6 applications often remain in older truck and industrial fleets whose service records contain several generations of 23300 or S25 references. The 23300-9500 order should state the exact engine, full old-unit number and three-hole geometry rather than treating every alias as interchangeable. Diesel workshops can use the 36°, 35° and 75° pattern together with the Ø140 face to compare the removed starter before committing labor. When forecasting stock, separate NE6 and NF6 demand by branch and note whether each unit supports a road vehicle or industrial installation. This prevents a legacy reference list from becoming a vague shared bin. It also lets an importer plan carton marks and destination splits that match the workshop population instead of relying on a single annual total.

23300-9500 Starter Motor Dimensions and Drive-End Checks

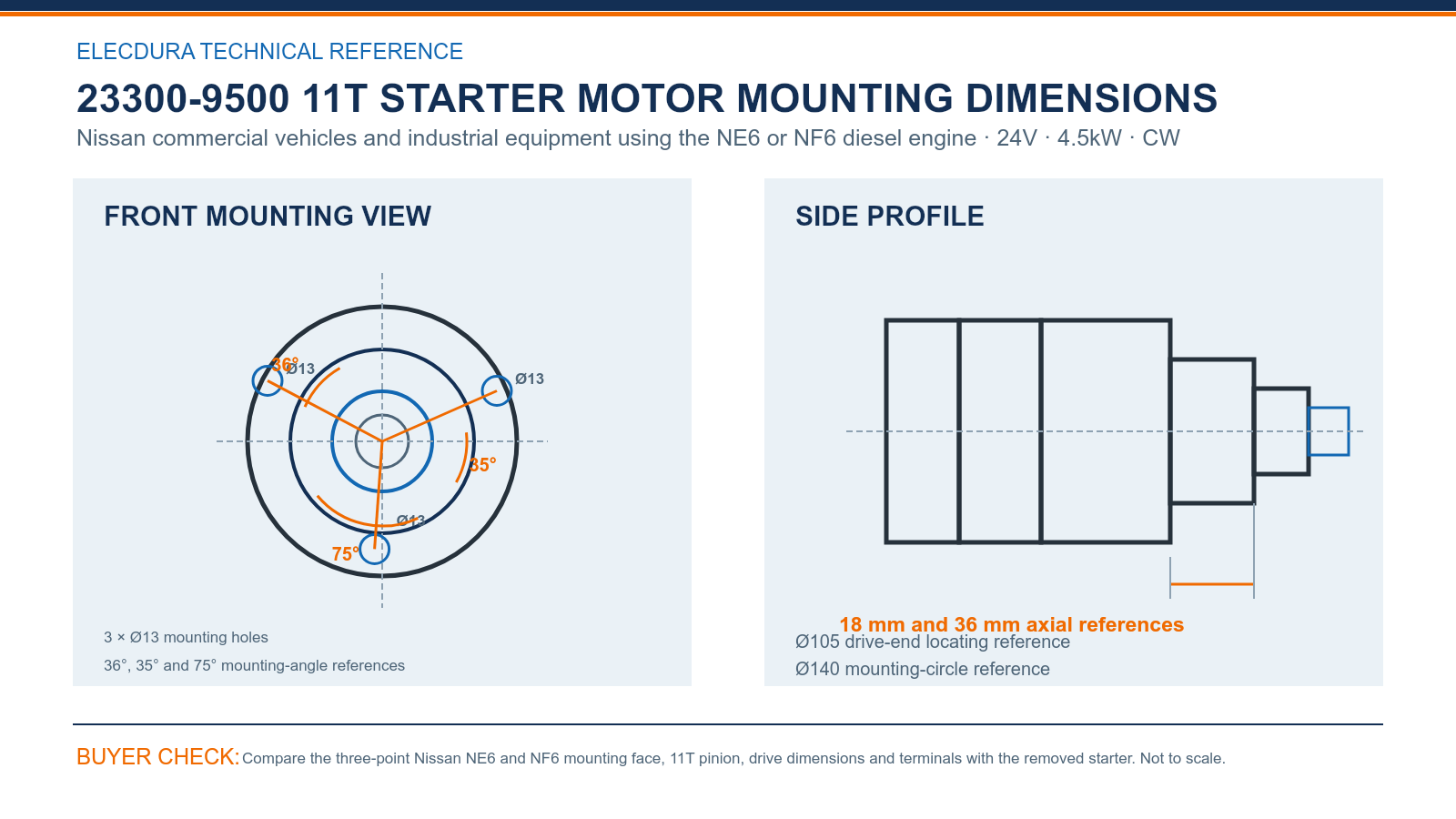

23300-9500 Nissan 24V 4.5kW 11T starter mounting dimensions for buyer-side comparison.

The 23300-9500 drawing gives Nissan heavy-vehicle parts distributors and diesel workshops a measured view of 3 × Ø13 mounting holes and 36°, 35° and 75° mounting-angle references. The additional Ø105 drive-end locating reference, 18 mm and 36 mm axial references and Ø140 mounting-circle reference references let Nissan heavy-vehicle parts distributors and diesel workshops compare the removed nose with the quoted starter even when both motor housings look alike.

Count the Nissan drive at 11 teeth, check module 3 and confirm CW rotation before comparing the three-hole pattern. Photograph the flange directly and include the solenoid side; this gives Nissan heavy-truck service, industrial diesel repair and aftermarket distribution a clear record of hole position, cable reach and drive geometry before the unit is fitted.

23300-9500 Starter Motor OE References and Wholesale Fitment Limits

23300-9500 reference use: 23300-9500 / 23300-95008 / 23300-95006 / 23300-95009 / 23300-95016 / S25-112A / S25-115 / S25-115A / 0210001460 / 0210003260 / 0210003651 / S6116 form the searchable reference group. Use those numbers to locate the family, but the final order should retain the 4.5kW rating, 23300-9500 family, three-hole face and exact NE6 or NF6 engine.

Keep the purchase definition distinct: retain the 4.5kW rating, 23300-9500 family, three-hole face and exact NE6 or NF6 engine.

23300-9500 Starter Motor Stock, Receiving and Service Support

Set the 23300-9500 stocking level for Nissan heavy-truck service, industrial diesel repair and aftermarket distribution by reviewing the installed base for Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, recent service demand and transfer time. Record equipment-down requests separately from scheduled 23300-9500 replenishment so stock can be positioned for Nissan NE6 and NF6 legacy-fleet parts support.

When the shipment arrives, verify 4.5kW label, 11T pinion, three Ø13 holes, angle pattern, Nissan suffix and terminals against the catalog entry for Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine. Retain the 23300-9500 shipment lot and a checked arrival image. Place accepted stock only in the bin serving Nissan heavy-truck service, industrial diesel repair and aftermarket distribution. File the accepted 23300-9500 image under its NE6 or NF6 branch and delivery identification. That traceable combination helps Nissan heavy-truck service, industrial diesel repair and aftermarket distribution reorder the same electrical and mechanical configuration when future demand arises.

The video shows Elecdura starter-motor assembly and electrical testing for B2B supply. For 23300-9500, production capability must be paired with the buyer's fitment information: retain the 4.5kW rating, 23300-9500 family, three-hole face and exact NE6 or NF6 engine. Add order volume, destination and delivery schedule so the quotation addresses both product identity and Nissan NE6 and NF6 legacy-fleet parts support.

23300-9500 Starter Motor Questions from B2B Buyers

Which NE6 or NF6 drive-end dimensions matter for 23300-9500?

Nissan heavy-vehicle parts distributors and diesel workshops should retain the 4.5kW rating, 23300-9500 family, three-hole face and exact NE6 or NF6 engine. For Nissan NE6 and NF6 legacy-fleet parts support, measure 3 × Ø13 mounting holes, Ø105 drive-end locating reference, 18 mm and 36 mm axial references and Ø140 mounting-circle reference on the removed starter and reconcile 36°, 35° and 75° mounting-angle references before ordering. For the Nissan NE6 or NF6 line, capture all three mounting points and the terminal layout before the old unit is returned. When the shipment arrives, verify 4.5kW label, 11T pinion, three Ø13 holes, angle pattern, Nissan suffix and terminals against the catalog entry for Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine. Retain the 23300-9500 shipment lot and a checked arrival image. Place accepted stock only in the bin serving Nissan heavy-truck service, industrial diesel repair and aftermarket distribution. Elecdura receives the 23300-9500 technical and commercial inputs needed for a focused reply.

How should NE6 or NF6 buyers use 23300-9500 cross-references?

23300-9500 / 23300-95008 / 23300-95006 / 23300-95009 / 23300-95016 / S25-112A / S25-115 / S25-115A / 0210001460 / 0210003260 / 0210003651 / S6116 form the searchable reference group. Use those numbers to locate the family, but the final order should retain the 4.5kW rating, 23300-9500 family, three-hole face and exact NE6 or NF6 engine. The reference list is a search aid, while Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine and the measured starter decide which unit belongs on the purchase order. If output, tooth count, rotation, flange or cable position differs, Nissan heavy-vehicle parts distributors and diesel workshops should treat the candidate as another product rather than merging it into 23300-9500. Legacy Nissan and S25 aliases should remain visible on the enquiry together with the carton mark required by each sales channel. Elecdura receives the 23300-9500 technical and commercial inputs needed for a focused reply.

What checks should precede 23300-9500 replacement in NE6 or NF6 service?

Before removing and replacing 23300-9500 on Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, record the battery load-test result, voltage-drop results on both positive and ground paths, start-signal voltage and ring-gear condition. Document the cranking symptom in the Land Cruiser or Coaster maintenance entry. The workshop should inspect the mounting surface, cable studs, pinion and flywheel teeth after removing the starter from Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine. These readings and observations help distinguish a defective starter from a weak battery, excessive cable loss, poor ground or start-signal fault before another unit is installed. NE6 and NF6 fleets often keep older number systems in workshop records, making a complete reference group and geometric receiving check important. Elecdura receives the 23300-9500 technical and commercial inputs needed for a focused reply.

How much 23300-9500 stock supports NE6 or NF6 demand?

Set the 23300-9500 stocking level for Nissan heavy-truck service, industrial diesel repair and aftermarket distribution by reviewing the installed base for Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, recent service demand and transfer time. Record equipment-down requests separately from scheduled 23300-9500 replenishment so stock can be positioned for Nissan NE6 and NF6 legacy-fleet parts support. Size each branch reserve from the number of supported Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, recent consumption, transfer time and downtime exposure. Separate Nissan NE6 and NF6 demand by engine group and branch before production and export freight are scheduled. NE6 and NF6 fleets often keep older number systems in workshop records, making a complete reference group and geometric receiving check important. Elecdura receives the 23300-9500 technical and commercial inputs needed for a focused reply.

What should receiving inspect for 23300-9500 NE6 or NF6 stock?

When the shipment arrives, verify 4.5kW label, 11T pinion, three Ø13 holes, angle pattern, Nissan suffix and terminals against the catalog entry for Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine. Retain the 23300-9500 shipment lot and a checked arrival image. Place accepted stock only in the bin serving Nissan heavy-truck service, industrial diesel repair and aftermarket distribution. Compare several 23300-9500 cartons and confirm the 11T CW pinion before the NE6 or NF6 stock is distributed. A conflicting label, damaged stud, altered nose or different pinion should be isolated from sellable Nissan heavy-truck service, industrial diesel repair and aftermarket distribution inventory and reported against the 23300-9500 lot. Set the 23300-9500 stocking level for Nissan heavy-truck service, industrial diesel repair and aftermarket distribution by reviewing the installed base for Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, recent service demand and transfer time. Record equipment-down requests separately from scheduled 23300-9500 replenishment so stock can be positioned for Nissan NE6 and NF6 legacy-fleet parts support. Elecdura receives the 23300-9500 technical and commercial inputs needed for a focused reply.

What supports an after-sales review of 23300-9500 in NE6 or NF6 service?

Identify the specific machine or vehicle within Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, then provide the delivery lot, fitting date, service hours and a precise description of the cranking fault. Add loaded-battery voltage, positive- and ground-cable drop, start-signal readings, and photographs of both labels, pinions, flanges and terminals. Include transport damage, contamination or operating conditions relevant to Nissan NE6 and NF6 legacy-fleet parts support. Before removing and replacing 23300-9500 on Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, record the battery load-test result, voltage-drop results on both positive and ground paths, start-signal voltage and ring-gear condition. Document the cranking symptom in the Land Cruiser or Coaster maintenance entry. Elecdura receives the 23300-9500 technical and commercial inputs needed for a focused reply.

What should 23300-9500 deliver for NE6 or NF6 buyers?

NE6 and NF6 fleets often keep older number systems in workshop records, making a complete reference group and geometric receiving check important. The useful result for Nissan heavy-vehicle parts distributors and diesel workshops is the correct 23300-9500 arriving at the right location with enough information for receiving and installation. Catalog specification, measured geometry, protective packing, local availability and response time must work together; a low unit price does not recover lost labor or repeat freight from a mismatch. Set the 23300-9500 stocking level for Nissan heavy-truck service, industrial diesel repair and aftermarket distribution by reviewing the installed base for Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, recent service demand and transfer time. Record equipment-down requests separately from scheduled 23300-9500 replenishment so stock can be positioned for Nissan NE6 and NF6 legacy-fleet parts support. Elecdura receives the 23300-9500 technical and commercial inputs needed for a focused reply.

What should a 23300-9500 NE6 or NF6 quotation include?

Begin with the full 23300-9500 or related OE, Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, machine or vehicle serial details, old-unit label, pinion, mounting-face and terminal photographs, quantity, destination and required date. This identifies the actual Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine requirement before price and freight are discussed. The Nissan 23300-9500 response can separate NE6 or NF6 quantities while confirming 24V 4.5kW 11T CW supply and commercial terms. Split 23300-9500 demand by NE6 or NF6 branch, identify stopped vehicles separately and add the required delivery locations. NE6 and NF6 fleets often keep older number systems in workshop records, making a complete reference group and geometric receiving check important. Elecdura receives the 23300-9500 technical and commercial inputs needed for a focused reply.

Request 23300-9500 Starter Motor Wholesale Pricing

Request 23300-9500 pricing with the full 23300-9500 or related OE, Nissan commercial vehicles and industrial equipment using the NE6 or NF6 diesel engine, machine or vehicle serial details, old-unit label, pinion, mounting-face and terminal photographs, quantity, destination and required date. Elecdura will respond for the catalog 24V, 4.5kW, 11T CW starter and include MOQ, availability or production time, packing, warranty and freight terms for Nissan heavy-truck service, industrial diesel repair and aftermarket distribution.

List NE6 and NF6 quantities, branch destinations and packing preferences so old-fleet support is quoted without merging demand. Nissan heavy-vehicle parts distributors and diesel workshops can then compare immediate supply with planned replenishment for Nissan NE6 and NF6 legacy-fleet parts support.
