2330096105 Nissan FD6 RF8 Starter Motor Distributor

2330096105 Nissan Starter Motor Distributor Supply for FD6 Fleets

CM80 and older Nissan engine enquiries may arrive after the original label has faded or the truck record has changed hands. The 2330096105 number, FD6/CD54/RF8 identity and long-nose drawing give distributors a practical starting point.

The Nissan and Sawafuji reference list spans several engines and truck models. Confirm the 41/67 mm drive-end outline, mounting orientation and rear cable bridge before a candidate is assigned to a specific legacy vehicle.

2330096105 Starter Motor Dimensions for Truck Parts Buyers

The supplier specification is 24V, 6.0kW, 11T, module 3.5 and CW. Keep the 6.0kW rating and module-3.5 drive beside the OE so receiving teams do not select another 24V 11T Nissan starter.

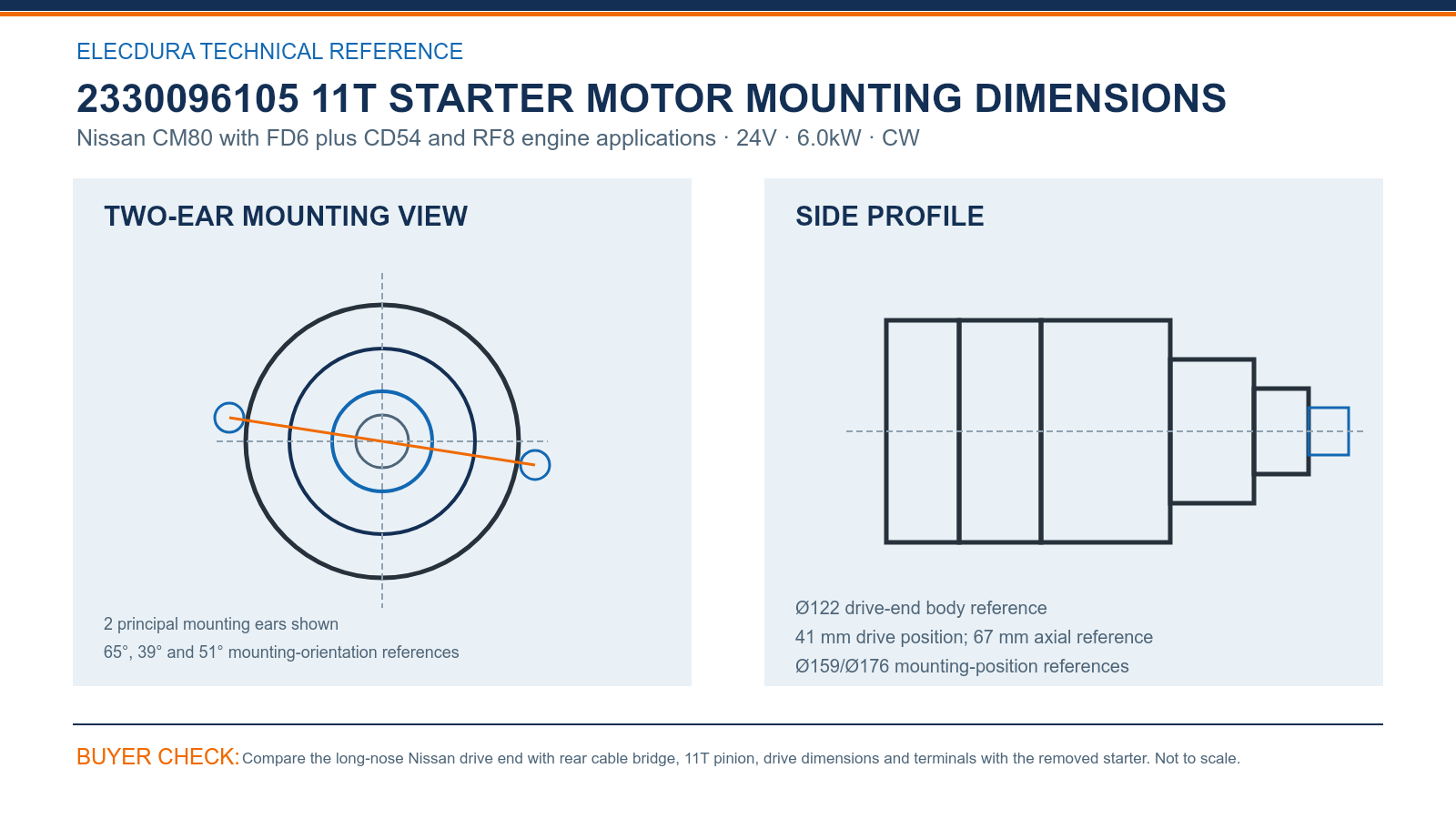

2330096105 Nissan FD6 RF8 Starter Dimensions for Truck Parts Distributors — compare the drawing with the removed starter before placing a volume order.

Compare the Ø122 drive-end reference, 41 mm drive position, 67 mm axial outline and Ø159/Ø176 mounting-position references. The 65°, 39° and 51° angles plus rear cable bridge help identify the long-nose housing.

2330096105 Starter Motor References for Nissan Wholesalers

2330096105/6508/70xx/71xx, Hitachi S210100/S21050/S25100 and Sawafuji 03006020311/0350-0351 references support sourcing. Retain the actual FD6, CD54 or RF8 engine identity on the purchase line. Store the accepted long-nose view with the reference set.

Legacy fleets should estimate stock from operating vehicle count, starter withdrawals and supply lead time rather than ordering one generic Nissan spare. Store the accepted engine and flange images with each depot's reorder history.

2330096105 Starter Motor Stock Planning for Legacy Truck Fleets

Protect the long nose, rear cable bridge and solenoid studs from side impact, and keep moisture barriers intact during long storage. Incoming staff should compare the 11T pinion, body support and label before rotating older stock forward.

The Elecdura production video shows starter assembly and electrical testing. Nissan truck-parts buyers can use it when discussing legacy-stock sampling, long-term packaging, depot labels and delivery schedules for 2330096105.

2330096105 Starter Motor FAQs for Nissan Truck Parts Distributors

What should accompany a legacy 2330096105 enquiry?

Send the Nissan truck model and chassis or FD6, CD54 or RF8 engine plate, every readable starter number and clear front, side and cable photographs. State whether the unit is for an operating vehicle or reserve. This creates a usable product definition when old fleet records or labels are incomplete.

Can FD6, CD54 and RF8 demand share one stock line?

They can share stock after each supported engine installation matches the 24V 6.0kW 11T configuration, long-nose outline and rear cable bridge. Keep accepted photographs and vehicle details by engine family. A different mounting angle, nose length or connection should remain outside the common item. Recheck that physical baseline before an interbranch transfer.

Which dimensions help identify the long-nose Nissan starter?

Compare the Ø122 drive-end reference, 41 mm drive position, 67 mm axial outline and Ø159/Ø176 mounting-position references. Use the 65°, 39° and 51° angles with a square front photograph. A side image should include the rear cable bridge and full nose length. Store the side image with the accepted fleet item.

How should Sawafuji references support 2330096105 sourcing?

Use 03006020311 and the linked 035060/035070/035080/035160/035170 numbers to widen the search, then keep 2330096105 and the actual Nissan engine identity as primary purchasing information. Add the 6.0kW 11T specification and accepted long-nose photographs before a cross-reference enters the order. Keep those supporting numbers in the digital cross-reference field.

How much 2330096105 stock should a fleet hold?

Estimate demand from operating legacy trucks, recent starter withdrawals, rebuild turnaround and import lead time. Separate workshop-use units from long-term reserve and rotate older cartons first. Keep the accepted FD6, CD54 or RF8 application on each bin so a rarely used spare remains identifiable during an urgent repair.

What should be rechecked after long warehouse storage?

Inspect the moisture barrier, carton support, pinion condition, terminal caps and rear cable bridge. Look for corrosion, impact or insulation damage, then compare the rating label with the digital item. If storage has been prolonged, rotate the pinion only according to safe workshop practice and retest before dispatch.

What electrical tests should precede replacement on a Nissan truck?

Load-test the 24V batteries, measure positive and ground voltage drop during cranking, verify relay and start-signal voltage and inspect the ring gear. Confirm the engine turns freely. These checks can reveal weak batteries, corroded cables or mechanical drag that would otherwise be blamed on the 2330096105 starter.

What should a 2330096105 distributor RFQ include?

Provide the Nissan chassis or engine plate, complete OE and Sawafuji references, pinion, flange and rear-cable photographs, quantity, annual forecast, destination, packing preference and required date. Mention whether the order supports active repairs or legacy reserve. Elecdura can then prepare a targeted distributor proposal and replenishment plan.

Request 2330096105 Nissan Starter Motor Distributor Pricing

Email the Nissan truck or engine model, chassis or engine plate, complete starter references, front and cable-side photographs, quantity, storage plan and destination to info@elecdurauto.com. Elecdura will review 2330096105 and return distributor pricing.
