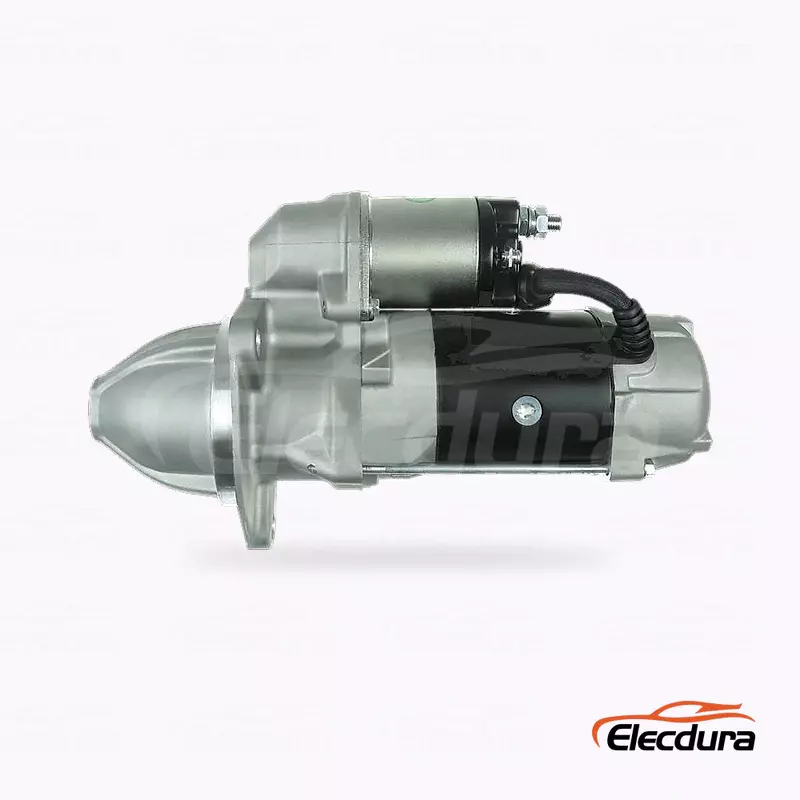

2330097203 Nissan CD54 RF8 6.0kW Starter Motor Distributor

2330097203 6.0kW Starter Motor Distributor Supply for CD54 Fleets

A 2330097203 enquiry is incomplete until the buyer states the power version and engine. For this product, CD54 or RF8, 6.0kW and the covered-nose photograph define the quotation line.

Do not merge this listing with the 8.0kW RF8/RE8 offer. Both products share references and basic geometry, so the rating label and supported application must remain visible during selection.

2330097203 Starter Motor Version Geometry for Nissan RF8 Buyers

The supplier row specifies 24V, 6.0kW, 11T, module 3.5 and CW. Power is the decisive separation field once the reference family and triangular mounting face have been identified.

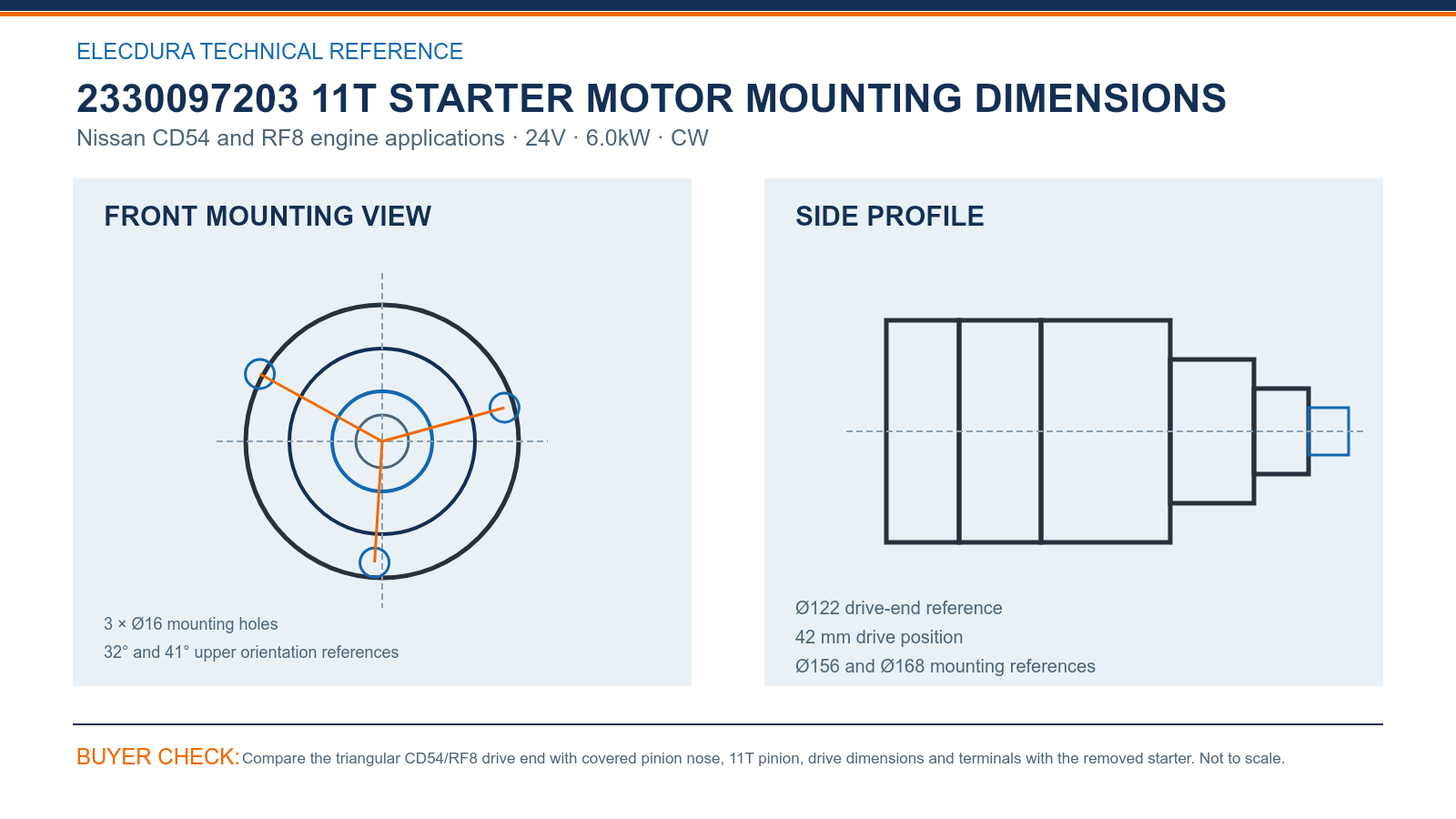

2330097203 Nissan CD54 RF8 6.0kW Starter Dimensions for Distributor Verification — compare the drawing with the removed starter before placing a volume order.

Confirm three Ø16 holes, Ø122 locating section, 42 mm drive position and Ø156/Ø168 face references. The 32°/41° upper orientation should match the covered-nose product photograph.

2330097203 Starter Motor Cross-Reference Verification for Distributors

2330097203 and 2330097505/7507/7509/7516 connect to the same Sawafuji 035060/035080 family used by higher-output versions. Add 6.0kW and CD54/RF8 to every purchasing line so this lower-output version stays distinct through receiving and replenishment.

Create separate digital items and bins for the 6.0kW and 8.0kW products. Demand can be tracked by CD54 or RF8 fleet, but no branch transfer should remove the power label from the item identity.

2330097203 6.0kW Starter Motor Warehouse Separation and Dispatch

Sample several cartons for the 6.0kW label, eleven-tooth pinion, covered nose, cable condition and mounting face. Isolate any 8.0kW unit before it reaches the CD54/RF8 distributor stock.

Elecdura's manufacturing video presents starter assembly and electrical testing. Nissan distributors can pair it with power-version labeling, incoming sampling and repeat-order checks for the 6.0kW 2330097203.

2330097203 6.0kW Starter Motor FAQs for Nissan Distributor Stock

What identifies the 6.0kW 2330097203 product?

Use the CD54 or RF8 engine plate, the old 6.0kW label and the covered-nose image. These details separate the intended product from the 8.0kW RF8/RE8 listing sharing the same OE. For Nissan CD54 and RF8 engine applications, the RFQ should keep 2330097203, 24V, 6.0kW, 11T, module 3.5 and CW on one purchasing line.

Why is the 8.0kW version not combined here?

Its power and application definition create a different saleable item despite shared references. Separate URLs, bins and incoming checks preserve the distinction through quotation and dispatch. Before Nissan CD54 and RF8 engine applications stock is picked or received, warehouse staff should see the 6.0kW version and 2330097203 identity together.

Are the mounting dimensions alone enough to choose power?

No, because the 6.0kW and 8.0kW products can share triangular-face geometry. Confirm the Ø122 and Ø156/Ø168 measurements, then read the rating label and supported engine. A shared-stock decision is valid only for the supported nissan cd54 and rf8 engine applications shown by the retained records.

What wording belongs on a CD54 purchase order?

State 2330097203, Nissan CD54, 24V 6.0kW, 11T module 3.5 and CW. Attach the accepted covered-nose and cable photographs to prevent a shared reference from hiding the version. Those checks give receiving a repeatable physical baseline for the 2330097203 product serving Nissan CD54 and RF8 engine applications.

How should incoming samples be selected?

Open cartons from different pallet positions and read the power labels before stock acceptance. Count pinion teeth and compare the face, nose cover and cable arrangement with the accepted 6.0kW item. For Nissan CD54 and RF8 engine applications, cross references widen sourcing while the accepted 2330097203 application and product images guide selection.

What should follow an interbranch transfer?

The receiving branch needs the 6.0kW label image, CD54/RF8 application and complete reference group. Do not relabel the carton with only 2330097203 because that removes the product's main distinction. The Nissan CD54 and RF8 engine applications shipping record should preserve the 2330097203 label, destination allocation and inspected product version.

Which electrical checks reduce unnecessary returns?

Load-test the batteries, measure cranking voltage drop and inspect positive and ground connections. Verify the relay, start signal and ring gear before concluding the delivered starter is faulty. For Nissan CD54 and RF8 engine applications, diagnostic evidence protects the buyer and supplier from a return caused by the vehicle electrical system.

What should a 6.0kW distributor enquiry include?

Email engine and vehicle details, old labels, front and cable views, required quantity and destination. Mention annual demand, packing needs and delivery target so the correct version can be quoted. Elecdura can then review the exact 2330097203 configuration for Nissan CD54 and RF8 engine applications and propose suitable supply terms.

Request 2330097203 CD54 RF8 Starter Motor Distributor Pricing

Send the CD54 or RF8 engine plate, old 6.0kW label, complete references, front and cable photographs, quantity and destination to info@elecdurauto.com. Elecdura will review this 2330097203 version and return distributor pricing.
