2402370801 MTZ 50 80 Starter Motor Wholesale Supply

2402370801 MTZ Starter Motor Sourcing for Tractor Parts Importers

MTZ parts enquiries often use the shortened 24.3708 designation, while the tractor, engine and existing unit may carry different regional markings. For an importer building sellable stock, the clearest product description combines the complete 2402370801 reference, the MTZ 50 or MTZ 80 application and the D-50 or D-240 engine family.

A quotation request should include a clear old-unit label, one straight view of the triangular mounting face and a pinion-side photograph. Elecdura can then compare the 10-tooth drive, three-hole face, terminal position and electrical rating before returning MOQ, packing, lead time and shipment options.

2402370801 Starter Motor Dimensions for MTZ Service Stock

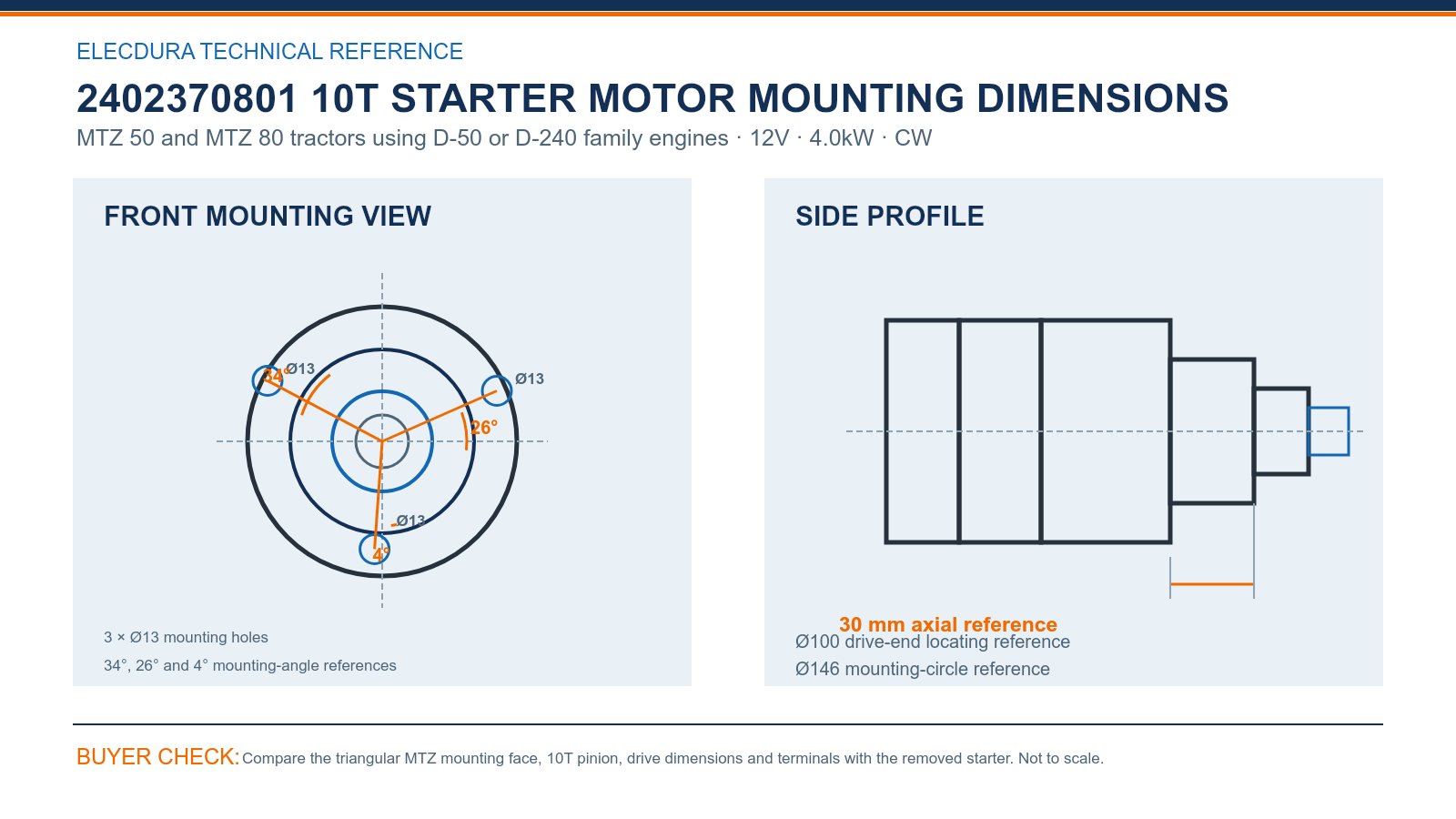

2402370801 MTZ 12V 4.0kW 10T starter mounting dimensions for buyer-side comparison.

The drawing shows three Ø13 mounting holes distributed around the Ø146 mounting-circle reference. The Ø100 drive-end locating reference and 30 mm axial reference are especially useful when two MTZ starters have similar cylindrical housings but different seating geometry.

For a workshop comparison, place the removed unit square to the camera and keep the terminal side visible. Check the 34°, 26° and 4° mounting-angle references, then confirm the 10T module 3 pinion and CW rotation against the 12V, 4.0kW requirement.

2402370801 Starter Motor Cross-References and MTZ Version Boundaries

Order and cross-reference numbers include 2402370801 / 2402370800001 / STR2402ZL / STR2402WA / 6441370804 / 300N10946Z. These numbers support cross-reference searches, but the complete MTZ application should remain attached to the enquiry because a shortened 24.3708 description does not show the engine or mounting details.

• Engine check: state D-50 or D-240 and the tractor model.

• Drive check: retain 10T, module 3 and CW rotation.

• Mounting check: compare the triangular face, Ø100 locating reference and terminal side.

2402370801 Starter Motor Supply for Seasonal Tractor Demand

Seasonal field work can concentrate MTZ starter demand into a short service period. Importers can split the purchase by destination or dealer branch, while keeping one clearly labelled 2402370801 line for the specified 12V, 4.0kW, 10T configuration. Neutral cartons and customer labels can be discussed with the order quantity.

Receiving staff should sample cartons from more than one pallet position and compare the three Ø13 holes, pinion and protected terminals with the confirmed reference unit. Recording the shipment lot and one photographed carton helps later replenishment stay consistent without turning every reorder into a new identification exercise.

The video shows Elecdura starter-motor assembly and electrical testing. For an accurate 2402370801 quotation, buyers should also send the MTZ application, full reference, measured mounting face and requested quantity.

2402370801 Starter Motor Questions from B2B Buyers

Why should an MTZ importer use 2402370801 instead of only 24.3708?

The shortened 24.3708 description is common in regional trade, but it does not by itself identify the D-50 or D-240 engine, the 10-tooth drive or the triangular mounting face. Keeping 2402370801 on the enquiry gives the supplier and buyer the same complete reference and makes later branch replenishment easier to trace.

Which photographs are most useful for confirming 2402370801?

Provide one readable label image, a square view of the full mounting face, a side view showing the solenoid and terminals, and a close view of the pinion. Those photographs let Elecdura compare the three-hole arrangement, connector side and 10T drive while the tractor and engine details establish the intended MTZ application.

How can a dealer separate 2402370801 from similar MTZ starter motors?

Start with the 12V, 4.0kW and 10T specification, then use the drawing rather than housing colour or overall length. The Ø100 locating reference, Ø146 mounting-circle reference and three Ø13 holes give the parts counter measurable checkpoints that remain useful even when the old identification plate is worn.

What should be checked before replacing a slow-cranking unit on an MTZ 50 or MTZ 80?

Measure battery condition under load, voltage drop on the positive cable and ground path, and the voltage reaching the start terminal. Also inspect the ring gear and cable connections. These checks help the workshop distinguish a starter requirement from resistance elsewhere in the circuit before ordering 2402370801.

How should seasonal demand affect a wholesale order for 2402370801?

Use repair history from each dealer branch and the expected field-service period to set quantities, instead of placing every MTZ starter under one general forecast. Add the required arrival date, destination split and packing preference so the quotation can address lead time and distribution rather than only a unit price.

What is a practical receiving check for a shipment of 2402370801 starters?

Open samples from different cartons and compare the complete label, 10T pinion, terminal protection and triangular face with the confirmed unit. Count the three Ø13 holes and inspect the drive end for transit damage. Any different face or pinion should be held outside normal stock while the shipment quantity is reviewed.

Can the listed cross-references be placed in one MTZ inventory line automatically?

They are useful search and enquiry references, not permission to merge unchecked units. Before combining stock, confirm that each supplied starter matches the 12V, 4.0kW, 10T CW configuration and the measured face shown here. Separate anything with a different drive, locating diameter or terminal arrangement until its application is known.

What details will Elecdura return with a 2402370801 quotation?

After receiving the full reference, MTZ model, D-series engine information, photographs, quantity and destination, Elecdura can state the quoted configuration, MOQ, expected lead time, packing choices, warranty terms and shipment basis. That response gives an importer both the technical identity and the commercial information needed for a purchasing decision.

Request 2402370801 MTZ Starter Motor Pricing and Export Terms

Send 2402370801, the MTZ 50 or MTZ 80 model, D-50 or D-240 engine details, old-unit label, mounting-face and pinion photographs, quantity and destination. Elecdura will respond with the specified 12V, 4.0kW, 10T CW starter motor configuration and the applicable B2B terms.

For multi-branch or seasonal orders, include the quantity required by location and the target arrival date. Packing, labels, MOQ, lead time, warranty and shipment planning can then be addressed in the same quotation.
