28100-0L050 Toyota Hilux 2KD-FTV Starter Motor Wholesale

28100-0L050 Starter Motor Sourcing for Hilux Pickup Distributors

Hilux buyers often search by 2KD-FTV or 2.5 D-4D, but the correct warehouse identity is the full 28100-0L050 family together with the Vigo chassis range. An older 28100-30050 Toyota starter can share the headline 12V, 2.7kW and 11T specification, so the OE and vehicle generation must remain visible.

Send the VIN or chassis code, production year, old label and face and terminal photographs. Elecdura compares those details before quoting, helping pickup-parts importers avoid transferring an older 2KD starter into a later Hilux order.

28100-0L050 Starter Motor Dimensions for Hilux Distributor Fitment

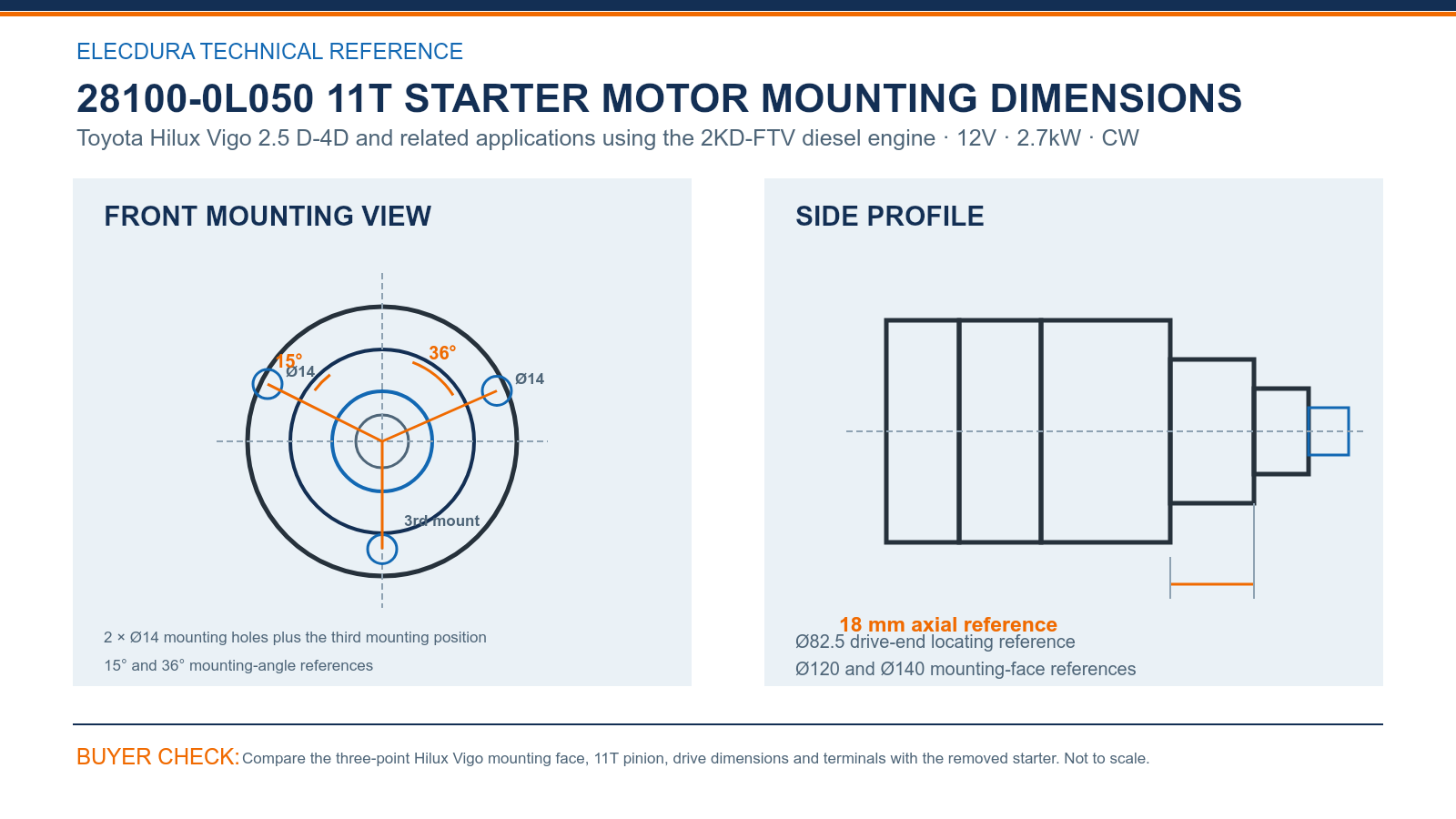

The 28100-0L050 drive end uses two specified Ø14 holes plus the third mounting position, with Ø120 and Ø140 face references, an Ø82.5 locator and an 18 mm axial point. The 15° and 36° references help Hilux buyers compare mounting clocking against the removed unit.

Because another Toyota 2KD starter can share the same electrical rating, keep the Hilux chassis and full 28100-0L05x or 428000-263x number beside the dimensional check. A terminal-side photograph completes the comparison for distributor stock.

28100-0L050 Starter Motor OE Group for Toyota B2B Inventory

Toyota numbers include 28100-0L050, -0L051 and -0L052, while Denso references include 428000-2630 through -2633 and 228000-2633. DSN1371, 33287N and S6059 may appear in aftermarket systems.

• Keep every zero, letter and suffix in the OE.
• Confirm Hilux Vigo and the 2KD-FTV engine.
• Compare the three-point face and connector position.

This makes the interchange group useful for sourcing without allowing a shared engine or electrical rating to override the actual chassis application.

28100-0L050 Starter Motor Wholesale Planning for Pickup Fleets

Pickup fleets can confirm one unit on an identified Hilux, save the VIN and installation photographs, and use that reference when replenishing service stock. Importers can request neutral cartons or discuss customer branding after annual quantities, barcode requirements and destination markets are known.

1. Mark cartons with the full 28100-0L05x family.
2. Use Hilux Vigo or the confirmed chassis range on branch labels.
3. Inspect terminals and 11T drives before the shipment is divided among dealers.

The video shows Elecdura starter-motor production and electrical testing. Include the Hilux VIN, 2KD-FTV details, complete old number, quantity and destination for a clear product and commercial offer.

28100-0L050 Starter Motor Wholesale FAQ

Which Hilux vehicle-generation details matter for 28100-0L050?

Provide the VIN or chassis code, production year and 2KD-FTV engine information, not only “Hilux 2.5 D-4D.” The 28100-0L05x family is strongly associated with Hilux Vigo applications, but regional and production differences still matter. Add the complete old label and mounting photographs so the quotation remains tied to the actual pickup.

Why must the 28100-0L050 reference preserve its zero and letter?

The character after the hyphen is a zero followed by the letter L, and shortened or mistyped forms can lead searches to another Toyota part. Retain 28100-0L050, -0L051 or -0L052 exactly as shown, together with the Denso suffix. Accurate formatting improves quotation, carton labeling, branch searches and future warranty identification.

Which mounting differences separate 28100-0L050 from 28100-30050?

Both groups can be described as Toyota 2KD, 12V, 2.7kW and 11T, so those headline values are not enough. Use the complete OE, Hilux chassis generation, old-unit label, mounting face and terminal position. Keep the two groups on separate SKUs and purchase lines unless a vehicle-specific comparison confirms the exact requested unit.

Which application photographs should accompany a Hilux VIN?

Provide a readable old starter label, straight drive-end view, side profile, 11-tooth pinion and terminal-side image. If possible, include the face and axial measurements shown in the drawing. The VIN narrows the vehicle, while the photographs show whether the physical starter on that pickup agrees with the intended 28100-0L050 configuration.

What should a pickup fleet verify on the first installation?

Confirm that the locator seats freely, mounting points align and cables reach without strain. Check clean pinion engagement, prompt release and stable cranking voltage. Save the VIN, old and new labels, terminal routing and installation result. This gives the fleet a reliable reference for scheduled 28100-0L050 service stock at other locations.

How should Toyota dealers label the 28100-0L050 family?

Use the complete Toyota and main Denso numbers, 11T and the confirmed Hilux chassis range. Avoid a bin marked only “2KD starter.” If branches also stock 28100-30050, place the two items in separate locations and make the OE difference visible on picking labels, barcode data and inter-branch transfer requests.

What details help resolve a warranty question?

Keep the vehicle VIN, installation date, unit label, shipment lot and diagnostic results, including battery condition and cable voltage drop. Photograph the mounting and terminals before removal. These details help distinguish an electrical-system problem, incorrect application or physical damage from a genuine starter concern and let Elecdura review the supplied 28100-0L050 unit efficiently.

What is required for a 28100-0L050 wholesale quote?

Send the exact Toyota or Denso number, Hilux VIN or chassis code, 2KD-FTV details, old-unit label, mounting and terminal photographs, quantity by branch, destination, target date and packaging request. Elecdura can then state the specified 12V 2.7kW 11T unit, MOQ, normal lead time, warranty and dealer-label options.

Request a 28100-0L050 Starter Motor Wholesale Quote

Send 28100-0L050 or the complete Toyota or Denso reference, Hilux VIN or chassis code, 2KD-FTV details, old-unit photographs, quantity, destination and packaging needs. Elecdura will quote the 12V 2.7kW 11T starter with fitment and delivery terms.

For dealer groups covering several Hilux generations, separate demand by chassis range and old OE so each branch receives the intended 28100-0L05x configuration.
