28100-1520 Hino EM100 11T Starter Motor Wholesale 24V

28100-1520 Hino EM100 Starter Motor Value for Wholesale Buyers

Older Hino fleets may identify this starter through different 28100 or Sawafuji numbers. A useful request combines the full reference, EM100, EP100, EK200 or EL100 engine designation, and the truck model so the sales response can address both the product and the buyer's stocking situation.

Hino starters with a similar triangular drive end appear in several power and pinion combinations. Keep the 11T module-3.5 drive, three Ø16 holes and terminal orientation together when comparing the removed unit; voltage and a shortened 28100 number do not separate nearby versions.

28100-1520 Hino 24V 11T Starter Motor Technical Details

This product uses the stated 24V, 4.5kW, 11T, module 3.5 and clockwise specification. The relatively large pinion module is important to the gear interface, so it should remain visible on quotations, warehouse descriptions and branch transfer documents.

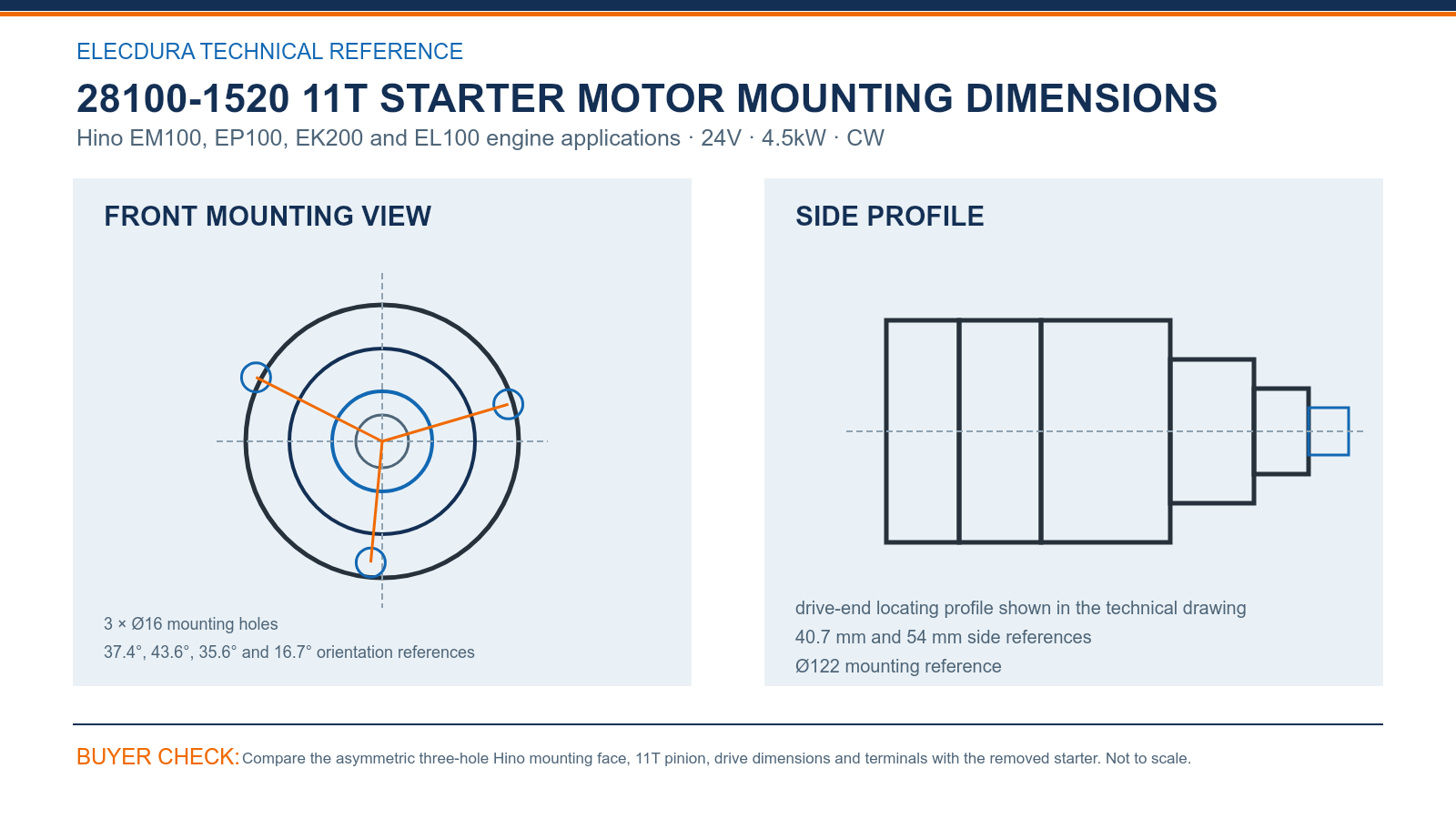

28100-1520 Hino EM100 Starter Motor Dimensions for Wholesale Buyers — compare the drawing with the removed starter before placing a volume order.

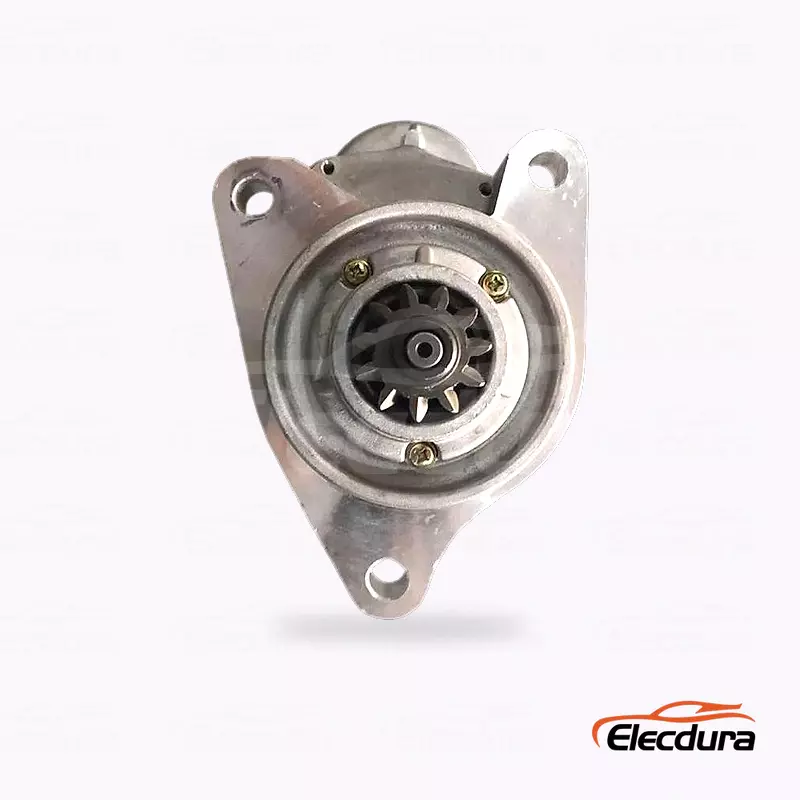

Compare the three Ø16 holes around the Ø122 reference, the 40.7 mm and 54 mm side dimensions, and the asymmetric angular layout. A square mounting-face photograph is especially useful because the three ears are not evenly spaced and a rotated image can disguise the difference.

28100-1520 Hino EM100 Reference and Mounting Checks

The searchable group includes 28100-1520 and its A through D suffixes, 28100-1470, 28100-1741, 03506020030, 16894 and 114344. Write complete suffixes where visible and keep the actual Hino engine beside them instead of merging every number into one broad truck application.

A distributor serving several Hino engine families can combine purchasing volume only after the old starters share the 11T module-3.5 pinion, mounting face and terminal side. Retaining engine-level demand on separate RFQ lines also gives future replenishment a more useful consumption history.

28100-1520 Hino Starter Motor Support for Fleet Supply

For the first shipment, receiving should count the 11T pinion, inspect the wide mounting ears and compare terminal protection with accepted images. Heavy units need shaped inner support so the drive end cannot strike the carton during long-distance transport or branch transfers.

Elecdura's production video shows starter assembly and electrical testing for export supply. Hino distributors can use it to review manufacturing support while discussing sampled testing, carton identification, quantity breaks and delivery planning for the confirmed 28100-1520 configuration.

28100-1520 Starter Motor FAQs for B2B Buyers

Which Hino details should accompany a 28100-1520 enquiry?

Send the complete 28100 number with every visible suffix, then add the EM100, EP100, EK200 or EL100 engine and the truck model. Include front, pinion and terminal photographs. This combination helps Elecdura distinguish the specified 11T module-3.5 starter from related Hino units that use a similar number or mounting outline.

Why is module 3.5 important on this Hino starter?

Module 3.5 describes the pinion tooth size and works with the stated 11T clockwise drive. A starter with eleven teeth but another module is not automatically equivalent. Photograph the pinion squarely, keep 24V and 4.5kW on the same request, and compare the removed drive before ordering quantities for fleet or distributor stock.

How should the MDN909-style Hino mounting face be compared?

Use a centred front photograph to compare all three Ø16 holes around the Ø122 reference. Check the uneven ear positions against the 37.4°, 43.6°, 35.6° and 16.7° drawing references. The camera should remain parallel to the flange because perspective can make this asymmetric face look more regular than it is.

Can Sawafuji 03506020030 be quoted with Hino 28100 numbers?

It can be used as a supporting search reference within this product group. Keep 03506020030 or 03506020031 written in full and add the complete Hino number, engine and 11T module-3.5 details. Elecdura will compare the physical unit before treating the different numbering systems as one supply item.

How can a Hino distributor plan stock across several engine families?

List demand separately for EM100, EP100, EK200 and EL100 branches before combining the purchase quantity. Mark cartons and bins with 28100-1520, 11T and module 3.5. Keeping engine-level usage visible helps the distributor set reserve stock while preventing a nearby Hino starter from being issued during an urgent repair.

What belongs in the first-lot inspection for 28100-1520?

Open samples from different pallet positions, count eleven teeth and compare the wide three-ear face and terminal side with the accepted photographs. Inspect the locating surfaces and studs for transport damage, then record the agreed 24V test by shipment lot. Hold any unit with a different pinion or ear pattern outside saleable stock.

What packing reduces damage to this Hino starter in export transit?

Use shaped inner support so the heavy starter cannot move or strike the carton, and protect the pinion and terminal studs separately. Keep the mounting face away from staples and hard edges. A label showing 28100-1520, Hino engine family and 11T lets destination receiving identify the product before opening every box.

What information leads to a useful 28100-1520 wholesale offer?

Email the Hino engine and truck model, all complete reference numbers, square mounting, pinion and terminal photographs, quantity by destination, target date and packing preference. Elecdura can then compare the 28100-1520 configuration and return product feedback, quantity-based pricing, lead time and delivery options tied to the actual 11T order.

Request 28100-1520 Hino Starter Motor Wholesale Pricing

Email the Hino engine and truck model, complete old-starter references, straight pinion, mounting and terminal photographs, required quantity, annual demand and destination to info@elecdurauto.com. Elecdura will compare the 28100-1520 configuration and reply with product feedback, wholesale pricing, packing and lead time.
