28100-23440 Toyota 7FD20 Starter Motor B2B Supply

28100-23440 Toyota 7FD20 Starter Motor Supply for Forklift Fleets

Forklift service companies often purchase from a fleet list, but older repairs can leave different Denso numbers across machines that share a Toyota 7FD family name. For 28100-23440, keep the 7FD20 identity, full label and drive-end photograph connected to the specific truck.

A complete enquiry names the site, truck model and any available serial or engine information, then adds the existing starter number and clear photographs. Elecdura can compare the 11T pinion, 17 mm drive position, flange and connector side before preparing a multi-site or wholesale quotation.

28100-23440 Starter Motor Measurements for Fleet Fitment Checks

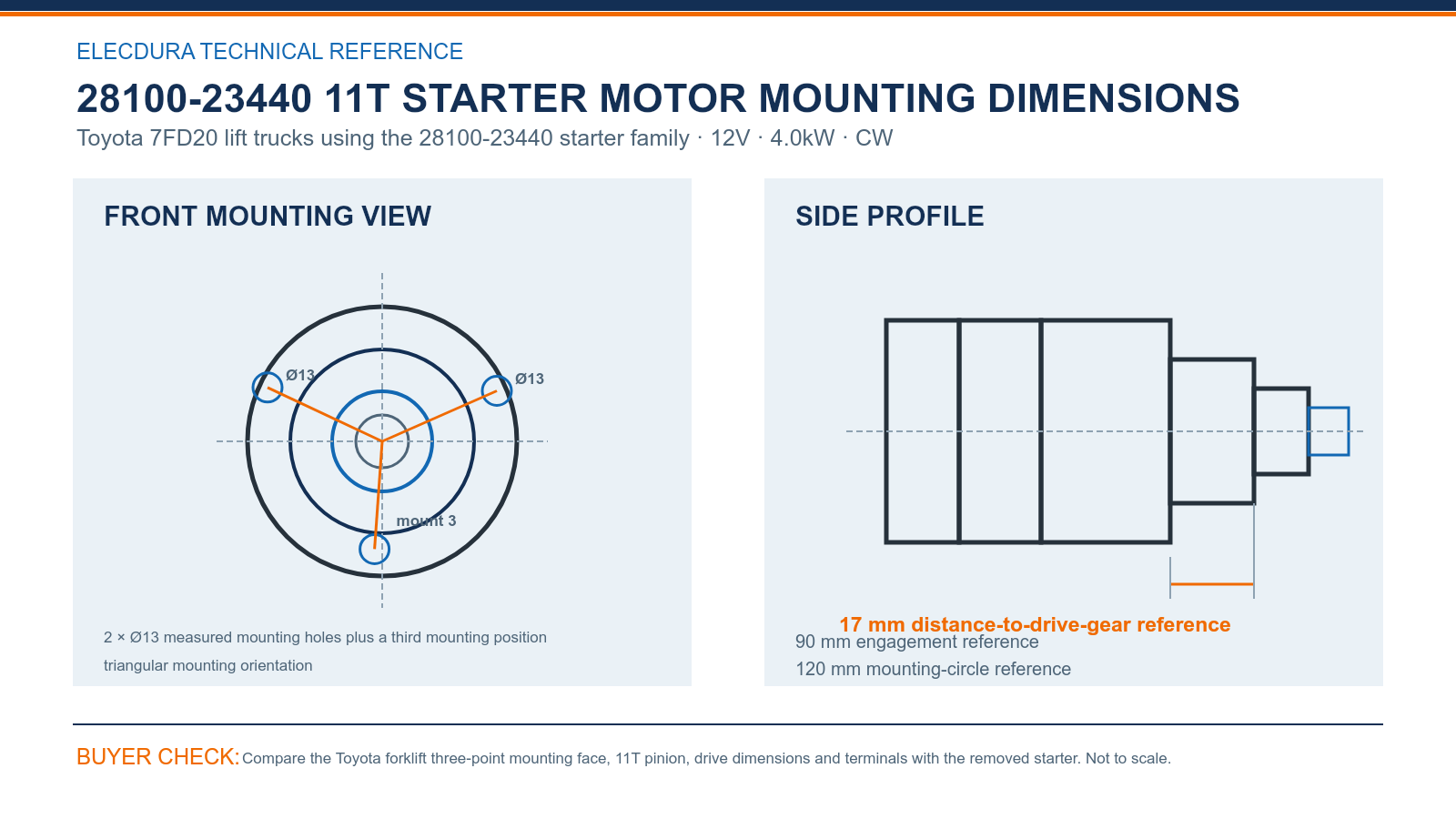

28100-23440 Toyota 12V 4.0kW 11T starter mounting dimensions for buyer-side comparison.

The measured face includes two Ø13 holes and a third mounting position in a triangular arrangement. The 120 mm mounting-circle reference, 90 mm engagement reference and 17 mm distance-to-drive-gear reference give fleet technicians a compact set of checks for the drive end.

Use the drawing while the removed starter is on a clean bench. Count 11 teeth, confirm module 3 and CW rotation, and photograph the connector side before cables are disturbed. This 28100-23440 starter uses a 12V, 4.0kW electrical configuration.

28100-23440 Starter Motor Cross-Reference Use in Toyota Parts Supply

The reference group comprises 28100-23440 / 1534006821 / 228000-8370 / 228000-8371 / 17311N. A purchasing system may store those aliases, but the issued part should still be checked against the Toyota 7FD20 unit and its 17 mm drive position.

1. Match the lift-truck identity and complete old label.

2. Compare the 11T pinion and 120 mm mounting-circle reference.

3. Verify the connector side and cable reach before allocating the unit to a site.

28100-23440 Starter Motor Support for Multi-Site Forklift Maintenance

For a service contract, split demand by warehouse or customer site and identify whether units are planned spares or immediate breakdown replacements. Elecdura can align MOQ, packing and shipment timing with that distribution plan after the exact 28100-23440 configuration has been reviewed.

Receiving can be integrated into normal fleet-parts handling: scan the label, inspect the protected drive end and connector, and compare one unit with the documented 7FD20 reference. Recording the site allocation on the carton reduces accidental transfers to other Toyota forklift families.

The Elecdura video covers starter-motor production and electrical testing. For a Toyota fleet order, its practical value is supplier assessment; final 28100-23440 selection still depends on the truck identity, reference, drive-end geometry and requested site quantities.

28100-23440 Starter Motor Questions from B2B Buyers

How should a forklift contractor identify 28100-23440 across a mixed 7FD fleet?

Begin with the individual truck number rather than the fleet model alone. Record the 7FD20 identity, serial or engine information where available, every number on the removed starter and its installation photographs. Linking those items to the 11T drive and 17 mm position prevents a previous repair from silently changing the expected part.

Which measurements are practical to take in a forklift workshop?

With the starter removed, compare the 120 mm mounting-circle reference, the 90 mm engagement reference and the 17 mm distance to the drive gear. Confirm the two measured Ø13 holes and the third mounting position. These checks can be made with ordinary workshop tools and a straight photograph of the flange.

What is the role of 228000-8370 in a 28100-23440 enquiry?

228000-8370 is a useful Denso-family search reference, while 28100-23440 keeps the Toyota identity visible. Send both when they appear on the unit, together with the 7FD20 truck details. The cross-reference helps locate the family; the old hardware and specified configuration decide whether the unit belongs in this quotation.

How can a fleet prevent the right starter from going to the wrong site?

Assign the confirmed 28100-23440 configuration to a specific truck group in the maintenance system and place the site or customer code on the outer carton. Keep the 11T drive, connector-side photograph and old-unit number with that entry. This gives dispatch staff more than a general Toyota description when issuing emergency parts.

What electrical checks should precede a Toyota 7FD20 starter replacement?

Test battery capacity, loaded voltage and voltage drop through the positive and ground cables, then confirm the start signal reaches the solenoid. Inspect the ring gear where access allows. These readings help a technician decide whether the no-crank condition requires 28100-23440 or whether wiring, battery or mechanical work should be completed first.

How should multi-site demand be presented for a wholesale quote?

List the number of 7FD20 trucks and the required spare quantity at each warehouse, along with any urgent breakdown units. Add the target dates, destination addresses and packing or labelling needs. Elecdura can then quote the 28100-23440 configuration with a shipment plan that fits the service contract rather than one undivided total.

What should be inspected when 28100-23440 units arrive?

Check representative cartons for the complete reference label, then inspect the 11T pinion, nose casting, connector side and transit protection. Compare one flange with the documented 120 mm circle and mounting positions. Record the shipment lot before distributing units so any later question can be traced without recalling stock from every site.

What will speed up an after-sales review for this forklift starter?

Keep the supplied label and shipment lot, installation date, truck number, failure symptom and battery or cable test results. Photograph the connector, mounting face and pinion before dismantling the returned unit. That information lets Elecdura compare the supplied 28100-23440 starter with the actual fleet installation and operating evidence.

Request 28100-23440 Toyota Starter Motor B2B Pricing

Send the Toyota 7FD20 truck identity, 28100-23440 and any Denso number, old-unit label, flange, pinion and connector photographs, plus quantity by site and required date. Elecdura will return the specified 12V, 4.0kW, 11T CW configuration with B2B pricing and delivery terms.

For fleet contracts, include carton labelling and branch allocation requirements so the commercial response can cover packing, MOQ, warranty and staged shipment options.
