28100-2893A Hino J08C/J05C Starter Motor B2B Supply

28100-2893A 12V 2.5kW Starter Motor Specifications and B2B Fitment Drawing

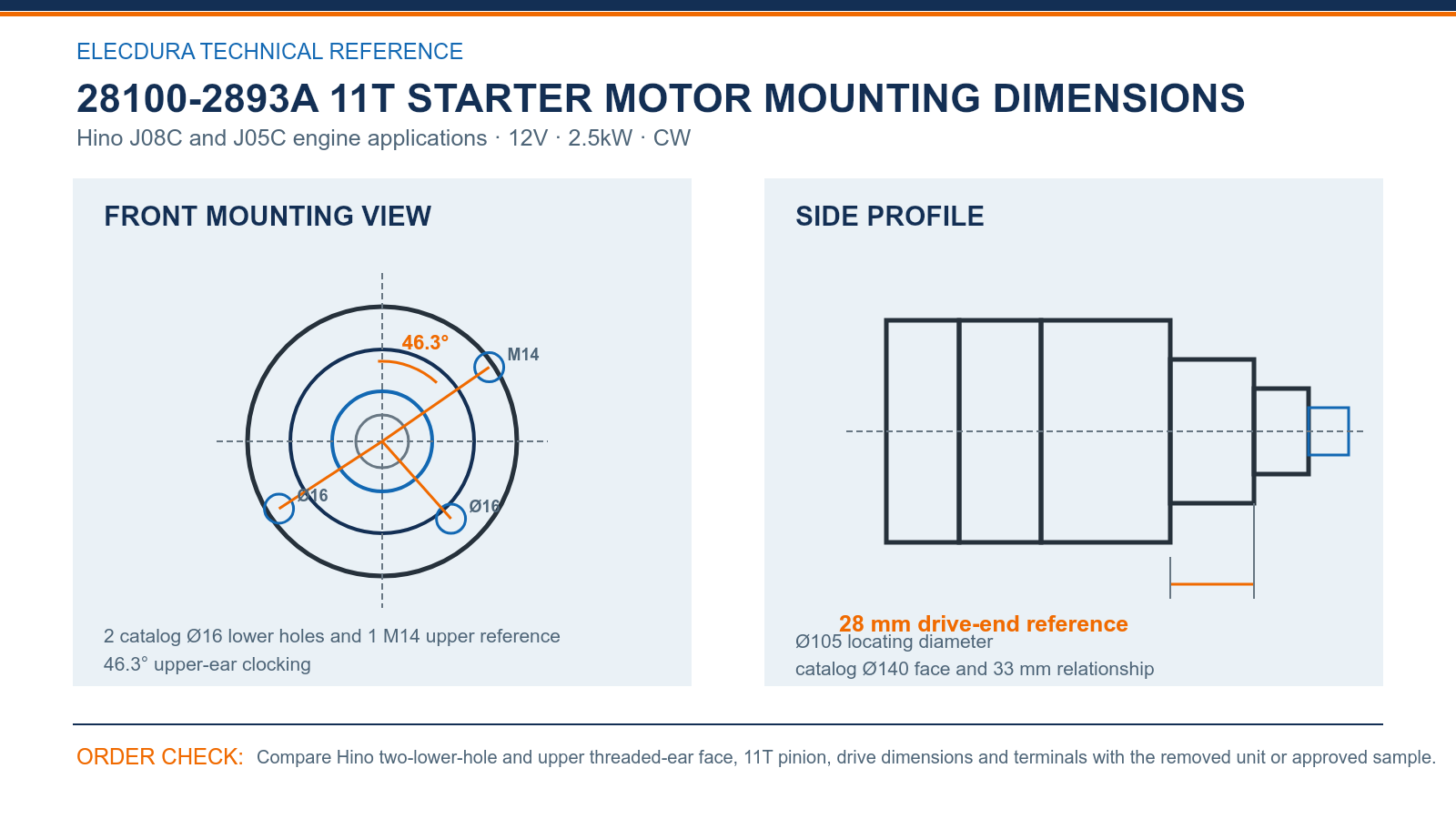

28100-2893A 11T starter mounting and drive-end reference for B2B sample review.

The short cross-reference list for 28100-2893A makes physical confirmation particularly valuable. The drawing identifies 2 catalog Ø16 lower holes and 1 M14 upper reference, 46.3° upper-ear clocking, Ø105 locating diameter and 28 mm drive-end reference.

Photograph the threaded and unthreaded mounting positions clearly so the first sample can be reviewed without perspective error.

28100-2893A Hino Starter M14 Ear Check for B2B Buyers

The catalog drawing records 46.3° upper-ear clocking, an Ø105 locating diameter, a 28 mm drive-end reference, an Ø140 face reference and a 33 mm relationship near the lower ear. These values should be compared with the removed Hino unit during sample approval.

• Verify the upper threaded position is M14.

• Check both lower mounting holes.

• Count eleven pinion teeth.

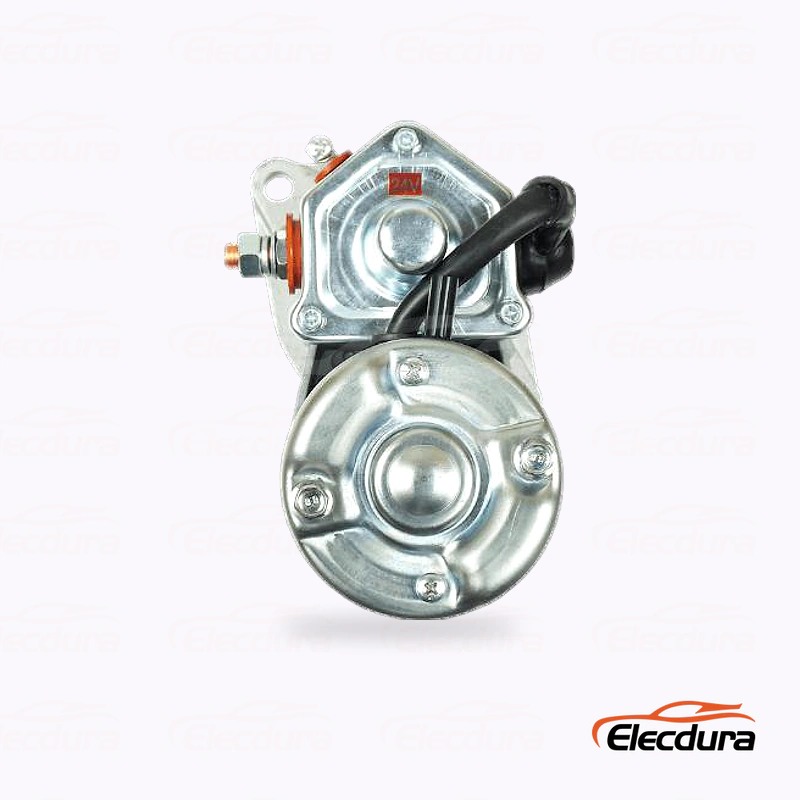

• Match the terminal and solenoid orientation.

28100-2893A Hino Starter Identification from One Exact OE

This product has a short reference list, so the exact Hino number and physical face carry more weight than a long interchange table. Quote 28100-2893A together with the J08C or J05C engine record and the 12V, 2.5kW, 11T specification shown in the catalog.

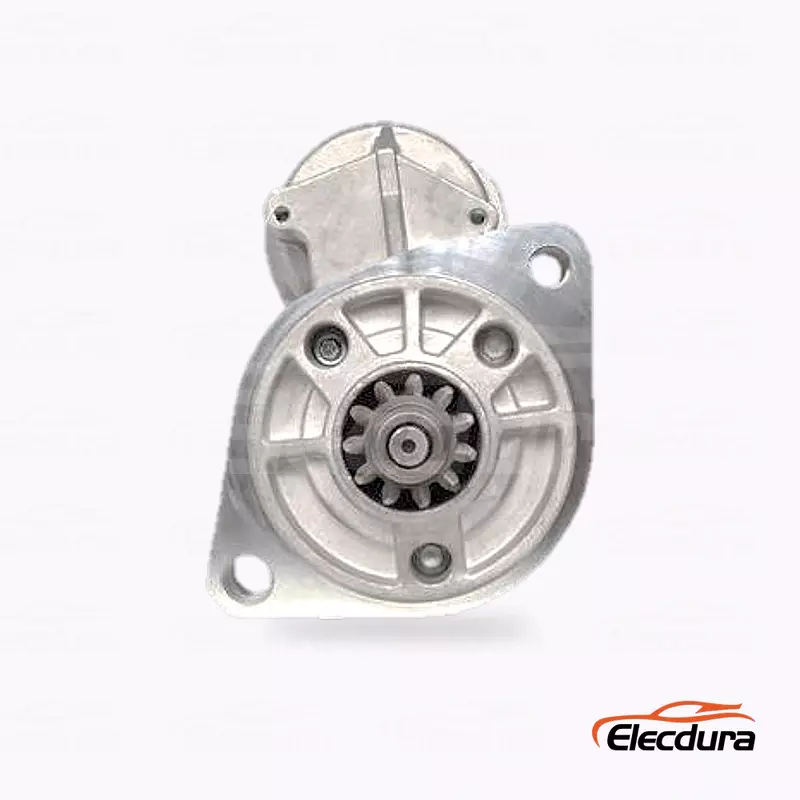

If the label is missing, a centered drive-end photograph can still be useful because the mounting arrangement includes two lower Ø16 holes and an upper M14 reference. That combination is a stronger identity check than the color or overall length of the motor body.

28100-2893A Starter Supply Support for Hino Parts Buyers

The buyer’s Hino record and sample are especially valuable for this exact suffix. Elecdura can prepare a quotation from the stated specification and then close the fitment decision with old-unit photos or an approved sample.

For repeat supply, retain the 28100-2893A label, mounting-face image and receiving measurements in the purchasing file. Neutral packaging is available, and qualified distributor programs can discuss branded labels or cartons after the product record is approved.

The following video introduces Elecdura starter production and electrical testing. The commercial order remains controlled by the exact 28100-2893A number, Hino J08C/J05C application, catalog specification and verified M14/Ø16 mounting arrangement.

28100-2893A Hino J08C and J05C engine Starter Motor Wholesale FAQ

Is 28100-2893A the same as the more common 28100-2894A?

The suffix must not be changed automatically. This page is for the specified 28100-2893A product. If a buyer has 28100-2894A or another nearby number, submit it as a separate inquiry and compare the electrical rating, tooth count, threaded upper ear, lower holes, drive depth and terminals before considering interchange.

Which Hino engines are listed for this starter?

The catalog lists Hino J08C and J05C applications for the 12V, 2.5kW, 11T CW unit. Buyers should provide the engine record and the full 28100-2893A number. Vehicle year or model information is also helpful because engine-family descriptions can cover more than one mounting or electrical version.

Why is the M14 upper mounting reference useful?

A threaded upper ear is a visible and measurable feature that can distinguish this face from a similar Hino starter. Confirm the M14 position, then compare the two lower Ø16 holes and the 46.3° clocking. These checks make a single-reference inquiry more reliable when no broad cross-reference list is available.

What should be photographed for a 28100-2893A quotation?

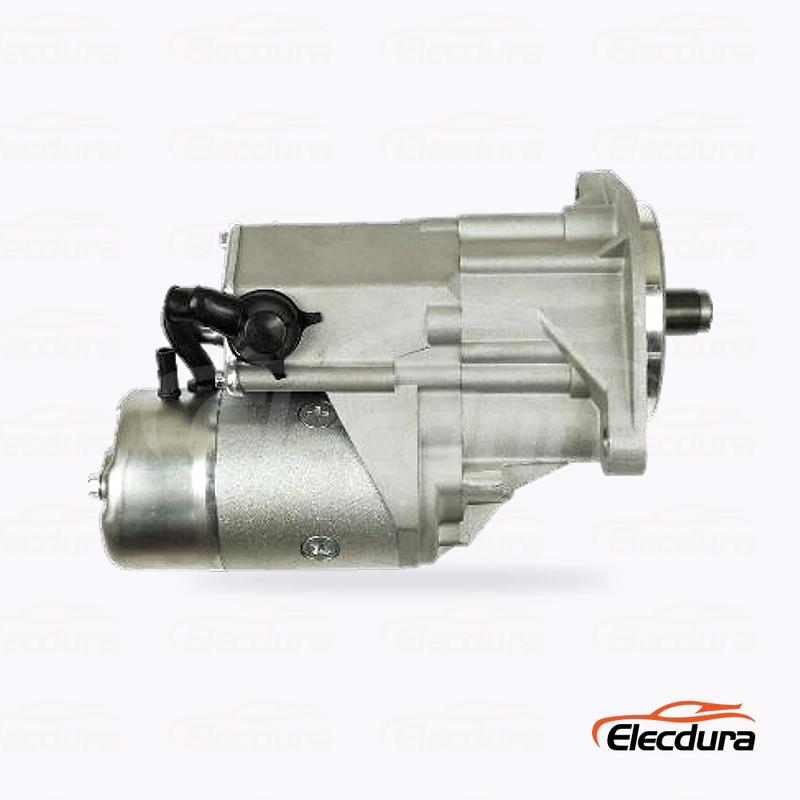

Send the readable label, a full side view, a straight-on mounting-face view, the eleven-tooth pinion and the terminal side. Make sure the upper threaded ear and both lower holes are visible. If the old unit is still installed, include the Hino chassis or engine information from the service record.

How are the Ø105 and 28 mm dimensions used?

The Ø105 value describes the catalog locating feature, while 28 mm is a drive-end reference from the mounting face. They help an inspection team compare the removed unit with a sample. Actual measurements must be taken from the parts; the online drawing is a reference and should not be scaled.

Can Elecdura quote this item with limited public market data?

Yes. The exact 28100-2893A reference, Hino application, stated electrical specification and buyer-provided sample evidence form the working product definition. The practical approval step is to compare the mounting geometry, pinion and electrical requirements with the buyer’s actual unit before a planned production quantity is released.

What should a Hino distributor check when the sample arrives?

Confirm 12V, 2.5kW, eleven teeth and CW rotation, then inspect the M14 upper ear, two lower holes, Ø105 locating feature, 28 mm drive reference and terminal direction. Save the accepted photos under the full 28100-2893A number so warehouse staff do not substitute a nearby Hino suffix.

What order details help establish repeat supply?

Provide the first quantity, annual forecast, destination, packaging format, labeling language and receiving-inspection needs. Keep the approved Hino engine record, mounting photos and product measurements with the order. Elecdura can then quote neutral packing or review a private-label program without weakening the exact 28100-2893A identity.

Request a 28100-2893A Starter Motor Wholesale Quote

Send the exact Hino 28100-2893A number, J08C or J05C record, M14 upper-ear image, lower mounting-hole view, quantity and destination. Elecdura can quote a sample and subsequent B2B supply against those specific identification points.

Provide a clear view of the threaded upper ear and any Hino service document available for the vehicle. Elecdura will use those details to prepare the first-order and repeat-supply proposal.
