28100-2910B Hino NA145 Starter Motor Distributor Supply

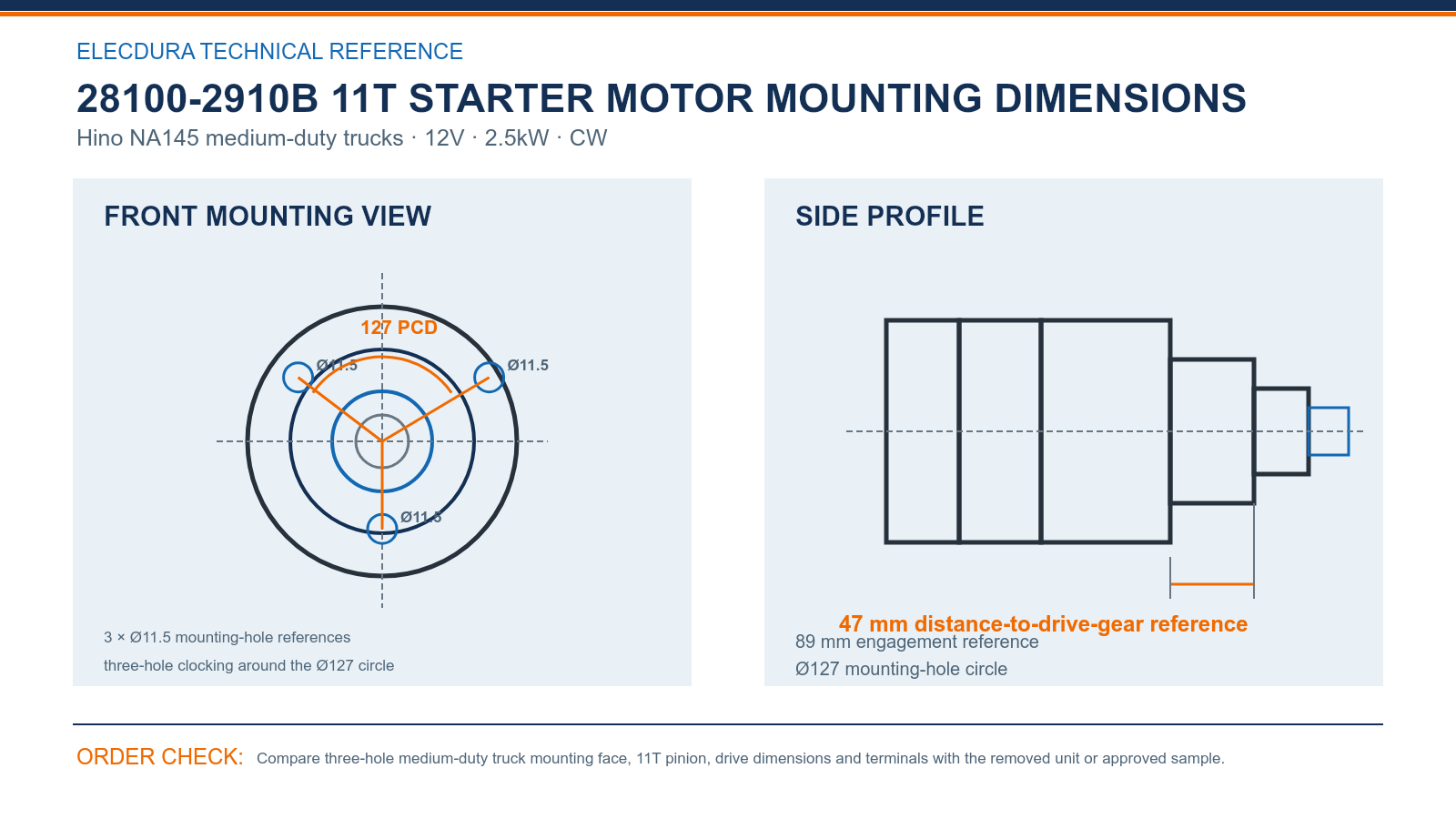

28100-2910B Starter Motor Specifications and B2B Fitment Drawing

28100-2910B 11T starter motor mounting and drive-end dimensions for buyer sample comparison.

For a Hino NA145 stocking line, the technical image translates the OE group into receiving points that can be checked without dismantling the starter. The Ø127 three-hole circle, 89 mm engagement and 47 mm drive-gear distance should agree with the old unit before a truck-fleet sample is released.

Photograph the pinion and terminal side together with the measured face. Keeping this dimensional set with the 11-tooth sample helps a distributor answer later NA145 inquiries consistently while avoiding a nearby Hino starter with a different nose or output.

28100-2910B Hino NA145 Starter Motor Sourcing for Truck Fleets

28100-2910B gives Hino distributors a clear starting point for NA145 medium-duty truck coverage. The 12V, 2.5kW and 11-tooth specification should travel with the truck model and old-unit label, because nearby Hino references can belong to another drive end or mounting depth.

Send the chassis or fleet record and photographs of the mounting face, pinion and terminals. Elecdura will compare the three Ø11.5 holes, 127 mm circle, 89 mm engagement and 47 mm drive-gear distance so the quotation is useful to both purchasing and the workshop.

28100-2910B Hino Starter Motor Fitment Checks for Distributor Orders

The Hino group includes 28100-2910B, 28100-2910R, 28100-2911A and 28100-2911B, with Denso 428000-2500 also used in replacement searches. Keep the suffix in the RFQ instead of reducing the request to 28100-2910.

When fleet records are inconsistent, compare the 11-tooth drive, rear terminals and the 89 mm/47 mm measurements shown in the technical image. These practical checks give a branch buyer a stronger basis than a broad Hino model description.

28100-2910B Starter Motor Stocking Support for Hino Distributors

A Hino parts distributor can begin with a fitment sample, add the accepted dimensions and cranking result to its SKU, and then release the agreed stocking quantity. Elecdura can quote neutral packaging or review branded labels for qualified orders.

For incoming inspection, choose cartons across the lot and check the 11T pinion, three-hole casting, terminal protection and reference label. A saved NA145 sample record helps the sales desk answer later inquiries without promising fitment from a partial number.

The production video introduces Elecdura assembly and electrical testing for aftermarket starter motors. Share the Hino NA145 details, old-unit label and mounting photos with the inquiry so the response can define the product, sample checks, packaging and delivery plan.

28100-2910B Starter Motor Wholesale FAQ

Which Hino truck record is needed for a 28100-2910B quotation?

State that the requirement is for an NA145 medium-duty truck and provide the production year, chassis or fleet identifier and engine information available. Add the complete starter label. This combination prevents a supplier from extending the OE to every Hino 145, 165 or 185 application without checking whether the mounting depth and terminal arrangement are the same.

Why must the suffix be retained in 28100-2910B orders?

The suffix helps distinguish the exact service reference from related 28100-2910 and 28100-2911 numbers. Keep the complete B, R or A ending found on the unit, then compare the electrical rating and geometry. Removing the suffix may collapse different replacement histories into one warehouse line and makes later warranty or replenishment checks harder.

How are the 89 mm and 47 mm dimensions used?

The 89 mm engagement reference and 47 mm distance to the drive gear provide quick side-profile checkpoints. Measure the removed starter and compare the sample rather than scaling the online image. If either depth differs, stop the order review and request a new comparison, because correct bolt holes alone do not guarantee suitable pinion engagement.

What confirms the Hino three-hole mounting face?

Check all three Ø11.5 hole references and the 127 mm mounting-hole circle from a straight-on view. Note which positions are threaded or clear and record the solenoid clocking relative to the face. A perspective photograph can make the triangle look correct even when one center is displaced, so actual measurement is preferred before the sample is accepted.

Can 428000-2500 be supplied for a 28100-2910B request?

It is a useful Denso cross-reference for locating the product family, but the final quotation should still show the Hino application and complete number. Elecdura checks 12V, 2.5kW, 11 teeth, the three-hole geometry and terminals. If the old unit differs in any of those areas, the two references should not be merged automatically.

How should a fleet workshop test a replacement sample?

Before installation, verify battery and cable condition so the test is meaningful. Fit the starter without using bolts to force alignment, confirm terminal clearance and listen for clean engagement during repeated starts. Record cranking voltage and any abnormal noise. The accepted result becomes a practical reference for the fleet buyer’s subsequent stock order.

What should be inspected when 28100-2910B stock arrives?

Sample units from several cartons and compare labels, 11-tooth pinions, mounting faces, terminal covers and packing with the approved Hino unit. Record the supplier lot and sampled quantity. Hold any unit with a different suffix, casting or connection layout before it is allocated to branches, because mixed stock creates expensive workshop delays.

What commercial details belong in an NA145 starter RFQ?

Along with the technical details, provide quantity, destination, target delivery date, carton preference, barcode needs and any inspection requirement. State whether the order begins with a sample. Elecdura can then return product, MOQ, lead-time, warranty and packaging information in one response instead of revising the offer after the truck version has been clarified.

Request a 28100-2910B Starter Motor Wholesale Quote

Send the full 28100-2910B reference, Hino NA145 chassis or fleet record, label and terminal photos, 11T confirmation, mounting measurements, quantity and destination. Elecdura will return a 12V 2.5kW quotation with sample, packing and delivery terms.

State the NA145 market, expected annual demand and the inspection information used by the fleet workshop. Elecdura can return sample, lead-time and packaging terms that purchasing and receiving teams can use without a second fitment explanation.
