28100-30050 Toyota 2KD-FTV 11T Starter Motor Wholesale

28100-30050 Starter Motor Sourcing for Toyota Diesel Parts Importers

Toyota light-commercial wholesalers often receive an inquiry that says only “2KD starter,” although Hilux, Hiace and regional chassis ranges do not all use one drive-end configuration. The 28100-30050 identity should stay visible beside 228000-4930, 228000-5340 and 33217N throughout quotation and receiving.

Ask for the chassis or VIN, 2KD-FTV engine details, complete old-unit label and straight photographs of the mounting face and terminals. These inputs let Elecdura quote the 11T 2.7kW unit and keep later Toyota OE groups on separate commercial lines.

28100-30050 Starter Motor Dimensions for Toyota Wholesale Fitment

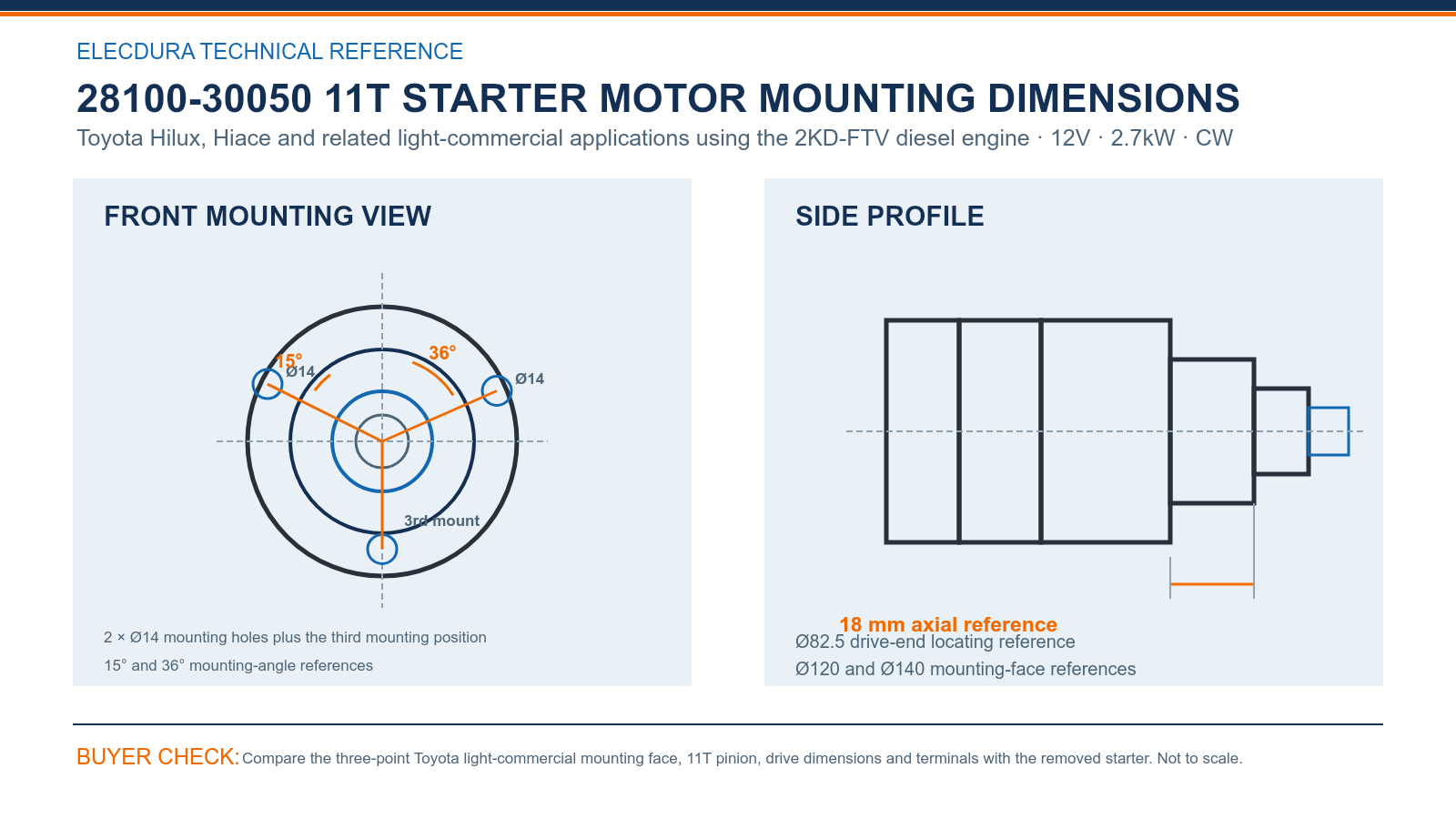

The 28100-30050 drive end uses two specified Ø14 mounting holes with a third mounting position, Ø120 and Ø140 face references, an Ø82.5 locator and an 18 mm axial point. The 15° and 36° references help the buyer compare the face orientation rather than relying on the motor-body silhouette.

Use the drawing with a straight face photograph and the full old-unit label. Confirm the 11-tooth drive and terminal side on the same vehicle so a distributor can distinguish this OE group from another Toyota 2KD starter before bulk dispatch.

28100-30050 Starter Motor OE Matching for Toyota Distributor Stock

The useful interchange group includes Toyota 28100-30050, Denso 228000-4930, 228000-5340 and 428000-0290, plus 33217N and 33217R. Preserve the complete suffix found on the removed starter because service channels may shorten the Denso number.

• Vehicle identity: record Hilux or Hiace chassis details and the 2KD-FTV engine.
• Drive identity: confirm 11 teeth, module 3 and clockwise rotation.
• Physical identity: compare the mounting face, locator and terminal side before combining demand.

28100-30050 Starter Motor Wholesale Supply for Toyota Fleet Channels

Importers serving both independent repairers and fleet accounts can qualify one unit against an identified vehicle, then retain its label, face photographs and installation result for replenishment. Neutral cartons are available for standard programs, while customer labels and barcodes can be reviewed for established volume.

For the first shipment, sample cartons from different pallet positions and check the full OE, 11T pinion, three-point face, solenoid clocking and protective caps. This helps branch warehouses avoid mixing the later 28100-0L050 family into 28100-30050 stock.

The video shows Elecdura starter-motor assembly and electrical testing. Include the Toyota chassis, 2KD-FTV details, old-unit label, quantity and destination so the quotation can state the specified product and commercial terms clearly.

28100-30050 Starter Motor Wholesale FAQ

How does a buyer separate 28100-30050 from later Toyota 2KD starters?

Start with the complete Toyota or Denso number and the vehicle chassis range, then compare the three-point face, Ø82.5 locator, 11-tooth drive and terminal orientation. A shared 2KD-FTV engine name does not prove that a later Hilux starter is interchangeable, so the old label and straight mounting photograph should accompany the inquiry.

Which Denso cross-references belong in a 28100-30050 inquiry?

228000-4930, 228000-5340 and 428000-0290 are useful purchasing references, while 33217N and 33217R may appear in aftermarket systems. Keep the complete number supplied by the customer and confirm the specified configuration of 12V, 2.7kW, 11 teeth, module 3 and clockwise rotation before using the group in one quotation.

Which Toyota mounting dimensions should be measured?

Compare the two specified Ø14 holes and the third mounting position, Ø120 and Ø140 face references, Ø82.5 locating feature, 18 mm axial point and the 15° and 36° orientation references. Measure the removed unit directly and use the drawing as a comparison guide, because an angled product photograph can hide meaningful face differences.

What Toyota vehicle information should importers send?

Provide the model, chassis code or VIN, market, production year and 2KD-FTV engine details, together with the full old starter label. Add face, side, pinion and terminal photographs. This combination gives Elecdura enough vehicle and physical information to quote the exact 28100-30050 configuration instead of a broad “Toyota 2KD starter” offer.

How should the first installation be checked on a Hilux or Hiace?

Verify that the locating surface seats freely, all mounting points align and the cable terminals reach without strain. Confirm clean pinion engagement, normal release and stable cranking voltage. Save the chassis, old and new labels and installation photographs so the distributor has a practical reference for later 28100-30050 replenishment orders.

How can branch inventory avoid mixing two Toyota 2KD starter families?

Use the full 28100-30050 or Denso reference on the warehouse label, not only the engine name. Add 11T and the vehicle range to the bin description, and keep the mounting-face photograph accessible to sales staff. Later 28100-0L050 demand should remain on another SKU and another purchase-order line.

Which packing and incoming checks suit a 28100-30050 shipment?

Select units from different pallet positions and verify full labels, 11-tooth pinions, the three-point mounting face, locator surface, terminal protection and carton condition. Compare one unit with the confirmed old starter and measurements, then note the shipment lot. Isolate any unit showing another OE, drive or connector before it reaches branch inventory.

What information enables a firm 28100-30050 wholesale quotation?

Send the complete Toyota, Denso or WAI number, vehicle chassis or VIN, 2KD-FTV details, readable old label, face and terminal photographs, target quantity, delivery country, required date and packaging preference. Elecdura can then state the 12V 2.7kW 11T configuration, MOQ, normal lead time, warranty and carton options.

Request a 28100-30050 Starter Motor Wholesale Quote

Send 28100-30050 or the complete Denso or WAI reference, Toyota chassis or VIN, 2KD-FTV engine details, old-unit photographs, quantity, destination and packaging request. Elecdura will quote the 12V 2.7kW 11T starter with fitment and delivery information.

If the request covers both Hilux and Hiace fleets, separate quantities by chassis range and old-unit number. This gives purchasing and receiving teams one clear configuration for each line.
