28100-47040 Toyota HJ47 Starter Motor Distributor Supply

28100-47040 Toyota Starter Motor Application Checks for 4x4 Importers

28100-47040 is intended for Toyota HJ47 and 2H engine buyers who need a defined commercial-vehicle starter rather than a broad Land Cruiser part. Model, engine and old-unit details are important because long-service vehicles can carry rebuilt starters or local substitutions that no longer match the original label.

Elecdura compares the 12V 2.5kW rating, 11-tooth pinion, Ø140 two-hole face, 54.4° orientation and terminal side. The result is a quotation that a 4x4 distributor can verify on the vehicle and reuse for later regional stock orders.

28100-47040 Starter Motor Specifications and B2B Fitment Drawing

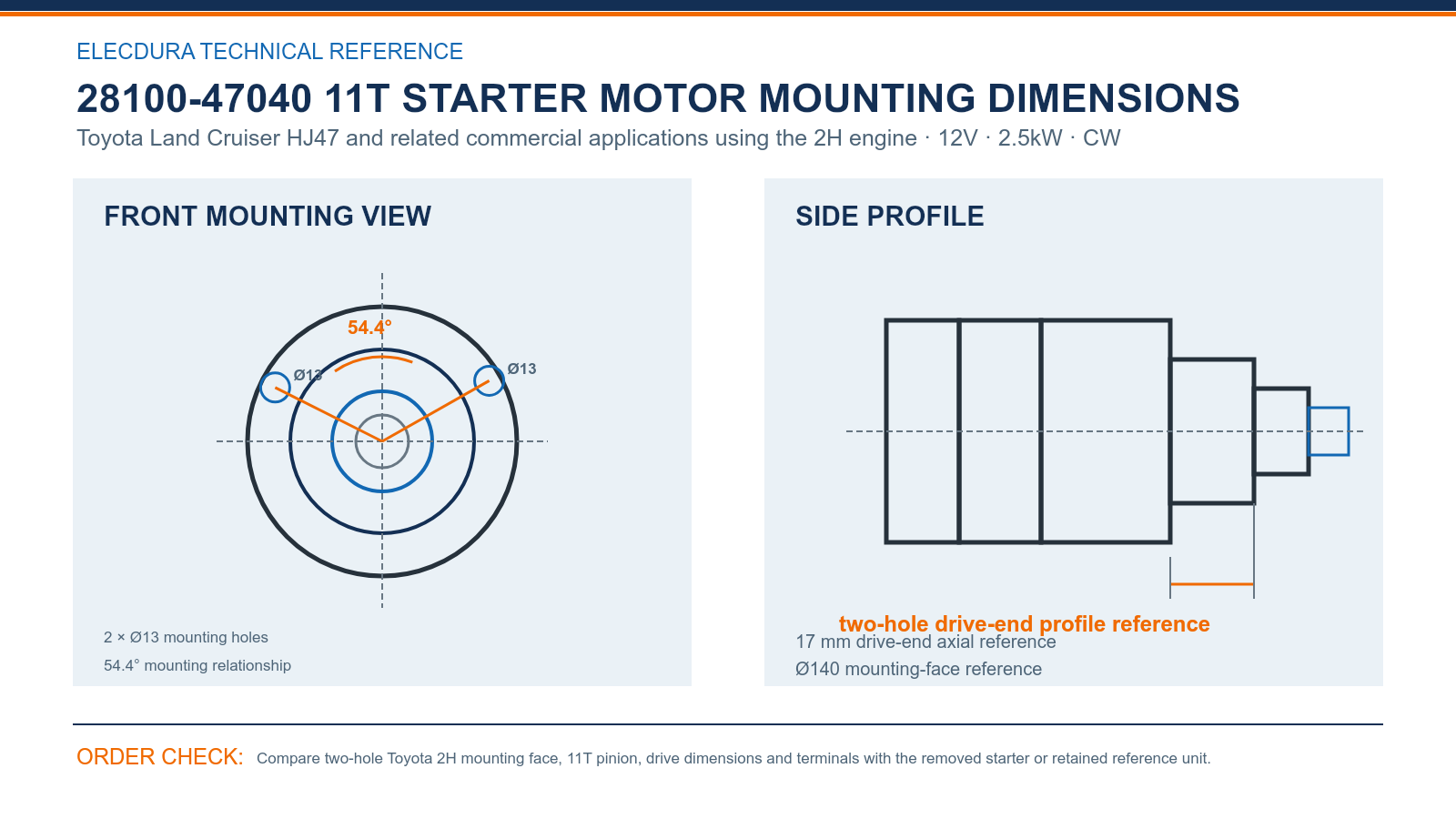

28100-47040 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

Toyota HJ47 and 2H-engine buyers should confirm the two-ear mounting face before assigning this starter to off-road or utility-vehicle stock. Compare 2 × Ø13 mounting holes, Ø140 mounting-face reference, 17 mm drive-end axial reference, two-hole drive-end profile reference and the 54.4° mounting relationship shown in the drawing.

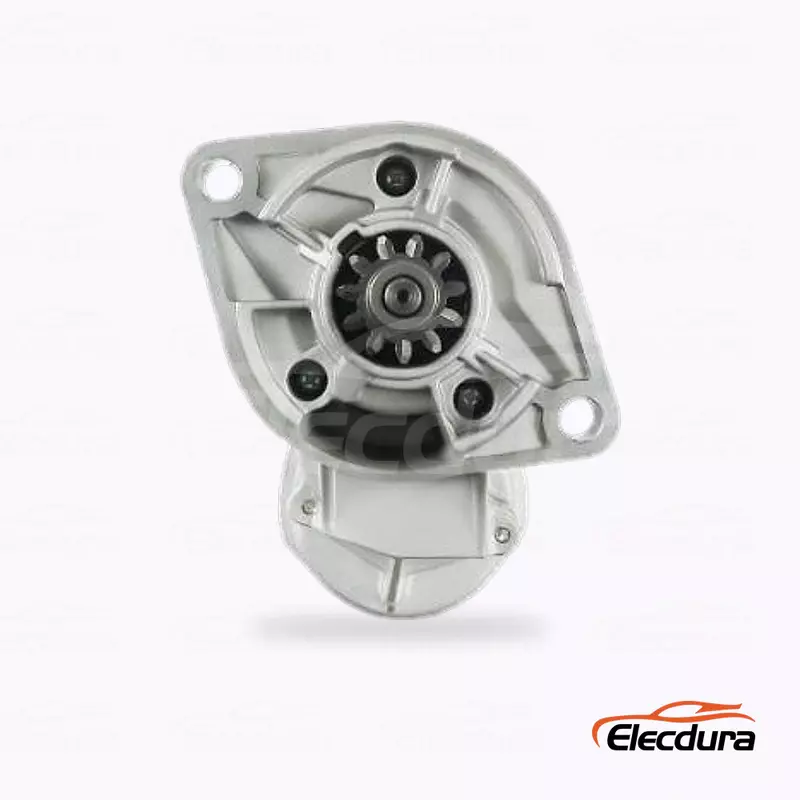

Photograph the pinion and terminal sides of the removed starter and verify the 11-tooth CW configuration. These checks help a distributor prevent a visually similar Toyota starter with another mounting face from entering the 28100-47040 order.

28100-47040 Starter Motor OE Group for Land Cruiser Buyers

Toyota references 28100-47070 and 28100-47080, Denso numbers from 028000-4160 through related versions, and S6419S can lead to the same purchasing family. Keep the complete number shown by the customer and confirm the HJ47 or 2H application before combining quantities.

1. Pinion: count all 11 teeth and compare the resting position.

2. Drive end: measure both Ø13 holes and the 17 mm axial point.

3. Vehicle installation: check the cable arrangement, especially when an older export Land Cruiser has received locally rebuilt electrical parts.

28100-47040 Starter Motor Export Supply for Toyota Distributors

Importers can receive a trial unit for the identified HJ47 or 2H application, verify installation and cranking, and then place mixed or repeat stock orders. Neutral packaging supports standard wholesale distribution; private-label cartons can be reviewed for qualified volumes with confirmed artwork and destination markings.

• Order details: provide the vehicle model, engine and old-unit photographs.

• Fitment check: confirm face seating, engagement and cable clearance.

• Receiving check: compare 11 teeth, the two-hole casting and full labels before distribution.

The video shows Elecdura starter-motor production and electrical testing. Send the HJ47 or 2H application, complete reference, face and terminal photographs, quantity and destination so the response can define the 28100-47040 version and appropriate commercial terms.

28100-47040 Starter Motor Wholesale FAQ

Which Toyota application should be stated for 28100-47040?

Provide the HJ47 model and 2H engine information, together with vehicle year or chassis details where available. Add the complete number from the removed starter. This keeps the inquiry within the intended Land Cruiser commercial application and prevents a similar-looking starter from another Toyota engine family being treated as an automatic replacement.

How should related Toyota and Denso numbers be used?

References such as 28100-47070, 28100-47080, 028000-7220, 028000-7230 and S6419S help connect service and purchasing histories. Retain the exact number supplied by the customer, then verify 12V, 2.5kW, 11 teeth and the two-hole face. A related number is a lead, not a substitute for vehicle and physical checks.

What does the Ø140 face tell the workshop?

The Ø140 reference and two Ø13 holes describe the mounting interface of this Toyota configuration. Compare them with actual measurements from the removed starter and a straight face photograph. Do not scale the online image. A different diameter or hole angle can prevent correct seating even if the motor body and solenoid appear similar.

Why is the 54.4° mounting relationship useful?

It describes the orientation between the mounting positions and helps identify a rotated drive-end housing. Use it together with the face diameter, hole sizes and terminal clocking. This is particularly valuable on older export vehicles where a rebuilt starter may carry a replacement label that does not fully describe the original nose geometry.

How should the 11-tooth drive be verified?

Clean the pinion, count all eleven teeth and compare the 17 mm axial point and resting position with the removed unit. During installation, check for smooth engagement and disengagement. If there is grinding or delayed release, stop the test and review depth, voltage and ring-gear condition before treating the unit as suitable for stock.

Which details should an importer keep after the vehicle trial?

Keep the HJ47 model, 2H engine details, old and new reference numbers, mounting and terminal photographs, dimensional comparison and the result of the cranking test. Include battery and cable observations if relevant. This gives sales and warranty teams a practical product identity when the same market requests replenishment months later.

How should export stock be checked at receiving?

Inspect cartons from different pallet positions for complete labels, 11-tooth drives, the two-hole face, terminal protection and packing condition. Compare a selected unit with the measurements confirmed on the identified vehicle and note the shipment lot. Separate any starter with another face or cable arrangement before distribution to Land Cruiser parts branches.

What belongs in a 28100-47040 wholesale RFQ?

Send the complete OE or Denso number, HJ47 model and 2H engine information, old-unit label, mounting, pinion and terminal photos, quantity, destination, requested date and packaging preference. Elecdura can then respond with the specified 12V 2.5kW 11T product, normal MOQ, lead time and warranty details.

Request a 28100-47040 Starter Motor Wholesale Quote

Send 28100-47040 or the complete related reference, Toyota HJ47 model or 2H engine details, old-unit label, mounting, pinion and terminal photographs, quantity and destination. Elecdura will quote the 12V 2.5kW 11T unit with fitment, packing and delivery terms.

For regional Land Cruiser stock, note the destination markets and any carton or barcode requirements. Elecdura can keep the technical reference visible so workshops receive the same two-hole configuration on repeat orders.
