28100-56010 Toyota Dyna 3.0 Starter Motor Wholesale

28100-56010 Wholesale Starter Motor for Toyota Dyna 3.0 trucks

For Toyota Dyna truck-parts counters serving local fleets and regional repair shops, 28100-56010 is identified by the offset two-point face and 11-tooth drive. Another Toyota 24V starter can look serviceable on the counter yet sit differently at the bell housing.

A workable 28100-56010 11T enquiry combines Dyna model and chassis, engine detail, every old-unit number, straight nose and cable-side photographs, order volume, receiving location and delivery deadline. State whether the need for Toyota Dyna 3.0 trucks is routine replenishment, a branch transfer or equipment already out of service.

28100-56010 Starter Motor Dimensions for Toyota Dyna Distributors

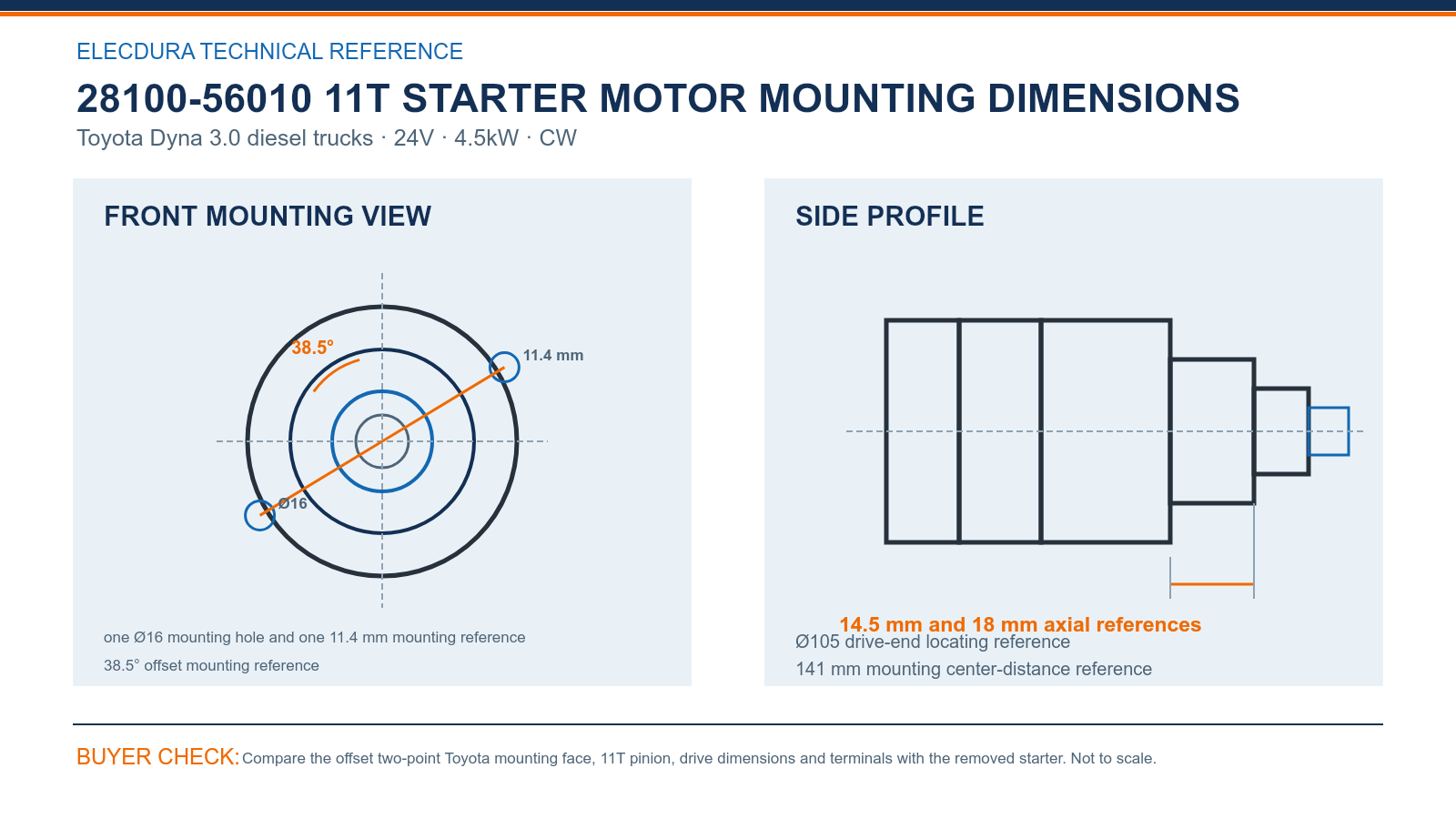

28100-56010 Toyota Dyna 24V 4.5kW 11T starter mounting dimensions.

Use the 28100-56010 11T technical image to compare one Ø16 mounting hole and one 11.4 mm mounting reference, 38.5° offset mounting reference and Ø105 drive-end locating reference. These features show how the drive end meets Toyota Dyna 3.0 trucks.

Bench comparison for 28100-56010 11T should retain 24V, 4.5kW, 11T, module 3, CW. Receiving staff should sample the asymmetric mounting references, locating diameter, pinion and protected terminals before branch transfer, using the old unit or confirmed sample for the final physical check.

28100-56010 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with 28100-56010 11T and record every complete number on the removed unit. Related references help locate 28100-56010 11T, but buyers must still confirm the offset two-point face and 11-tooth drive.

2. Physical confirmation: Cross-references narrow the 28100-56010 11T search; they do not replace the 11T pinion, mounting face and terminal check. Record those physical points on the purchase order.

28100-56010 Starter Motor MOQ, Lead Time and Export Supply

Elecdura supports 28100-56010 11T wholesale orders from 20 pieces, normally 7–15 days after confirmation, with an 18-month warranty under agreed terms. Label the bin with Dyna 3.0, 11T and offset face, then separate vehicle-off-road demand from routine branch replenishment.

For 28100-56010 11T arrival inspection, sample the asymmetric mounting references, locating diameter, pinion and protected terminals before branch transfer. Protect the pinion and cable studs, record the shipment lot and isolate physical differences before the product enters stock for Toyota Dyna 3.0 trucks.

The following video introduces Elecdura manufacturing and electrical test capability. For 28100-56010 11T, product selection still follows the complete reference, physical checks, quantity and delivery requirement.

28100-56010 Starter Motor FAQs for Toyota Parts Buyers

How can buyers distinguish 28100-56010 11T from a similar starter?

Another Toyota 24V starter can look serviceable on the counter yet sit differently at the bell housing. Confirm 28100-56010 11T by comparing the offset two-point face and 11-tooth drive against the old unit's label, pinion and terminals. Keep Toyota Dyna 3.0 trucks on the enquiry; a matching rating or housing is not enough.

Which details are needed for a 28100-56010 11T wholesale quotation?

Send Dyna model and chassis, engine detail, every old-unit number, straight nose and cable-side photographs, quantity, destination and target date for 28100-56010 11T. For Toyota Dyna 3.0 trucks, show machine-down demand apart from planned replenishment and add branch packing instructions. Elecdura can then price 24V, 4.5kW, 11T, module 3, CW with MOQ, timing, warranty and freight options for 28100-56010.

What drive-end dimensions should be compared for 28100-56010 11T?

For 28100-56010 11T, compare one Ø16 mounting hole and one 11.4 mm mounting reference, Ø105 drive-end locating reference and 14.5 mm and 18 mm axial references. Relate those dimensions to 141 mm mounting center-distance reference and the 11T pinion for Toyota Dyna 3.0 trucks. Compare a direct drive-end photograph, to avoid perspective masking hole position, pilot diameter or pinion depth for Toyota Dyna 3.0 trucks.

How should distributors plan stock for 28100-56010 11T?

Label the bin with Dyna 3.0, 11T and offset face, then separate vehicle-off-road demand from routine branch replenishment. Build the 28100-56010 11T reserve from supported machines, recent withdrawals and transfer time. Keeping the Toyota Dyna 3.0 trucks and drive description on the bin helps branches avoid issuing another Toyota starter during an urgent repair.

Which electrical checks should precede starter replacement on Toyota Dyna 3.0 trucks?

Load-test both batteries and measure positive and ground voltage drop while the Dyna is cranking. After removing the old starter from Toyota Dyna 3.0 trucks, inspect the mounting surface, pinion and ring gear for abnormal contact. Those readings on Toyota Dyna 3.0 trucks distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Toyota starter?

Sample the asymmetric mounting references, locating diameter, pinion and protected terminals before branch transfer. Match the 28100-56010 11T label and 24V, 4.5kW, 11T, module 3, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Toyota Dyna 3.0 trucks.

What should remain on a repeat order for Toyota Dyna 3.0 trucks?

Keep 28100-56010 11T, Toyota Dyna 3.0 trucks, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps keep a Dyna-specific replacement available without mixing it with nearby Toyota starter families. This keeps the offset two-point face and 11-tooth drive visible to both purchasing and service teams.

Which records support an after-sales review for Toyota buyers?

Provide chassis, installation date, shipment lot, cranking readings and matched old-versus-returned-unit photographs for a 28100-56010 11T review. For Toyota Dyna 3.0 trucks, supply duty conditions, electrical test results and like-for-like photographs of the removed and returned products. This helps Toyota buyers separate product condition from installation, electrical-system, transport or application causes for Toyota Dyna 3.0 trucks.

Request 28100-56010 Starter Motor Wholesale Pricing

Email Dyna model and chassis, engine detail, every old-unit number, straight nose and cable-side photographs, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote 28100-56010 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 11T, module 3, CW unit.
