28100-56040 Toyota 14B 11T Starter Motor B2B Supply

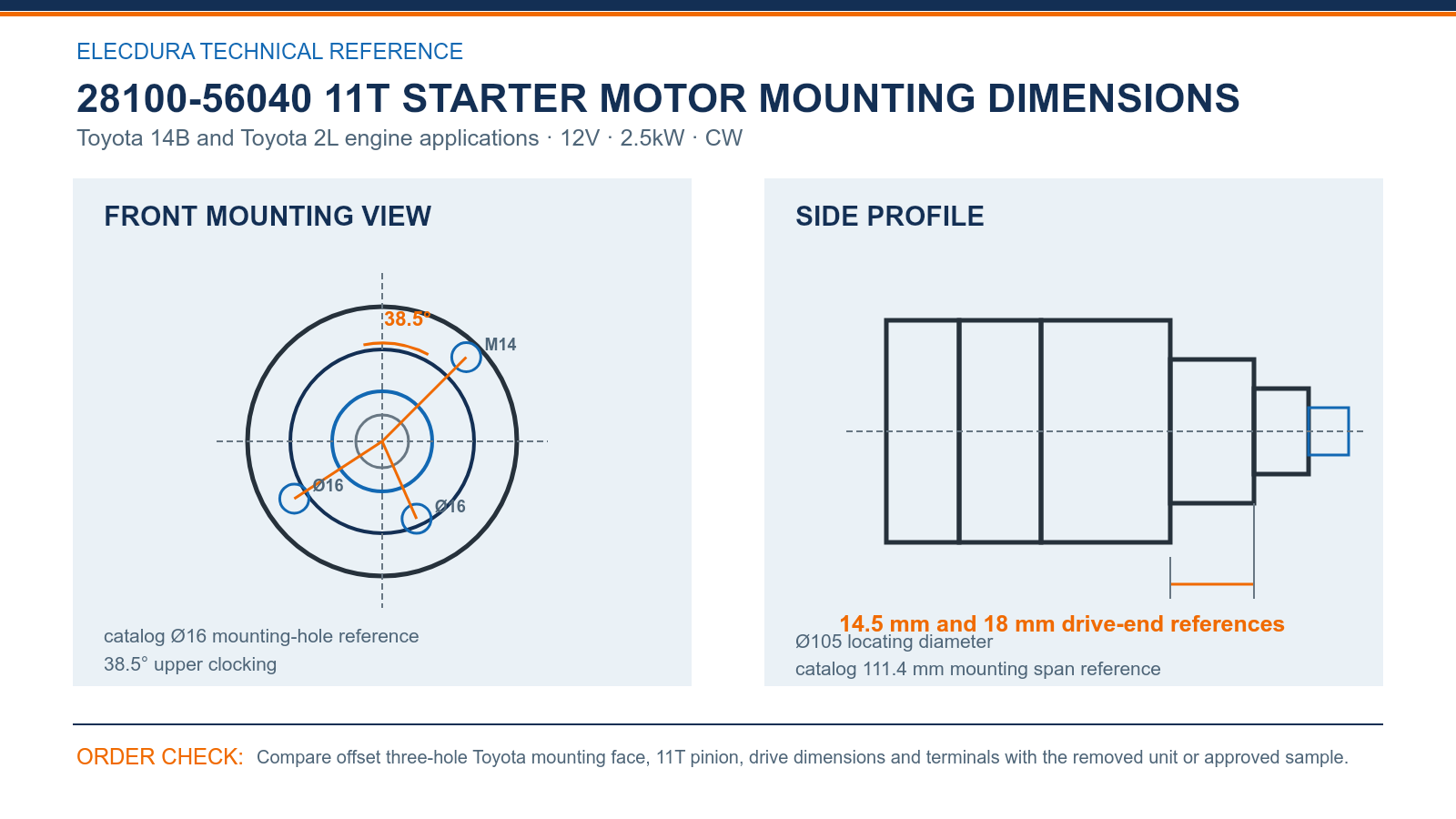

28100-56040 12V 2.5kW Starter Motor Specifications and B2B Fitment Drawing

28100-56040 11T starter mounting and drive-end reference for B2B sample review.

Equipment buyers can use this 28100-56040 drawing to compare geometry before a shipment is released. The useful controls are catalog Ø16 mounting-hole reference, 38.5° upper clocking, Ø105 locating diameter, and 14.5 mm and 18 mm drive-end references.

Keep the accepted measurements with the sample record so the same points can be checked on replenishment orders.

28100-56040 Toyota 14B Starter Selection for Equipment Fleets

For forklift and industrial-equipment buyers, a machine may remain in service long after the original label becomes difficult to read. The safest starting point is the complete 28100-56040 or 028000-5520 number together with the Toyota 14B or 2L engine record. The supplied version on this page is 12V, 2.5kW, 11T and CW.

A distributor should not substitute a nearby Toyota starter only because the body length or solenoid position appears familiar. The 38.5° clocking, Ø105 locating diameter and 14.5 mm/18 mm drive references give the sample-approval team specific points to compare.

28100-56040 Starter OE Group and 11T B2B Fitment Review

The reference set spans Toyota, Denso and aftermarket formats. Preserve all digits in 028000-5520, 28100-56040, 28100-56080 or 128000-3522, then add the customer’s engine or machine details. Shortened numbers can place the inquiry into the wrong family.

• Count eleven pinion teeth on the removed unit.

• Photograph the offset mounting ears straight-on.

• Compare the locating diameter and drive-end projections.

• Record the terminal orientation before approving packing artwork.

28100-56040 Starter B2B Supply for Forklift Parts Channels

Elecdura can support stocking orders for parts importers, forklift-service networks and regional distributors. A first sample can be reviewed against the buyer’s old unit or measured record; once approved, that control file can be used for production and receiving checks on later orders.

Neutral cartons are available, while branded packaging can be discussed for qualified volumes. Buyers should submit forecast quantity, destination, labeling rules and any inspection document required by their market so the commercial offer reflects the complete supply program.

This video presents Elecdura starter-motor manufacturing and electrical test processes. It supports supplier evaluation, while fitment for the order remains based on the Toyota application, complete OE group, 11T configuration and verified catalog geometry shown for 28100-56040.

28100-56040 Toyota 14B and Toyota 2L engine Starter Motor Wholesale FAQ

Is 28100-56040 intended only for Toyota 14B engines?

This 12V, 2.5kW, 11T starter is specified for Toyota 14B and Toyota 2L applications. Because equipment builders and local rebuilders may use different records, confirm the complete OE number and physical mounting configuration for each inquiry rather than extending the application to every machine that carries a 14B or 2L engine.

How should buyers use 028000-5520 and 28100-56040 together?

They are useful reference formats for locating the same catalog product group. Put the exact number from the old unit or invoice on the RFQ, then add the Toyota engine and machine information. Elecdura will compare the number group with the 11T pinion and mounting geometry before treating it as the requested wholesale configuration.

Why does the 11-tooth count matter on this Toyota starter?

A visually similar Toyota starter may use a different pinion. Tooth count affects engagement with the ring gear and is easy to verify before shipment. Photograph and count the teeth on the removed unit, then keep that image with the approved 28100-56040 sample record so future orders are checked against the same drive configuration.

What does the 38.5° drawing reference help confirm?

It describes the clocking of the offset mounting layout shown for this catalog item. That relationship helps distinguish the face from another housing that has a comparable diameter but places an ear differently. Use a straight mounting-face photo and actual measurements when the angle or hole position can affect installation.

Which measurements should a forklift service buyer provide?

Provide the locating diameter, the drive projection from the mounting face, visible mounting-hole size and center relationships if they can be measured safely. The catalog also shows 14.5 mm and 18 mm drive-end references. Pair those measurements with complete product photos so Elecdura can review geometry rather than relying on numbers alone.

Can different 028000-5540-series numbers be consolidated into one order?

They may be reviewed under the listed cross-reference family, but consolidation should follow sample and geometry confirmation. Keep each customer’s full number visible until the 12V, 2.5kW, 11T, CW specification and mounting face are matched. This avoids creating one broad stocking line from several unverified Toyota variants.

What is a practical first-sample inspection for 28100-56040?

Check the label and agreed cross-reference, count eleven teeth, confirm the 12V electrical system and compare the mounting face, Ø105 location, drive depth and terminals with the old unit. Photograph the accepted sample from the same views used during inquiry so receiving staff can repeat the inspection on the production order.

What commercial details help Elecdura quote this Toyota starter?

State the quantity, destination, required delivery window, packaging style and whether the order is for testing, warehouse stock or a customer program. Add the exact Toyota or Denso reference and application evidence. These details allow Elecdura to quote the correct 28100-56040 configuration together with realistic packing and inspection requirements.

Request a 28100-56040 Starter Motor Wholesale Quote

Share the Toyota engine or machine record, exact 28100 or 028000 number, eleven-tooth photo, mounting measurements and planned quantity. Elecdura can then prepare a B2B quotation for the approved 28100-56040 configuration and the required neutral or branded packing.

Include the forklift or equipment service information used by the end customer. Elecdura will use it with the Toyota reference group to define the sample and packing steps for the proposed supply.
