28100-58030 Toyota 14B Starter Motor Wholesale Supply

28100-58030 Toyota 14B Starter Motor Matching for Wholesale Orders

The principal references are 28100-58030, the compact format 2810058030 and Denso 1286009504. Keep the complete number and 14B application in the purchasing record; a number associated with another 11B, 13B or 15B engine should be treated as a separate lead until the physical starter is compared.

The technical image provides useful dimensions: Ø142 face, Ø100 locating reference, M14 × 1.5 threaded position, Ø15 lower hole, 15 mm axial point and 70°/20° orientation.

28100-58030 Starter Motor Supply for Toyota 14B Export Programs

Export distributors can begin with a sample matched to the identified 14B application, then use the accepted face and terminal images for subsequent purchasing. Neutral cartons support standard orders; private-label packaging can be reviewed when artwork, quantity and destination marking are agreed.

At receiving, compare the 11-tooth pinion, threaded upper position and lower ear before releasing the units. That check provides more protection than assuming all Toyota B-series starters in a mixed shipment are interchangeable.

The video presents Elecdura starter-motor production and electrical testing. Provide the exact 14B application and old-unit geometry with the inquiry so the commercial response can identify the product, sample checkpoints, packaging and expected delivery.

28100-58030 Starter Motor Specifications and B2B Fitment Drawing

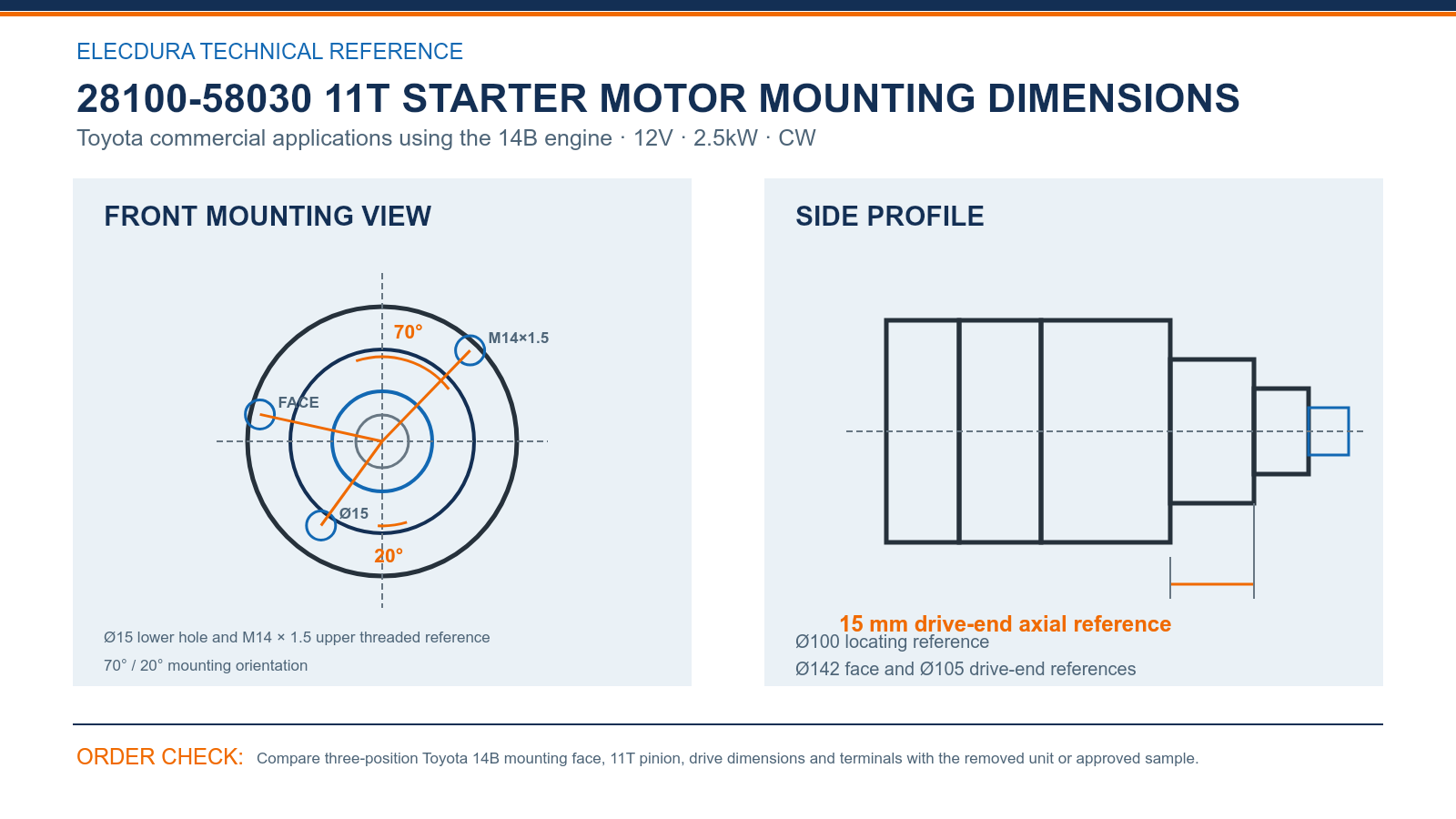

28100-58030 11T starter motor mounting and drive-end dimensions for buyer sample comparison.

Toyota 14B buyers receive more useful identification from this detailed face than from the short three-number reference set alone. The Ø142 face, Ø100 locating reference, M14 × 1.5 threaded position and Ø15 lower hole define the mounting arrangement of the 11-tooth unit.

Confirm the 70°/20° orientation and 15 mm axial point on the removed starter, then photograph the threaded and unthreaded positions separately. This gives export distributors a repeatable check when the customer operates several Toyota B-series engines.

28100-58030 Toyota 14B Starter Motor Help for Commercial Buyers

28100-58030 is a 12V, 2.5kW, 11-tooth starter for Toyota commercial applications using the 14B engine. Because the public reference group is short, buyers should rely on the engine record and the distinctive mounting details rather than expanding the number to every Toyota B-series application.

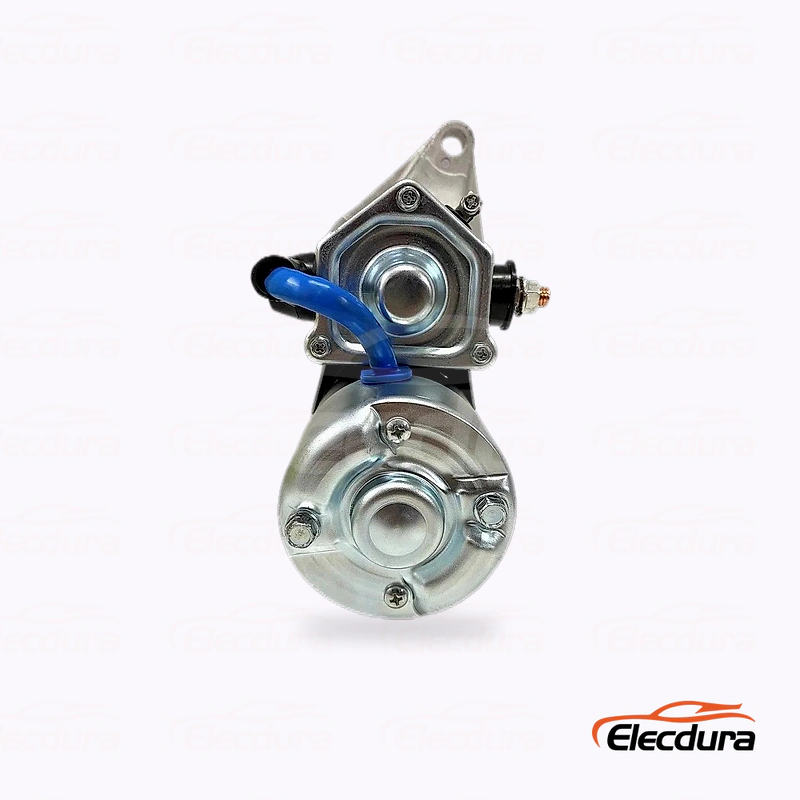

Send the vehicle or equipment model, 14B engine plate, old-unit label and face/terminal photographs. Elecdura will compare the threaded upper position, Ø15 lower hole, 70°/20° orientation and drive depth before returning a sample or stock quotation.

28100-58030 Starter Motor Wholesale FAQ

Which Toyota information should accompany 28100-58030?

Provide the commercial vehicle or equipment model, year or serial information and a clear 14B engine plate. Add the complete starter reference. The 14B belongs to a broader B-series family, and offers for 11B, 13B or 15B engines may show similar starters. The application details prevent those related engines from being treated as automatic fitment.

How are 2810058030 and 1286009504 used in an inquiry?

They are alternate formats or cross-references that help locate the 28100-58030 family. Preserve whichever complete number appears on the old unit and service document. Elecdura then checks 12V, 2.5kW, 11 teeth and the mounting geometry. A number match is a useful starting point, but it does not replace the 14B application and physical comparison.

Why is the M14 × 1.5 threaded position important?

The upper threaded position distinguishes how the starter is secured and should match the removed unit. Check the thread size and condition rather than assuming a clear hole can be used with different hardware. A wrong thread or ear position can damage the housing or prevent the starter from seating, even when the outer body and pinion look similar.

What do the 70° and 20° mounting angles show?

They describe the orientation of the mounting positions around the face. Compare the technical image with a straight-on photograph and actual measurements from the old starter. The angles help distinguish a rotated Toyota casting that otherwise shares an Ø100 locating diameter. Save the face image with the sample record for later export and branch orders.

How should the Ø142, Ø100 and Ø105 references be checked?

Use suitable measuring tools on the removed unit and sample. The Ø142 face, Ø100 locating and Ø105 drive-end references describe different features and should not be collapsed into one diameter. Do not scale the online graphic. If a measurement differs, request a new fitment review before production because the starter may not center or engage correctly.

What should be verified on the 11-tooth drive?

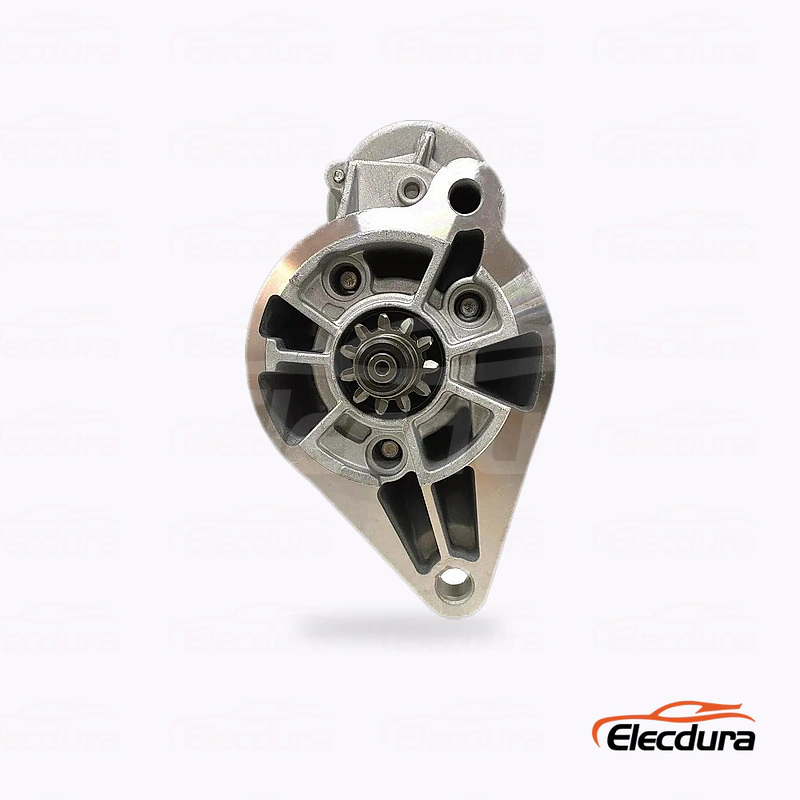

Clean and count all eleven pinion teeth, note the resting position and compare the 15 mm axial reference with the old starter. During the sample trial, listen for clean engagement and inspect the ring gear where possible. A face match without correct pinion depth can still cause grinding, incomplete engagement or premature drive damage.

How should an export distributor inspect 28100-58030 stock?

Select cartons across the delivery and check full references, 11-tooth drives, the M14 threaded position, lower Ø15 hole, terminal protection and packing. Compare a unit with the signed 14B sample and record the lot. Hold any B-series starter with another face or number before it is mixed into saleable inventory.

What details allow Elecdura to quote 28100-58030 efficiently?

Send the complete reference, Toyota application and 14B engine information, old-unit label, mounting, pinion and terminal photographs, required quantity, destination and target date. State the sample and carton requirements. Elecdura can then return the defined 12V 2.5kW 11T specification, MOQ, normal lead time, warranty and packaging options in one offer.

Request a 28100-58030 Starter Motor Wholesale Quote

Send 28100-58030 or 1286009504, the Toyota vehicle/equipment and 14B engine record, clear mounting and terminal photos, quantity, destination and packaging request. Elecdura will return a 12V 2.5kW 11T quotation tied to the stated geometry and sample plan.

List the Toyota 14B vehicle or equipment groups and the destination markets included in the order. Elecdura can combine the dimensional sample review, neutral packaging and qualified private-label requirements in one export quotation.
