28100-77090
28100-76015-71 / 28100-77090 / 028000-5300 / 028000-5301 / 028000-5302 / 17286 / 190-813 / STR70270
Elecdura
Available for qualified orders
20 pcs
7 - 15 Days
Neutral packaging / private-label review
18 Months
28100-76015-71 / 28100-77090 / 028000-5300 / 028000-5301 / 028000-5302 / 17286 / 190-813 / STR70270
Toyota lift trucks and commercial equipment using the 2D diesel engine and a 24V 4.5kW 11T CW starter
Confirm 24V, 4.5kW, 11T, CW, 3 × Ø13 mounting holes, Ø105 drive-end locating reference, 56.2 mm axial reference, mounting orientation and terminal layout against the removed starter before volume supply.
| Quantity: | |
|---|---|
Material-handling distributors can use 28100-77090 across defined Toyota 2D equipment while retaining each lift-truck model and serial. That information makes branch stock and later fleet orders easier to manage.
Toyota 2D appears in several lift-truck models, and heavy-duty starters can share a broad outline. The eleven-tooth drive, large locating face and terminal side should be confirmed before dispatch.
This starter is specified at 24V, 4.5kW, 11T, module 3 and clockwise rotation. The combined electrical and drive rating belongs on fleet quotations and warehouse descriptions.
Primary OE / Reference | 28100-77090 |
|---|---|
Application | Toyota lift trucks and commercial equipment using the 2D diesel engine and a 24V 4.5kW 11T CW starter |
Voltage | 24V |
Rated Power | 4.5kW |
Pinion Teeth | 11T |
Pinion Module | 3 |
Rotation | CW |
OE / Cross Reference | 28100-76015-71 / 28100-77090 / 028000-5300 / 028000-5301 / 028000-5302 / 17286 / 190-813 / STR70270 |
Mounting Face | 3 × Ø13 mounting holes; 28.6 mm mounting-face arc reference |
Drive-End References | Ø105 drive-end locating reference; 56.2 mm axial reference; 49.4°, 55.6° and 25.8° mounting-angle references |

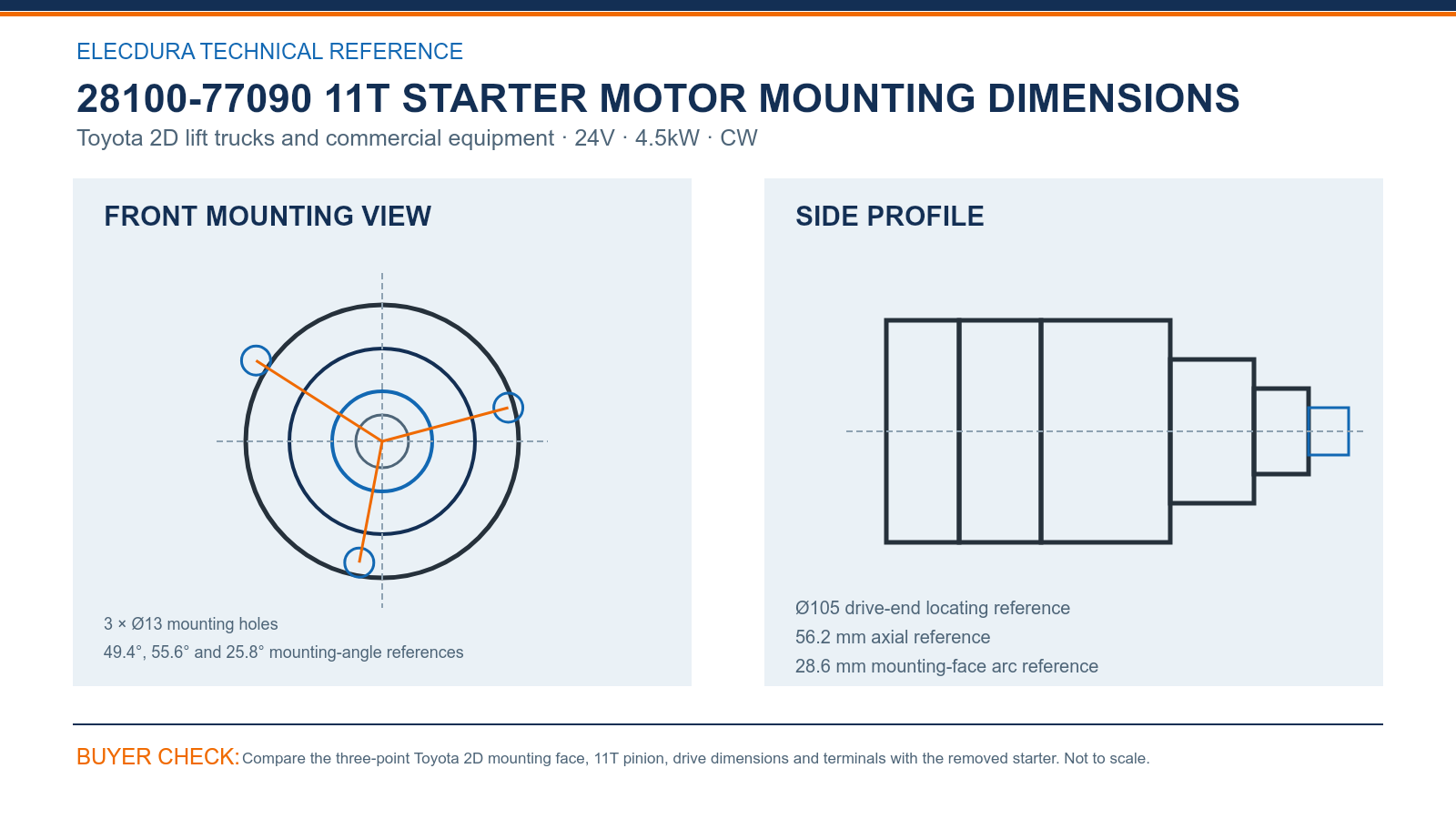

28100-77090 Starter Motor Dimensions for Toyota 2D Fleet Supply — compare the drawing with the removed starter before placing a volume order.
Compare three Ø13 holes, the Ø105 locating reference, 56.2 mm axial position, 28.6 mm face arc and 49.4°, 55.6° and 25.8° mounting angles before fleet supply.
28100-77090, 28100-76015-71 and 028000-5300 through 028000-5302 form the main Toyota and Denso search group. Buyers should add the specific 2D machine and serial to the wholesale enquiry.
A confirmed machine list, accepted product images and lot history can shorten later fleet orders. This is particularly useful for customers operating several shifts or moving service stock between branches.
Plan reserve quantities from fleet size, duty cycle and response time rather than a general forklift-sales number. Receiving can verify the eleven-tooth pinion, mounting face and terminal protection before allocation.
Elecdura's production video shows starter assembly and electrical testing for wholesale supply. Toyota 2D buyers can use it to evaluate manufacturing capability alongside fleet forecasting and incoming quality requirements.
State lift-truck or commercial-equipment model, serial, 2D engine identity and old-unit reference on the enquiry before discussing quantity. Link that information to 28100-77090 and photographs showing the Toyota 2D machine, 11T drive, large locating face and terminal side. This ties the starter to the buyer's actual material-handling fleet. Attach the accepted product and machine list to the fleet's repeat-order history.
Cross-reference review should begin with Toyota and Denso references in the stated group. Keep the numbers attached to Toyota 2D lift trucks and commercial equipment and verify the Toyota 2D machine, 11T drive, large locating face and terminal side before purchasing. This supports cross-reference search without discarding the Toyota 2D application. Attach the confirmed 28100-77090 comparison to the quotation so receiving can check the same product.
Measure 3 × Ø13 holes, Ø105 locating, 56.2 mm axial reference and 49.4°/55.6°/25.8° angles on the removed starter or a trusted sample. For 28100-77090, keep square front and side photographs showing the Toyota 2D machine, 11T drive, large locating face and terminal side. This confirms that a heavy-duty unit will seat and align correctly. Keep the matched 28100-77090 images with branch stock details for future replenishment.
Use fleet size, duty cycle, branch transfer time and failure response requirement when deciding 28100-77090 reserve quantities and warehouse labels. A description that includes the Toyota 2D machine, 11T drive, large locating face and terminal side makes repeat picking faster and clearer. This helps material-handling distributors plan service stock around operating exposure. Use the confirmed 28100-77090 combination on the purchase order and receiving sheet.
Verify 11T, module 3 and CW on the removed unit. For 28100-77090, pair the drive data with the 24V system and measured mounting face so a same-output starter is not assumed suitable. This separates 28100-77090 from Toyota units with a different pinion. Preserve the Toyota 2D lift trucks and commercial equipment fitment and mounting comparison in the customer's reorder notes.
Keep the accepted unit photographs, supported Toyota machine and serial list, OE group, mounting drawing and delivery-lot history together in the customer account. A later 28100-77090 request can then start from the confirmed fleet match, while receiving staff still have the original 11T drive, large locating face and terminal views for comparison.
Before replacing the starter, check battery condition, cable voltage drop, start-command voltage, ring gear and operating hours. Keep the readings with the 28100-77090 request for Toyota 2D lift trucks and commercial equipment so the circuit, ring gear and starter can be considered separately. This provides useful evidence for technical support and return review. Retain the 28100-77090 comparison photographs with the delivery lot for after-sales review.
A quotation request should include quantity, supported models, forecast, service-stock split, packing and destination. Keeping those details with 28100-77090 lets sales address the product match and commercial terms in one response. This lets the quotation reflect both immediate and replenishment demand. Include the confirmed 28100-77090 configuration in later forecasts and repeat purchases.
Send the Toyota lift-truck or equipment models, serials, 2D engine details, full old-unit references, pinion and flange photographs, quantity, forecast, packing and destination to info@elecdurauto.com. Elecdura will review 28100-77090 and return fleet-oriented wholesale terms.
