281001240 Hino EM100 Starter Motor Wholesale 24V

281001240 Wholesale Starter Motor for Hino EM100 heavy-duty engine applications

For Hino heavy-truck and engine-parts wholesalers supporting EM100-powered applications, 281001240 is identified by the 281001240 24V 4.8kW 11T module-3.5 configuration. Market descriptions may quote another output, but this product must retain the specified 4.8kW drive and Hino geometry.

A workable 281001240 11T enquiry combines Hino chassis or equipment, EM100 engine information, full reference, drive-end image, terminals, order volume, receiving location and delivery deadline. State whether the need for Hino EM100 heavy-duty engine applications is routine replenishment, a branch transfer or equipment already out of service.

281001240 Starter Motor Dimensions for Hino EM100 Parts Buyers

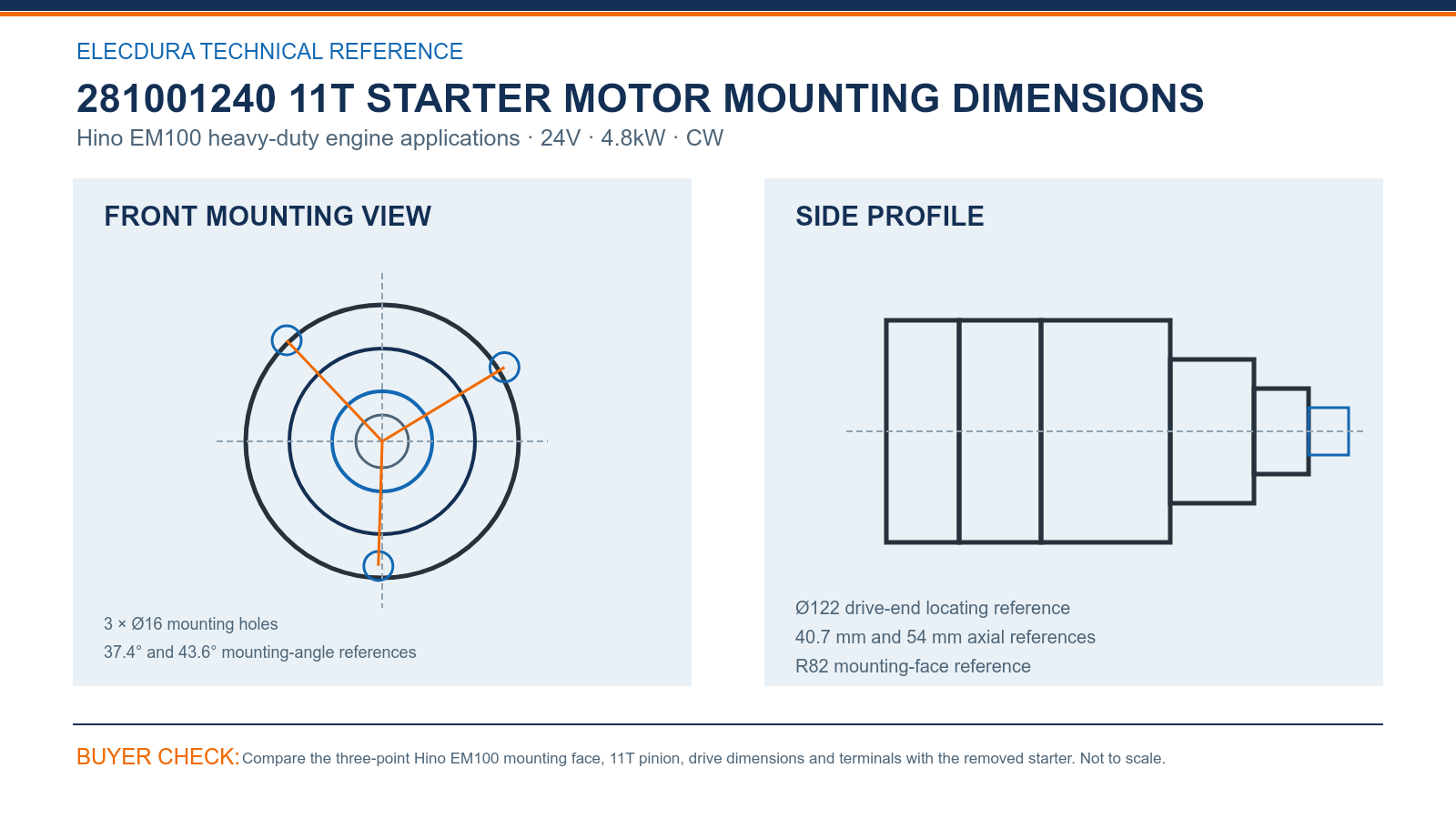

281001240 Hino EM100 24V 4.8kW 11T starter mounting dimensions.

Use the 281001240 11T technical image to compare 3 × Ø16 mounting holes, 37.4° and 43.6° mounting-angle references and Ø122 drive-end locating reference. These features show how the drive end meets Hino EM100 heavy-duty engine applications.

Bench comparison for 281001240 11T should retain 24V, 4.8kW, 11T, module 3.5, CW. Receiving staff should inspect the three Ø16 holes, Ø122 location, R82 face reference, axial dimensions and protected connections, using the old unit or confirmed sample for the final physical check.

281001240 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with 281001240 11T and record every complete number on the removed unit. Related references help locate 281001240 11T, but buyers must still confirm the 281001240 24V 4.8kW 11T module-3.5 configuration.

2. Physical confirmation: Cross-references narrow the 281001240 11T search; they do not replace the 11T pinion, mounting face and terminal check. Record those physical points on the purchase order.

281001240 Starter Motor MOQ, Lead Time and Export Supply

Elecdura supports 281001240 11T wholesale orders from 20 pieces, normally 7–15 days after confirmation, with an 18-month warranty under agreed terms. Keep 4.8kW, 11T and module 3.5 on the item master so a familiar Hino number does not override the physical definition.

For 281001240 11T arrival inspection, inspect the three Ø16 holes, Ø122 location, R82 face reference, axial dimensions and protected connections. Protect the pinion and cable studs, record the shipment lot and isolate physical differences before the product enters stock for Hino EM100 heavy-duty engine applications.

The following video introduces Elecdura manufacturing and electrical test capability. For 281001240 11T, product selection still follows the complete reference, physical checks, quantity and delivery requirement.

281001240 Starter Motor FAQs for Hino Parts Buyers

How can buyers distinguish 281001240 11T from a similar starter?

Market descriptions may quote another output, but this product must retain the specified 4.8kW drive and Hino geometry. Confirm 281001240 11T by comparing the 281001240 24V 4.8kW 11T module-3.5 configuration against the old unit's label, pinion and terminals. Keep Hino EM100 heavy-duty engine applications on the enquiry; a matching rating or housing is not enough.

Which details are needed for a 281001240 11T wholesale quotation?

Send Hino chassis or equipment, EM100 engine information, full reference, drive-end image, terminals, quantity, destination and target date for 281001240 11T. For Hino EM100 heavy-duty engine applications, show machine-down demand apart from planned replenishment and add branch packing instructions. Elecdura can then price 24V, 4.8kW, 11T, module 3.5, CW with MOQ, timing, warranty and freight options for 281001240.

What drive-end dimensions should be compared for 281001240 11T?

For 281001240 11T, compare 3 × Ø16 mounting holes, Ø122 drive-end locating reference and 40.7 mm and 54 mm axial references. Relate those dimensions to R82 mounting-face reference and the 11T pinion for Hino EM100 heavy-duty engine applications. Compare a direct drive-end photograph, to avoid perspective masking hole position, pilot diameter or pinion depth for Hino EM100 heavy-duty engine applications.

How should distributors plan stock for 281001240 11T?

Keep 4.8kW, 11T and module 3.5 on the item master so a familiar Hino number does not override the physical definition. Build the 281001240 11T reserve from supported machines, recent withdrawals and transfer time. Keeping the Hino EM100 heavy-duty engine applications and drive description on the bin helps branches avoid issuing another Hino starter during an urgent repair.

Which electrical checks should precede starter replacement on Hino EM100 heavy-duty engine applications?

Measure battery-bank capacity, cable loss and start-signal voltage before replacing the EM100 starter. After removing the old starter from Hino EM100 heavy-duty engine applications, inspect the mounting surface, pinion and ring gear for abnormal contact. Those readings on Hino EM100 heavy-duty engine applications distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Hino starter?

Inspect the three Ø16 holes, Ø122 location, R82 face reference, axial dimensions and protected connections. Match the 281001240 11T label and 24V, 4.8kW, 11T, module 3.5, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Hino EM100 heavy-duty engine applications.

What should remain on a repeat order for Hino EM100 heavy-duty engine applications?

Keep 281001240 11T, Hino EM100 heavy-duty engine applications, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps support Hino fleets with a consistent 4.8kW product record and fewer specification disputes.

Which records support an after-sales review for Hino buyers?

Provide engine and vehicle identity, mileage or hours, lot number, fitted date, test values and returned-unit photographs for a 281001240 11T review. For Hino EM100 heavy-duty engine applications, supply duty conditions, electrical test results and like-for-like photographs of the removed and returned products. This helps Hino buyers separate product condition from installation, electrical-system, transport or application causes for Hino EM100 heavy-duty engine applications.

Request 281001240 Starter Motor Wholesale Pricing

Email Hino chassis or equipment, EM100 engine information, full reference, drive-end image, terminals, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote 281001240 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.8kW, 11T, module 3.5, CW unit.
