281002624 Hino J08C 24V Starter Motor Distributor

281002624 Hino J08C Starter Distribution for Truck Parts Networks

J08C demand can be spread across truck fleets, industrial engines and regional repair networks. A product definition built around 281002624, the 4.5kW rating and measured three-point face allows branches to quote one identified starter rather than a generic J08C unit.

Nearby 28100-2622, 2624 and 2625 references can be grouped too broadly. Check the complete marking, mounting angles, Ø142 face, locating diameter, housing and solenoid orientation before a cross-reference is accepted for branch stock.

281002624 4.5kW Ratings and 37-Degree Mounting Drawing

This version is specified as 24V, 4.5kW, 11T, module 3 and clockwise rotation. Distributors should keep the five-part set visible on quotations and stock cards because one matching OE fragment does not replace the electrical and drive information.

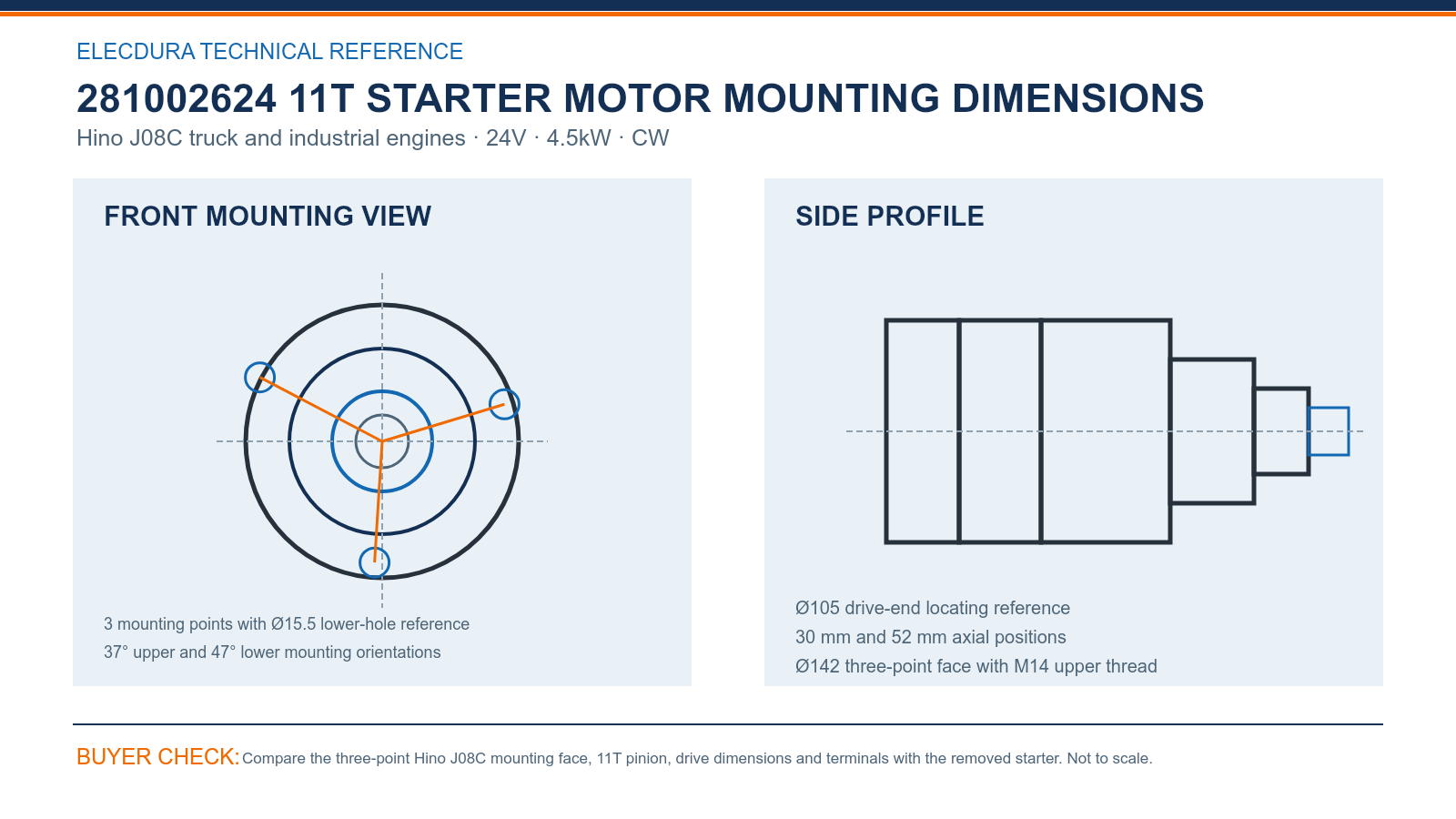

281002624 Hino J08C Starter Dimensions for Distributor Matching — compare the drawing with the removed starter before placing a volume order.

Use the 37-degree upper and 47-degree lower orientations with the Ø142 face, Ø105 locating reference, 30 mm and 52 mm axial positions, Ø15.5 hole and M14 thread. These points support a disciplined comparison from remote photographs.

281002624 OE Matching for Hino J08C Parts Buyers

281002624, 281002624C, 281002625, 28100E0018, 03555020019, S9128, STR75605 and 19956N are relevant cross references. Keep the selected J08C application and accepted front view attached to the full number group.

Regional distributors can use one verified 281002624 sample to standardize quotations, receiving and branch transfers. If another J08C enquiry shows different angles or housing features, treat it as a separate candidate rather than stretching this product definition.

281002624 Branch Supply Support and Electrical Testing Video

At receiving, sample the face angles, 11T drive, terminal guards, solenoid position and number label. Mark cartons with the complete 281002624 identity and J08C application so warehouse staff do not pick by voltage alone.

The production video shows Elecdura starter assembly and electrical testing for export programs. It helps distributor teams review supplier capability while their J08C matching, carton labels, inspection frequency and delivery schedules remain defined by this item.

281002624 Starter Motor FAQs for Hino J08C Distributors

What confirms that a 281002624 enquiry belongs to the J08C version?

For reference review, include the engine or machine model, old-starter numbers, mounting photographs, the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity, quantity, packing request and destination. For 281002624, physical evidence must support the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity and the 24V, 4.5kW, 11T, module 3 and CW rotation combination.

How are the 37-degree and 47-degree references used in matching?

For electrical diagnosis, use 37-degree and 47-degree as search references, then keep the exact application and physical comparison attached to 281002624. Keep 281002624, the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity and 24V, 4.5kW, 11T, module 3 and CW rotation together from enquiry through receiving.

What role do 281002625 and 03555020019 play in a parts search?

For incoming inspection, compare the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity with the removed starter, using the drawing and square photographs rather than judging the housing from one angled view. Compare the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity, then carry 24V, 4.5kW, 11T, module 3 and CW rotation into the purchase order and stock description.

How should branches keep 281002624 apart from nearby J08C starters?

For delivery planning, label each bin and carton with 281002624, the application, electrical rating, pinion and housing version instead of a broad engine-family name. A dependable 281002624 match combines the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity with 24V, 4.5kW, 11T, module 3 and CW rotation, not one visible feature.

Which photographs should a remote J08C customer provide?

For quotation preparation, provide straight drive-end, side, terminal and rating-label photographs, plus compartment views where housing length or cable clearance is important. This ties the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity to 24V, 4.5kW, 11T, module 3 and CW rotation when the item moves into branch stock.

What should receiving teams verify on the three-point face?

For application screening, sample several cartons from the first lot and compare the rating label, pinion, mounting face, housing and terminals with the accepted product details. Confirm the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity and keep the 24V, 4.5kW, 11T, module 3 and CW rotation values visible on the quotation.

Which vehicle-side checks matter before replacing a J08C starter?

For dimensional review, start with Hino J08C truck and industrial engines, the complete 281002624 marking and clear photographs of the removed starter from matching angles. Pair the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity with the 24V, 4.5kW, 11T, module 3 and CW rotation set in purchasing and receiving records.

What should a distributor include in a 281002624 pricing request?

For inventory identification, include the engine or machine model, old-starter numbers, mounting photographs, the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity, quantity, packing request and destination. This checks the 37-degree and 47-degree three-point face, Ø105 locating area and J08C identity while preserving the 24V, 4.5kW, 11T, module 3 and CW rotation definition for the buyer.

Request 281002624 Hino J08C Starter Motor Distributor Pricing

Send the Hino J08C engine plate, complete OE and Sawafuji numbers, square mounting and side photographs, required quantity, branch packing and destination to info@elecdurauto.com. Elecdura will review 281002624 and prepare distributor pricing.
