28300-23040 Toyota 7FD Forklift Starter Motor Bulk Supply

28300-23040 Toyota Starter Motor Matching for Forklift Wholesalers

28300-23040 serves Toyota 7FD forklifts using the 11Z engine, especially dealers supporting several 7-series truck capacities. Its two-hole nose and compact axial dimensions distinguish it more clearly than a general Toyota starter description.

Send the forklift model, serial and engine plate together with the old starter number. Elecdura compares the 11-tooth pinion, Ø113.5 face, Ø89.5 locating feature, 5°/25° orientation and terminals before preparing the commercial offer.

28300-23040 Starter Motor Specifications and B2B Fitment Drawing

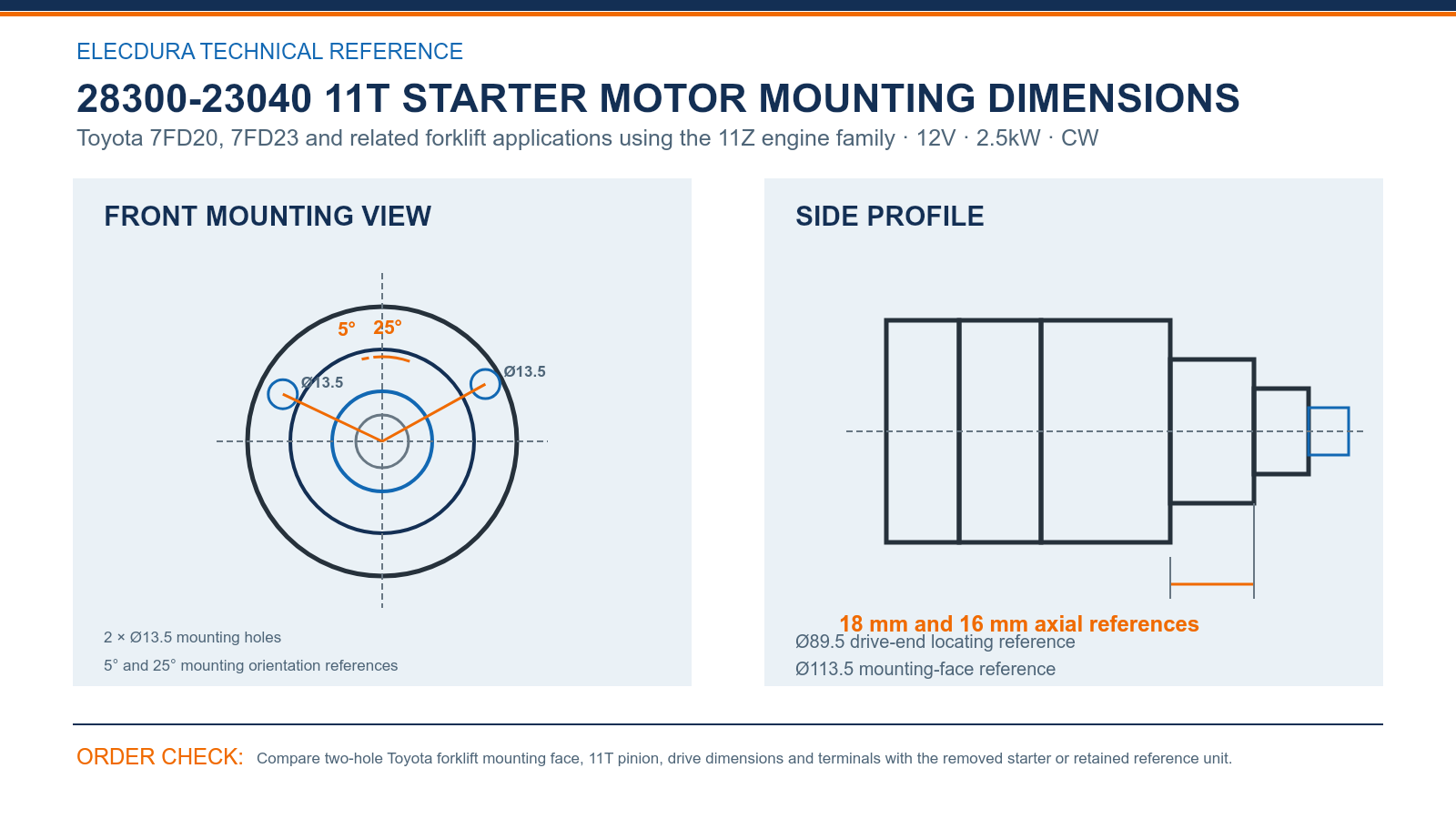

28300-23040 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

Toyota 7FD forklift buyers can distinguish this 11Z-engine starter by its compact two-hole drive end. Check 2 × Ø13.5 mounting holes, Ø113.5 mounting-face reference, Ø89.5 drive-end locating reference, 18 mm and 16 mm axial references and 5° and 25° mounting orientation references against the removed unit before confirming quantities.

Include the forklift serial, a straight mounting photograph and the 11-tooth pinion count with the inquiry. These product-specific checkpoints help a warehouse keep the 28300-23040 unit separate from a larger Toyota starter housing.

28300-23040 Starter Motor OE Checks for Material-Handling Buyers

Related numbers can include 28300-23041, 28300-23071, 128000-4110, 128000-4111, 128000-4113 or 17290N. Use the group to connect Toyota and Denso purchasing histories, but keep the exact forklift and old-unit reference visible on the RFQ.

• Application check: identify the 7FD truck and 11Z engine.

• Face check: measure both Ø13.5 holes and the locating diameter.

• Drive check: count 11 teeth and compare both axial references.

28300-23040 Starter Motor Replenishment for Forklift Dealers

A dealer can verify a trial unit on the named forklift before supplying additional service locations. Elecdura offers neutral packaging for standard supply and can review private-label cartons when the buyer defines quantity, barcode and artwork.

1. On the machine: confirm bolt alignment, cable clearance and clean engagement.

2. At receiving: compare the compact two-hole nose, 11-tooth drive, terminal protection and full label across cartons.

3. For repeat orders: reuse the confirmed measurements so another Toyota forklift starter does not enter the 28300-23040 supply line.

The video introduces Elecdura starter-motor manufacturing and electrical testing. Include the Toyota forklift model, 11Z engine details, old-unit images, quantity and delivery country so the reply can cover the correct 28300-23040 version, fitment checks and packing options.

28300-23040 Starter Motor Wholesale FAQ

Which Toyota 7FD details are important for 28300-23040?

Provide the full forklift model, such as 7FD20 or 7FD23, the serial number and the 11Z engine information where fitted. Add the number and photographs from the removed starter. These details distinguish the request from other Toyota forklift families that may use a similar body but another mounting face, drive depth or terminal arrangement.

Can 128000-4110 be used as a 28300-23040 cross-reference?

It is a useful Denso reference within the same purchasing group, along with related suffixes. Preserve the exact number shown on the old unit, then confirm 12V, 2.5kW, 11 teeth and the two-hole geometry. The cross-reference helps locate the family but should not override a different forklift, face or connector found during comparison.

What do the 5° and 25° references identify?

They describe how the mounting positions are oriented around the face. Compare a straight-on photograph and actual measurements of the removed starter with the technical drawing. These angles, together with the Ø113.5 face and Ø89.5 locating feature, help distinguish a rotated nose that might otherwise appear compatible in a side photograph.

How should the two Ø13.5 mounting holes be checked?

Measure each hole and the center relationship on the removed starter, then confirm the locating surface and casting thickness. Do not use the image as a scale. If bolts need force or side loading to enter during the trial installation, stop and recheck the face because the correct starter should seat and align without modifying the housing.

Why should the 18 mm and 16 mm axial points be compared?

They help locate the drive relative to the mounting face. A replacement can share the same bolt pattern while placing the pinion too far inward or outward. Measure both references, count the 11 teeth and check engagement during cranking. Correct depth reduces the risk of grinding, incomplete mesh and ring-gear damage.

What should a Toyota forklift dealer record after installation?

Save the forklift model and serial, old and new starter numbers, face photographs, terminal orientation and the result of the cranking test. Note battery voltage and cable drop if a starting concern is investigated. This record allows later branch orders to use the identified machine and measured unit instead of relying on a shortened Toyota reference alone.

How should incoming 28300-23040 stock be inspected?

Check units from different cartons for complete labels, eleven teeth, the two-hole nose, locating feature, terminals and protective packing. Compare one unit with the installation measurements confirmed on the identified forklift and note the shipment lot. Quarantine any starter with a different face or drive depth before it is placed in the material-handling parts inventory.

What should be included in the wholesale inquiry?

Send the exact Toyota or Denso number, forklift model and serial, 11Z engine information, old-unit label, face, pinion and terminal photographs, quantity, destination and packaging request. A detailed inquiry lets Elecdura quote one defined 12V 2.5kW 11T unit with the normal MOQ, delivery schedule and warranty terms.

Request a 28300-23040 Starter Motor Wholesale Quote

Send 28300-23040 or the complete related reference, Toyota 7FD forklift model, 11Z engine details, mounting and terminal photographs, quantity, destination and target date. Elecdura will return the 12V 2.5kW 11T quotation with fitment checks and wholesale terms.

If the order serves several truck capacities or service branches, list each forklift model and quantity separately in the RFQ. Elecdura can maintain one clear technical identity and carton label for each replenishment line.
