2873K408 Perkins 1104C Starter Motor Distributor Supply

2873K408 Starter Motor Distributor Supply for Perkins 1104C

Perkins engine-parts wholesalers can search confidently by 2873K408, then strengthen the match with the 1104C build or serial information. This gives sales teams a clearer basis for repeat industrial-engine orders.

A recognized reference does not remove differences between engine installations. The pinion, mounting face, solenoid connections and removed-unit outline still need to agree before the starter is allocated to stock.

2873K408 Starter Motor Specifications for Engine Parts Wholesalers

The specified combination is 24V, 4.5kW, 10T, module 3.175 and clockwise rotation. Presenting the electrical and drive values together helps a buyer avoid a same-output unit with another gear form.

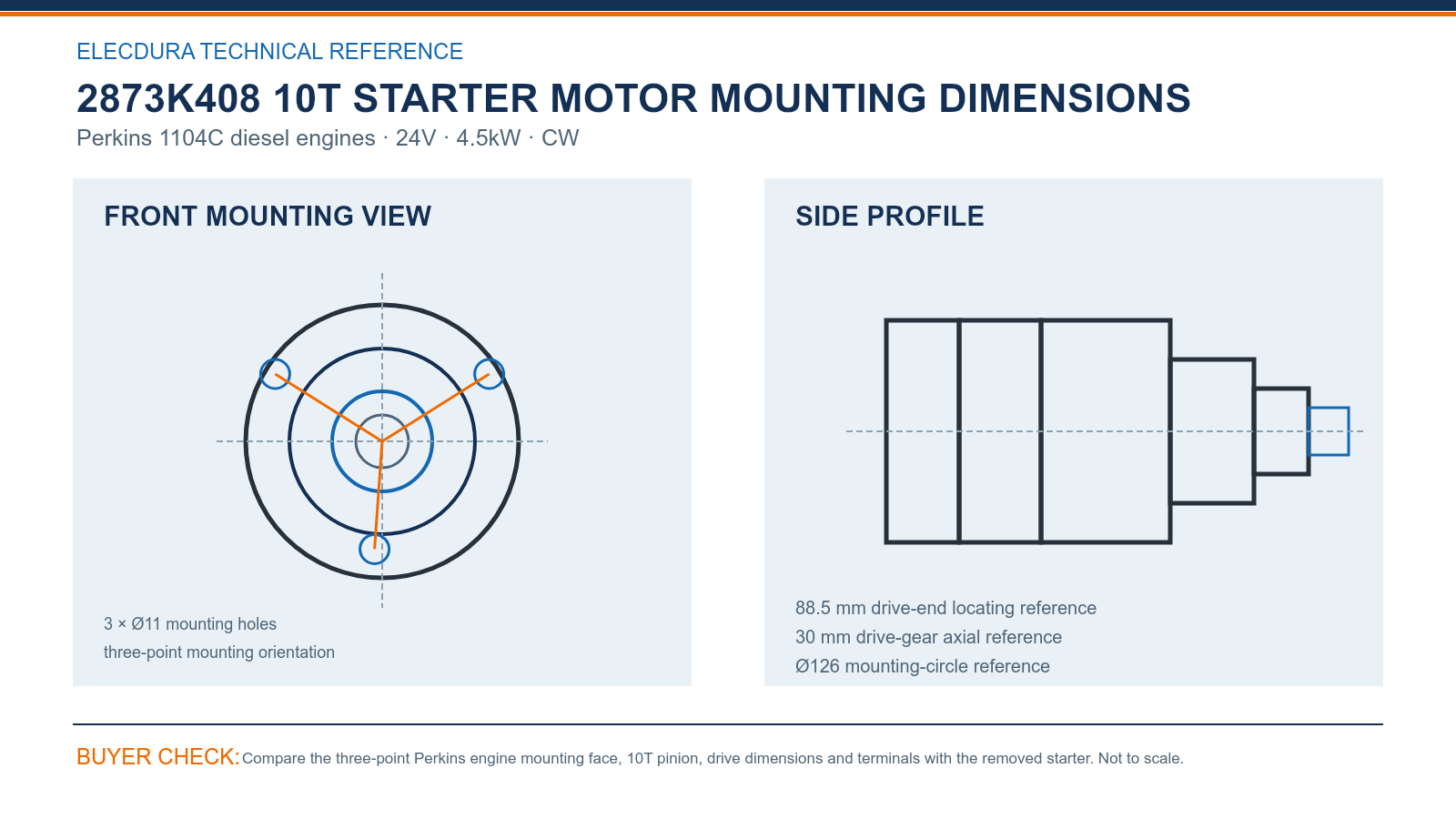

2873K408 Starter Motor Dimensions for Perkins 1104C Orders — compare the drawing with the removed starter before placing a volume order.

Compare the three Ø11 holes, Ø126 mounting circle, 88.5 mm locating reference and 30 mm drive position shown in the drawing. A straight front view makes this comparison faster and more reliable.

2873K408 Starter Motor Fitment Guidance for Perkins Purchasing

2873K408 is the primary procurement identity for this product. For mixed Perkins orders, place the full reference, engine build and tooth count on each purchase-order line instead of using one general engine description.

Service distributors can attach the accepted image set to the customer account and supported 1104C equipment model. That preserves the original match when the same buyer returns months later for replenishment.

2873K408 Starter Motor Production Support and B2B Supply Video

A useful incoming check covers the 2873K408 marking, ten-tooth pinion, mounting face, terminal orientation and sampled electrical test. Neutral packing or private-label needs can be planned after the technical match is clear.

The Elecdura video below shows starter-motor production and electrical testing for B2B supply. It gives Perkins buyers a view of manufacturing capability without replacing the engine-build and drive-end comparison required for this product.

2873K408 Starter Motor FAQs for B2B Buyers

Which Perkins engine details strengthen a 2873K408 match?

State 1104C engine family, build list or serial information and old starter number on the enquiry before discussing quantity. Link that information to 2873K408 and photographs showing the 1104C build, 10T module-3.175 drive and three-point face. This ties the request to the supported engine configuration. Preserve the Perkins 1104C diesel engines fitment and mounting comparison in the customer's reorder notes.

What should a Perkins distributor record when the first shipment arrives?

Receiving staff should record 2873K408 marking, 10T pinion, mounting face, terminal orientation and test record against the 2873K408 shipment lot. The check should show the 1104C build, 10T module-3.175 drive and three-point face clearly enough for repeat deliveries and after-sales comparison. This creates an accepted reference for repeat industrial-engine orders. Carry the agreed 2873K408 identity through packing and branch-transfer documents.

Does 2873K408 identify the complete replacement by itself?

Use 2873K408 together with the 1104C build and physical interface as a search set, then keep Perkins 1104C diesel engines on the same enquiry. Confirm the 1104C build, 10T module-3.175 drive and three-point face on the removed unit before treating the numbers as one 2873K408 product. This balances OE-number confidence with physical fitment checks. Retain the 2873K408 comparison photographs with the delivery lot for after-sales review.

What evidence helps distinguish a starter fault from a 1104C starting-system fault?

A useful no-crank report records battery condition, voltage drop, start command, ring gear and removed-unit symptoms. Relating that evidence to the 2873K408 installation in Perkins 1104C diesel engines gives after-sales staff more than a short failure description. This reduces unnecessary returns and repeated equipment downtime. Include the confirmed 2873K408 configuration in later forecasts and repeat purchases.

Which measurements should match on the Perkins drive end?

Measure 3 × Ø11 holes, Ø126 mounting circle, 88.5 mm locating and 30 mm drive reference on the removed starter or a trusted sample. For 2873K408, keep square front and side photographs showing the 1104C build, 10T module-3.175 drive and three-point face. This confirms that the starter reaches the engine interface correctly. Store the confirmed engine build and image set beside the 2873K408 purchase history.

How should mixed Perkins starter enquiries be listed on one purchase order?

Use complete OE number, engine build, tooth count and quantity per line when deciding 2873K408 reserve quantities and warehouse labels. A description that includes the 1104C build, 10T module-3.175 drive and three-point face makes repeat picking faster and clearer. This stops nearby Perkins starter families from being combined under one generic line. Attach the confirmed 2873K408 comparison to the quotation so receiving can check the same product.

Why are 10T and module 3.175 both necessary in the product definition?

Verify 10 teeth and module 3.175 on the removed unit. For 2873K408, pair the drive data with the 24V system and measured mounting face so a same-output starter is not assumed suitable. This protects pinion-to-ring-gear engagement even when voltage and power agree. Keep the matched 2873K408 images with branch stock details for future replenishment.

Which commercial details should accompany a 2873K408 distributor request?

A quotation request should include order quantity, forecast, packing or label needs, delivery date and destination. Keeping those details with 2873K408 lets sales address the product match and commercial terms in one response. This lets the quotation reflect the buyer's actual replenishment program. Use the confirmed 2873K408 combination on the purchase order and receiving sheet.

Request 2873K408 Starter Motor Wholesale Terms from Elecdura

Send the Perkins 1104C build or serial details, 2873K408 or other old-unit numbers, comparable product photographs, order quantity, annual forecast, packing needs and destination to info@elecdurauto.com. Elecdura will respond with matching feedback and distributor pricing.
