3096602020 Mitsubishi 6D22 Kobelco K912 Starter Motor Wholesale

3096602020 Heavy Starter Motor Wholesale for Mitsubishi 6D22

Kobelco K912 and Mitsubishi 6D22 demand involves a physically large starter whose transport and fitment risk exceeds ordinary truck units. A useful quotation begins with 3096602020, the supplier-specified 8.0kW rating and the triangular drive-end dimensions.

External catalogues often show 6.0kW for linked M5T50276 products, while this supplier row states 8.0kW. The public product must follow the supplier row and keep its power label, photograph and drawing as one distinct offer.

3096602020 Starter Motor Dimensions for Kobelco Importers

This product is defined as 24V, 8.0kW, 13T, module 3.5 and CW. The thirteen-tooth module-3.5 drive and 8.0kW rating should be repeated on quotation, carton and incoming sheet to prevent a lower-power family member from entering the order.

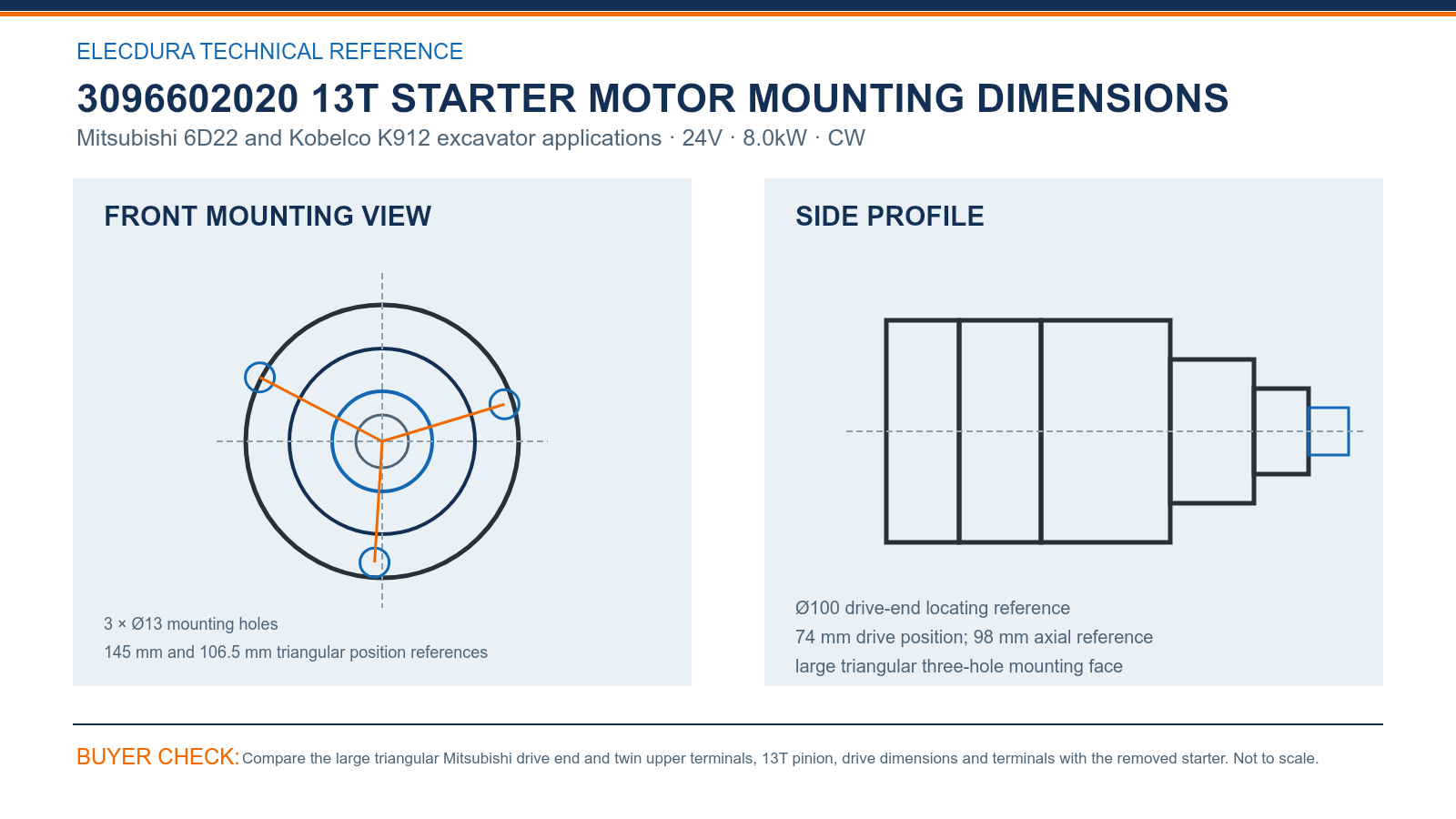

3096602020 Mitsubishi 6D22 Starter Dimensions for Heavy-Equipment Wholesalers — compare the drawing with the removed starter before placing a volume order.

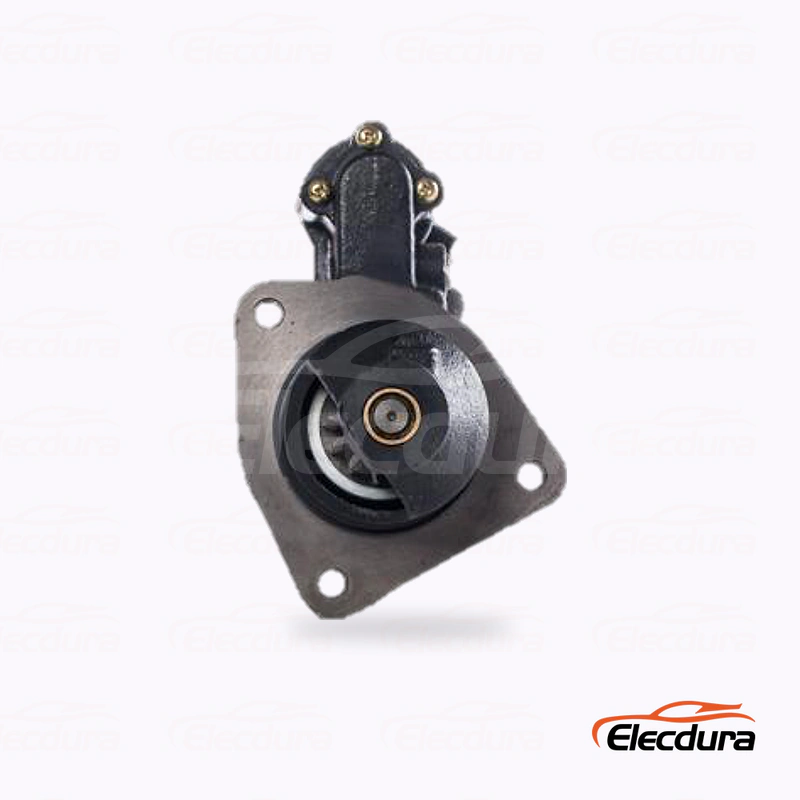

Measure the Ø100 locating section, 74 mm drive position, 98 mm axial reference and all three Ø13 holes. The 145 mm and 106.5 mm triangular position references help confirm the large casting from a square front image.

3096602020 Starter Motor References for Heavy-Equipment Buyers

3096602020/3010, M005T50276/277, M5T50275/276/277 and ME057425/059718/157991 identify the wider family. Attach Mitsubishi 6D22 or Kobelco K912 and the 8.0kW label to the chosen reference. Keep that label visible during supplier comparison.

Importers should separate K912 service replacements from planned 6D22 engine stock in their forecast, even when both use the same physical starter. This makes urgent quantities and long-term reserve visible without changing the product definition.

3096602020 Heavy Starter Motor Packing for Excavator Supply

The large starter should rest on reinforced body supports, with the triangular nose blocked away from carton walls and terminals capped. Sample several cartons for power labels, 13T pinions and flange dimensions before splitting the shipment.

The production film lets heavy-equipment buyers review assembly handling and electrical testing for large starter supply. Wholesalers can pair it with their own 8.0kW sampling, reinforced packing, export-label and delivery requirements for 3096602020.

3096602020 Heavy Starter Motor FAQs for Mitsubishi and Kobelco Buyers

Which power value applies to this 3096602020 product?

Use the stated value of 24V 8.0kW for this photographed product, together with 13T, module 3.5 and CW rotation. Other sources may show lower power for linked M5T50276 family members. The stated product, its drawing and rating identity remain the basis for this separate wholesale offer.

Why can an M5T50276 search show 6.0kW products?

M5T50276 is used across a broader Mitsubishi starter family, and public listings commonly associate it with 6.0kW units. That family evidence helps reference matching but does not override this specified 8.0kW product. Keep 3096602020, the 8.0kW label and accepted product photographs together. Receiving should compare the marked power before warehouse intake.

What should identify a Kobelco K912 or 6D22 order?

Provide the Kobelco machine model and serial or Mitsubishi 6D22 engine plate, complete starter markings and square drive-end photographs. State 24V 8.0kW 13T module 3.5. These details keep the order tied to the large triangular product rather than a general Mitsubishi 6D20/6D22 search result. Retain that front image for later heavy-equipment replenishment.

Which measurements define the triangular mounting face?

Check all three Ø13 holes, the Ø100 locating reference, 74 mm drive position and 98 mm axial outline. Use the 145 mm and 106.5 mm position references to compare the triangular ears. A square front photograph should also show the large nose and relative terminal position.

Why must 13T and module 3.5 remain together?

Thirteen teeth gives the pinion count, while module 3.5 defines tooth size and form. Both must suit the ring gear. A heavy Mitsubishi starter with the same voltage or power but another module can look convincing in a listing and still provide the wrong mechanical engagement.

How should this large Mitsubishi starter be packed?

Use reinforced supports beneath the motor body, block the triangular nose away from carton walls and cover both upper terminals. Add moisture protection and lift guidance for heavy cartons. The first shipment should be sampled for the 8.0kW label, 13T pinion and flange dimensions before distribution.

How should importers plan 3096602020 inventory?

Separate urgent Kobelco excavator replacements from planned Mitsubishi engine reserve, then forecast by supported equipment count and delivery lead time. Use one confirmed physical product only after both channels match. Keep the 8.0kW label and triangular face image on every bin and branch transfer. Review stored labels before an interbranch transfer is accepted.

Which information helps Elecdura quote the 8.0kW version?

Email the Kobelco or Mitsubishi identifiers, old rating label, complete references, triangular face and terminal photographs, quantity, annual forecast, destination and packaging requirement. State 8.0kW in the subject. Elecdura can then review the supplier-defined 3096602020 product and prepare appropriate wholesale and freight terms. Mention any pallet or lifting requirement for the heavy unit.

Request 3096602020 Mitsubishi Starter Motor Wholesale Pricing

Send the Mitsubishi 6D22 or Kobelco K912 machine details, old rating label, complete references, triangular face and terminal photos, quantity and destination to info@elecdurauto.com. Elecdura will review the supplier-defined 8.0kW version and quote wholesale terms.
