370801081DJ FAW J7 CA6DM3 Starter Motor Wholesale

370801081DJ Starter Motor Wholesale Application Support for FAW J7 4180 trucks with CA6DM3 550HP engines

For FAW J7 4180 trucks with CA6DM3 550HP engines, 370801081DJ gives distributors a focused starting point for quotation and branch inventory. Confirm 24V, 8.0kW, 11T and CW, with particular attention to 24V 8.0kW 11T module-3.5 catalog configuration, before combining demand from different fleets or workshops.

Send the full 370801081DJ application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

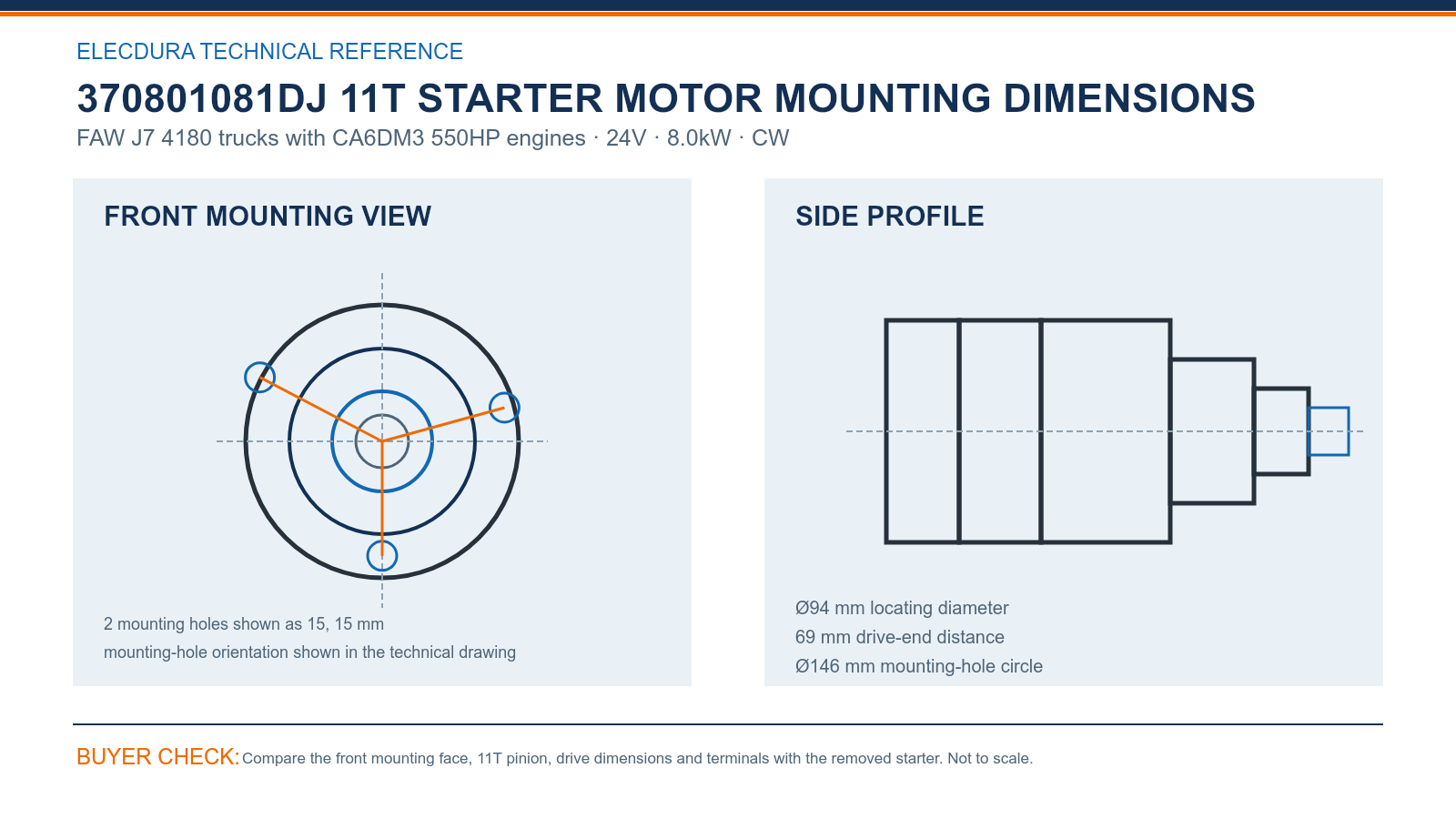

370801081DJ Starter Motor Drive-End Drawing for Aftermarket Distributors

370801081DJ FAW J7 4180 trucks with CA6DM3 550HP engines 24V 8.0kW 11T starter mounting dimensions.

The 370801081DJ dimensional review starts at the mounting face: verify 2 mounting holes shown as 15, 15 mm, Ø146 mm mounting-hole circle and Ø94 mm locating diameter. Then compare the 69 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 370801081DJ, record 11T, CW, 24V and 8.0kW, including module 3.5. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

370801081DJ Starter Motor OE Number Guide for Aftermarket Supply

The 370801081DJ cross-reference group includes 370801081DJ, STQ3442UW. Use these numbers to search supplier systems, then confirm 24V, 8.0kW, 11T, CW, mounting geometry and terminals.

For 370801081DJ, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

370801081DJ Starter Motor Wholesale Ordering and Export Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For 370801081DJ, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Plan stock against active J7 fleet count, route exposure and emergency coverage. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 370801081DJ remains tied to the stated FAW J7 4180 trucks with CA6DM3 550HP engines application, 11T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

370801081DJ Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for 370801081DJ in a FAW J7 CA6DM3 service-network review?

Keep the carton or product traceability code and note when and where 370801081DJ was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

Which electrical conditions can imitate a failed 370801081DJ starter motor during a FAW J7 CA6DM3 service-network electrical check?

Before fitting 370801081DJ, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Which details separate 370801081DJ from similar starters used around FAW J7 4180 trucks with CA6DM3 550HP engines during service-network sourcing?

For 370801081DJ, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 8.0kW, 11T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Can a purchasing team consolidate every 370801081DJ reference into one stock line in a FAW J7 CA6DM3 service-network sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use 370801081DJ, STQ3442UW to locate possible matches, then confirm 24V, 8.0kW, 11T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Why is a straight mounting-face photo useful for confirming 370801081DJ during a FAW J7 CA6DM3 service-network inspection?

Align the removed starter and 370801081DJ at the mounting face. Compare Ø94 mm locating diameter, Ø146 mm mounting-hole circle, 2 mounting holes shown as 15, 15 mm and 69 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine 370801081DJ replenishment share one enquiry in a FAW J7 CA6DM3 service-network program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 370801081DJ usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched 370801081DJ unit quickly during a FAW J7 CA6DM3 service-network receiving check?

For 370801081DJ, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 2 mounting holes shown as 15, 15 mm, Ø94 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for 370801081DJ in a FAW J7 CA6DM3 service-network sourcing program?

Send the complete OE number, exact FAW J7 4180 trucks with CA6DM3 550HP engines details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 8.0kW 11T CW starter with packing, lead time, warranty and freight options.

370801081DJ Request Starter Motor Wholesale Pricing

Send the complete 370801081DJ reference, FAW J7 4180 trucks with CA6DM3 550HP engines details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 8.0kW, 11T CW starter, MOQ, packing, lead time, warranty and freight.
