M93R3017SE Weichai WP7 Starter Motor Wholesale

M93R3017SE Starter Motor Fleet Replacement Supply for Weichai WP7 engine

M93R3017SE supports Weichai WP7 engine sourcing where buyers need a defined electrical and drive-end match. Its 24V, 6.0kW, 12T CW specification must remain linked to the 24V 6.0kW 12T module-3 product with a 19 mm drive-end distance; a visually related unit may belong on a different RFQ line.

Before comparing M93R3017SE prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

M93R3017SE Starter Motor Technical Data for Fleet Parts Buyers

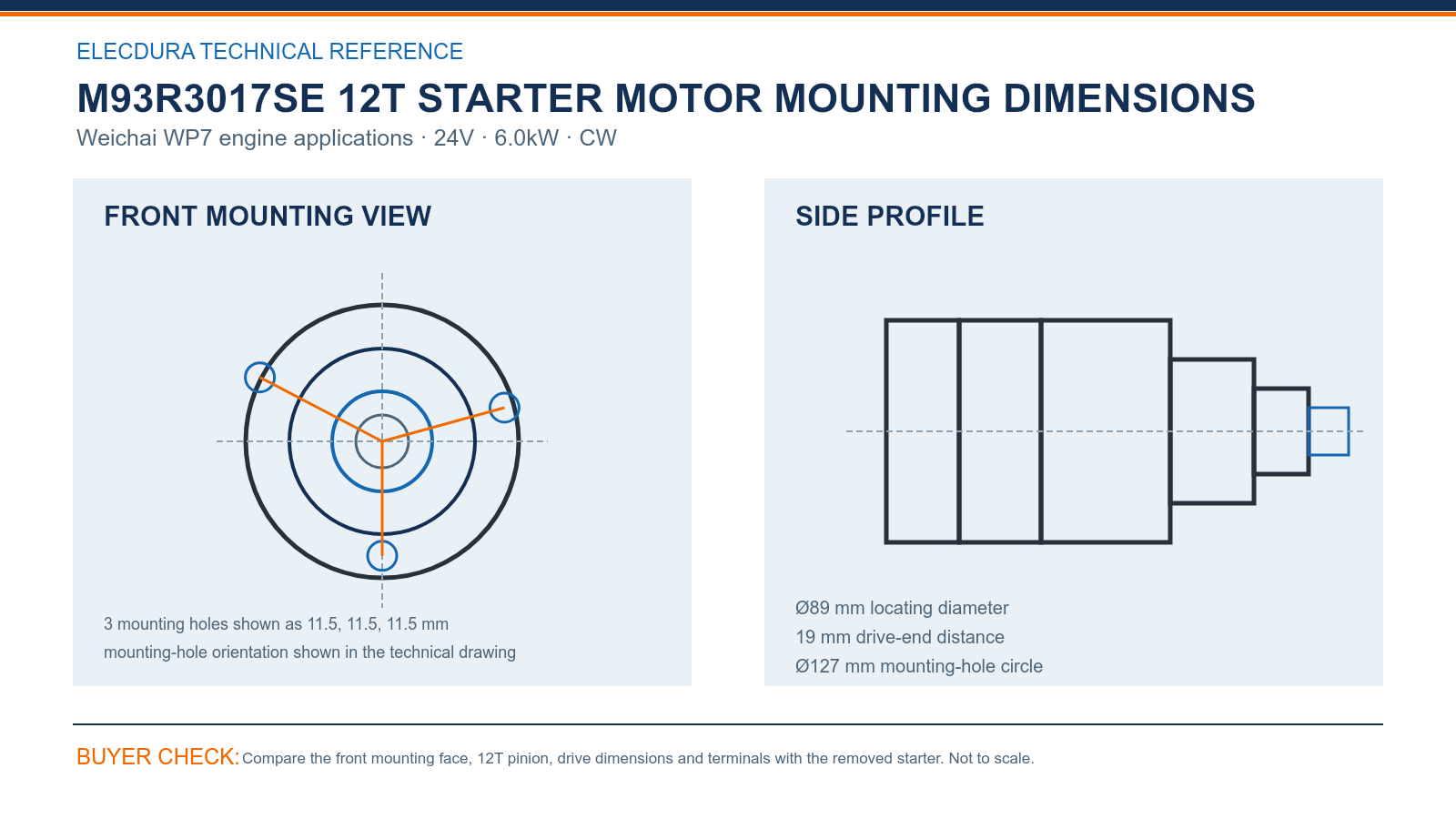

The M93R3017SE dimensional review starts at the mounting face: verify 3 mounting holes shown as 11.5, 11.5, 11.5 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. Then compare the 19 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For M93R3017SE, electrical and mechanical identity must agree: 24V, 6.0kW, 12T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

M93R3017SE Starter Motor Cross-Reference Review for Fleet Buyers

The M93R3017SE cross-reference group includes M93R3017SE, M93R3043SE, M93R3043SEVPP, STP3017MH, STP9017MH, 1000750100, 1002014660. Use these numbers to search supplier systems, then confirm 24V, 6.0kW, 12T, CW, mounting geometry and terminals.

For M93R3017SE, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

M93R3017SE Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for M93R3017SE can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Weichai WP7 engine population, recent consumption and transfer time between service locations. Keeping M93R3017SE, the 12T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For M93R3017SE, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

M93R3017SE Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering M93R3017SE for Weichai WP7 engine during workshop sourcing?

Use the full old-unit number and Weichai WP7 engine record. Compare the 12T pinion, 3 mounting holes shown as 11.5, 11.5, 11.5 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

How can a service team rule out cable or battery faults before fitting M93R3017SE in a Weichai WP7 workshop workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for M93R3017SE helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Why is the M93R3017SE reference match only the start of product selection in a Weichai WP7 workshop sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The M93R3017SE group is acceptable only when 24V, 6.0kW, 12T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

How does the M93R3017SE mounting drawing support product approval during a Weichai WP7 workshop inspection?

For M93R3017SE, compare 3 mounting holes shown as 11.5, 11.5, 11.5 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 19 mm drive-end distance in the side view. Add 12T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How can branches reduce emergency transfers of M93R3017SE stock in a Weichai WP7 workshop program?

Mark the 19 mm drive position on receiving records to avoid mixing related Weichai units. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of M93R3017SE during a Weichai WP7 workshop receiving check?

Receiving should verify the M93R3017SE label, quantity and packaging before opening sampled cartons. Compare the 12T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for M93R3017SE in a Weichai WP7 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For M93R3017SE, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from M93R3017SE in a Weichai WP7 workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate M93R3017SE without assuming that every no-crank complaint originates inside the starter.

M93R3017SE Ask for Starter Motor Export Pricing

Prepare the M93R3017SE enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
