M108R3005SE Weichai Starter Motor Wholesale Supply

M108R3005SE Starter Motor B2B Fitment Guide for Weichai heavy-duty engine

Weichai engine distributors, heavy-equipment fleets and Prestolite starter buyers can source M108R3005SE for Weichai heavy-duty engine. Preserve the 15T pinion and 24V 8.5kW 15T module-4.233 high-output configuration with a large Ø146 mm mounting-hole circle; do not substitute by engine family or housing appearance alone.

Send the full M108R3005SE application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

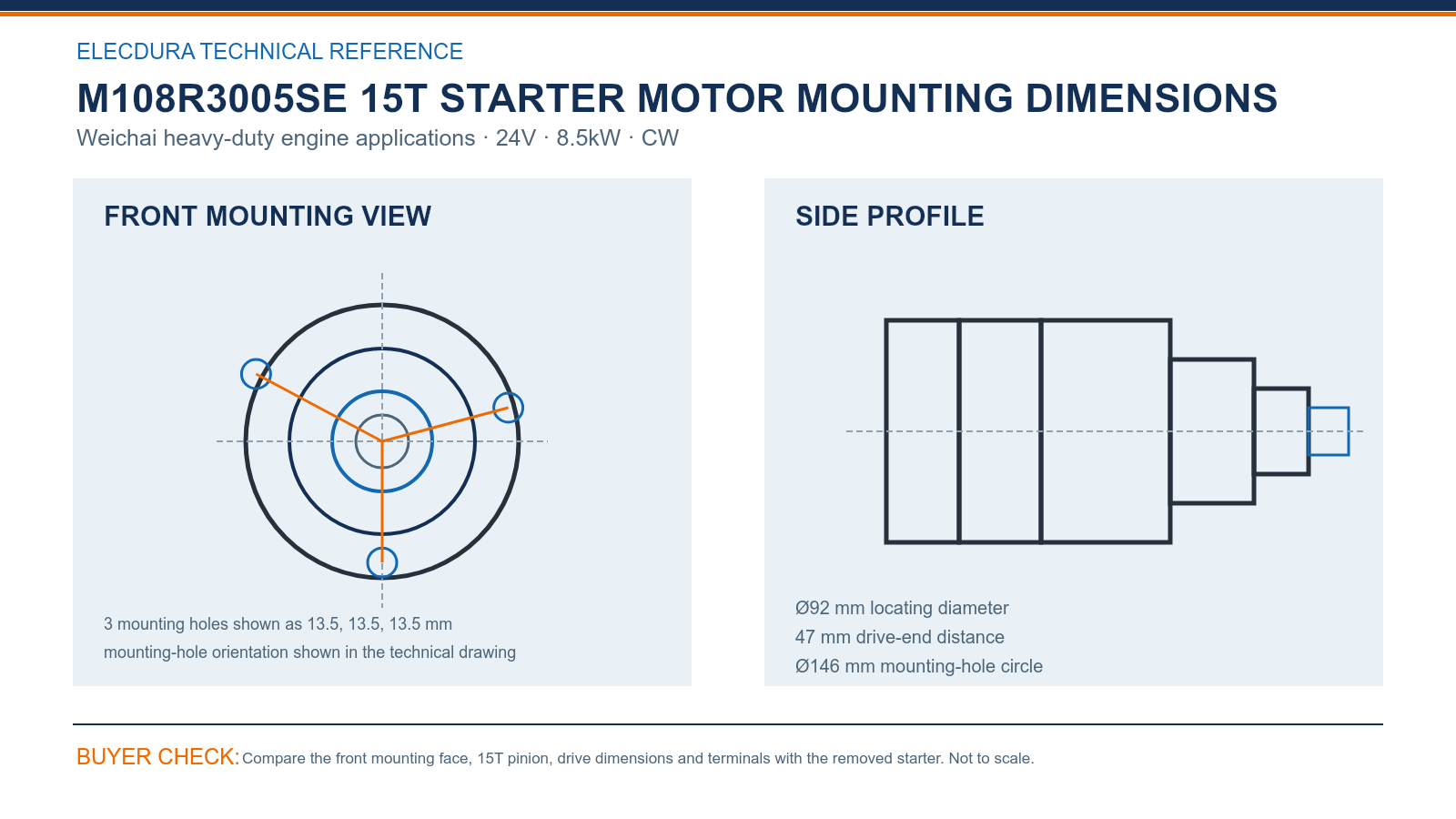

M108R3005SE Starter Motor Drive-End Drawing for Aftermarket Distributors

For M108R3005SE first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 13.5, 13.5, 13.5 mm, Ø92 mm locating diameter, Ø146 mm mounting-hole circle and 47 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

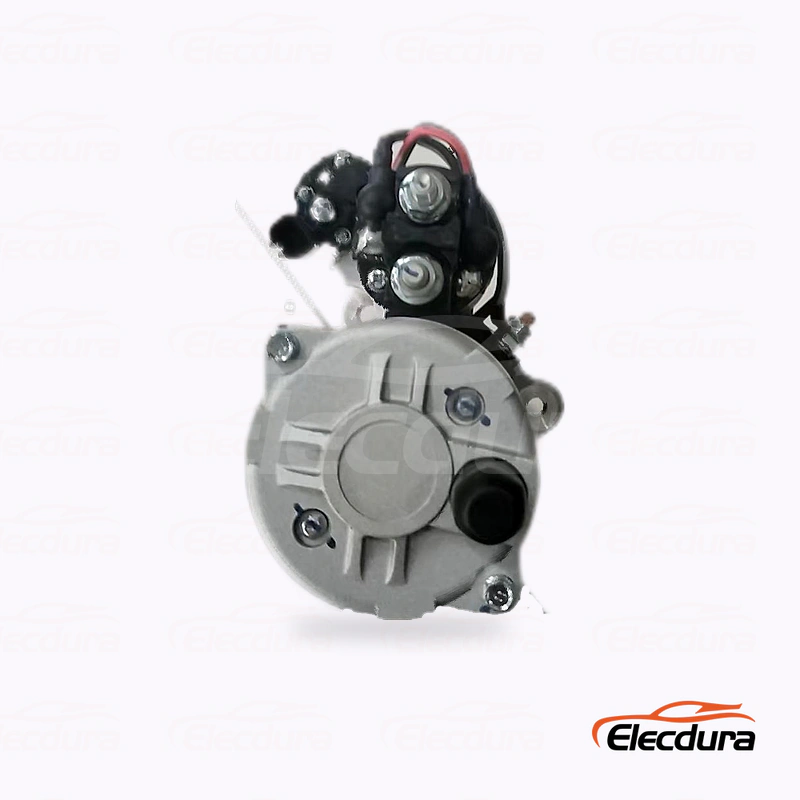

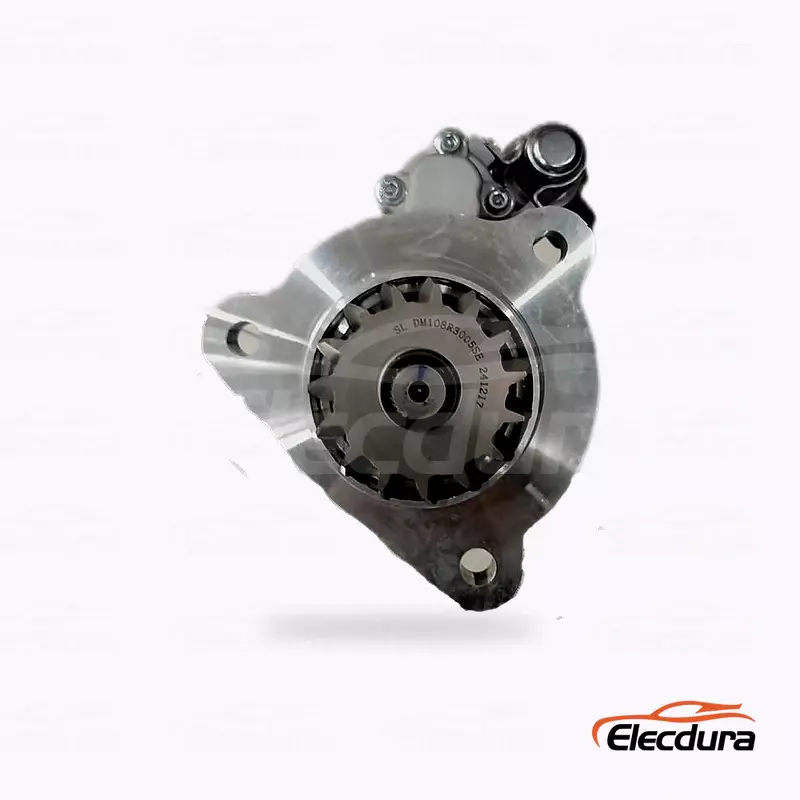

After the M108R3005SE mounting check, verify 24V, 8.5kW, 15T and CW with module 4.233. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

M108R3005SE Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: M108R3005SE can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 8.5kW, 15T, CW, the drawing and terminal photographs before accepting one physical unit.

M108R3005SE Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of M108R3005SE, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted M108R3005SE sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved M108R3005SE configuration remains defined by 24V, 8.5kW, 15T, CW, mounting geometry and terminals, which should be retained in the purchase record.

M108R3005SE Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for M108R3005SE in a Weichai dealer review for a 15-tooth 8.5kW high-output inventory line?

Keep the carton or product traceability code and note when and where M108R3005SE was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

Why is the M108R3005SE reference match only the start of product selection in a Weichai dealer sourcing program for a 15-tooth 8.5kW high-output inventory line?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The M108R3005SE group is acceptable only when 24V, 8.5kW, 15T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Which details separate M108R3005SE from similar starters used around Weichai heavy-duty engine during dealer sourcing for a 15-tooth 8.5kW high-output inventory line?

For M108R3005SE, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 8.5kW, 15T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

What workshop readings are useful when diagnosing a starting complaint involving M108R3005SE in a Weichai dealer workshop for a 15-tooth 8.5kW high-output inventory line?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing M108R3005SE. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming M108R3005SE during a Weichai dealer inspection for a 15-tooth 8.5kW high-output inventory line?

Align the removed starter and M108R3005SE at the mounting face. Compare Ø92 mm locating diameter, Ø146 mm mounting-hole circle, 3 mounting holes shown as 13.5, 13.5, 13.5 mm and 47 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine M108R3005SE replenishment share one enquiry in a Weichai dealer program for a 15-tooth 8.5kW high-output inventory line?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent M108R3005SE usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched M108R3005SE unit quickly during a Weichai dealer receiving check for a 15-tooth 8.5kW high-output inventory line?

For M108R3005SE, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 13.5, 13.5, 13.5 mm, Ø92 mm locating diameter and the specified 15T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for M108R3005SE in a Weichai dealer sourcing program for a 15-tooth 8.5kW high-output inventory line?

Send the complete OE number, exact Weichai heavy-duty engine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 8.5kW 15T CW starter with packing, lead time, warranty and freight options.

M108R3005SE Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with M108R3005SE, the supported Weichai heavy-duty engine record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 8.5kW, 15T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
