WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T Starter Motor

WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T Heavy-Duty Starter Motor for WEICHAI WD615 (small 10-tooth version)

For engine-parts specialists confirming an incoming batch, WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T gives heavy-duty parts distributors, importers and fleet suppliers a defined aftermarket starter motor for WEICHAI WD615 (small 10-tooth version). The supplied version combines 24V, 8.5kW and 10T for OE-reference matching, wholesale quotation and repeat purchasing.

For regional parts suppliers preparing a volume quote, importers can use the same reference and specification bundle from enquiry through receiving. That continuity helps sales, purchasing and warehouse teams keep a repeat-order item separate from similar housings with another electrical or drive configuration.

WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T Starter Motor Specifications and Technical Drawing

For importers separating similar housings, the 10T pinion and module 3.5 are important replacement identifiers. Match them with the flange and drive projection to protect the ring gear from an incorrect tooth pitch or engagement depth.

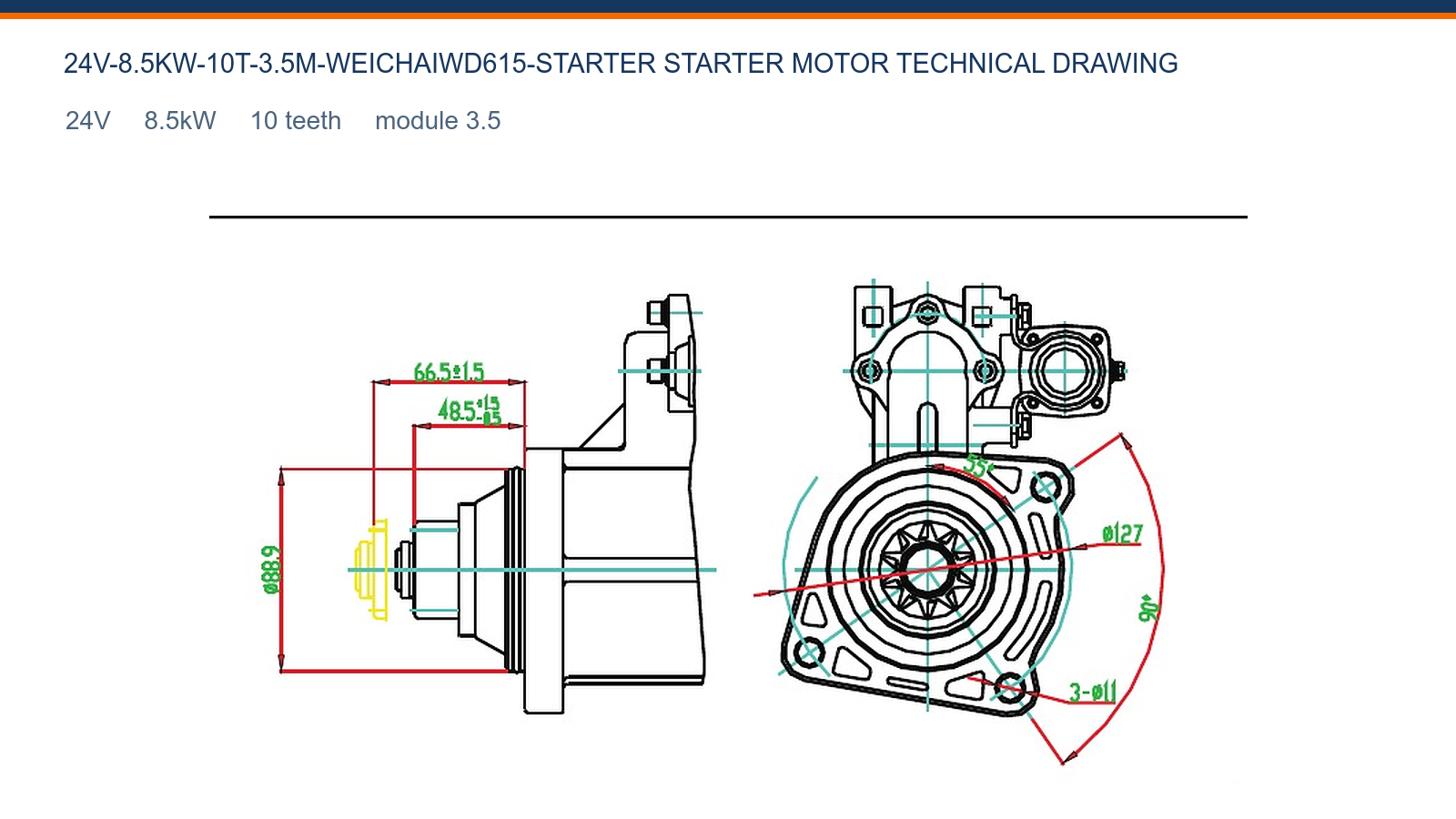

For product managers matching the old starter, the source-faithful technical drawing records the available mounting information for WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T, including Ø127, Ø88.9, 66.5±1.5 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T Aftermarket Replacement and Application

For technical sales teams confirming electrical ratings, WEICHAI WD615 (small 10-tooth version) is the stated application for WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T. Buyers comparing WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T should confirm that the existing starter shares the same 24V system, 8.5kW output and 10T drive before adding the item to a distributor order.

For fitment reviewers reviewing a replacement proposal, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 10T drive and cable-stud direction, and ask for a separate review when one of those features differs.

WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T Wholesale Supply for Distributors and Importers

For wholesale program managers updating a customer item master, buyers can discuss 20 pcs MOQ, production planning around 7–15 days after confirmation, neutral cartons or private-label packaging, and an 18-month warranty under the agreed sales terms.

For sales teams reviewing customer demand, the order specification may include armature, solenoid, no-load or load testing together with label and packaging requirements. This gives receiving teams practical points for sampling a batch without treating appearance alone as proof of fitment.

WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T Starter Motor Buyer FAQ

What should purchasing verify first for WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T inquiry package during fitment review?

For distributors setting packaging requirements, A useful inquiry for WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T includes quantity, destination, required date, WEICHAI WD615 (small 10-tooth version), the full old-unit number and clear photos of the label, drive end, flange geometry and terminal layout. State neutral or private-label packaging needs at the same time. Elecdura can then quote the 24V, 8.5kW, 10T version against a complete item definition.

What evidence best identifies WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T rear-terminal photograph for warehouse identification?

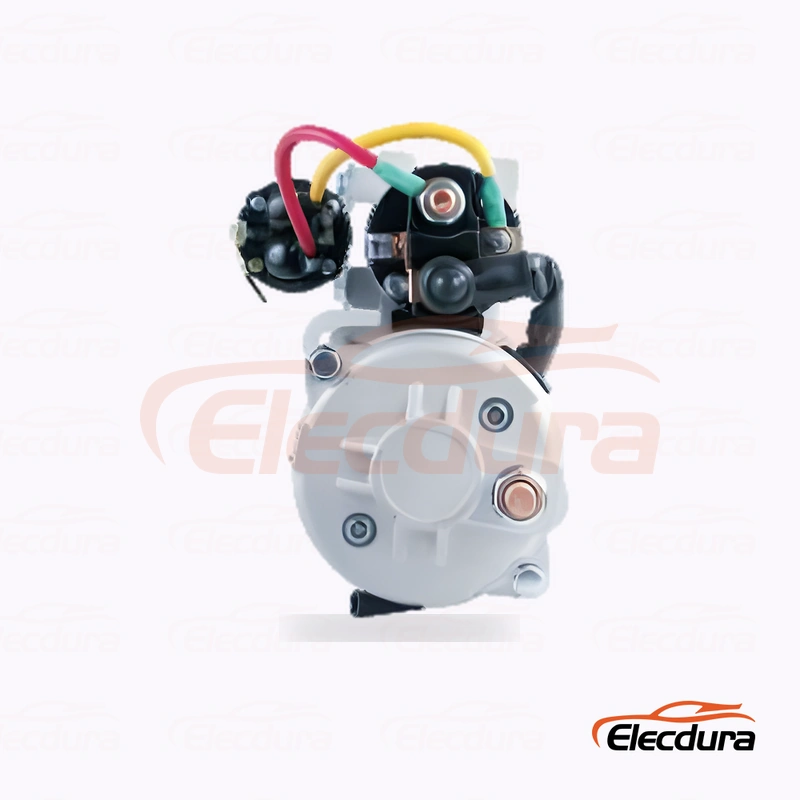

For technical buyers confirming the stated application, use the rear view of WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in WEICHAI WD615 (small 10-tooth version). A correct drive end with an unusable terminal position is not a complete fitment match.

What should purchasing verify first for mounting-hole pattern when the starter being replaced is available?

For engine-parts specialists checking application evidence, A complete mounting-hole callout is not stated for WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T. Photograph the old flange straight on and provide hole count, bore diameter and center spacing from the same datum. Those measured points let purchasing separate close housings without transferring hole data from another starter or assuming that a similar silhouette will bolt in.

How can an importer validate flange clocking for a documented fitment decision?

For fleet-parts buyers preparing an OE-based quote, no separate angular callout is stated for WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T. Align the old and offered starters by the locating face, then photograph bolt positions and terminal clocking from matching viewpoints. This provides a usable orientation check for the purchasing team without assigning an angle taken from another model that only shares a similar flange outline.

Which check should lead WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T solenoid and cable routing for warehouse identification?

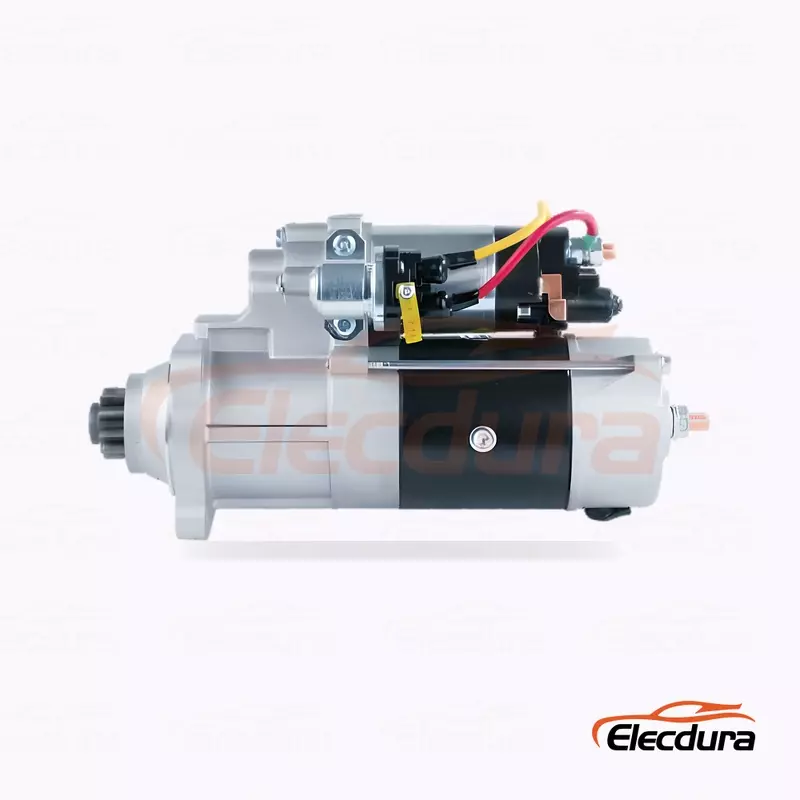

For technical sales teams separating similar housings, use the side and rear photographs of WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T to check solenoid position, battery-stud direction and start-terminal access in WEICHAI WD615 (small 10-tooth version). Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

Which comparison prevents a mismatch for module 3.5 before comparing delivery options?

For fitment reviewers matching the unit taken from service, module 3.5 is part of the gear geometry for WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T. Confirm it together with the 10-tooth count and pinion diameter; another module changes tooth pitch even when the number of teeth is unchanged. The old starter or ring-gear specification should therefore support the module match before a substitute is accepted.

What evidence best identifies WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T stock identification before a purchase order is released?

For wholesale program managers preparing distributor pricing, label the storage location with WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T, 24V, 8.5kW and 10T, and keep a verified drive-end and rear-view image with the item master. Do not combine nearly identical-looking Weichai units when a module, mounting reference or terminal orientation differs. Clear version separation supports faster picking and reduces returns caused by near-match stock.

Which check should lead 8.5kW output on WEICHAI WD615 (small 10-tooth version) before stock is assigned?

For replacement-parts sellers comparing nearby starter versions, the 8.5kW rating belongs to the WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T configuration used for WEICHAI WD615 (small 10-tooth version). Verify the old-unit rating and investigate battery voltage, cable drop and engine turning resistance before choosing another output. A higher or lower kW figure is not an automatic upgrade; it can indicate a separate starter design with different electrical and mechanical requirements.

Request a Wholesale Quote for WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T Heavy-Duty Starter Motor

For warehouse planners building a new starter range, send WEICHAI WD615 (small 10-tooth version) 24V 8.5kW 10T, the WEICHAI WD615 (small 10-tooth version) application, required quantity, destination and packaging preference. Add old-unit photos when available. Elecdura will review the 24V, 8.5kW, 10T version and prepare a product-specific wholesale quotation.
