M93R3042SE Cummins ISDE Starter Motor Wholesale

M93R3042SE Starter Motor Aftermarket Supply for Cummins ISDE engine

M93R3042SE defines stock for Cummins ISDE engine as 24V, 6.0kW, 10T and CW. Confirm 24V 6.0kW 10T module-3.175 starter with the cataloged 47 mm drive-end position before releasing a first order or replacing an approved sample.

For the first M93R3042SE order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

M93R3042SE Starter Motor Specification Table for B2B Sourcing

A warehouse can confirm the M93R3042SE interface without dismantling the unit. Measure Ø89 mm locating diameter and Ø127 mm mounting-hole circle, inspect 3 mounting holes shown as 10.5, 10.5, 10.5 mm, then verify the 47 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For M93R3042SE, record 10T, CW, 24V and 6.0kW, including module 3.175. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

M93R3042SE Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with S9369S, M93R3025SE, M93R3042SE, M93R3042SE-VPP, 5256026, 5263841, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

M93R3042SE Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial M93R3042SE sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved M93R3042SE label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for M93R3042SE continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

M93R3042SE Starter Motor Questions from Commercial Buyers

Before removing M93R3042SE, what should the workshop test under load in a Cummins ISDE regional workshop?

Before fitting M93R3042SE, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Which checks should follow an OE-number match for M93R3042SE in a Cummins ISDE regional sourcing program?

A number match narrows the search but does not finish it. For M93R3042SE, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What should a distributor match before ordering M93R3042SE for Cummins ISDE engine during regional sourcing?

Use the full old-unit number and Cummins ISDE engine record. Compare the 10T pinion, 3 mounting holes shown as 10.5, 10.5, 10.5 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

Which mounting-face points distinguish the specified M93R3042SE version during a Cummins ISDE regional inspection?

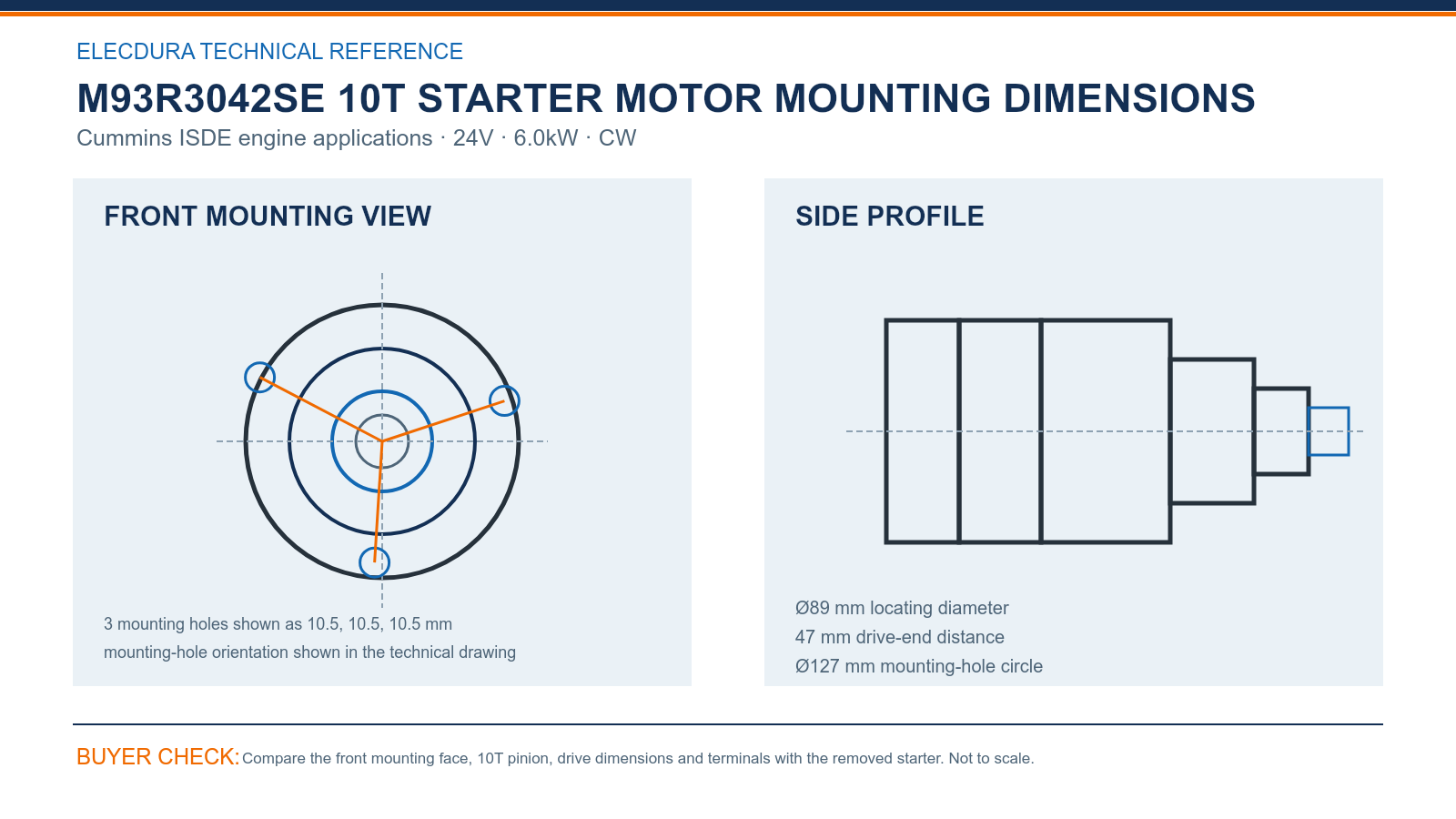

Align the removed starter and M93R3042SE at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 10.5, 10.5, 10.5 mm and 47 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

How can M93R3042SE stock be separated by application risk in a Cummins ISDE regional program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent M93R3042SE usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving M93R3042SE during a Cummins ISDE regional receiving check?

For M93R3042SE, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 10.5, 10.5, 10.5 mm, Ø89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for M93R3042SE in a Cummins ISDE regional sourcing program?

Send the complete OE number, exact Cummins ISDE engine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 6.0kW 10T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review M93R3042SE after installation in a Cummins ISDE regional review?

Keep the carton or product traceability code and note when and where M93R3042SE was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

M93R3042SE Start a Starter Motor Wholesale Enquiry

To discuss M93R3042SE supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
