C4944901 Cummins ISDE180 Starter Motor Wholesale

C4944901 Starter Motor B2B Fitment Guide for Cummins B-series and ISDE180 engine

Cummins engine distributors, bus and equipment fleets and heavy-duty starter importers can source C4944901 for Cummins B-series and ISDE180 engine. Preserve the 10T pinion and 24V 6.0kW 10T module-3.175 configuration assigned to C4944901 and M93R3010SE; do not substitute by engine family or housing appearance alone.

Send the full C4944901 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

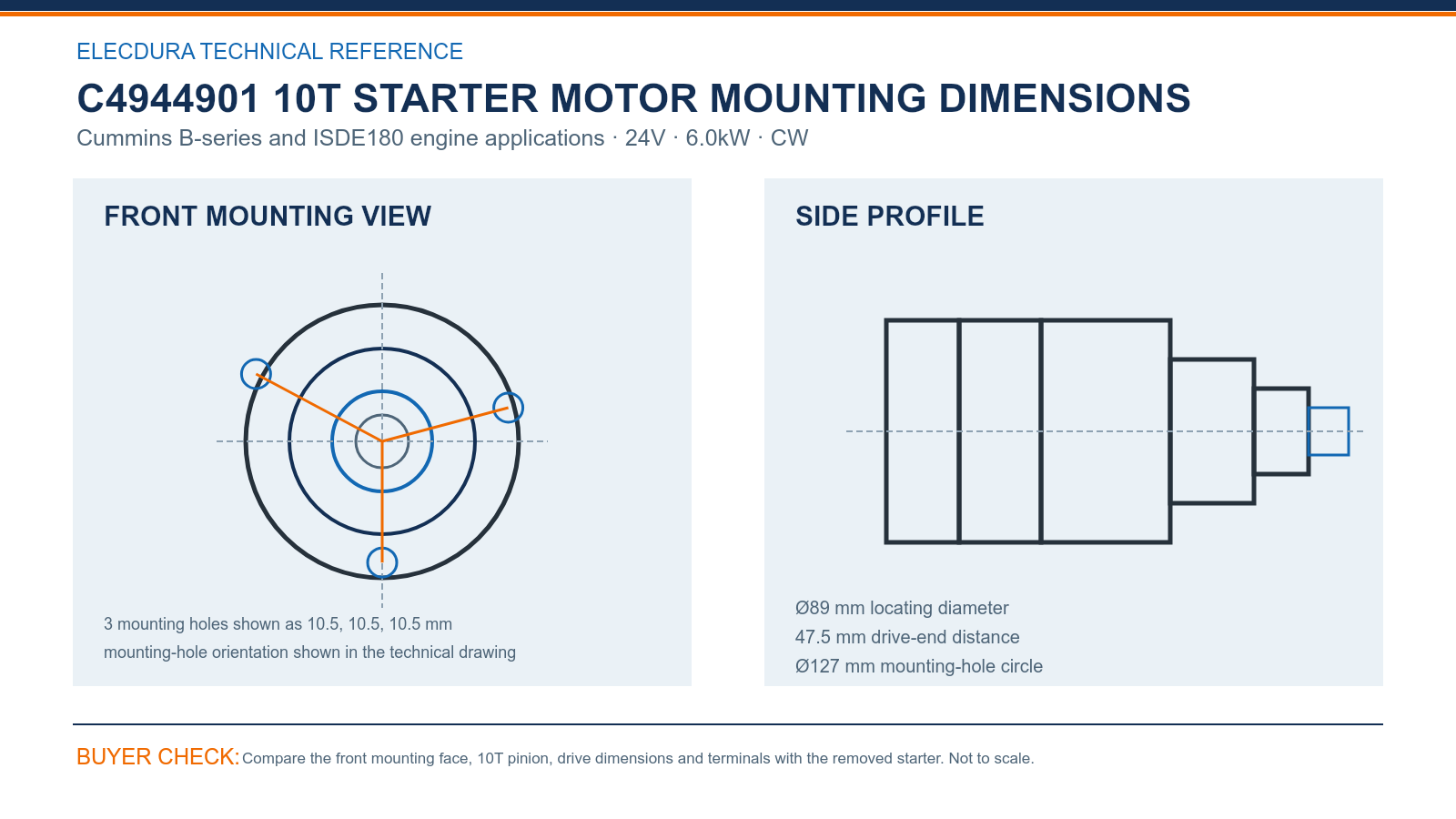

C4944901 Starter Motor Drive-End Drawing for Aftermarket Distributors

For C4944901 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 10.5, 10.5, 10.5 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47.5 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the C4944901 mounting check, verify 24V, 6.0kW, 10T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

C4944901 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: 80623708, 4944901, 5271460, 5313937, 5619999, C4944901, STP1997MH can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 6.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

C4944901 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of C4944901, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted C4944901 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved C4944901 configuration remains defined by 24V, 6.0kW, 10T, CW, mounting geometry and terminals, which should be retained in the purchase record.

C4944901 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming C4944901 during a Cummins ISDE180 dealer inspection?

Align the removed starter and C4944901 at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 10.5, 10.5, 10.5 mm and 47.5 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can C4944901 be selected from the application name alone during dealer sourcing?

Confirm C4944901 with the complete OE number, Cummins B-series and ISDE180 engine record and clear front, side and terminal photographs. Check 10T, 3 mounting holes shown as 10.5, 10.5, 10.5 mm and 47.5 mm drive-end distance so visually related starters stay on separate order lines.

Which checks should follow an OE-number match for C4944901 in a Cummins ISDE180 dealer sourcing program?

A number match narrows the search but does not finish it. For C4944901, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of C4944901 in a Cummins ISDE180 dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing C4944901. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Which operating factors should guide a fleet's C4944901 reserve quantity in a Cummins ISDE180 dealer program?

Review workshop consumption by the stated Cummins B-series and ISDE180 engine population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical C4944901 reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for C4944901 during a Cummins ISDE180 dealer receiving check?

Use a first-lot sample to confirm C4944901, 24V, 6.0kW, 10T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote C4944901 without delay in a Cummins ISDE180 dealer sourcing program?

List C4944901 together with the supported equipment record, 24V, 6.0kW, 10T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for C4944901 in a Cummins ISDE180 dealer review?

For C4944901, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

C4944901 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with C4944901, the supported Cummins B-series and ISDE180 engine record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 6.0kW, 10T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
