4992261 Cummins B5.9 Starter Motor Wholesale Supply

4992261 Starter Motor Aftermarket Supply for Cummins B5.9 and King Long XMQ6900Y

4992261 defines stock for Cummins B5.9 and King Long XMQ6900Y as 24V, 6.0kW, 12T and CW. Confirm 24V 6.0kW 12T module-2.54 starter for the B5.9 and King Long record before releasing a first order or replacing an approved sample.

For the first 4992261 order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

4992261 Starter Motor Specification Table for B2B Sourcing

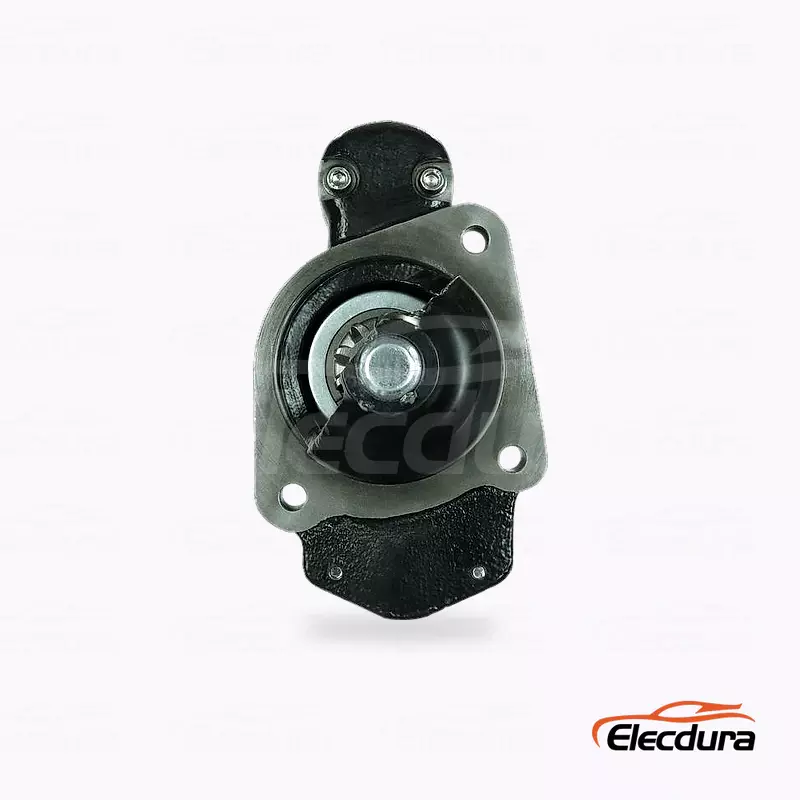

A warehouse can confirm the 4992261 interface without dismantling the unit. Measure Ø89 mm locating diameter and Ø127 mm mounting-hole circle, inspect 3 mounting holes shown as 11, 11, 11 mm, then verify the 47.5 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For 4992261, record 12T, CW, 24V and 6.0kW, including module 2.54. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

4992261 Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with M100R3002SE, M93R3013SE, M93R3013SE-VPP, 4992261, C4992261, STP4133MH, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

4992261 Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial 4992261 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved 4992261 label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for 4992261 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

4992261 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of 4992261 stock in a Cummins B5.9 regional program?

Set service stock by route utilization and preserve the accepted reference group for reorders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How can an importer avoid mixing 4992261 with a similar drive-end version during regional sourcing?

For 4992261, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 12T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

When does a cross-reference related to 4992261 need a separate quotation in a Cummins B5.9 regional sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The 4992261 group is acceptable only when 24V, 6.0kW, 12T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why should voltage-drop results accompany an enquiry for 4992261 in a Cummins B5.9 regional workshop?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for 4992261 installation and for any later service discussion with the supplier.

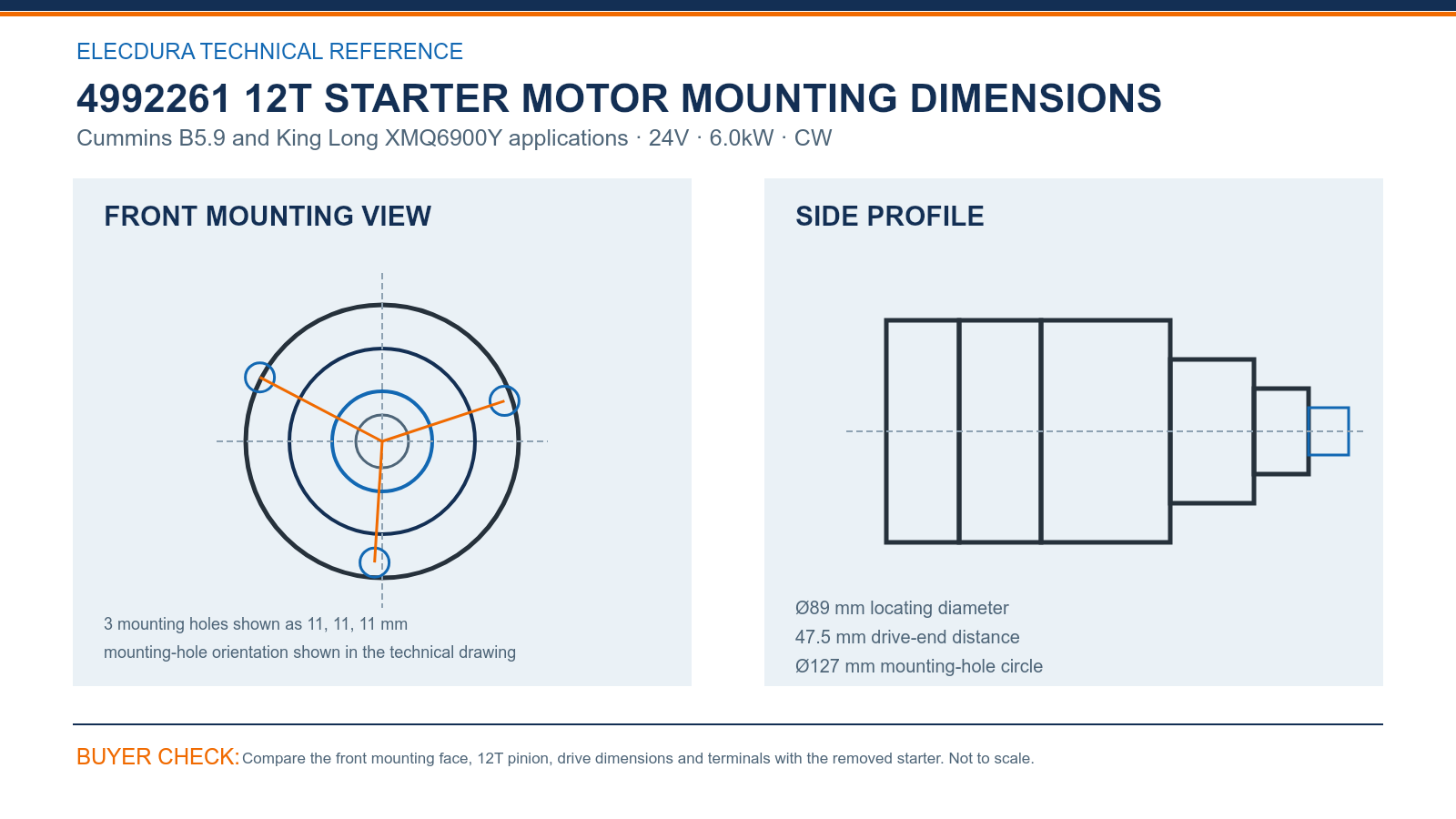

Which dimensions in the 4992261 drawing should receiving teams sample during a Cummins B5.9 regional inspection?

For 4992261, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47.5 mm drive-end distance. Count the 12T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

What receiving records are useful for a shipment of 4992261 during a Cummins B5.9 regional receiving check?

Receiving should verify the 4992261 label, quantity and packaging before opening sampled cartons. Compare the 12T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for 4992261 in a Cummins B5.9 regional sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 4992261, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving 4992261 in a Cummins B5.9 regional review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 4992261 without assuming that every no-crank complaint originates inside the starter.

4992261 Start a Starter Motor Wholesale Enquiry

To discuss 4992261 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
