S9307S Cummins 6BT Starter Motor Wholesale Supply

S9307S Starter Motor Distributor Application Guide for Cummins 6BT 5.9 and KAMAZ 4308 or 43255

For a fleet parts team, S9307S identifies one Cummins 6BT 5.9 and KAMAZ 4308 or 43255 requirement. The 24V 6.0kW 12T module-2.54 unit for the cataloged Cummins and KAMAZ reference group provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S9307S with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S9307S Starter Motor Mounting Dimensions for Distributor Approval

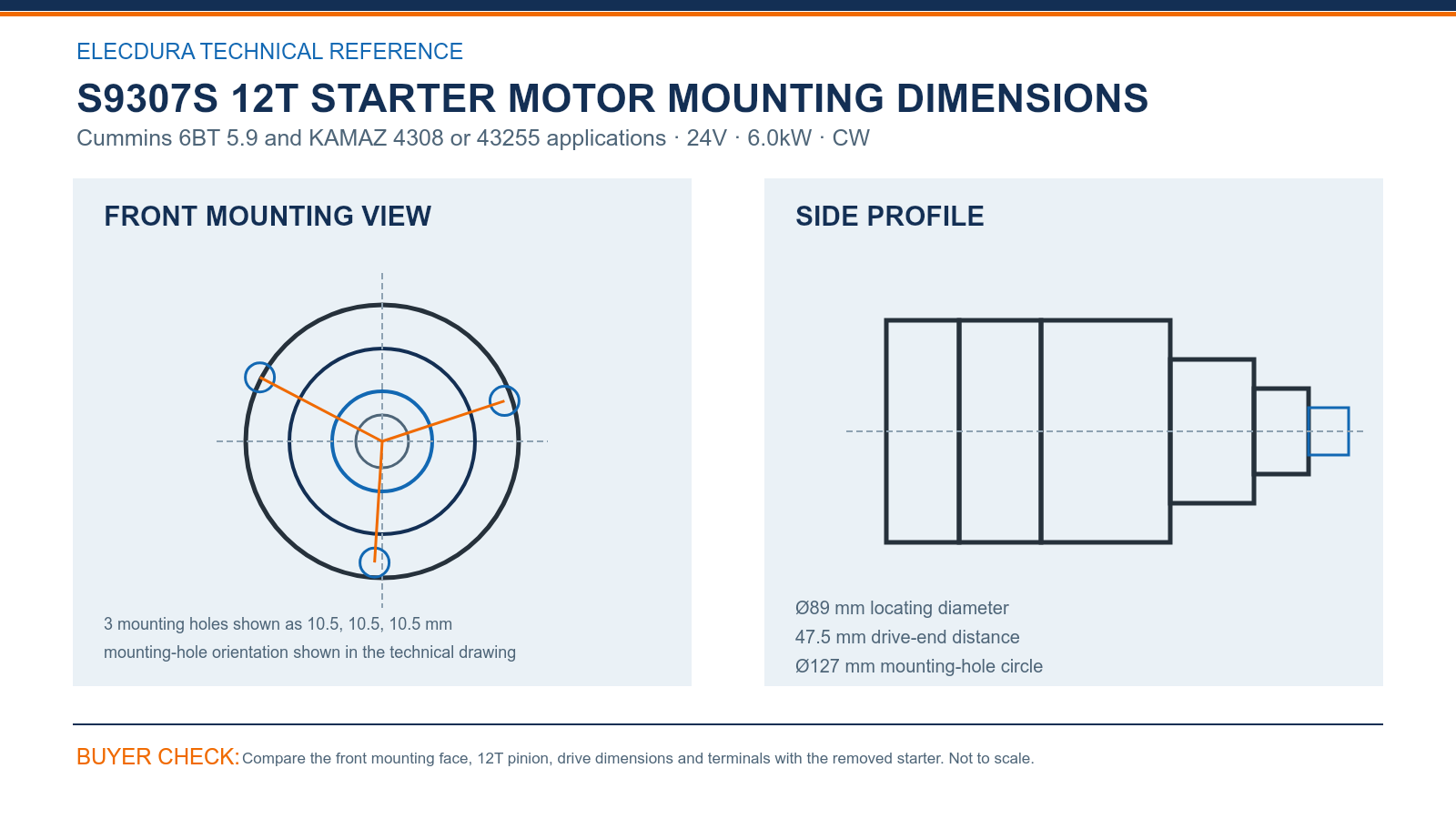

Use the S9307S technical drawing to check Ø89 mm locating diameter, 47.5 mm drive-end distance and Ø127 mm mounting-hole circle. Add the 3 mounting holes shown as 10.5, 10.5, 10.5 mm to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S9307S comparison with 24V, 6.0kW, the 12T drive, module 2.54 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S9307S Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S9307S, 860318GB, M93R3001SE, M93R3001SE-VPP, M93R3002SE, M93R3002SE-VPP, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S9307S Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S9307S, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

State the engine or vehicle record and verify the 12T pinion before accepting a related Prestolite number. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S9307S; the product decision itself still depends on the complete reference, 24V 6.0kW rating, drive end, mounting face and terminal layout.

S9307S Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for S9307S in a Cummins 6BT branch sourcing program?

A number match narrows the search but does not finish it. For S9307S, compare the stated application, electrical output, 12T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What should a distributor match before ordering S9307S for Cummins 6BT 5.9 and KAMAZ 4308 or 43255 during branch sourcing?

Use the full old-unit number and Cummins 6BT 5.9 and KAMAZ 4308 or 43255 record. Compare the 12T pinion, 3 mounting holes shown as 10.5, 10.5, 10.5 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

How can a service team rule out cable or battery faults before fitting S9307S in a Cummins 6BT branch workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S9307S helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Which S9307S dimensions are practical for a warehouse inspection during a Cummins 6BT branch inspection?

For S9307S, check 3 mounting holes shown as 10.5, 10.5, 10.5 mm, Ø89 mm locating diameter and 47.5 mm drive-end distance. Record the 12T pinion, rotation and terminal position so the warehouse can isolate a mixed or incorrectly labelled unit before dispatch.

What demand information helps set a sensible reorder level for S9307S in a Cummins 6BT branch program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S9307S, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

Which physical points should be checked before S9307S enters branch stock during a Cummins 6BT branch receiving check?

For S9307S, match carton and product labels to the purchase order, then sample 24V, 12T, 3 mounting holes shown as 10.5, 10.5, 10.5 mm and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about S9307S in a Cummins 6BT branch sourcing program?

A useful RFQ states S9307S, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned S9307S starter in a Cummins 6BT branch review?

For a service review of S9307S, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S9307S Send a Starter Motor Distributor Enquiry

For a focused S9307S quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
