37566-05200 Mitsubishi S6B Volvo D25A Starter Motor Wholesale

37566-05200 S6B Starter Supply for Industrial Engine Wholesalers

Mitsubishi S6B and Volvo D25A-MT enquiries often arrive under either a Mitsubishi number or a Nikko 0-23000 reference. Starting with 37566-05200 keeps the quotation recognizable to engine rebuilders while the engine plate and mounting view define the actual requirement.

This row has the same broad reference family as another S6B starter in the supplier range, but its photographed external harness and terminal layout remain part of the product comparison. Buyers should confirm those visible features rather than selecting by the OE list alone.

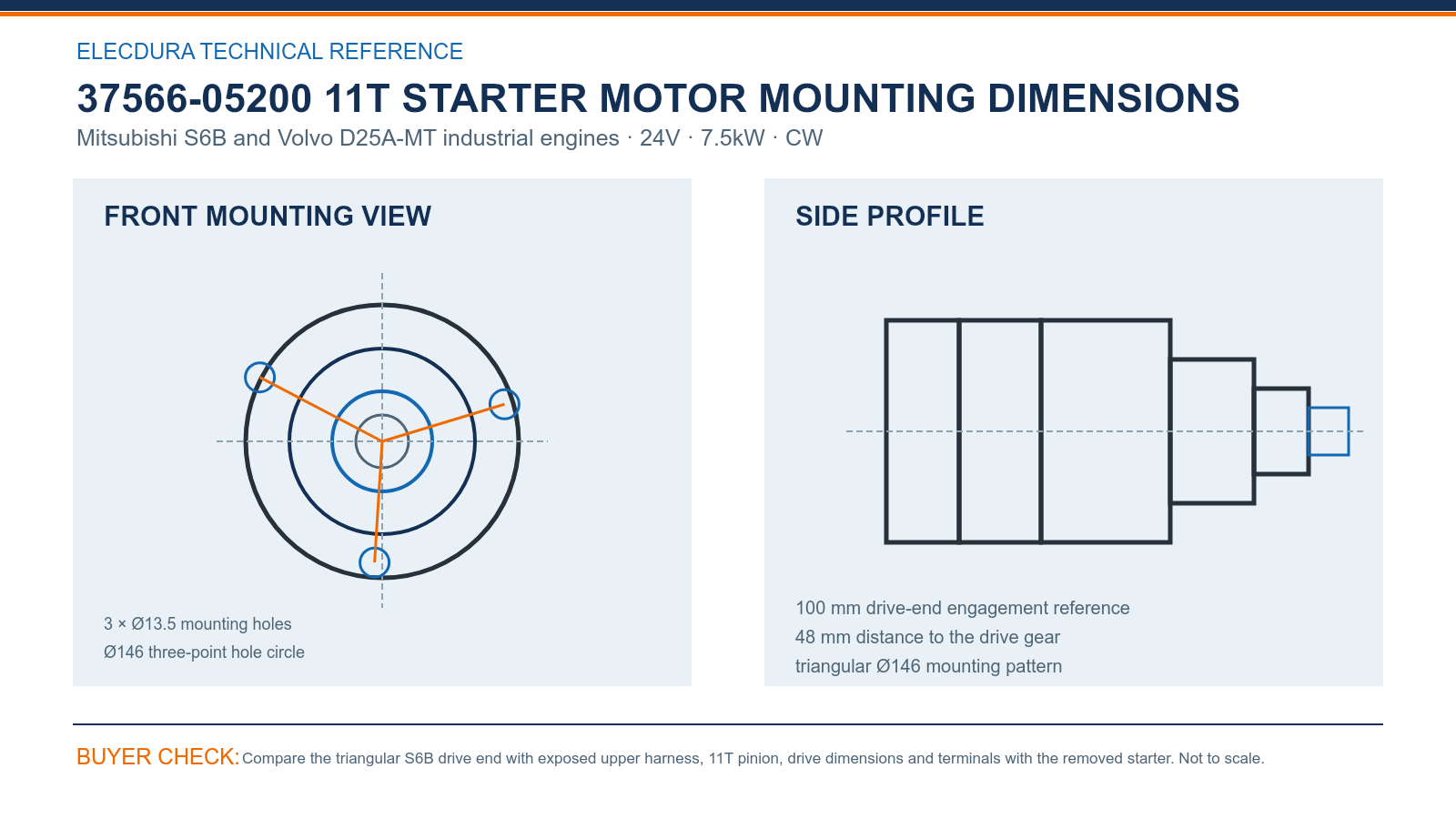

37566-05200 7.5kW Specification and Ø146 Mounting Drawing

The required combination is 24V, 7.5kW, 11T, module 4.233 and clockwise rotation. Keeping the coarse 4.233 module beside the tooth count helps separate this product from a similar S6B listing using a different pinion module.

37566-05200 Mitsubishi S6B Volvo D25A Starter Dimensions for Industrial Buyers — compare the drawing with the removed starter before placing a volume order.

Compare the 100 mm engagement reference, 48 mm distance to the drive gear, three Ø13.5 holes and Ø146 hole circle. Add straight side photographs showing the exposed upper harness, solenoid connections and available installation clearance.

37566-05200 OE Matching for Mitsubishi and Volvo Buyers

The Mitsubishi 37566-05200/15200/35200/45200 group and Nikko 0-23000-7270 through 7277 widen parts searches. Keep the selected OE starting point, engine identity and accepted harness view together when the enquiry becomes a purchase order.

Industrial-engine distributors can serve Mitsubishi and Volvo channels from a confirmed physical version while retaining separate customer-use notes. That keeps a D25A-MT requirement visible instead of reducing every order to a generic S6B label.

37566-05200 Export Packing and Starter Testing Video

For the first shipment, inspect the 11T pinion, three-hole face, cable protection, solenoid studs and body supports. Long heavy starters need secure carton support beneath the body so the nose and wiring do not carry transport loads.

Elecdura's video shows starter assembly and electrical testing for B2B supply. Industrial-engine buyers can use it to review production capability while setting their own 37566-05200 sampling, labeling, packing and delivery requirements.

37566-05200 Starter Motor FAQs for S6B and D25A-MT Buyers

What engine details should accompany a 37566-05200 enquiry?

State whether the unit serves a Mitsubishi S6B or Volvo D25A-MT engine, then include the engine plate and all readable starter markings. Add square mounting, cable-side and terminal photographs. This combination lets Elecdura compare the correct 24V 7.5kW 11T version without turning a shared reference list into a universal fitment claim.

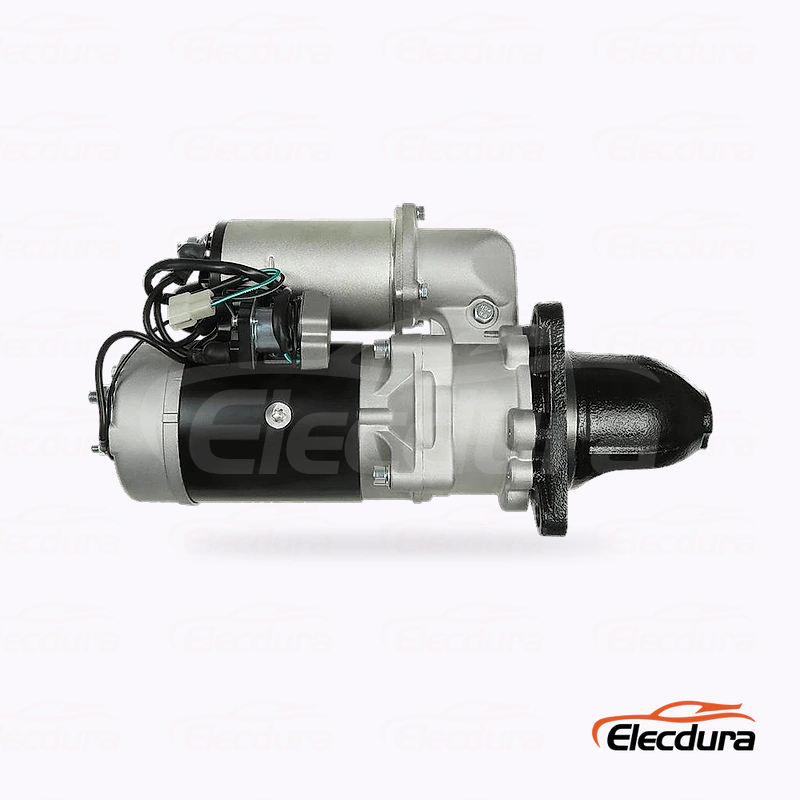

Why should buyers photograph the upper harness on 37566-05200?

The supplier image shows an exposed upper harness and terminal cluster that can affect cable reach and installation clearance. A straight side photograph of the removed unit reveals whether those features agree. It also helps receiving teams check that transport supports and cable protection match the version accepted before a wholesale order.

Which mounting values identify the 37566-05200 drive end?

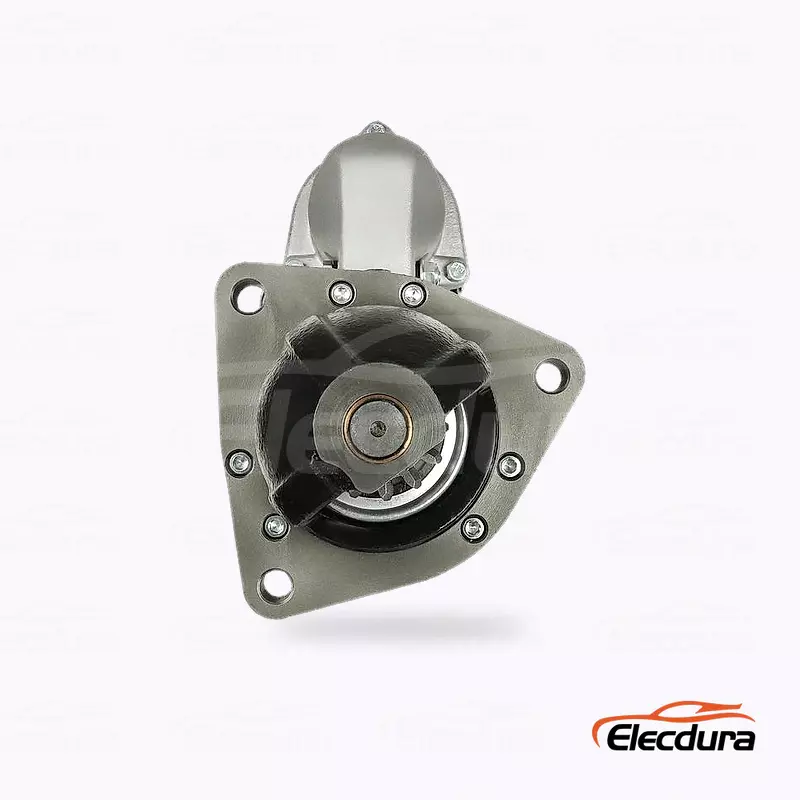

Use the 100 mm engagement reference, 48 mm distance to the drive gear, three Ø13.5 holes and Ø146 circle as one dimensional set. Check the 11T module-4.233 pinion at the same time. A front image taken square to the flange makes these measurements easier to compare remotely.

Can 0-23000-7274 support a 37566-05200 parts search?

Yes. 0-23000-7274 belongs to the useful Nikko lookup family associated with 37566-05200, but it should start the search rather than finish the match. Keep the S6B or D25A-MT engine identity, 11T module-4.233 drive, mounting circle and accepted harness view beside the cross-reference for purchasing review.

Why must module 4.233 remain on the S6B quotation?

Eleven teeth do not identify the pinion geometry by themselves. Module 4.233 separates this product from another S6B version that carries a different module while sharing several market references. Put the tooth count and module together on the quotation, carton label and receiving sheet to prevent silent substitution.

What deserves attention on the first 37566-05200 shipment?

Open samples from different cartons and compare the 11T pinion, locating area, three-hole face, upper harness, solenoid studs and rating label with the accepted product. Check that body supports carry the motor rather than the nose or wiring. Save the sampled images with the delivery lot for later replenishment.

How should a distributor manage Volvo D25A-MT demand separately?

Keep Volvo D25A-MT quantities and engine details on their own customer line even if the confirmed physical starter also serves Mitsubishi S6B demand. That preserves the application behind each forecast and branch transfer. A shared product can then be stocked without presenting every S6B-related reference as automatic Volvo fitment.

What commercial information helps Elecdura quote 37566-05200?

Include the engine model, complete old-starter number, mounting and harness photographs, immediate quantity, annual forecast, packing preference, required date and destination. Mention any private-label or carton-marking need. Elecdura can then review the physical version and prepare wholesale pricing around a realistic delivery and packaging plan.

Request 37566-05200 S6B Starter Motor Wholesale Pricing

Email the Mitsubishi S6B or Volvo D25A-MT engine plate, every readable starter number, straight mounting and harness photographs, quantity, packing request and destination to info@elecdurauto.com. Elecdura will review 37566-05200 and prepare wholesale pricing.
