3756605200 Mitsubishi HD S6B Starter Motor Distributor

3756605200 HD S6B Starter Supply for Engine Distributors

Mitsubishi heavy-engine buyers may recognize 3756605200 or a 023000727x number, yet the module-3.5 pinion is the commercial reason to keep this product separate. A precise shelf description protects rebuilders from receiving the wrong gear form.

Another S6B starter in the range uses the same 24V, 7.5kW and 11T headline but a different pinion module. Confirm module 3.5, axial positions and the reinforced triangular drive end rather than merging the two products by cross-reference.

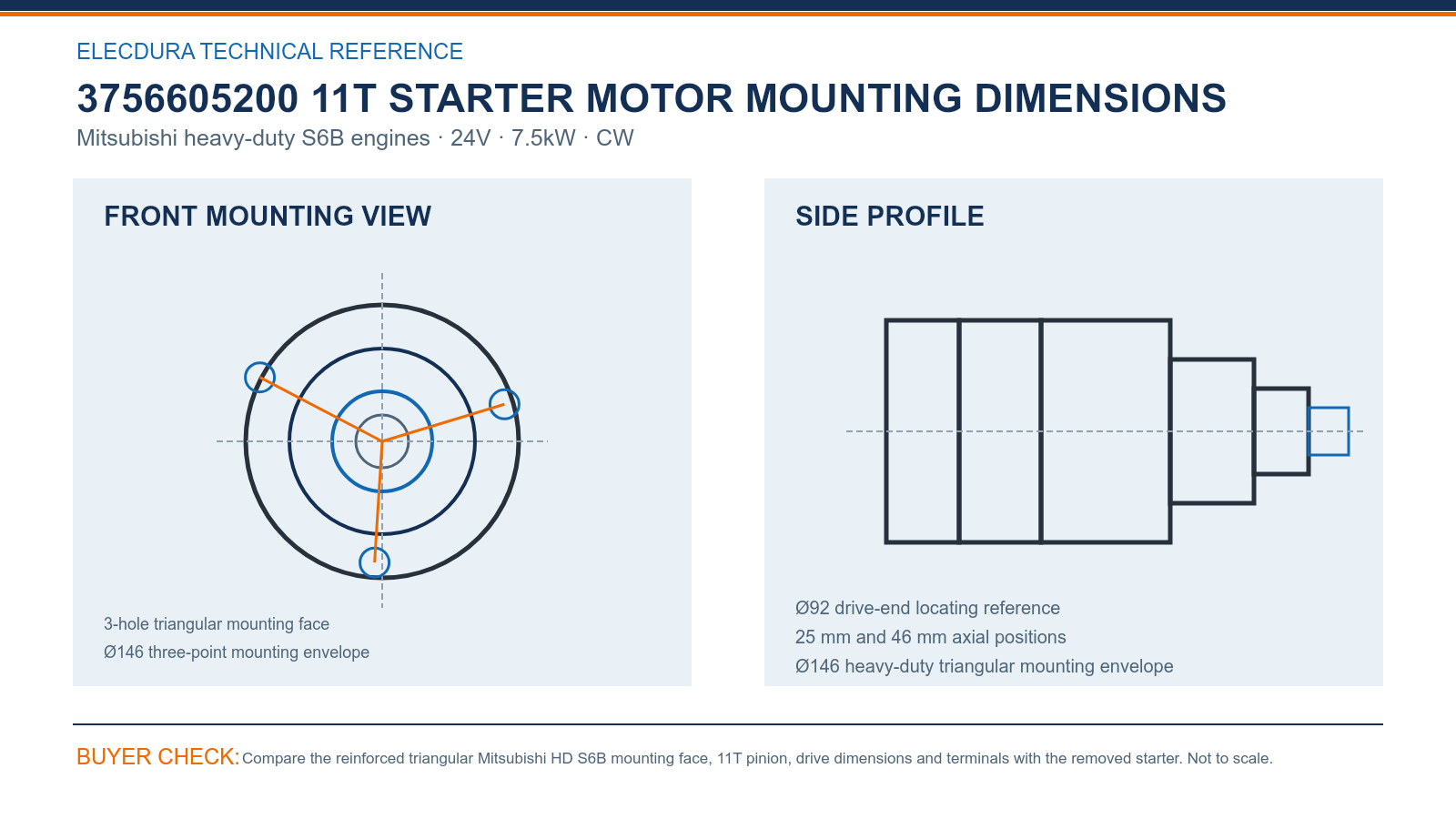

3756605200 Module-3.5 Drive and Ø146 Face Drawing

This unit combines 24V, 7.5kW, 11T, module 3.5 and clockwise rotation. Module 3.5 belongs beside the tooth count on every quotation because it changes the pinion geometry even when the remaining headline data looks familiar.

3756605200 Mitsubishi HD S6B Starter Dimensions for Engine Distributors — compare the drawing with the removed starter before placing a volume order.

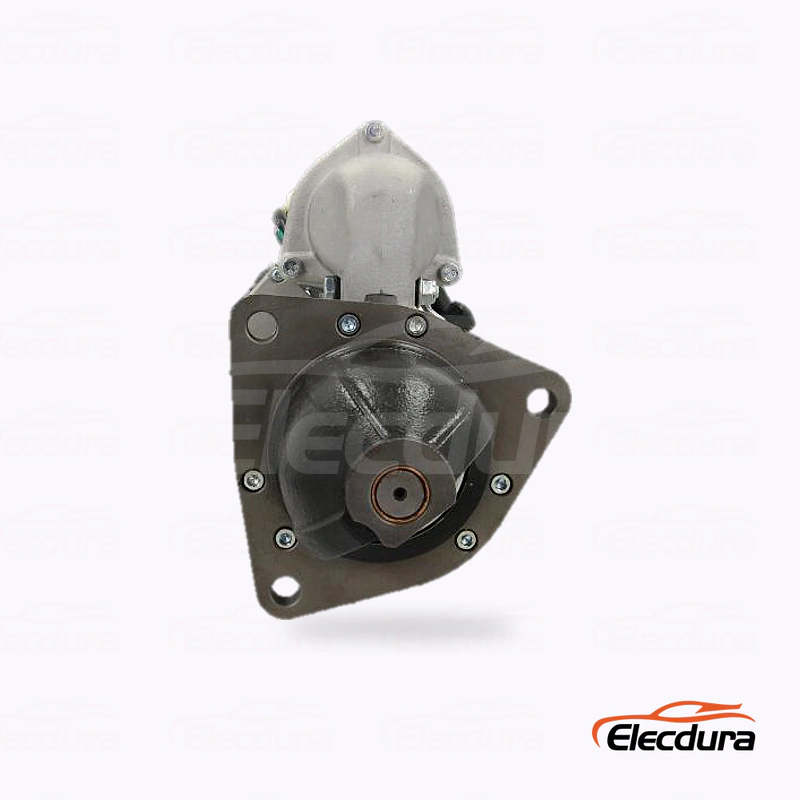

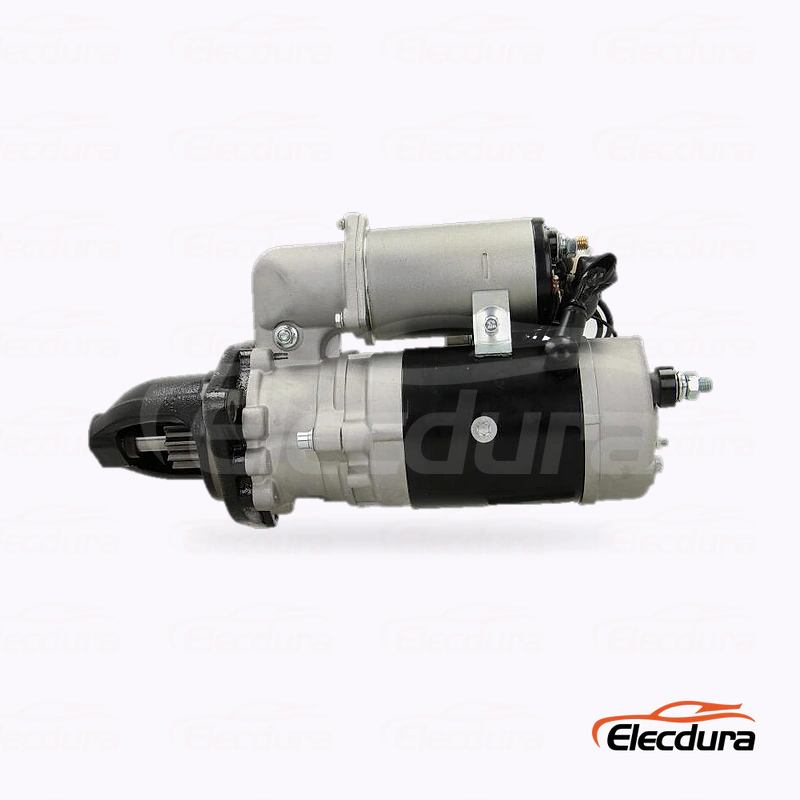

Use the drawing to compare the Ø92 locating reference, 25 mm and 46 mm axial positions, three-point face and Ø146 envelope. Straight photographs should also show the upper solenoid bracket and rear terminal spacing.

3756605200 Reference Separation for Mitsubishi Parts Buyers

3756605200 through 3756645200 and Nikko 0230007270 through 7274 support the search. The accepted module-3.5 drive and Mitsubishi HD S6B engine identity decide whether this separate product line is appropriate.

Distributors handling several S6B variants should place the module on the bin label and retain the old-unit pinion image. That keeps sales teams from treating a common OE group as proof that all S6B starters are identical.

3756605200 Shipment Inspection and Factory Testing Video

Inspect sample cartons for the 11T gear, locating section, three-hole face, solenoid bracket, terminals and rating label. Use body supports and a pinion guard so heavy international shipments arrive ready for receiving checks.

The Elecdura video presents starter production and electrical testing for B2B buyers. Mitsubishi distributors can assess manufacturing support while defining 3756605200-specific dimensional sampling, packing and repeat-order labels.

3756605200 Starter Motor FAQs for Mitsubishi HD S6B Buyers

Why is module 3.5 the key detail for 3756605200?

This S6B product shares voltage, power, tooth count and several references with another starter, so module 3.5 becomes a decisive drive characteristic. Confirm it with the old pinion or sample. Put 11T and module 3.5 together on sales, purchasing and receiving documents to prevent the two S6B lines from being merged.

What do the 25 mm and 46 mm positions show?

The 25 mm and 46 mm dimensions describe the pinion and drive-end positions relative to the mounting face. Compare both with the removed starter while also checking the Ø92 locating section and Ø146 envelope. This dimensional set gives remote buyers a stronger basis than a single 3756605200 reference.

How should a buyer identify the Mitsubishi HD S6B application?

Send the heavy-duty S6B engine plate, equipment type and old starter label, then add straight images of the pinion, mounting face and terminals. Confirm 24V, 7.5kW, 11T, module 3.5 and CW. These details separate this industrial-engine requirement from other Mitsubishi S6B product variants during sourcing.

Can 0230007272 prove that 3756605200 will fit?

No. 0230007272 supports the reference search but cannot prove the module, axial position or outer arrangement. Match the module-3.5 pinion, Ø92 locating area, 25/46 mm positions and engine identity. Keep the cross-reference as supporting information rather than the sole basis for a volume order decision.

How can receiving staff verify the module-3.5 product?

Use the buyer-confirmed sample or a measured old pinion to check tooth form, then verify the 11T count, label, locating section, axial outline and terminals. Place a module-3.5 identifier on the bin after acceptance. This helps prevent later mixing with a module-4.233 S6B starter in storage.

What should an engine rebuilder retain for repeat orders?

Save the S6B engine plate, complete 3756605200 reference group, measured pinion information and accepted front and side photographs. Add the delivery lot and any customer-specific cable note. The next order can then be compared with the same physical baseline instead of restarting from a broad engine description.

Which areas need protection during export shipment?

Guard the pinion and locating section, cover the terminals and support the motor body away from the solenoid bracket. Prevent the upper wiring from rubbing against metal or carton surfaces. Moisture-resistant wrapping and clear 3756605200/module-3.5 labeling are useful when cartons pass through several warehouses or depots.

What information should accompany a 3756605200 price request?

Include the Mitsubishi HD S6B engine details, old-unit numbers, a measurable pinion image, mounting and terminal photographs, quantity, packing choice, forecast and destination. State that the request is for the module-3.5 version. Elecdura can then review the product and prepare distributor pricing without confusing it with another S6B row.

Request 3756605200 Mitsubishi Starter Distributor Pricing

Send the Mitsubishi HD S6B engine plate, 3756605200 or other readable numbers, clear pinion, front and terminal photographs, quantity, packing preference and destination to info@elecdurauto.com. Elecdura will confirm the module-3.5 version and quote.
